Shaker Maximum Load kg
IKA OS10
|
 |
|
- Compact, flat orbital shaker with an ideal swivel motion
- Electrical adjustment of speed
- Time switch clock from 5 - 50 min or continuous operation
- LED display for speed and time setting
- AS 260.1 universal attachment (accessory) allows to use almost all shapes and sizes of vessels
- With constant torque through micro-processor-driven control
- Drive secured against overload
- Intrinsically safe by permanent supervision of all electric components
- Price without attachment
|
|

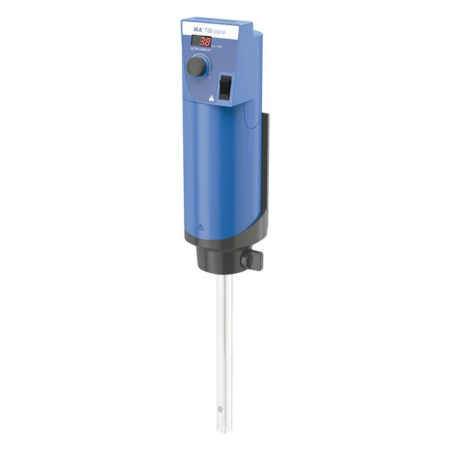

IKA ULTRA-TURRAX T50 Basic
|
High-performance dispersing instrument for volumes from 0.25 - 30 l (H2O).
- Three types of shaft bearings
- Several rotor-stator configurations
- Agitator shaft R 50 allows the use of the T 50 basic as a ¿high-speed stirrer¿ (not included in delivery)
- Infinitely variable speed control, for continuous operation
- Reproducible operations due to constant speed even with viscosity changes
- Large selection of dispersing elements
- Plug-in connectors facilitate exchange of dispersing elements
- Electronic safety circuit and smooth start
- As standard, the T 50 basic is equipped with a connection for the revolution counter
- Wide range of dispersing elements (not included in delivery) |
|
|
Technical Data
| T 50 basic ULTRA-TURRAX® |
| Motor rating input |
1100 W |
| Motor rating output |
700 W |
| Volume range min. (H2O) |
0.25 l |
| Volume range max. (H2O) |
30 l |
| Viscosity max. |
5000 mPas |
| Speed range |
4000 - 10000 1/min |
| Speed deviation |
1 % |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
72 dB(A) |
| Extension arm diameter |
16 mm |
| Extension arm length |
220 mm |
| Process type |
batch |
| Dimensions (W x H x D) |
125 x 367 x 120 mm |
| Weight |
6 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| Voltage |
230 / 115 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
1100 W |
| Shaking motion: |
circular |
| Shaking stroke: |
10 mm |
| Perm. agitation weight (with attachment): |
7,5 kg |
| Motor rating input: |
45 W |
| Permissible ON-time: |
100 % |
| Speed range infinitely adjustable: |
0 - 500 rpm |
| Speed display: |
LED line |
| Time switch clock: |
5 - 50 min |
| Dimensions (W x D x H): |
360 x 420 x 98 mm |
| Weight: |
8,1 kg |
|
Shaker Maximum Load 2kg
IKA OS5
|
 |
|
- Low-noise, wear-free
- Electrical adjustment of speed
- Time switch clock from 5 - 50 min or continuous operation
- LED display for speed and time setting
- AS 130.1 universal attachment allows to use almost all shapes and sizes of vessels.
- With constant torque through micro-processor-driven control
- Drive secured against overload
- Intrinsically safe by permanent supervision of all electric components
- Price without attachment
|
| Shaking motion: |
circular |
| Shaking orbit: |
Ø 4 mm |
| Permissible agitation weight (with attachment): |
2 kg |
| Motor rating input: |
45 W |
| Permissible ON-time: |
100 % |
| Speed range infinitely adjustable: |
80 - 800 rpm |
| Speed display: |
LED line |
| Time switch clock: |
5 - 50 min |
| Dimensions without attachment (W x D x H): |
270 x 316 x 98 mm |
| Weight: |
7,7 kg |
IKA Ultra-Turrax T18
IKA Ultra Turrax T18 - L004638
The slender design is for stand operation
Speed range: 6,000 - 30,000 rpm
Operation range: 10 - 2000 ml
The high speed range allows work at high peripheral speeds
| Ultra Turrax T18 |
| Bracket Diameter |
13 mm |
| Dispersing Tools |
yes |
| Ex-Proof |
not available |
| Interface |
not available |
| Max. Ambient Temperature |
40 °C |
| Max. Speed |
30000 1/min |
| Max. Working Volume |
0.8 |
| Min. Ambient Temperature |
5 °C |
| Min. Batch Volume |
.001 L |
| Min. Speed |
6000 1/min |
| Motor Power Input |
300 W |
| Motor Power Output |
160 W |
| Overload Protection |
electronic |
| Permissible Humidity |
80 % |
| Process Type |
batch |
| Protection Class |
IP 40 |
| Regulation Of Speed |
stepless |
| Speed Display |
scale |
|

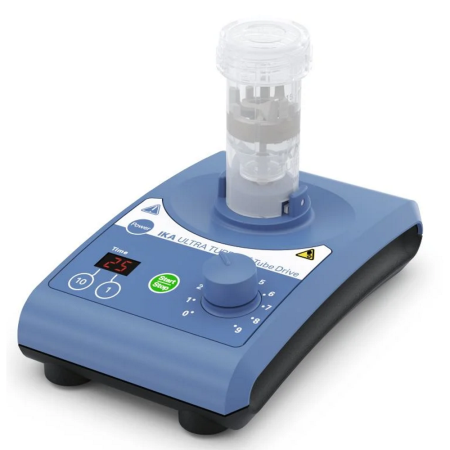

IKA ULTRA-TURRAX Tube Drive Workstation
|
Technical Data
Workstation consists of ULTRA TURRAX® Tube Drive, 2 x ST-20, 2 x DT-20 incl. 1 removal hook for removal the rotor-stator unit, 2 x BMT-20 G / S, power supply.
World first: Universal Disposable Disperser System with hermetically sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odour substances
Application areas: Human medicine, pathology, veterinary medicine, animal hygiene insti-tutes, Clinical diagnosis research, Foodstuffs testing laboratories, Diagnostic laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biol-ogy, Immunology, Chemistry, Cosmetics
- World first
- High level of user safety
- No possibility of cross-contamination
- Quick and simple
- Hygienic and clean
- Disperse, stir, and grind using a single drive unit
- Hermetically sealable disposable sample tubes
- Covers with pierceable membranes available on request
- Volumes from 2-15 ml
- Suitable for individual use and use in series
- Standardised working
- Anti-locking function
- Increases safety due to low voltage (24 V)
- Chemical-resistant plastic
- Worldwide service guaranteed by IKA®
- Patent pending |
|
|
Technical Data
| IKA ULTRA-TURRAX® Tube Drive Workstation |
| Motor rating input |
20 W |
| Motor rating output |
17 W |
| Viscosity max. |
5000 mPas |
| Speed range |
300 - 6000 1/min |
| Speed deviation |
10 % |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
50 dB(A) |
| Process type |
batch |
| Dimensions (W x H x D) |
100 x 40 x 160 mm |
| Weight |
0.75 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
20 W |
| DC Voltage |
24 V= |
| Power input |
800 mA |
|
IKA ULTRA-TURRAX Tube Drive
|
World first: Universal Disposable Disperser System with hermetically sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odour substances
Application areas: Human medicine, pathology, veterinary medicine, animal hygiene insti-tutes, Clinical diagnosis research, Foodstuffs testing laboratories, Diagnostic laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biol-ogy, Immunology, Chemistry, Cosmetics
- World first
- High level of user safety
- No possibility of cross-contamination
- Quick and simple
- Hygienic and clean
- Disperse, stir, and grind using a single drive unit
- Hermetically sealable disposable sample tubes
- Covers with pierceable membranes available on request
- Volumes from 2-15 ml
- Suitable for individual use and use in series
- Standardised working
- Anti-locking function
- Increases safety due to low voltage (24 V)
- Chemical-resistant plastic
- Worldwide service guaranteed by IKA®
- Patent pending |
|
|
Technical Data
| IKA ULTRA-TURRAX® Tube Drive |
| Motor rating input |
20 W |
| Motor rating output |
17 W |
| Viscosity max. |
5000 mPas |
| Speed range |
300 - 6000 1/min |
| Speed deviation |
10 % |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
50 dB(A) |
| Process type |
batch |
| Dimensions (W x H x D) |
100 x 40 x 160 mm |
| Weight |
0.75 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
20 W |
| DC Voltage |
24 V= |
| Power input |
800 mA |
The high-performance T 65 D dispersing instrument has been designed for typical pilot plant stations quantities from 2 - 50 l (H2O).
- Three rotor-stator configurations for a variety of applications (not included with delivery)
- Plug-in connectors facilitate exchange of dispersing elements
- Dispersing instruments for the production area: ask for our process technology catalogs
- Cables and plugs not included with delivery |
|
|
Technical Data
| T 65 D ULTRA-TURRAX® |
| Motor rating input |
1800 W |
| Motor rating output |
1500 W |
| Volume range min. (H2O) |
2 l |
| Volume range max. (H2O) |
50 l |
| Viscosity max. |
5000 mPas |
| Speed max. |
7200 1/min |
| Noise without element |
75 dB(A) |
| Process type |
batch |
| Dimensions (W x H x D) |
190 x 380 x 580 mm |
| Weight |
28 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 54 |
| Voltage |
3 x 400 Y / 3 x 230 V |
| Frequency |
50 Hz |
| Power input |
1800 W |
|
IKA ULTRA-TURRAX T50 Basic
|
High-performance dispersing instrument for volumes from 0.25 - 30 l (H2O).
- Three types of shaft bearings
- Several rotor-stator configurations
- Agitator shaft R 50 allows the use of the T 50 basic as a ¿high-speed stirrer¿ (not included in delivery)
- Infinitely variable speed control, for continuous operation
- Reproducible operations due to constant speed even with viscosity changes
- Large selection of dispersing elements
- Plug-in connectors facilitate exchange of dispersing elements
- Electronic safety circuit and smooth start
- As standard, the T 50 basic is equipped with a connection for the revolution counter
- Wide range of dispersing elements (not included in delivery) |
|
|
Technical Data
| T 50 basic ULTRA-TURRAX® |
| Motor rating input |
1100 W |
| Motor rating output |
700 W |
| Volume range min. (H2O) |
0.25 l |
| Volume range max. (H2O) |
30 l |
| Viscosity max. |
5000 mPas |
| Speed range |
4000 - 10000 1/min |
| Speed deviation |
1 % |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
72 dB(A) |
| Extension arm diameter |
16 mm |
| Extension arm length |
220 mm |
| Process type |
batch |
| Dimensions (W x H x D) |
125 x 367 x 120 mm |
| Weight |
6 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| Voltage |
230 / 115 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
1100 W |
Homogeniser IKA T25 digital ultra-turrax electronic speed control 1-2000ml
High-performance dispersing instrument for volumes from 1 - 2.000 ml (H2O).
The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.
• Three types of shaft bearings
• Standard version with digital display
• Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results
• Wide range of dispersing elements (not included with delivery)
Technical Specifications
| Motor rating input [W] |
500 |
| Motor rating output [W] |
300 |
| Volume range min. (H2O) [l] |
0.001 |
| Volume range max. (H2O) [l] |
2 |
| Viscosity max. [mPas] |
5000 |
| Speed range [1/min] |
3400 - 24000 |
| Speed deviation [%] |
1 |
| Speed display [-] |
LED |
| Speed control [-] |
stepless |
| Noise without element [dB(A)] |
73 |
| Extension are diameter [mm] |
13 |
| Extension arm length [mm] |
175 |
| Process type [-] |
batch |
| Dimentions (W x H x D) [mm] |
65 x 240 x 80 |
| Weight [kg] |
1.6 |
| Permissible ambient temperature [°C] |
5 - 40 |
| Permissible relative moisture [%] |
80 |
| Protection class according to DIN EN 60529 [-] |
IP 20 |
| RS 232 interface [-] |
no |
| Analog output [-] |
no |
| Voltage [V] |
220 - 240 / 100 - 120 |
| Frequency [Hz] |
50/60 |
| Power input[W] |
500 |
IKA ULTRA TURRAX T25 Digital Homogenizer / Disperser / Homogeniser
T 25 digital ULTRA-TURRAX®
The new ULTRA -TURRAX® high-performance disperser by IKA®
- For volumes of 1 to 2.000 ml (H2O)
- The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics
- Three types of shaft bearings
- Standard version with digital display
- Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results
Ident. No. 3565000
| T 25 digital ULTRA-TURRAX® |
| Motor rating input |
500 W |
| Motor rating output |
300 W |
| Volume range min. (H2O) |
0.001 l |
| Volume range max. (H2O) |
2 l |
| Viscosity max. |
5000 mPas |
| Speed range |
3400 - 24000 1/min |
| Speed deviation |
1 % |
| Speed control |
stepless |
| Speed display |
LED |
| Noise without element |
73 dB(A) |
| Extension arm diameter |
13 mm |
| Extension arm length |
175 mm |
| Process type |
batch |
| Dimensions (W x H x D) |
65 x 240 x 80 mm |
| Weight |
1.6 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| RS 232 interface |
no |
| Analogue output |
no |
| Voltage |
220 - 240 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
500 W |
Homogeniser IKA T18 basic ultra-turrax electronic speed control 1-1500ml
The new ULTRA -TURRAX® high-performance disperser by IKA®
• For volumes of 1 to 1.500 ml (H2O)
• A wide speed range allows you to work at high circumferential speeds
• Electronic speed control
• Electronic overload protection- Quick release button for dispersing element
• As standard, the T 18 is equipped with a connection for a revolution counter
Technical Specifications
| Motor rating input |
500 W |
| Motor rating output |
300 W |
| Volume range min. (H2O) |
0.001 l |
| Volume range max. (H2O) |
1.5 l |
| Viscosity max. |
5000 mPas |
| Speed range |
3500 - 24000 rpm |
| Speed deviation |
1 % |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
73 dB(A) |
| Extension arm diameter |
13 mm |
| Extension arm length |
175 mm |
| Process type |
batch |
Dimensions
(W x H x D) |
65 x 240 x 80 mm |
| Weight |
1.6 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 20 |
| RS 232 interface |
no |
| Analog output |
no |
| Voltage |
220 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
500 W |
|
IKA ULTRA-TURRAX T10 Basic
|
New, competitively priced dispersing instrument for volumes of 0,5 to 100 ml. A wide speed range allows you to work at high circumferential speeds even with small rotor diameters. Perfect ergonomic finish.
- Immense speed stability with various media thanks to high performance 125 Watt drive
- Ideal for manual operation thanks to its light weight and ergonomic form
- Extremely mobile thanks to direct mains operation (no transformer required)
- Stainless steel dispersing elements (5 mm, 8 mm and 10 mm diameter) canbe cleaned quickly and easily as they can be dismounted without tools
- Plastic disposable dispersing elements in two sizes, particularly suitable for PCR analysis
- Quick-release coupling makes changing the dispersing elements easy
Included with delivery:
- clamp R 200
- storage case, empty (for drive, dispersing elements and spare seals)
Please order dispersing elements separately |
|
|
Technical Data
| T 10 basic ULTRA-TURRAX® |
| Motor rating input |
125 W |
| Motor rating output |
75 W |
| Volume range min. (H2O) |
0.0005 l |
| Volume range max. (H2O) |
0.1 l |
| Viscosity max. |
5000 mPas |
| Speed range |
8000 - 30000 1/min |
| Speed control |
stepless |
| Speed display |
scale |
| Noise without element |
65 dB(A) |
| Extension arm diameter |
8 mm |
| Extension arm length |
100 mm |
| Process type |
batch |
| Power-on time ON |
10 min |
| Power-om time OFF |
5 min |
| Dimensions (W x H x D) |
46 x 201 x 57 mm |
| Weight |
0.4 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 30 |
| Voltage |
230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
125 W |
IKA T8 ULTRA-TURRAX
Hand-held disperser for small volumes from 0.5 ml upwards
Rotor-stator configurations have been specially developed for tissue decompositions, clinical and medical diagnostics and for suspension, e.g. centrifugates products.
Dispersing elements:
S8N - 5G with 5 mm diameter for Eppendorf tubes, centrifugal glasses, cuvettes, etc.
S8N - 8G with 8 mm diameter for test tubes.
The dispersing tools may be sterilized accordance with all known methods.
Powerful 100 watts drive with infinitely variable speed control from 5000-25000 rpm. A separate power pack is included in the package.
Features:
-
safe provided by 12 V low voltage
-
light-weight, the drive weighs only 0.84 lbs.
-
may be optional used as hand-held or stand instrument
Recommended accessories:
T 8.1.0 Dispersing Station #26025.00
Choose between 5mm or 8mm dispering tool from accessories.
|
IKA T50 Ultra-Turrax Basic
|
High-performance dispersing instrument for volumes from 0.25 - 30 l (H2O).
- Three types of shaft bearings
- Several rotor-stator configurations
- Agitator shaft R 50 allows the use of the T 50 basic as a ¿high-speed stirrer¿ (not included in delivery)
- Infinitely variable speed control, for continuous operation
- Reproducible operations due to constant speed even with viscosity changes
- Large selection of dispersing elements
- Plug-in connectors facilitate exchange of dispersing elements
- Electronic safety circuit and smooth start
- As standard, the T 50 basic is equipped with a connection for the revolution counter
- Wide range of dispersing elements (not included in delivery) |
|
|
IKA Shaking Incubator KS 4000 i Control
New innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
- Large LED display for speed and time settings
- Controls with antimicrobial coating for reduction of bacteria
- Integrated PID temperature control (use of two PT 1000 temperature sensors)
- Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60 (included with delivery)
- Electronic temperature and speed control
- Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
- Unit switches off automatically if disturbed
- Unit stops automatically when hood is lifted
- Collecting tray with drain hose on rear of unit
- Simple operation
- All functions can be controlled and documented using the labworldsoft® software
- Attachments not included – please order accessories as required
Technical Specification
|
KS 4000i control
|
| Type of movement |
orbital |
| Orbital diameter |
20 mm |
| Permissible shaking weight (incl. attachment) |
20 kg |
| Motor rating input |
82 W |
| Motor rating output |
24 W |
| Permissible ON time |
100 % |
| Speed min (adjustable) |
10 1/min |
| Speed range |
10 - 500 1/min |
| Speed display |
LED |
| Timer |
yes |
| Timer display |
7 segment LED |
| Time setting range |
1 - 59940 min |
| Operating mode |
timer and continuous operation |
| Touch function |
no |
| Shaking table lock |
no |
| Working with microtiter plates |
no |
| Heating temperature range |
room temp. +5° - 80 °C |
| Heat output |
1000 W |
| Temperature display |
yes |
| Dimensions (W x H x D) |
580 x 525 x 750 mm |
| Weight |
50 kg |
| Permissible ambient temperature |
15 - 32 °C |
| Permissible relative moisture |
80 % |
| RS 232 interface |
no |
| Voltage |
230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
1120 W |
IKA Hotplate Stirrer RH Basic 2 IKAMAG
RH basic 2
Economic magnetic stirrer with stainless steel heating plate.
- Fixed safety circuit 400 °C
- Soft-start stirring motor
Technical Specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
10 l |
| Stirring quantity max. (H2O) |
10 l |
| Motor rating input |
15 W |
| Motor rating output |
2 W |
| Speed range |
100 - 2000 1/min |
| Heat output |
400 W |
| Heating temperature range |
room temp. - 320 °C |
| Heat control |
scale 1 - 6 |
| Speed control |
scale 0 - 6 |
| Fixed safety circuit |
400 °C |
| Set-up plate material |
stainless steel 1.4301 |
| Set-up plate dimensions |
Ø 125 mm |
| Dimensions (W x H x D) |
168 x 105 x 220 mm |
| Weight |
2.4 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| Voltage |
220 - 240 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
415 W |
| Part Number |
3339000 / ZXZ3339002 |
IKA Hotplate Stirrer RET Control/t IKAMAG Safety Control
New safety magnetic stirrer with heating, suitable for unsupervised operation
- Timer: min. 1 min / max. 9 h 59 min
- Option: 1 sensor for medium temperature (PT 100) or 2 separate temperature sensors for heat transfer fluid and medium (PT 1000) available (automatic identification)
- 2 adjustable safety circuits
- Stirring bar crack detection
- Setting acc. medium temperature: 0,5 K
- HOT warning display indicating any residual heat when unit is switched off
- Easy-to-read backlit LCD display
- Actual medium temperature resolution displayed: 0,5 K (RT to 100 °C); 1 K (from 100 °C upwards)
- Fuzzy control and microprocessor technology guarantee maximum control accuracy
- PC control via RS 232 interface, with optional safety function
- Software labworldsoft® is available to control and document all measured values via PC
- 3 modes of operation, e.g. stirring and heating functions can be secured against inadvertent changes of set parameters
- Enclosed assembly (IP 42) guarantees long service life
- Incl. protection cover H 99
Technical specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
20 l |
| Stirring quantity max. (H2O) |
20 l |
| Motor rating input |
12 W |
| Motor rating output |
5 W |
| Speed display |
LCD |
| Speed range |
0 - 1200 1/min |
| Stirring bar length max. |
80 mm |
| Heat output |
600 W |
| Heating rate (1 l H2O in H15) |
7 K/min |
| Heating temperature range |
room temp. - 340 °C |
| Heat control |
stepless |
| Heat control accuracy |
0.5 ±K |
| Speed control |
stepless |
| Adjustable safety circuit min. |
50 °C |
| Adjustable safety circuit max. |
350 °C |
| Connection for ext. temperature sensor |
PT 100 |
| Control accuracy with sensor |
0.2 ±K |
| Set-up plate material |
stainless steel 1.4301 |
| Set-up plate dimensions |
Ø 135 mm |
| Dimensions (W x H x D) |
160 x 97 x 280 mm |
| Weight |
2.8 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 42 |
| RS 232 interface |
yes |
| Analog output |
yes |
| Voltage |
220 - 230 V |
| Frequency |
50/60 Hz |
| Power input |
630 W |
| Part Number |
3964000 |

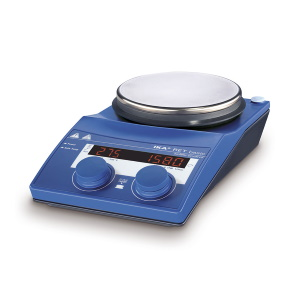

IKA Hotplate Stirrer RET Basic IKAMAG Safety Control
The classic: Now with new design, functions and features.
-
Wide speed range from 50 - 1.700 rpm
-
Integrated temperature control
-
Incl. PT 1000 temperature sensor (PT 1000.60)
-
Exact temperature and speed setting via digital display, even when switched off
-
Set safety temperature limit displayed digitally
-
Hot Top indicator >> hot surface warning to prevent burns!
-
Digital error code display
- With adjustable safety circuit of heating plate temperature (50 - 380 °C)
- Safety magnetic stirrer with heating, suitable for unsupervised operation
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- High level of safety thanks to improved heat control technology
- Enclosed assembly (IP 42) guarantees long service life
- Very broad temperature range (RT - 340 °C)
- Extremely fast heating times
- Electronic speed control
- High magnetic adhesion
- Incl. protection cover H 100
Technical specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
20 l |
| Speed deviation of individual stirring positions |
5 % |
| Stirring quantity max. (H2O) |
20 l |
| Motor rating input |
16 W |
| Motor rating output |
9 W |
| Speed display |
LED |
| Speed range |
50 - 1700 1/min |
| Stirring bar length max. |
80 mm |
| Heat output |
600 W |
| Heating rate (1 l H2O in H15) |
7 K/min |
| Heating temperature range |
50 - 340 °C |
| Heat control |
LED |
| Heat control accuracy |
1 ±K |
| Speed control |
stepless |
| Adjustable safety circuit min. |
50 °C |
| Adjustable safety circuit max. |
360 °C |
| Connection for ext. temperature sensor |
DIN 12 878 |
| Control accuracy with sensor |
1 ±K |
| Temperature constancy in medium |
1 ±K |
| Set-up plate material |
stainless steel 1.4301 |
| Set-up plate dimensions |
Ø 135 mm |
| Dimensions (W x H x D) |
160 x 95 x 270 mm |
| Weight |
2.5 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 42 |
| RS 232 interface |
no |
| Analog output |
no |
| Voltage |
220 - 230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
630 W |
| Part Number |
3622000 |

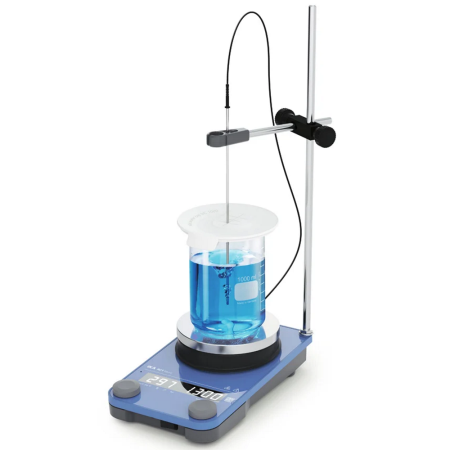

IKA Hotplate Stirrer RCT Basic IKAMAG Safety Control
The improvement of the bestseller: Now with new technology for more capacity
- Stronger motor for a higher range of speeds
- Additional temperature control mode for faster heating of medium
- Integrated temperature control
- Incl. PT 1000 temperature sensor (PT 1000.60)
- Exact temperature and speed setting via digital display, even when switched off
- Set safety temperature limit displayed digitally
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- With adjustable safety circuit of heating plate temperature (50 - 360 °C)
- Safety magnetic stirrer with heating, suitable for unsupervised operation
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- High level of safety thanks to improved heat control technology
- Enclosed assembly (IP 42) guarantees long service life
- Highly polished aluminium heating plate for optimum heat transfer
- Improved magnetic adhesion
- Incl. protection cover H 100
Technical specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
20 l |
| Speed deviation of individual stirring positions |
5 % |
| Stirring quantity max. (H2O) |
20 l |
| Motor rating input |
16 W |
| Motor rating output |
9 W |
| Speed display |
LED |
| Speed range |
50 - 1500 1/min |
| Stirring bar length max. |
80 mm |
| Heat output |
600 W |
| Heating rate (1 l H2O in H15) |
6.5 K/min |
| Heating temperature range |
50 - 310 °C |
| Heat control |
LED |
| Heat control accuracy |
1 ±K |
| Speed control |
stepless |
| Adjustable safety circuit min. |
50 °C |
| Adjustable safety circuit max. |
360 °C |
| Connection for ext. temperature sensor |
DIN 12 878 |
| Control accuracy with sensor |
1 ±K |
| Set-up plate material |
Aluminium alloy |
| Set-up plate dimensions |
Ø 135 mm |
| Dimensions (W x H x D) |
160 x 85 x 270 mm |
| Weight |
2.5 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 42 |
| Voltage |
220 - 230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
650 W |
| Part Number |
3810000 |
IKA Hotplate Stirrer C-MAG HS10
New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
Technical specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
15 l |
| Stirring quantity max. (H2O) |
15 l |
| Motor rating input |
15 W |
| Motor rating output |
1.5 W |
| Speed display |
scale |
| Speed range |
100 - 1500 1/min |
| Stirring bar length max. |
80 mm |
| Heat output |
1500 W |
| Heating rate (1 l H2O in H15) |
5 K/min |
| Heating temperature range |
50 - 500 °C |
| Heat control |
LED |
| Heat control accuracy |
10 ±K |
| Speed control |
scale 0 - 6 |
| Fixed safety circuit |
550 °C |
| Connection for ext. temperature sensor |
ETS-D 4 fuzzy |
| Control accuracy with sensor |
3 ±K |
| Temperature constancy in medium |
3 ±K |
| Set-up plate material |
ceramic |
| Set-up plate dimensions |
280 x 280 mm |
| Dimensions (W x H x D) |
300 x 105 x 415 mm |
| Weight |
6 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| Voltage |
230 V |
| Frequency |
50/60 Hz |
| Power input |
1520 W |
| Part Number |
3581400 |

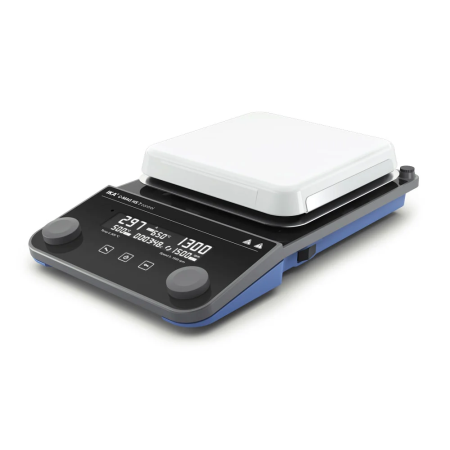

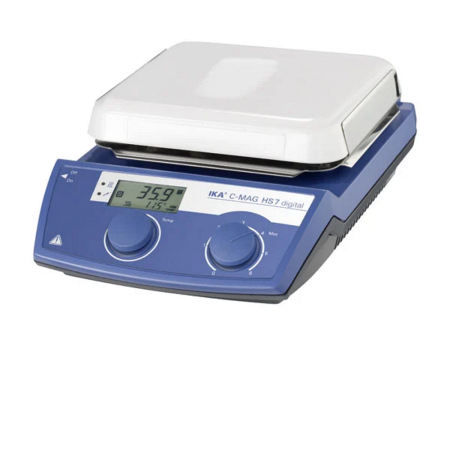

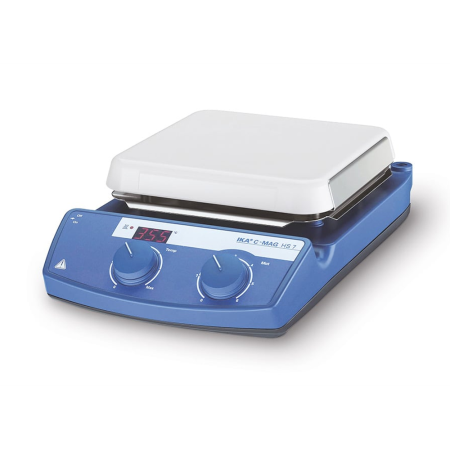

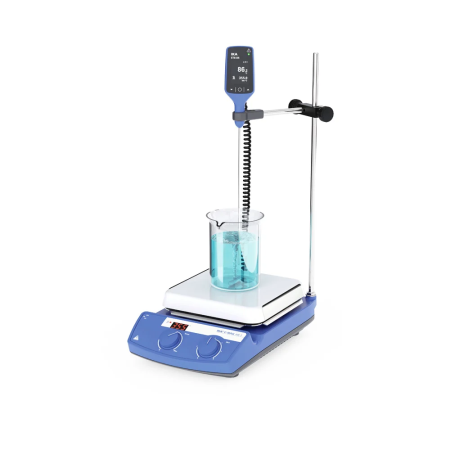

IKA Hotplate Stirrer C-MAG HS7
New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
Technical Specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
10 l |
| Stirring quantity max. (H2O) |
10 l |
| Motor rating input |
15 W |
| Motor rating output |
1.5 W |
| Speed display |
scale |
| Speed range |
100 - 1500 1/min |
| Stirring bar length max. |
80 mm |
| Heat output |
1000 W |
| Heating rate (1 l H2O in H15) |
5 K/min |
| Heating temperature range |
50 - 500 °C |
| Heat control |
LED |
| Heat control accuracy |
10 ±K |
| Speed control |
scale 0 - 6 |
| Fixed safety circuit |
550 °C |
| Connection for ext. temperature sensor |
ETS-D 4 fuzzy |
| Control accuracy with sensor |
3 ±K |
| Temperature constancy in medium |
3 ±K |
| Set-up plate material |
ceramic |
| Set-up plate dimensions |
200 x 200 mm |
| Dimensions (W x H x D) |
220 x 105 x 330 mm |
| Weight |
5 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| Voltage |
230 V |
| Frequency |
50/60 Hz |
| Power input |
1020 W |

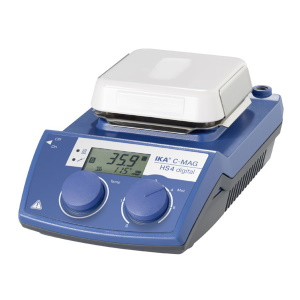

IKA Hotplate Stirrer C-MAG HS4
New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance
- Powerful motor for stirring quantities of up to 5 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Digital error code display
- Elevated control panel for protection against leaking liquids
Technical Specification
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
5 l |
| Stirring quantity max. (H2O) |
5 l |
| Motor rating input |
15 W |
| Motor rating output |
1.5 W |
| Speed display |
scale |
| Speed range |
100 - 1500 1/min |
| Heat output |
250 W |
| Heating rate (1 l H2O in H15) |
2.5 K/min |
| Heating temperature range |
50 - 500 °C |
| Heat control |
LED |
| Heat control accuracy |
10 ±K |
| Speed control |
scale 0 - 6 |
| Fixed safety circuit |
550 °C |
| Set-up plate material |
ceramic |
| Set-up plate dimensions |
120 x 120 mm |
| Dimensions (W x H x D) |
150 x 105 x 260 mm |
| Weight |
3 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| Voltage |
230 V |
| Frequency |
50/60 Hz |
| Power input |
270 W |
| Part Number |
3581000 |
IKA Electronic Contact Thermometer
Electronic contact thermometer with 3 patented operating modes of IKA®
- With optimised PID control
- RESET function
- Incl. stainless steel sensor H 62
- For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 e.g. IKA®, Heidolph and Corning with adapter AD-C1)
- With 3 patented operating modes
- Ensures perfect temperature control without overshooting the set temperature, even in the case of quick heating
Patented: 3 modes of operation guarantee optimum adjustment to your working method:
- Operating mode A
Suitable for work with varying parameters (from -50 °C to 450 °C). Safety temperature adjustable
- Operating mode B
Suitable for series operation under uniform conditions
- Operating mode C
Suitable for unsupervised operation
All values are taken from the memory. This ensures perfect protection against inadvertent improper adjustment.
Technical Specification
| Temperature measuring range min. |
-50 °C |
| Temperature measuring range max. |
450 °C |
| Temperature measurement resolution |
0.1 K |
| Accuracy of temperature measurement |
±0.2 + tolerance PT1000 (DIN IEC 751 Class A) K |
| Heat control accuracy |
0.1 ±K |
| Control accuracy with sensor |
0.5 ±K |
| Immersion depth max. |
200 mm |
| Permissible ON time |
100 % |
| Dimensions (W x H x D) |
82 x 83 x 22 mm |
| Weight |
0.2 kg |
| Permissible ambient temperature |
0 - 60 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 54 |
| RS 232 interface |
no |
| Analog output |
no |
| DC Voltage |
8 - 16 V= |
| Power input |
15 mA |
| Product Code |
3378000 |
Vibrax® VXR orbital shaker - 1603400
Optoelectronically controlled small shaker with a very wide speed range from 0-2000rpm. Circular shaking motion and slow speed are well maintained. Suitable for continuous operation. Loads in accordance with the attachment from 500g to 2000g. Worldwide proven model of a high quality level.
- Attachments for the basic unit are interchangeable
Accessories
VX 1 one hand attachment - 0607200
One-hand-attachment for shaking single, non-fixed vessels of 1 to 250 ml.Dimensions (WxDxH): 130x135x40 mm
VX 2E "Eppendorf"-attachment - 1618100
Eppendorf- attachment for intensive mixing of up to 64 Eppendorftubes.Dimensions (WxDxH): 210x210x65 mm
-
IKA KS-125 Shaker
KS 125 basic IKA-Orbital Shaker - 2476000
Low-noise, wear-resistant small shaker with ideal oscillation mechanism. Flat, stable orbital shaker with a high shaking frequency and a large orbital diameter. With electronic, infinitely variable speed control and timer. Suitable for diagnostics, hematology and all shaking applications in small series.
Large selection of attachments available.
Suitable for vessels from 5 ml to 1000 ml.
AS 125.1 universal attachment - 8000000
Using the universal attachment, all kinds of vessels can be adapted by universal, infinitely variable clamping rolls.Dimensions (WxDxH): 310x285x120 mm
Dish attachment for smooth motion for instance cell cultures or nutrient media. For Petri-dishes, culture bottles and vessels with a deep lying center of gravity.Dimensions(WxDxH): 371x247x42 mm
AS 125.4 test tube support - 2553300
Test tube support (without inserts) for intensive shaking e.g. small tubes, cells, centrifugal tubes.Dimensions (WxDxH): 190x210x65 mm
