Single & Twin Head Diaphragm

Vacuum Pumps/Compressors

• For clean evacuation and transfer of air and gases.
• High Performance and long working life through the stressed optimised KNF diaphragm.

Features

• Contamination free pumping of air and gases
• Quiet and smooth running
• Can be used as vacuum pump or compressor
• High tolerance of both vapour and condensate
• Simple Operation
• Completely portable
• Maintenance free

Technical Information

Pumps - Vacuum - KNF

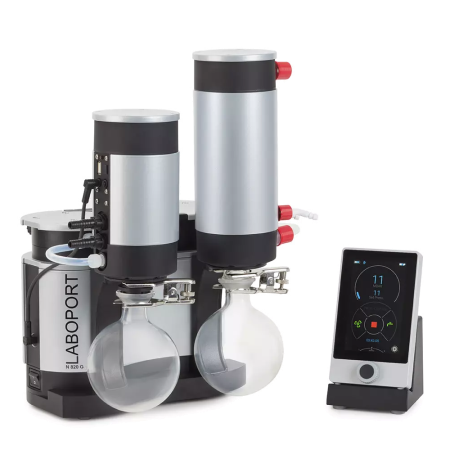

The new SC 920 vacuum pump system from KNF Lab puts an end to such space problems. Thanks to remote control via a portable wireless hand terminal, it is no longer essential for the vacuum pump system to be located in the immediate vicinity of the processing equipment. The pump system can now be easily stowed away, i.e. in units under the work bench or in a fume hood, without the hassle of
laying cables.

The intuitive user guidance on the hand terminal ensures ease of operation; the process parameters can be entered over a touch screen and a rotation knob. Simply touch the various menus to enter:

• parameters, such as the setpoint pressure or suction capacity of the system.
• units of measurement,
• the operating language.

Depending on the selected operating mode, the graphic display of the hand terminal then indicates the respective process variables. The user can intervene in the ongoing process at any time with the hand terminal and its integrated touchscreen and rotating knob. The hand terminal can be called via vacuum pump system (paging); the hand terminal will answer with a signal tone.

Four operating modes
The vacuum pump system can be used in four different operating modes, selected on the hand terminal:

• Evacuate:
the vacuum pump system evacuates a vacuum chamber with adjustable pump capacity.

• Pressure control:
the vacuum pump system controls the system pressure to the set value (constant pressure).

• Automatic:
the vacuum pump system automatically finds the vapor pressure of the sample. If there are any irregularities in the pressure curve, the vacuum pump system adjusts the process pressure accordingly.

• Individual pressure function:
the vacuum pump system controls the process according to a user-defined pressure curve. The setpoint pressure and the opening and closing of the coolant valve (accessory) on the high-performance condenser can be easily entered for a range of set times. A repeat function allows successive repetitions of the programmed pressure curve. At any time during an active process, you can switch to manual process control.

Functions for Evacuate and Pressure control will be available simultaneously.

Intelligent control
A key feature of the SC 920 vacuum pump system is its intelligent control system. A pressure sensor measures the actual pressure in the system several times per second, and a microprocessor monitors any pressure drop over time. The pump speed is adapted according to this information. At the start of each process, the vacuum pump operates at low speed to avoid over-response in situations with a small vacuum chamber volume and a fastboiling medium. If there is a large discrepancy between the actual pressure and the setpoint pressure, the pump speed, and thus the transferred volume, is increased in order to speed up the process. As soon as the actual pressure approaches the setpoint pressure, the pump speed is reduced. This ensures fast process times and high control accuracy.

Controlling via a PC
Included in delivery with the SC 920 is Windows®-based software, which also supports operation of the system over a PC. In addition to the options offered by the hand terminal, the software also supports the display of the pressure curves as a chart (setpoint/actual shown), which can be saved, and the export of data to spreadsheets or text files. Communication with the PC is implemented over a USB interface.

Fast process times
Besides intelligent control, the diaphragm vacuum pump used in the SC 920 further contributes to short process times. The pump is fitted with the patented diaphragm stabilization system that ensures high suction speeds even at low pressures. The vacuum pump system achieves an ultimate vacuum of 2 mbar absolute and delivers up to 20 liters of gas per minute. All gas carrying parts are manufactured from chemical resistant materials.

Extremely quiet operation
The integrated vacuum pump operates extremely quietly. Furthermore the system stops the pump completely as soon as the setpoint pressure of the system is reached and only starts up again intermittently in order to offset any slight drop in pressure due to leakages in the process equipment. Perfectly matched components This vacuum pump system SC 920 opens up a whole new range
of options in the laboratory. This is due to new functions and technical solutions. Thanks to the coordinated development of the individual components it has been possible, for example, to adjust the sensitivity of the motor to suit the requirements of the control process. The SC 920: an extremely user-friendly laboratory device that meets the highest demands.

Technical Information

Pumps - Vacuum - KNF

The chemically-resistant series N860.3 FT.40.18 diaphragm pump is a twin-head unit with an integrated KNF self-drying system. There is a wide range of applications for this pump in laboratories, especially whenever clean vacuum is required and moist gases must be pumped down. Examples include vacuum-drying of vacuum drying chambers (for drying or heat-treating substances and components) or steam sterilizers for sterilizing instruments, vessels, filters and textiles. Due to its high resistance to aggressive media, this pump can be used universally. The heart of these very compact pumps are KNF structured diaphragms (PTFE-coated). These patented diaphragms were stress-optimized using the Finite Elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm.

The KNF self-drying system allows condensed liquid to be blown out of the pump heads at high speed during evacuation. The vacuum in the recipient remains constant. The drying cycle can be adjusted to the requirements of the individual process using three variables. After drying, the pump reaches a better vacuum and is able to evacuate significantly faster compared with pumps without a drying system..

Technical features:

-    Pure transfer and evacuation
-    Highly compatible with vapors and condensation
-    Chemically-resistant
-    Therefore suitable for highly aggressive or corrosive gases and vapours
-    Maintenance-free
-    Environmentally friendly
-    Gastight, leakage rate approx. 6 x 10-3mbar x l/s, not tested in serial production.

Technical Information

Pumps - Vacuum - KNF

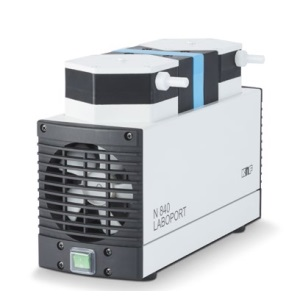

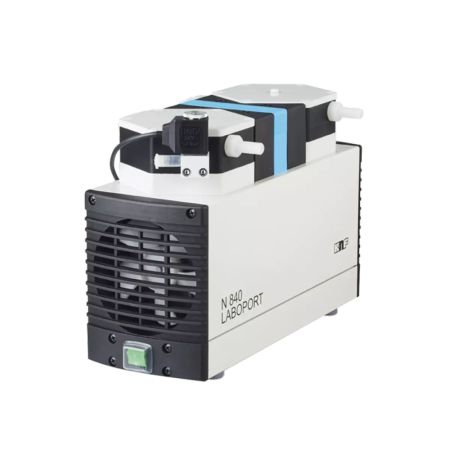

The chemically-resistant series N840.3 FT.40.18 diaphragm pump is a twin-head unit with an integrated KNF self-drying system. There is a wide range of applications for this pump in laboratories, especially whenever clean vacuum is required and moist gases must be pumped down. Examples include vacuum-drying of vacuum drying chambers (for drying or heat-treating substances and components) or steam sterilizers for sterilizing instruments, vessels, filters and textiles. Due to its high resistance to aggressive media, this pump can be used universally. The heart of these very compact pumps are KNF structured diaphragms (PTFE-coated). These patented diaphragms were stress-optimized using the Finite Elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm.

The KNF self-drying system allows condensed liquid to be blown out of the pump heads at high speed during evacuation. The vacuum in the recipient remains constant. The drying cycle can be adjusted to the requirements of the individual process using three variables. After drying, the pump reaches a better vacuum and is able to evacuate significantly faster compared with pumps without a drying system.

Technical features:

-    Pure transfer and evacuation
-    Highly compatible with vapors and condensation
-    Chemically-resistant
-    Therefore suitable for highly aggressive or corrosive gases and vapours
-    Maintenance-free
-    Environmentally friendly
-    Gastight, leakage rate approx. 6 x 10-3mbar x l/s, not tested in serial production.
