15/10/2020

David Suddaby

LEEC warming cabinet from Wolflabs

Product Update

Introduction

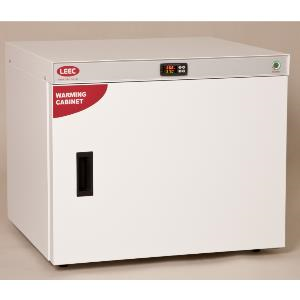

LEEC W100 warming cabinet from Wolflabs.

Features and benefits
- Energy efficient.
- Simple to use.
- Accurate temperature control.
- Fan assisted air circulation.
- All stainless steel construction.

Product Category: Incubators - Warming Cabinets

Manufacturer: LEEC

06/10/2020

David Suddaby

LEEC CO2 incubator from Wolflabs

Product Update

Introduction
LEEC GA2010 CO2 incubator from Wolflabs.

Features and benefits
- Steel outer cabinet for longer life.
- Ultra smooth stainless steel chamber.
- Stainless steel perforated shelves.
- Adjustable front levelling feet.
- Bright LED displays for temperature and CO2.
- Fan assisted chamber for precise culturing conditions.

Product Category: Incubators - CO2 And Multigas

Manufacturer: LEEC

23/07/2020

David Suddaby

LEEC cooled incubator from Wolflabs

Product Update

Introduction

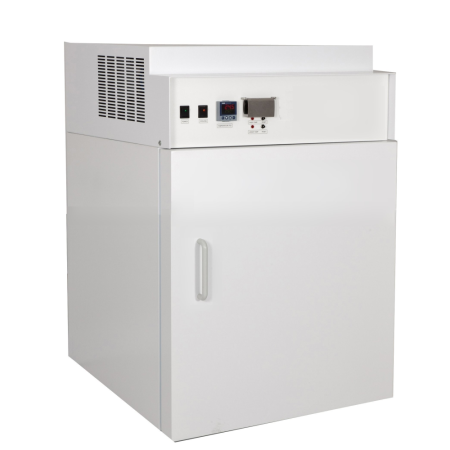

LEEC P2C cooled incubator from Wolflabs.

Features and benefits
- Stainless steel chamber and shelves.
- Digital over / under temperature protection.
- Microprocessor controller with dual digital display.
- Inner glass doors.
- Fan assisted.

Product Category: Incubators - Cooled

Manufacturer: LEEC

21/07/2020

David Suddaby

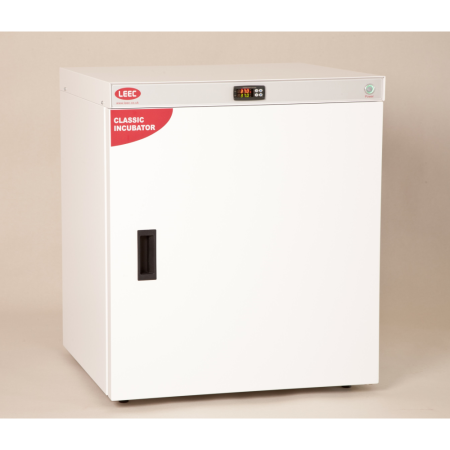

LEEC incubator from Wolflabs

Product Update

Introduction
LEEC C157 incubator from Wolflabs. The C157 has a fully sealed chamber manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel, and has a tough powder coat paint finish. This gives the incubator exceptional corrosion resistance.

Features and benefits
- Stainless steel construction.
- Energy efficient.
- Fully sealed chamber.
- Simple to use.
- Fast recovery time.
- Digital temperature control.

Product Category: Incubators

Manufacturer: LEEC

31/10/2019

David Suddaby

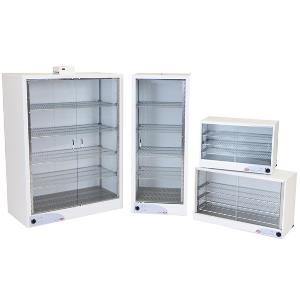

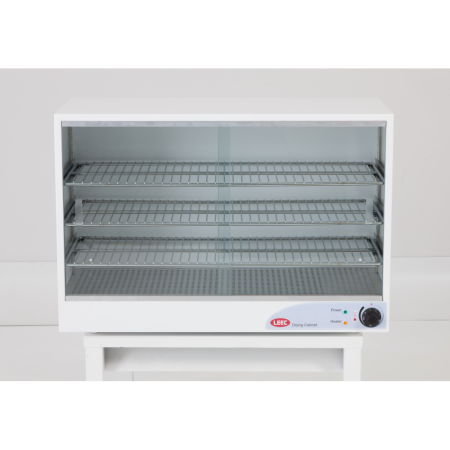

LEEC drying/warming oven from Wolflabs

Product Update

Introduction

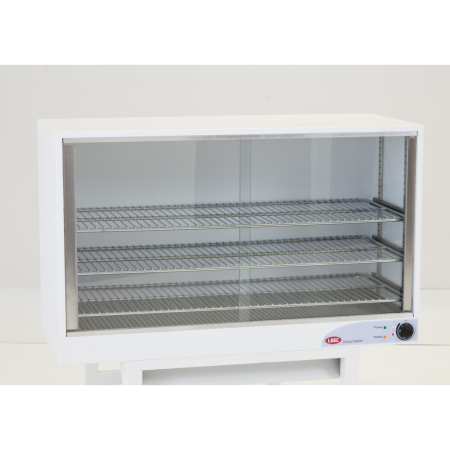

LEEC LS drying/warming oven from Wolflabs. This oven is ideal for drying laboratory glassware, surgical instruments, theatrical wigs or media and can also be used for warming or simply for storage.

Features and benefits
- Rust resistant and finished in white powder coated paint with heatproof toughened glass doors and wire mesh shelves.
- Shelves are removable and can be adjusted for height every 25mm.
- Heating elements are waterproof and are located under the perforated floor which is finished in unpainted, polished stainless steel.
- Special features can be incorporated into standard cabinets to match the user’s exact requirements (eg pass-through, solid doors, internally sparkfree, temperature display).

Product Category: Ovens - Drying/Warming

Manufacturer: LEEC

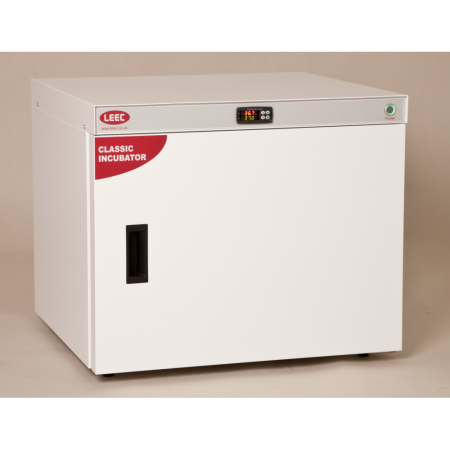

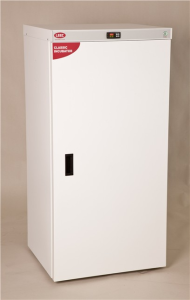

Incubators - Genlab

CONSTRUCTION

The new LEEC Classic Range of incubators have fully sealed chambers manufactured from polished stainless steel with rounded corners for easy cleaning. The outer cabinet is manufactured from stainless steel, and has a tough powder coat paint finish. This gives the incubator exceptional corrosion resistance. An inner glass viewing door closes positively onto a silicone gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the incubator chamber.

HEATING

New profiled resistive wire heating elements and high performance insulation ensure optimum temperature control. All models have gentle fan assisted air circulation. This ensures even temperature distribution throughout the chamber. Fast temperature recovery keeps heat loss to a minimum after door opening.

TEMPERATURE CONTROL

The latest in microprocessor temperature controller technology gives this incubator range excellent temperature stability to within 0.1°C. Fuzzy Logic and Auto Tune features allow the controller to adapt to each chamber size, optimising their performance and accuracy. The controller is simple to use, with target and actual temperatures being displayed in real time on a two-colour digital display.

SAFETY

Over and under temperature alarm thresholds can be programmed into the controller. An independent safety cut out disconnects the heating elements should an over temperature condition occur. The controller can be password protected too, stopping any unauthorised adjustments to the Set Point and alarm thresholds.

WARRANTY

LEEC Classic Incubators are covered by a 1 year warranty.

Technical Specifications

SPECIFICATION
	C100	C157	C330
External Dimensions (H x W x D mm)	582 x 684 x 620	790 x 684 x 620	1417 x 684 x 620
Internal Dimensions (H x W x D mm)	365 x 550 x 500	573 x 550 x 500	1200 x 550 x 500
Chamber Capacity (Litres)	100	157	330
Shelves Included	2	4	6
Power Rating (watts)	240 (max)	280 (max)	440 (max)
Temperature Range	At least 5°C above ambient to +60°C	At least 5°C above ambient to +60°C	At least 5°C above ambient to +60°C
Temperature Control	Typically +/-0.1°C at 37°C	Typically +/-0.1°C at 37°C	Typically +/-0.1°C at 37°C
Temperature Variation	Typically better than +/-0.2°C at 37°C	Typically better than +/-0.2°C at 37°C	Typically better than +/-0.2°C at 37°C
Temperature Recovery	≈ 2 minutes	≈ 3 minutes	≈ 4 minutes

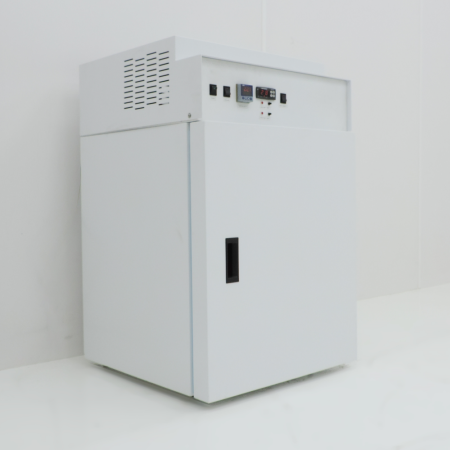

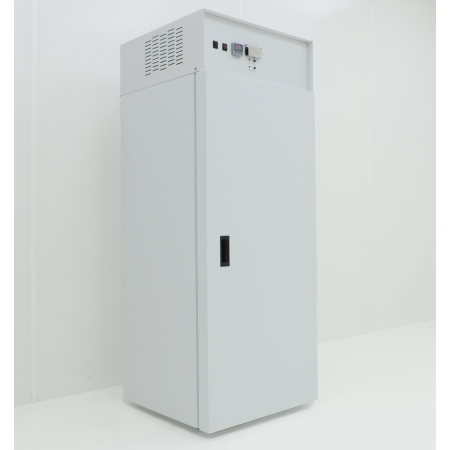

Humidity cabinet LEEC salt type

Temperature Control
Monitoring and control of both heating and cooling functions is performed with great accuracy, and achieves typical temperature stability of ±0.5°C.
The LED digital display allows the temperature performance to be easily verified. A digitally set overtemp- erature safety cutout is fitted to all models.

Humidity Control (Ultrasonic Type)
All /RH models are fitted with an ultrasonic fine mist humidity generator located in the airflow. The microprocessor controller accurately monitors and adjusts the chamber humidity level. All RH models are able to dehumidify as well as increase humidity. It should be noted that not all combinations of humidity and temperature are possible. Temperature and humidity performance varies according to the combination selected.

Technical Specifications

Models	SFC2	SFC3	SFC2C	SFC3C
Temperature Range** Control Variation	+5°C to +50°C ±0.5°C at +20°C ±0.5°C at +20°C
Humidity Range Control	30% to 98% RH Typically ±3%RH at +20°C operating temperature		40% to 95% RH Typically ±3%RH at +20°C operating temperature
Dimensions (Max. mm) External H W D	1075 635 660	1745 635 660	1980 710 950	1980 1420 800
Internal H W D	590 510 490	1275 510 490	1480 590 650	1480 1300 650
Chamber Capacity (L)
Shelves Supplied
Weight (kg)
Power Rating (W)

Humidity cabinet LEEC salt type

Temperature Control
Monitoring and control of both heating and cooling functions is performed with great accuracy, and achieves typical temperature stability of ±0.5°C.
The LED digital display allows the temperature performance to be easily verified. A digitally set overtemp- erature safety cutout is fitted to all models.

Humidity Control (Salt Solution Type)
Salts- type SF models rely on forced evaporation from trays containing known saturated salt solutions. This is a simple and reliable method of humidity control.

Technical Specifications

Models	SFC2	SFC3	SFC2C	SFC3C
Temperature Range** Control Variation	Ambient +5°C to +60°C* ±0.2°C at +37°C ±0.5°C at +37°C		+5°C to +60°C ±0.2°C at +20°C ±0.5°C at +20°C
Humidity Range Control	0% to 98% using appropriate saturated salt solution
Dimensions (Max. mm) External H W D	880 635 660	1550 635 660	1075 635 660	1745 635 660
Internal H W D	590 510 490	1275 510 490	590 510 490	1275 510 490
Chamber Capacity (L)	150	320	150	320
Shelves Supplied	4	6	4	6
Weight (kg)	75	120	100	145
Power Rating (W)	200	250	800	850

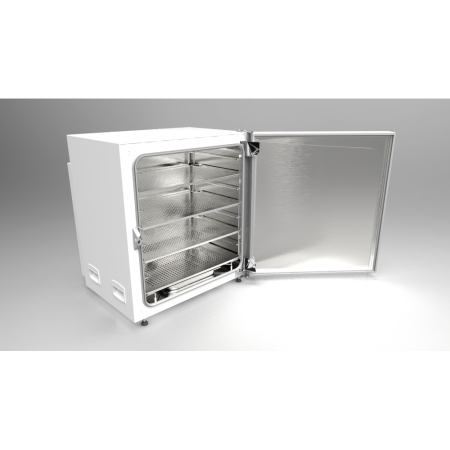

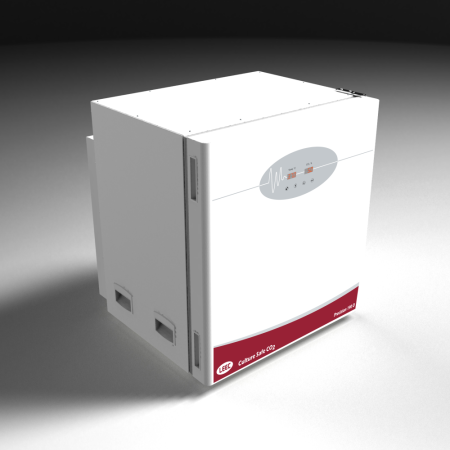

Incubators - CO2 and Multigas - LEEC

CONSTRUCTION

The new LEEC Culture Safe CO2 precision incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the high grade 304 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the CO2 incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

UNIQUE HEATING

A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

DECONTAMINATION

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 160°C dry-heat decontamination option (P190D). Externally, the paint contains an active anti-bacterial biocide.

CONTROL SYSTEM

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.

Technical Information

TECHNICAL SPECIFICATIONS
	TEMPERATURE MANAGEMENT	CO₂ GAS MANAGEMENT		DIMENSIONS ( w x h x d)
Range	5°C above ambient to +60°C	Range	0% to 20%	Chamber (mm)	632 x 686 x 440
Control	0.1°C	Control	±0.1%	Chamber (inches)	24.9 x 27 x 17.3
Stability	± 0.10°C @ 37°C	Stability	±0.2%	External (mm)	765 x 862 x 734
Uniformity	± 0.25°C @ 37°C	Uniformity	±0.2%	External (inches)	30.1 x 34 x 28.9
ELECTRICAL		CO₂Sensor	IR	Shipping Container (mm)	925 x 1080 x 850
Voltage	230 vac 50/60HZ	CO₂inlet pressure	min 5 psi max 10 psi	Shipping Container (inches)	36.4 x 42.5 x 33.5
Power	TBC			WEIGHT
Power, High Temp. Option	TBC		min 0.3 bar max 0.7 bar	Net	94.5 Kg P190 104 Kg P190D
Consumption to 37°C	TBC	HUMIDITY		Shipping	109 Kg P190
Consumption to 37°C	TBC	RH (@37°C + 5%	90%		117.5kg P190D

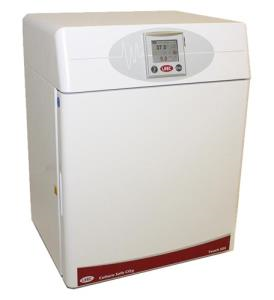

Incubators - CO2 and Multigas - LEEC

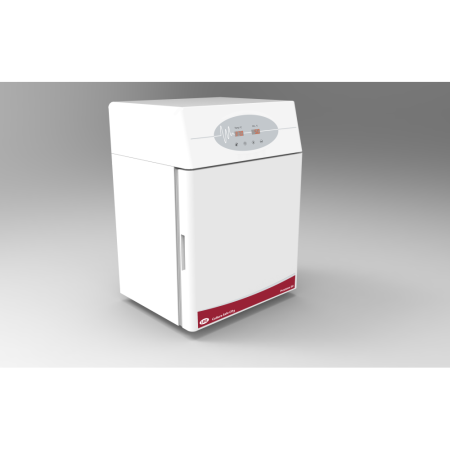

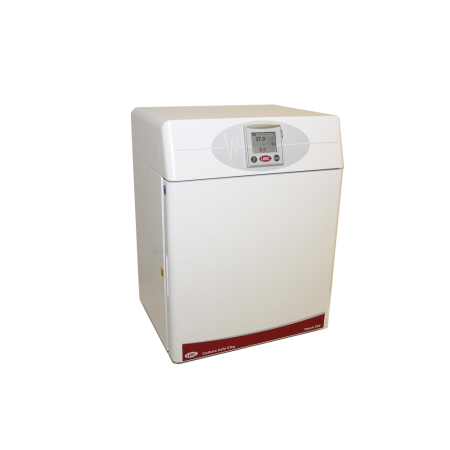

LEEC mini Culture Safe CO2 incubators are an attractive solution for those who want a high quality laboratory incubator in a small package.

CONSTRUCTION

LEEC mini Culture Safe CO2 incubators have a fully sealed, electro-polished, one-piece, deep drawn chamber, which is manufactured from high grade 304 stainless steel. The outer cabinet is manufactured from stainless steel, and has anti-bacterial powder coat paint finish as standard. This gives the CO2 incubator exceptional resistance to corrosion and contamination. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A rear access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

UNIQUE HEATING

A 6 sided direct heating system with high performance insulation ensures the highest standard in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

ANTI-CONTAMINATION

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle (T50S). Externally, the paint contains an active anti-bacterial biocide.

CONTROL SYSTEM

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.

Technical Information

TECHNICAL SPECIFICATIONS
	TEMPERATURE MANAGEMENT	CO₂ GAS MANAGEMENT		DIMENSIONS ( w x h x d)
Range	5°C above ambient to +60°C	Range	0% to 20%	Chamber (mm)	400x 400 x 305
Control	0.1°C	Control	±0.1%	Chamber (inches)	15.7 x 15.7 x 12
Stability	± 0.10°C @ 37°C	Stability	±0.2%	External (mm)	535x 705x 430
Uniformity	± 0.25°C @ 37°C	Uniformity	±0.2%	External (inches)	21 x 27.7 x 16.9
ELECTRICAL		CO₂Sensor	IR	Shipping Container (mm)	TBC
Voltage	TBC	CO₂inlet pressure	min 5 psi max 10 psi	Shipping Container (inches)	TBC
Power	TBC			WEIGHT
Power, High Temp. Option	TBC		min 0.3 bar max 0.7 bar	Net	TBC
Consumption to 37°C	TBC	HUMIDITY		Shipping	TBC

Incubators - CO2 and Multigas - LEEC

Construction

The new LEEC Culture Safe CO2 Incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the highest grade 316 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the CO2 incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC's) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the CO2 incubator chamber.

Unique Heating

A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

Anti-Contamination

We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle. Externally, the paint contains an active anti-bacterial biocide.

Control System

The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems..

Technical Information

	TEMPERATURE MANAGEMENT	CO₂ GAS MANAGEMENT		DIMENSIONS ( w x h x d)
Range	5°C above ambient to +60°C	Range	0% to 20%	Chamber (mm)	632 x 686 x 440
Control	0.1°C	Control	±0.1%	Chamber (inches)	24.9 x 27 x 17.3
Stability	± 0.10°C @ 37°C	Stability	±0.2%	External (mm)	765 x 862 x 734
Uniformity	± 0.25°C @ 37°C	Uniformity	±0.2%	External (inches)	30.1 x 34 x 28.9
ELECTRICAL		CO₂Sensor	IR	Shipping Container (mm)	925 x 1080 x 850
Voltage	230 vac 50/60HZ	CO₂inlet pressure	min 5 psi max 10 psi	Shipping Container (inches)	36.4 x 42.5 x 33.5
Power	380w			WEIGHT
Power, High Temp. Option	1800w (190s)		min 0.3 bar max 0.7 bar	Net	94.5 Kg touch 190 104 Kg touch 190s
Consumption to 37°C	0.058 kwh	HUMIDITY		Shipping	109 Kg touch 190
Consumption to 37°C		RH (@37°C + 5%	90%		117.5kg touch 190s

Incubators - Cooled - LEEC

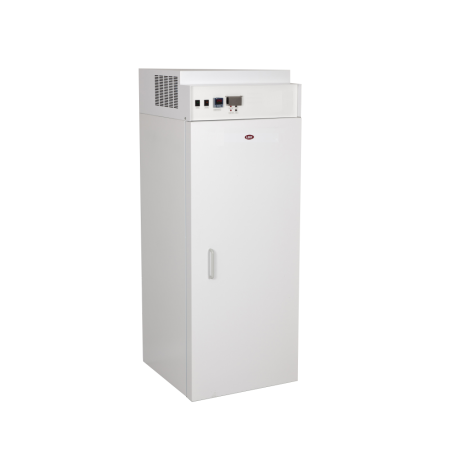

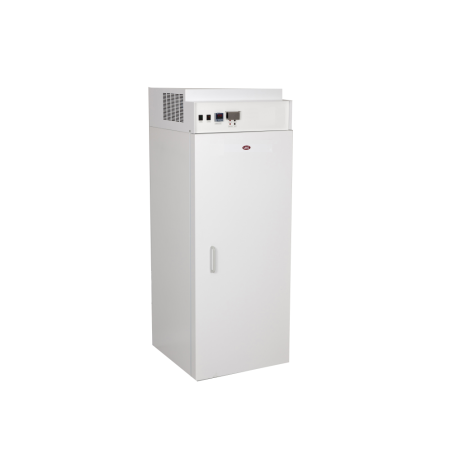

LEEC Precision Cooled incubator range models P2C, P3C & P33C

Class Leading Design & Technology

Features:

-PID Microprocessor with digital display.
-Digital over temperature safety cut out.
-Stainless steel chamber with adjustable shelves.
-Efficient polyurethane foam insulation.
-Two 12mm access ports.
-Unique pulsed heating and cooling is very energy efficient.
-Quiet hermetically sealed compressor, with air cooled condenser.
-Low wattage heaters are bonded to the outer wall of the chamber to eliminate ‘hot-spots’.
-Digital over temperature safety cut out with visual alarm.
-Chamber is internally spark free.
-Insulation is CFC free.

Technical Information

MODEL	P2C	P3C	P33C
TEMPERATURE * RANGE	0°C to +60°C
CONTROL VARIATION	TYPICALLY ± 0.2°C TYPICALLY ± 0.55°C
REFIREGERANT	CFC - Free
CONSTRUCTION CHAMBER	STAINLESS STEEL
EXTERIOR	WHITE PAINTED STEEL
CASTORS	OPTIONAL
ACCESS POINT	STANDARD, 2 x 12mm
INSUALTION	CFC - Free
CHAMBER CAPACITY (Litres)	150	320	730
DIMENSIONS EXTERNAL (H x W x D mm)	1075 x 635 x 660	1745 x 635 x 660	1745 x 1270 x 660
MAX INTERNAL (H x W x D mm)	590 x 510 x 490	1275 x 510 x 490	1275 x 1140 x 490
SHELVES SUPPLIED	4	6	6
WEIGHT (Kg)	100	145	1050
POWER RATING (w)	800	850	1050

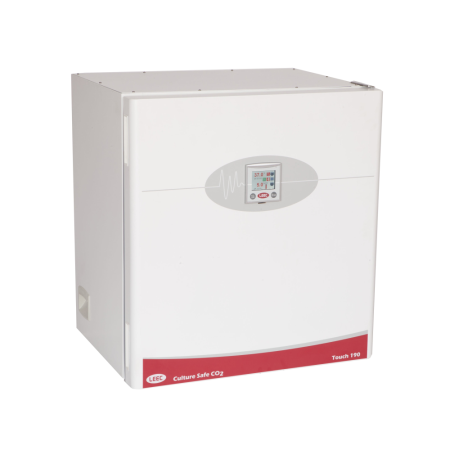

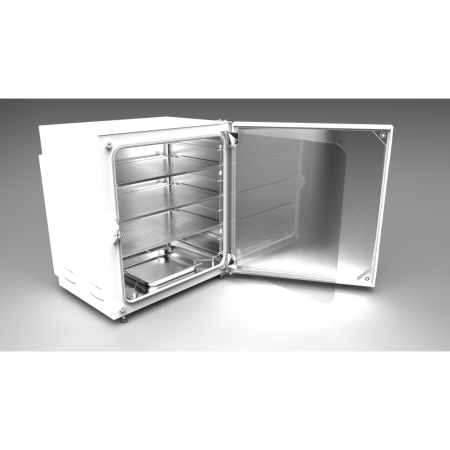

CO2 incubator LEEC Touch culture safe touch screen 190L

Class leading 200°C sterilisation
Touch screen control system
Deep drawn seamless chamber
Full data logging (text & graphical)
Electro-polished chamber
190 litre capacity
Premium stainless steel
No fan (less risk of contamination)
Anti-bacterial biocide paint

Construction
The new LEEC Culture Safe CO2 Incubator has a fully sealed, electro-polished, one-piece, deep drawn chamber, manufactured from the highest grade 316 stainless steel. The outer cabinet is manufactured from stainless steel, and has an anti-bacterial powder coat paint finish. This gives the incubator exceptional corrosion and contamination resistance. An inner glass viewing door closes positively onto an inert (no VOC’s) gasket and allows a clear view of the chamber contents without disturbing the internal atmosphere. The outer door has a magnetic gasket providing a good seal. A side access port allows temperature monitoring probes to be inserted safely into the incubator chamber.

Unique Heating
A new 6 sided direct heating system with high performance insulation ensure the highest standards in temperature control and stability. The independent outer door heater ensures that the inner glass door remains condensate free.

Anti-Contamination
We have designed this incubator to eliminate contamination inside the chamber. Features include fan-less air circulation, a crevice-free, electro-polished, one-piece chamber, HEPA filtered gas inlet and a market leading 200°C hot air sterilisation cycle. Externally, the paint contains an active anti-bacterial biocide.

Control System
The multi-function, PID touch screen module controls the temperature, CO2, and alarm functions (including low gas and power failure) and provides real time data logging in graphical and text format. The module also allows data to be downloaded. An independent safety cut out disconnects the heating system should an over temperature condition occur. The module can be password protected too, stopping any unauthorised adjustment to the control systems.

Warranty
LEEC Culture Safe CO2 Incubators are covered by a 2 year warranty.

Technical Specifications
	Touch190	Touch190S
External (Dimensions H x W x D mm)	850 x 765 x 600	850 x 765 x 600
Internal (Dimensions H x W x D mm)	685 x 630 x 435	685 x 630 x 435
Chamber Capacity (litres)	190	190
Shelves Included	4	4
Power Rating (watts)	TBC	TBC
Weight (kg)	TBC	TBC
Temperature Range	At least 5°C above ambient to +60 °C
Temperature Control	Typically ± 0.1°C at 37.0°C
Temperature Variation	Typically better than ± 0.2°C at 37.0°C
Temperature Recovery (approx.)	TBC	TBC
Sterilization	n/a	n/a

See our environmental page for the sustainability actions we are taking.

LEEC warming cabinet from Wolflabs

Product Update

LEEC CO2 incubator from Wolflabs

Product Update

LEEC cooled incubator from Wolflabs

Product Update

LEEC incubator from Wolflabs

Product Update

LEEC drying/warming oven from Wolflabs

Product Update

Incubators - Genlab

Technical Specifications

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - Cooled - LEEC

Technical Information

ABOUT WOLFLABS

INFORMATION

GET IN TOUCH

LEEC

LEEC warming cabinet from Wolflabs

Product Update

LEEC CO2 incubator from Wolflabs

Product Update

LEEC cooled incubator from Wolflabs

Product Update

LEEC incubator from Wolflabs

Product Update

LEEC drying/warming oven from Wolflabs

Product Update

Incubators - Genlab

Technical Specifications

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - CO2 and Multigas - LEEC

Technical Information

Incubators - Cooled - LEEC

Technical Information

ABOUT WOLFLABS

INFORMATION

GET IN TOUCH

WARNING
