Electrodes News

New electrodes from Hanna Instruments have been added.

Introduction
Hanna Instruments HI-11310 electrode from Wolflabs. The HI11310 is a glass body refillable double junction pH electrode with a built-in temperature sensor for temperature compensated measurements in a single probe design. This probe connects to the meter with a 3.5 mm connector. The 3.5 mm connector is proprietary to meters that use digital electrodes.

Features and benefits
- The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used.
- The spherical shaped tip design allows for a wide area of contact with the sample.
- A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample.
- The glass electrode body is suitable for a wide range of applications due to its chemical resistance.
- HI11310 features a built-in thermistor temperature sensor that is in the tip of the indicating pH electrode. A thermistor temperature sensor provides for a high accuracy temperature reading and should be as close as possible to the indicating pH electrode in order to compensate for the effect that temperature has on the membrane potential.

Introduction
Hanna Instruments HI-1230B electrode from Wolflabs. The HI-1230B is a PEI body, double junction pH electrode with a BNC connector. This electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with general purpose glass and is protected by an extension of the durable PEI body.

Features and benefits
- General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use. A pH electrode with GP glass will have a resistance of 100 megaohms at 25°C and is suited for measuring pH of samples that are at ambient temperatures. The HI-1230B is suitable to use with samples that measure from 0 to 70°C.
- The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
- The body of the HI-1230B is composed of polyetherimide (PEI) resin. The PEI body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.
- A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or silver precipitates on the junction are likely to form.
- The HI-1230B uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input.

Introduction
Hanna Instruments HI-12300 electrode from Wolflabs. The HI-12300 is a smart pH electrode for use with the HI-2020 Edge hybrid meter.

Features and benefits
- This electrode features a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by Edge once the electrode is plugged in.
- Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.
- The HI-12300 features an easy to plug in 3.5mm connector and is recommended for use in field applications.

New LE series and InLab series of electrodes from Mettler Toledo have been added.

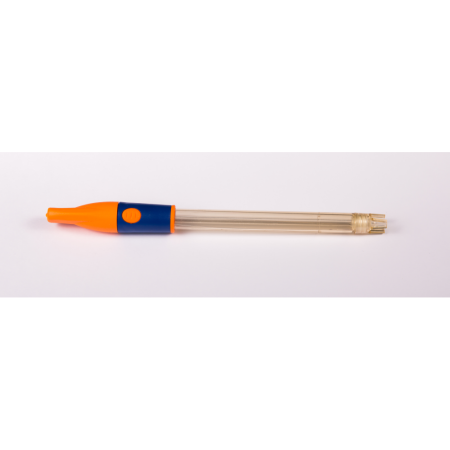

New P and ISE series of electrodes from Sentek have been added.

Introduction
Mettler Toledo InLab electrodes from Wolflabs. The manufacturing of high quality sensors with outstanding performance not only requires technical skills and expertise but also a profound understanding of the various customer applications and their specific requirements. Mettler Toledo has built up an enormous treasure trove of experience and knowledge over the last decades, which has resulted in a complete sensor portfolio that supports any of your applications.

Features and benefits
- Measurements have to be fast, precise and reproducible. Tried and trusted technologies combined with state-of-the-art production processes guarantee highest performance for every InLab sensor, providing reliable results at any time.
- All InLab sensors are shipped ready to use. Everything you need for your measurement comes together with the sensor. Your work in the lab will be simplified by application specific sensors, automatic recognition of ISM sensors and the spillfree wetting cap.
- The thought-out InLab sensor construction as well as the highquality materials used for manufacturing guarantee high robustness even in harsh applications. The versatile sensor portfolio ensures the perfectly suited sensor for every application, a match that greatly extends the lifetime of the products.

Introduction

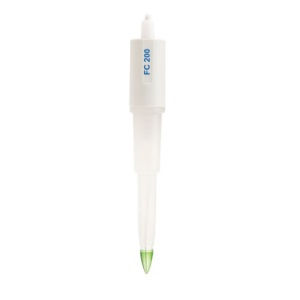

Hanna Instruments FC200B electrode from Wolflabs.

Features and benefits
- The FC200B electrode is recommended for use with dairy products such as milk, yogurt and soft cheese in addition to other semi-solid food stuffs.
- The main body of the electrode is covered in white Kynar (a type of PTFE) which is both easy to clean and food safe.
- This electrode is ideal for semi solid food applications, milk, yogurt, dairy products.
- The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable readings.

Introduction
Hanna Instruments HI-11102 electrode from Wolflabs. Ideal for laboratory use, the revolutionary Hanna HALO electrode transmits the pH and temperature values via Bluetooth to your phone or tablet using the free to download Hanna Lab App.

Features and benefits
- Connects to HALO via Bluetooth 4.0
- Up to five-point pH calibration with seven standard pH buffers available
- Calibration reminder
- pH and temperature updated every second
- Basic and full GLP
- Fluid, dynamic graphing
- Measurement alarms Alerts you if the measurement threshold is exceeded
- One button sample tagging
- Data-logging with custom annotations
- Share data via email in CSV format

Introduction

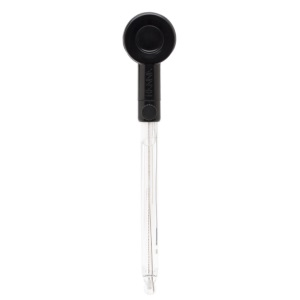

Hanna Instruments HI-11312 Halo electrode from Wolflabs. Halo is a high quality, double junction, refillable glass pH probe with a built-in temperature sensor. Its flexibility and ease of use means that it can be used virtually anywhere in the field, laboratory or classroom.

Features and benefits
- Refillable glass pH electrode.
- Double junction reference design.
- Integrated temperature sensor ensures the calibratoin and measurement is automatically temperature compensated to elimiate error.
- Wide pH (0-13) and temperature (-5 to 80°C) ranges.
- Data is wirelessly transmitted to an iPad running the Hanna Lab App via Bluetooth Smart technology. Halo 500 hours of battery life.
- One button sample tagging pressing either the button on the Halo pH probe or the probe icon in the Hanna Lab App will tag sample data for easy reference.
- Calibration is stored Halo stores calibration information; no aditional calibraiton is needed when switching to another iPad.
- Battery condition the measurement screen of the Hanna Lab App displays the name, battery life and condition of the Halo probe.

Introduction
Hanna Instruments HI-12302 electrode from Wolflabs. Ideal for field and educational use, the revolutionary Hanna HALO electrode transmits the pH and temperature values via Bluetooth to your phone or tablet using the free to download Hanna Lab App.

Features and benefits
- Connects to HALO electrodes via Bluetooth Smart Technology (Bluetooth 4.0)
- One press connect
- Status indicator
- Easy-to-replace battery
- Up to five-point pH calibration with seven standard pH buffers available
- Displays pH and temperature updated every second
- Displays date and time of current calibration, probe offset and average slope along with calibrated buffers, mV values, temperature and slopes between each buffer

Introduction
Mettler Toledo LE410 electrode from Wolflabs. 3-in-1 glass pH electrode for simple and rapid measurements in the laboratory, aqueous samples such as acids, bases etc.; refillable electrolyte.

Features and benefits
- Fast measurement in aqueous solution
- Integrated temperature probe
- Refillable reference electrolyte

Introduction
Mettler Toledo InLab Routine electrode from Wolflabs.

Features and benefits
- Provides reliable results.
- Built to last.
- Easy to use.

New FC2142 and HI Halo electrodes from Hanna Instruments have been added.
