TF111/32/150

TF1110320150-230SN

10434692
3065.00

Overview

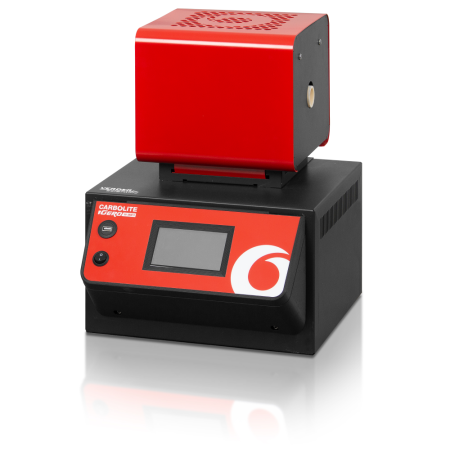

Tube furnace Carbolite TF1 11/32/150 with 1 zone not split, temperature range 400 to 1100°C, heated tube length 150mm, can accommodate tubes up to 32mm diameter, single phase, 230volts, 13Amps, no touch screen, with remote control, requires work tube to be pruchased separately

£3065.00

Manufactured in the UK

2 Year Warranty

Standard warranty covers parts and labour for material and manufacturing defects. Extended warranties are available on request.

Free Delivery to UK Mainland

Estimated 6 Weeks

Download Product Brochure

Part Number Description List Price Offer Price
Digital over-temperature protection Carbolite TMP-DIGOT-TF

Digital over-temperature protection Carbolite

Popular Accessory

£854.00

£854.00

Work tube package Carbolite for air, inner diameter 25mm, overall diameter 32mm, includes x 300mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access TP-CAI-032-0000

Work tube package Carbolite for air, inner diameter 25mm, overall diameter 32mm, includes x 300mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access

Popular Accessory

£696.00

£696.00

Work tube package Carbolite for gas atmosphere, inner diameter 25mm, overall diameter 32mm, includes x 500mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access TP-CGA-032-0000

Work tube package Carbolite for gas atmosphere, inner diameter 25mm, overall diameter 32mm, includes x 500mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access

Popular Accessory

£2,259.00

£2,259.00

Cascade control Carbolite &06-CS

Cascade control Carbolite

£1,299.00

£1,299.00

Extension cable Carbolite 4m, total 6m between furnace and control box &00-T1-4MCEX

Extension cable Carbolite 4m, total 6m between furnace and control box

£431.00

£431.00

Inert gas package Carbolite standard X2329-1005

Inert gas package Carbolite standard

£1,297.00

£1,297.00

Mounting Carbolite horizontal, for TF1 11/32/150 &00-T1-150H

Mounting Carbolite horizontal, for TF1 11/32/150

£0.00

£0.00

Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer &02-3016-CT1

Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer

£805.00

£805.00

Vertical stand & vertical tube support package Carbolite for TF1 11/32/150 &00-T1-150V

Vertical stand & vertical tube support package Carbolite for TF1 11/32/150

£556.00

£556.00

Vertical tube support package Carbolite for TF1 11/32/150 (no stand or mounting bracket included) &00-T1-150S

Vertical tube support package Carbolite for TF1 11/32/150 (no stand or mounting bracket included)

£204.00

£204.00

TF111/32/150

Tube furnace Carbolite TF1 11/32/150 with 1 zone not split, temperature range 400 to 1100°C, heated tube length 150mm, can accommodate tubes up to 32mm diameter, single phase, 230volts, 13Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :
1
Split tube :
No
Minimum Temp:
400
Maximum Temp:
1100
Heated tube length:
150
Maximum outer diameter of tube:
32
Number of electrical phases :
1
Voltage :
230
Amps:
13
Touch screen :
No
Remote control :
Yes
