Part Number	Description	List Price	Offer Price
TP-CAI-086-0150	Work tube package Carbolite for air, inner diameter 75mm, overall diameter 86mm, includes x1180mm IAP standard length work tube, with C799 RCA work tube, suitable for up to 1600°C, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£3,909.00	£3,909.00
TP-CGA-086-0150	Work tube package Carbolite for gas atmosphere, inner diameter 75mm, overall diameter 86mm, includes x 1400mm RCA extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£6,241.00	£6,241.00
TP-CVA-086-0150	Work tube package Carbolite for vacuum, inner diameter 75mm, overall diameter 86mm, includes x 1400mm RCA C799 RCA work tube, vacuum to 1500°C maximum, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£9,239.00	£9,239.00
&06-CS-TF16-600	Cascade control Carbolite TF 16/100/600 furnace (includes type R probe thermocouple & sheath)	£2,666.00	£2,666.00
&00-T5-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T5-600H	Mounting Carbolite horizontal, for TF 16/100/600	£0.00	£0.00
&02-3016-CT1	Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer	£805.00	£805.00
&00-T5-600V	Vertical stand & vertical tube support package Carbolite for TF 16/100/600	£1,372.00	£1,372.00
&00-T5-600S	Vertical tube support package Carbolite for TF 16/100/600 (no stand or mounting bracket included)	£318.00	£318.00

TF116/100/600

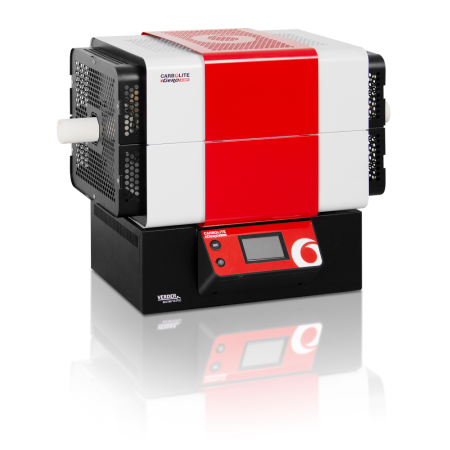

Tube furnace Carbolite TF1 16/100/600 with 1 zone not split, temperature range 600 to 1600°C, heated tube length 600mm, can accommodate tubes up to 100mm diameter, single phase, 230volts, 50Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Minimum Temp:

600

Maximum Temp:

1600

Heated tube length:

600

Maximum outer diameter of tube:

100

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes
