Part Number	Description	List Price	Offer Price
TP-CAI-060-0120	Work tube package Carbolite for air, inner diameter 50mm, overall diameter 60mm, includes x 680mm IAP standard length work tube, with C799 RCA work tube, suitable for up to 1600°C, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£1,497.00	£1,497.00
TP-CGA-060-0120	Work tube package Carbolite for gas atmosphere, inner diameter 50mm, overall diameter 60mm, includes x 900mm RCA extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£3,298.00	£3,298.00
&06-CS-TF16-180	Cascade control Carbolite TF1 16/60/180 furnace (includes type R probe thermocouple & sheath)	£2,503.00	£2,503.00
&00-T5-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T5-180H	Mounting Carbolite horizontal, for TF1 16/60/180	£0.00	£0.00
&02-3016-CT1	Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer	£805.00	£805.00
&00-T5-180V	Vertical stand & vertical tube support package Carbolite for TF1 16/60/180	£1,372.00	£1,372.00
&00-T5-180S	Vertical tube support package Carbolite for TF1 16/60/180 (no stand or mounting bracket included)	£264.00	£264.00

TF116/60/180

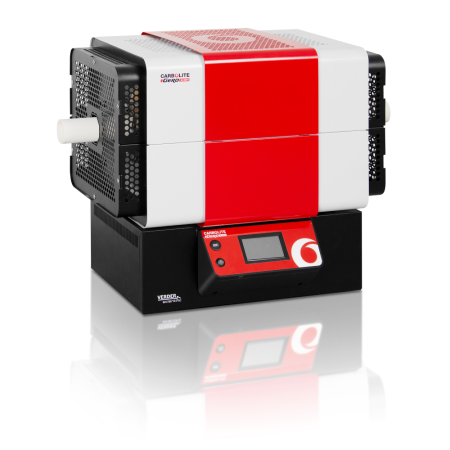

Tube furnace Carbolite TF1 16/60/180 with 1 zone not split, temperature range 600 to 1600°C, heated tube length 180mm, can accommodate tubes up to 60mm diameter, single phase, 230volts, 16Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Minimum Temp:

600

Maximum Temp:

1600

Heated tube length:

180

Maximum outer diameter of tube:

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes
