Part Number	Description	List Price	Offer Price
TP-CAI-060-0130	Work tube package Carbolite for air, inner diameter 50mm, overall diameter 60mm, includes x 800mm IAP standard length work tube, with C799 RCA work tube, suitable for up to 1600°C, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£1,746.00	£1,746.00
TP-CGA-060-0130	Work tube package Carbolite for gas atmosphere, inner diameter 50mm, overall diameter 60mm, includes x 1020mm RCA extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£3,498.00	£3,498.00
&06-CS-TF16-300	Cascade control Carbolite TF1 16/60/300 furnace (includes type R probe thermocouple & sheath)	£2,595.00	£2,595.00
&00-T5-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T5-300H	Mounting Carbolite horizontal, for TF1 16/60/300	£0.00	£0.00
&02-3016-CT1	Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer	£805.00	£805.00
&00-T5-300V	Vertical stand & vertical tube support package Carbolite for TF1 16/60/300	£1,372.00	£1,372.00
&00-T5-300S	Vertical tube support package Carbolite for TF1 16/60/300 (no stand or mounting bracket included)	£264.00	£264.00

TF116/60/300

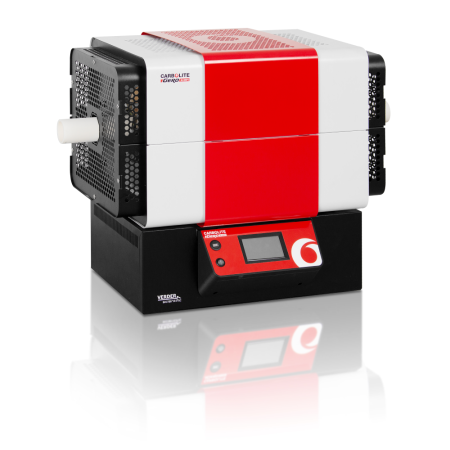

Wolf special offer - Tube furnace Carbolite TF1 16/60/300 with 1 zone not split, temperature range 600 to 1600°C, heated tube length 300mm, can accommodate tubes up to 60mm diameter, single phase, 230volts, 25Amps, no touch screen, with remote control, requires work tube to be pruchased separately OFFER ENDS 28-02-2025

Number of zones :

Split tube :

Minimum Temp:

600

Maximum Temp:

1600

Heated tube length:

300

Maximum outer diameter of tube:

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes

Download Product Brochure

Download Product Manual
