Part Number	Description	List Price	Offer Price
TMP-DIGOT-G2	Digital over-temperature protection Carbolite for TG 12/125/425, fitted in both zones Popular Accessory	£1,665.00	£1,665.00
TP-CAI-086-0160	Work tube package Carbolite for air, inner diameter 75mm, overall diameter 86mm, includes x 750mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£1,049.00	£1,049.00
TP-CGA-086-0160	Work tube package Carbolite for gas atmosphere, inner diameter 75mm, overall diameter 86mm, includes x 1000mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£2,882.00	£2,882.00
TP-CVA-086-0160	Work tube package Carbolite for vacuum, inner diameter 75mm, overall diameter 86mm, includes x 1000mm quartz standard length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£4,803.00	£4,803.00
&00-T6-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£502.00	£502.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T6-425H	Mounting Carbolite horizontal, for TG2 12/125/425	£0.00	£0.00
&00-T6-425S	Vertical stand & vertical tube support package Carbolite for TG2 12/125/425	£264.00	£264.00
&00-T6-425V	Vertical tube support package Carbolite for TG2 12/125/425 (no stand or mounting bracket included)	£1,205.00	£1,205.00

TG212/125/425

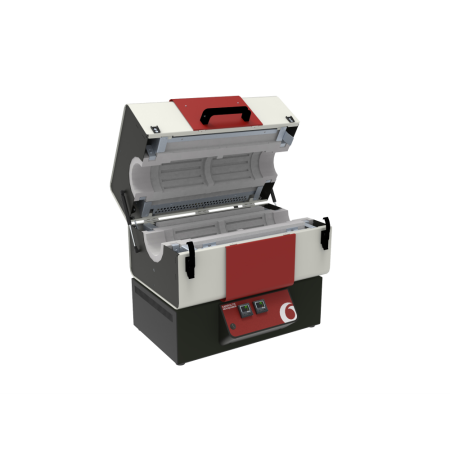

Tube furnace Carbolite TG2 12/125/425 with 2 zones split, temperature range 400 to 1200°C, heated tube length 425mm, can accommodate tubes up to 125mm diameter, single phase, 230volts, 13Amps, no touch screen, with remote control, requires work tube to be purchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

425

Maximum outer diameter of tube:

125

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes

Download Product Brochure

Download Product Manual
