Part Number	Description	List Price	Offer Price
TMP-DIGOT-G3	Digital over-temperature protection Carbolite for TG 12/60/600, fitted in all three zones Popular Accessory	£2,477.00	£2,477.00
TP-CAI-060-0040	Work tube package Carbolite for air, inner diameter 50mm, overall diameter 60mm, includes x 800mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£961.00	£961.00
TP-CGA-060-0040	Work tube package Carbolite for gas atmosphere, inner diameter 50mm, overall diameter 60mm, includes x 1050mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£2,600.00	£2,600.00
TP-QVA-060-0040	Work tube package Carbolite for vacuum, inner diameter 55mm, overall diameter 60mm, includes x 1050mm quartz standard length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£4,770.00	£4,770.00
&00-T6-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£502.00	£502.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T6-600H	Mounting Carbolite horizontal, for TG3 12/60/600	£0.00	£0.00
&00-T6-600V	Vertical stand & vertical tube support package Carbolite for TG3 12/60/600	£718.00	£718.00
&00-T6-600S	Vertical tube support package Carbolite for TG3 12/60/600 (no stand or mounting bracket included)	£247.00	£247.00

TG312/60/600

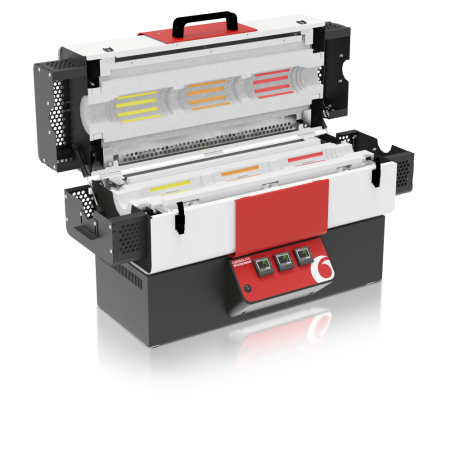

Tube furnace Carbolite TG3 12/60/600 with 3 zones split, temperature range 400 to 1200°C, heated tube length 600mm, can accommodate tubes up to 60mm diameter, single phase, 230volts, 13Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

600

Maximum outer diameter of tube:

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes
