Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-CAI-086-0070	Work tube package Carbolite for air, inner diameter 75mm, overall diameter 86mm, includes x 1150mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£1,243.00	£1,243.00
TP-CGA-086-0070	Work tube package Carbolite for gas atmosphere, inner diameter 75mm, overall diameter 86mm, includes x 1400mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£3,099.00	£3,099.00
TP-CVA-086-0070	Work tube package Carbolite for vacuum, inner diameter 75mm, overall diameter 86mm, includes x 1400mm IAP extended length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£5,024.00	£5,024.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T3-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£502.00	£502.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T3-0800H	Mounting Carbolite horizontal, for TF/TS1 12/125/800	£0.00	£0.00
&02-3016-CT1	Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer	£805.00	£805.00
&00-T3-0800V	Vertical stand & vertical tube support package Carbolite for TF/TS1 12/125/800	£1,205.00	£1,205.00
&00-T3-0800S	Vertical tube support package Carbolite for TF/TS1 12/125/800 (no stand or mounting bracket included)	£264.00	£264.00

TS112/125/800

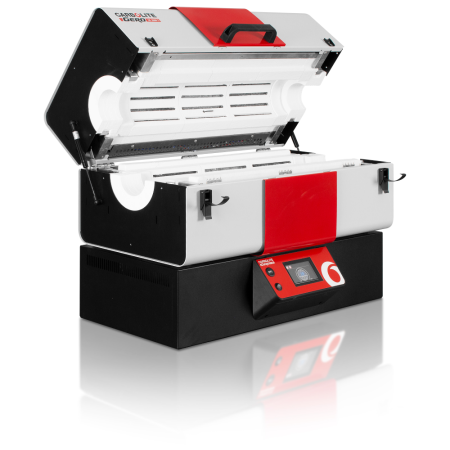

Tube furnace Carbolite TS1 12/125/800 split tube with 1 zone, temperature range 400 to 1200°C, heated tube length 800mm, can accommodate tubes up to 125mm diameter, single phase, 230volts, 16Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

800

Maximum outer diameter of tube:

125

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Remote control :

Yes
