Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-QAI-200-0110	Work tube package Carbolite for air, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz extended length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£8,416.00	£8,416.00
TP-QGA-200-0110	Work tube package Carbolite for gas atmosphere, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£12,332.00	£12,332.00
TP-QVA-200-0110	Work tube package Carbolite for vacuum, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz standard length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£15,437.00	£15,437.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T4-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T4-1200H	Mounting Carbolite horizontal, for TS 12/200/1200	£0.00	£0.00
&02-3016-CT1	Segment programmer upgrade Carbolite from EPC3016P1 to CC-T1 touchscreen temperature programmer	£805.00	£805.00
&00-T4-1200V	Vertical stand & vertical tube support package Carbolite for TS 12/20/1200	£1,714.00	£1,714.00
&00-T4-1200S	Vertical tube support package Carbolite for TS 12/200/1200 (no stand or mounting bracket included)	£664.00	£664.00

TS112/200/1200

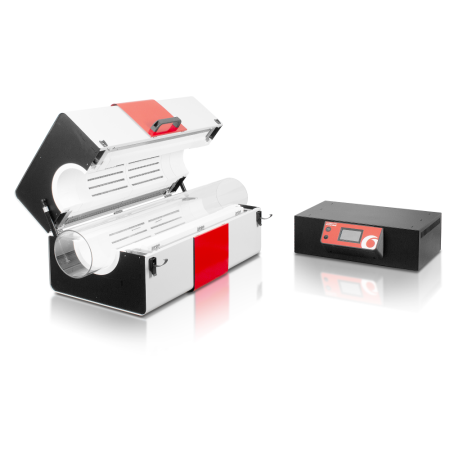

Tube furnace Carbolite TS1 12/200/1200 split tube with 1 zone, temperature range 600 to 1200°C, heated tube length 1200mm, can accommodate tubes up to 200mm diameter, triple phase, 400volts, 25Amps, no touch screen, with remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

600

Maximum Temp:

1200

Heated tube length:

1200

Maximum outer diameter of tube:

200

Number of electrical phases :

Voltage :

400

Amps:

Touch screen :

Remote control :

Yes

Download Product Brochure

Download Product Manual
