Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-CAI-086-0060	Work tube package Carbolite for air, inner diameter 75mm, overall diameter 86mm, includes x 950mm IAP standard length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£1,152.00	£1,152.00
TP-CGA-086-0060	Work tube package Carbolite for gas atmosphere, inner diameter 75mm, overall diameter 86mm, includes x 1200mm IAP extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£2,964.00	£2,964.00
TP-CVA-086-0060	Work tube package Carbolite for vacuum, inner diameter 75mm, overall diameter 86mm, includes x 1200mm IAP extended length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£4,889.00	£4,889.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T3-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£502.00	£502.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T3-0600H	Mounting Carbolite horizontal, for TF/TS1 12/125/600	£0.00	£0.00
&00-T3-0600V	Vertical stand & vertical tube support package Carbolite for TF/TS1 12/125/600	£1,205.00	£1,205.00
&00-T3-0600S	Vertical tube support package Carbolite for TF/TS1 12/125/600 (no stand or mounting bracket included)	£264.00	£264.00

TS312/125/600

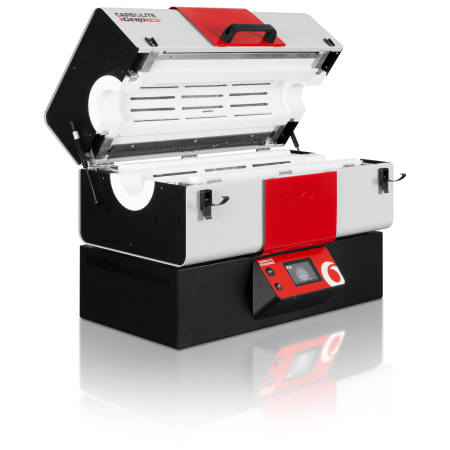

Tube furnace Carbolite TS3 12/125/600 split tube with 3 zones, temperature range 400 to 1200°C, heated tube length 600mm, can accommodate tubes up to 125mm diameter, single phase, 230volts, 13Amps, touch screen and remote control, requires work tube to be purchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

600

Maximum outer diameter of tube:

125

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Yes

Remote control :

Yes

Download Product Brochure

Download Product Manual
