Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-QAI-200-0110	Work tube package Carbolite for air, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz extended length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£8,416.00	£8,416.00
TP-QGA-200-0110	Work tube package Carbolite for gas atmosphere, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£12,332.00	£12,332.00
TP-QVA-200-0110	Work tube package Carbolite for vacuum, inner diameter 190mm, overall diameter 200mm, includes x 1900mm quartz standard length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£15,437.00	£15,437.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T4-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T4-1200H	Mounting Carbolite horizontal, for TS 12/200/1200	£0.00	£0.00
&00-T4-1200V	Vertical stand & vertical tube support package Carbolite for TS 12/20/1200	£1,714.00	£1,714.00
&00-T4-1200S	Vertical tube support package Carbolite for TS 12/200/1200 (no stand or mounting bracket included)	£664.00	£664.00

TS312/200/1200

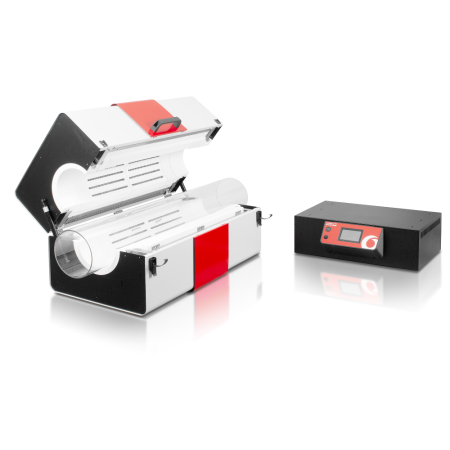

Tube furnace Carbolite TS3 12/200/1200 split tube with 3 zones, temperature range 600 to 1200°C, heated tube length 1200mm, can accommodate tubes up to 200mm diameter, triple phase, 400volts, 25Amps, touch screen and remote control, requires work tube to be pruchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

600

Maximum Temp:

1200

Heated tube length:

1200

Maximum outer diameter of tube:

200

Number of electrical phases :

Voltage :

400

Amps:

Touch screen :

Yes

Remote control :

Yes
