Part Number	Description	List Price	Offer Price
TMP-DIGOT-TF	Digital over-temperature protection Carbolite Popular Accessory	£854.00	£854.00
TP-QAI-200-0100	Work tube package Carbolite for air, inner diameter 190mm, overall diameter 200mm, includes x 1300mm quartz extended length work tube, 2 x insulation plugs, support bracket and probe thermocouple access Popular Accessory	£6,615.00	£6,615.00
TP-QGA-200-0100	Work tube package Carbolite for gas atmosphere, inner diameter 190mm, overall diameter 200mm, includes x 1300mm quartz extended length work tube, 2 x insulation plugs, work tube end seals and probe thermocouple access Popular Accessory	£11,623.00	£11,623.00
TP-QVA-200-0100	Work tube package Carbolite for vacuum, inner diameter 190mm, overall diameter 200mm, includes x 1300mm quartz standard length work tube, 2 x radiation shields, work tube end seals and probe thermocouple access Popular Accessory	£13,636.00	£13,636.00
&06-CS	Cascade control Carbolite	£1,299.00	£1,299.00
&00-T4-4MCEX	Extension cable Carbolite 4m, total 6m between furnace and control box	£534.00	£534.00
X2329-1005	Inert gas package Carbolite standard	£1,297.00	£1,297.00
&00-T4-0600H	Mounting Carbolite horizontal, for TS 12/200/600	£0.00	£0.00
&00-T4-0600V	Vertical stand & vertical tube support package Carbolite for TS 12/20/600	£1,552.00	£1,552.00
&00-T4-0600S	Vertical tube support package Carbolite for TS 12/200/600 (no stand or mounting bracket included)	£664.00	£664.00

TS312/200/600

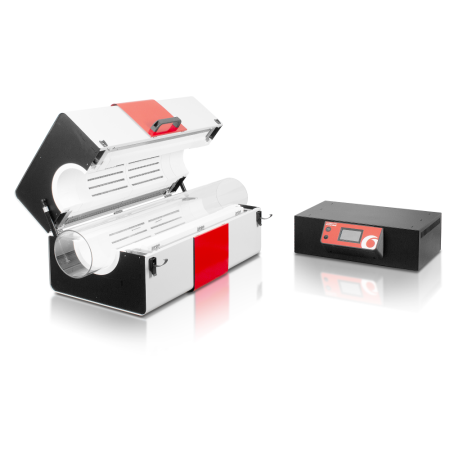

Tube furnace Carbolite TS3 12/200/600 split tube with 3 zones, temperature range 400 to 1200°C, heated tube length 600mm, can accommodate tubes up to 200mm diameter, single phase, 230volts, 40Amps, touch screen and remote control, requires work tube to be purchased separately

Number of zones :

Split tube :

Yes

Minimum Temp:

400

Maximum Temp:

1200

Heated tube length:

600

Maximum outer diameter of tube:

200

Number of electrical phases :

Voltage :

230

Amps:

Touch screen :

Yes

Remote control :

Yes

Download Product Brochure

Download Product Manual
