New Furnace products from Nabertherm added to the website. Models include: LH15/12 B150, LH30/12 B150, LH60/12 B150, LH120/12 B150, LH216/12 B150, LH15/13 B150, LH30/13 B150, LH60/13 B150, LH120/13 B150, LH216/13 B150, LH15/14 B150, LH30/14 B150, LH60/14 B150, LH120/14 B150, LH216/14 B150, L1/12 B180, L3/11 B180, L3/12 B180, L5/11 B180, L5/12 B180, L5/13 B180, L9/11 B180, L9/12 B180, L9/13 B180, L15/11 B180, L15/12 B180, L15/13 B180, L24/11 B180, L24/12 B180, L40/11 B180, L40/12 B180, HTCT 01/16 P330, L9/11/SKM B180, L9/11/SW B180, and L9/12/SW B180

Thank you Holly. I’ll be sure to email you when we require more kit. You have been so helpful and I greatly appreciate it.

Cheers

We have just updated our Furnaces page to make selecting the most suitable unit even easier. Click here to see the new page.

Introduction
New SNOL series furnaces from TMS Europe have been added. The Fibre Muffle 1100 series from TMS Europe are a range of precision laboratory electric muffle furnaces, with a counter balanced lift-up door, for use up to 1100°C. They are designed for materials testing, heat treatment, ceramic and stoneware samples firing and ashing (models with chimney). And are used in laboratories, educational institutions, ceramic studios and in industry for thermal processing. The chamber is made of high thermal efficiency vacuum-formed ceramic fibre, with heating elements embedded in four sides and a ceramic tile to protect the fibre base from wear.

Features and benefits
- Lift-up door for efficient use of work space and better safety
- Good stability and uniformity
- Fast heating and cooling time due to low thermal mass construction
- Low power consumption for reduced running costs and energy savings

Prices starting at £796 - http://www.wolflabs.co.uk/laboratory-products/furnaces

New furnaces from Naberthem have been added.

Introduction

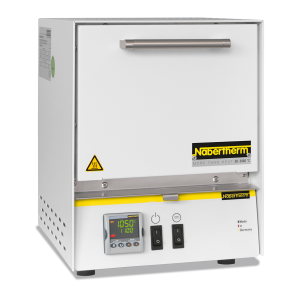

Nabertherm LE 1/11 and LE 14/11 furnaces from Wolflabs. With their unbeatable price/performance ratio, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Features and benefits
- Tmax 1100 °C, working temperature 1050 °C
- Heating from two sides from heating elements in quartz glass tubes
- Maintenance-friendly replacement of heating elements and insulation
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and high stability
- Flap door which can also be used as a work platform
- Exhaust air outlet in rear wall
- Solid state relays provide for low-noise operation
- Compact dimensions and light weight
- Controller mounted under the door to save space
- Defined application within the constraints of the operating instructions

Introduction

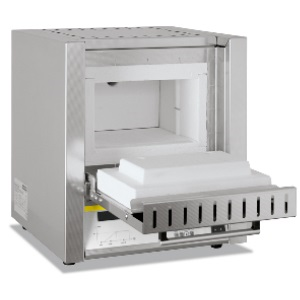

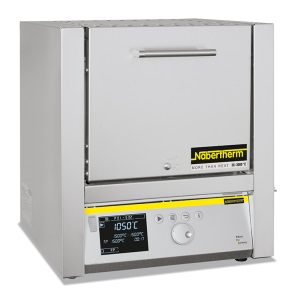

Nabertherm L and LT series of furnaces from Wolflabs. The muffle furnaces L 1/12 - LT 40/12 are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

Features and benefits
- Tmax 1100 °C or 1200 °C
- Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 40/12)
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and high stability
- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Adjustable air inlet integrated in door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide for low-noise operation
- Defined application within the constraints of the operating instructions

Prices starting at £889 - http://www.wolflabs.co.uk/laboratory-products/furnaces

Introduction
Carbolite ELF furnaces from Wolflabs. The ELF laboratory furnaces comprise three bench mounted models designed for light duty and general use up to 1100°C. They have a simple drop down door and a top mounted ceramic chimney. The combination of low thermal mass insulation and free radiating wire elements embedded in the chamber sides provide efficient heating.

Features and benefits
- 1100°C maximum operating temperature
- Carbolite Gero 301 controller with single ramp to setpoint and process timer
- 6, 14 or 23 litre chamber volumes
- Drop down door with air gap to minimise external temperature
- Delayed start / process timer function as standard
- Vacuum formed, low thermal mass insulation
- Hard ceramic hearth fitted as standard
- Ventilated via top mounted ceramic chimney

Introduction

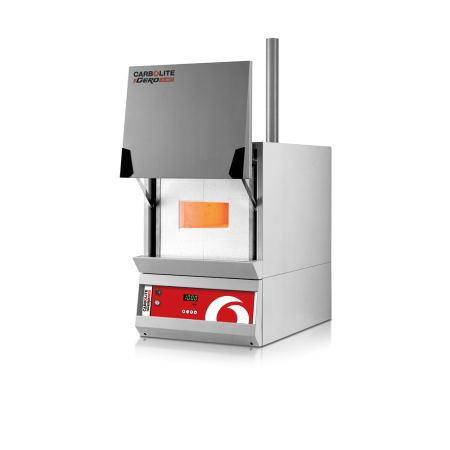

Carbolite AAF series of furnaces from Wolflabs. The range of AAF ashing furnaces is designed specifically to provide optimum ashing conditions to ensure complete combustion of the sample.

Features and benefits
- 1100°C & 1200°C maximum operating temperatures
- Carbolite Gero 301 single ramp to setpoint & process timer
- Large floor area allows for large number of samples
- Ideal for ashing foods, plastics, coal & other hydrocarbon materials

AAF 11/3 and AAF 11/7:
- Designed to comply with ISO 1171:2010 & ASTM D3174-04: 2010
- Wire elements are protected from chemical & mechanical damage by a hard wearing alumina based liner
- Air inlet & tall chimney give airflow of 4 to 5 changes per minute
- Low chamber height holds airflow close to samples for optimum combustion
- Powerful elements with graded winding compensate for heat loss due to high airflow
- Preheating of air before it enters the chamber gives excellent uniformity
- Sample tray and loading handle

AAF 11/18 and AAF 12/18:
- Protection of the elements from carbon build-up or corrosive atmosphere, using silicon carbide tiles
- Two tier rack system doubling the sample capacity

Introduction

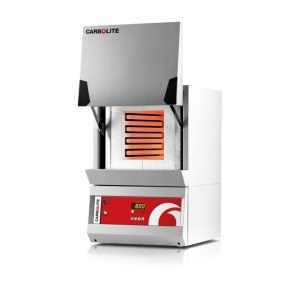

Carbolite CWF furnaces from Wolflabs. The CWF laboratory chamber furnace range of general purpose furnaces is supplied in three sizes, each available with a maximum operating temperature of either 1100°C, 1200°C or 1300°C.

Features and benefits
- 1100°C, 1200°C or 1300°C maximum operating temperature
- Carbolite Gero 301 controller with single ramp to setpoint and process timer
- 5, 13 or 23 litre chamber volumes
- Soft closing parallel action door keeps heated surface away from the user
- Delayed start / process timer function as standard
- Hard wearing alumina element carriers, furnace entrance & hearth
- Energy efficient low thermal mass insulation
- Free radiating wire wound elements for optimum uniformity
- Easy access to elements & controls simplifies maintenance & servicing

Introduction

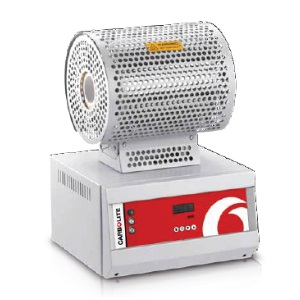

Carbolite EHA, EHC, EVA and EVC series of furnaces from Wolflabs. The compact EHA, EHC horizontal and EVA, EVC vertical compact tube furnaces use free radiating wire elements embedded within the insulation of the furnace body. The benefit of this design is its fexibility with the use of tube adapters the same furnace can be used with a variety of tube diameters. The EHA and EVA are single zone furnaces and the EHC and EVC are three zone furnaces.

Features and benefits
- 1200°C maximum operating temperature
- Carbolite Gero 301 digital PID controller with single ramp to setpoint and process timer
- Heated lengths, single zone 150, 300, 450 or 600 mm (EHA, EVA)
- Heated lengths, 3-zone 450 and 600 mm (EHC, EVC)
- Accepts work tubes with outer diameters up to 60 mm
- Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times
- Horizontal configuration (EHA, EHC)
- Vertical configuration (can also be used horizontally – EVA, EVC)
- Control module with 2 metre conduit to furnace (EVA, EVC)
- Outer mesh guard ensures operator safety

Introduction

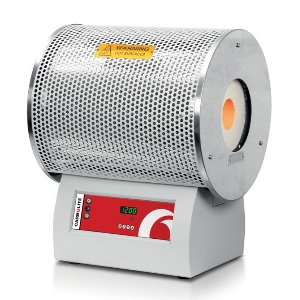

Carbolite GHA and GHC furnaces from Wolflabs. The GVA and GHA single zone and GVC and GHC 3-zone tube furnaces use free radiating wire elements embedded within the insulation of the furnace body. The benefit of this design is its flexibilty; with the use of tube adapters the same furnace can be used with a variety of tube diameters.

Features and benefits
- 1200°C maximum operating temperature
- Carbolite Gero 301 digital PID controller with single ramp to setpoint, digital display and process timer
- Accepts work tubes with outer diameters up to 170 mm
- Heated lengths, single zone 300, 450, 600, 750, 900, 1050 or 1200 mm (GHA, GVA)
- Heated lengths, 3-zone 450, 600, 750, 900, 1050 or 1200 mm heated lengths (GHC, GVC)
- Long life, rapid heating, resistance wire elements mounted in rigid, vacuum formed insulation modules
- Horizontal configuration (GHA, GHC)
- Furnace mounted directly on top of controller base unit (GHA, GHC)
- End zones 150 mm long on each end
- End zone control via back to back thermocouples (GVA, GVC)
- Supplied with versatile stand for vertical, wall mounted and horizontal use (GVA, GVC)
- Control module with 2 metre conduit to furnace

Introduction
Carbolite RHF furnaces from Wolflabs. The RHF range of silicon carbide heated high temperature chamber furnaces comprises four chamber sizes, each available with three maximum operating temperatures of 1400°C, 1500°C and 1600°C.

Features and benefits
- 1400°C, 1500°C or 1600°C maximum operating temperature
- Carbolite Gero 301 PID controller with single ramp to setpoint & process timer
- 3, 8, 15 or 35 litre chamber volumes
- Soft closing parallel action door (3 & 8 litre models only)
- Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
- Hard wearing refractory brick door surround and silicon carbide hearth
- Low thermal mass insulation for energy efficiency & rapid heating & cooling

Introduction

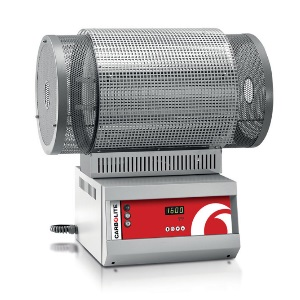

Carbolite STF and TZF furnaces from Wolflabs. The Carbolite Gero STF single zone and TZF 3-zone high temperature tube furnaces are available at 1500°C and 1600°C with both models using silicon carbide heating elements.

Features and benefits
- 1500°C & 1600°C maximum operating temperatures
- Carbolite Gero 301 controller with single ramp to setpoint and process timer
- Accepts work tubes up to 60 or 90 mm outer diameter depending on model
- Heated lengths, single zone 180, 450 or 610 mm (STF)
- Heated lengths, 3-zone 450 or 610 mm (TZF 15, TZF 16)
- Silicon carbide heating elements
- Horizontal configuration

Introduction

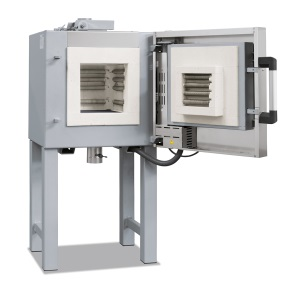

New LH series of furnaces from Naberthem have been added.

Features and benefits
- Tmax 1200 °C, 1300 °C, or 1400 °C
- Dual shell housing with rear ventilation, provides for low shell temperatures
- Five-sided heating for very good temperature uniformity
- Heating elements on support tubes ensure free heat radiation and a long service life
- Controller mounted on furnace door and removable for comfortable operation
- Protection of bottom heating and flat stacking surface provided by embedded SiC plate in the floor
- Multi-layered, fiber-free insulation of light refractory bricks and special backup insulation
- Door with brick-on-brick seal, hand fitted
- Short heating times due to high installed power
- Self-supporting arch for high stability and greatest possible protection against dust
- Quick lock on door
- Motor driven exhaust air flap
- Freely adjustable air slide intake in furnace floor
- Base included
- Defined application within the constraints of the operating instructions
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Introduction
Nabertherm LE series of furnaces from Wolflabs. With their unbeatable price/performance ratio, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Features and benefits
- Tmax 1100 °C, working temperature 1050 °C
- Heating from two sides from heating elements in quartz glass tubes
- Maintenance-friendly replacement of heating elements and insulation
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and high stability
-  Flap door which can also be used as a work platform
- Exhaust air outlet in rear wall
- Solid state relays provide for low-noise operation
- Compact dimensions and light weight
-  Controller mounted under the door to save space
-  Defined application within the constraints of the operating instructions

Discounts of almost 25% - https://www.wolflabs.co.uk/laboratory-products/furnaces

Introduction

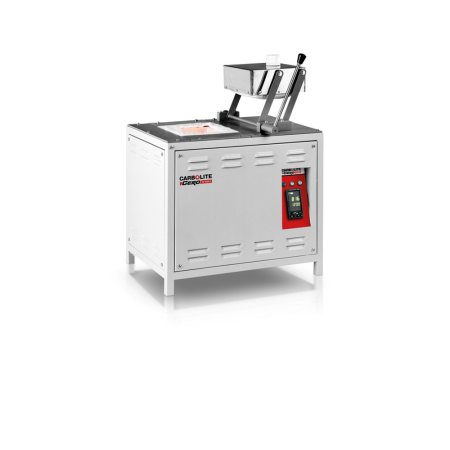

Carbolite VCF furnaces from Wolflabs.

Features and benefits
- 1200°C maximum operating temperature.
- Free radiating wire elements in all 4 sides of chamber.
- Vented top opening door.
- Angled control panel, protected but clearly visible.
- Thermocouple protected by ceramic sheath.

Introduction
Carbolite ABF 8/28 furnace from Wolflabs. The ABF 8/28 afterburner ashing furnace is particularly suitable for ashing larger samples or materials such as biomass, which are likely to generate substantial amounts of smoke. The furnace comprises a large main combustion chamber equipped as standard with a two tier set of sample baskets. The exhaust from the main chamber passes through a high temperature afterburner designed to further process fumes and smoke.

Features and benefits
- 800°C maximum operating temperature – ashing chamber.
- 28 litre chamber volume.
- Afterburner rated for up to 40 g carbon per ashing load.
- Two tier baskets with loading tray and handle.
- Silicon carbide shielded wire wound elements.

Introduction
TMS Europe SNOL 22/1100 LHM01 furnace from Wolflabs. This product is an laboratory electric muffle furnace, with a counter balanced lift-up door, for use up to 1100°C. It is designed for materials testing, heat treatment, ceramic and stoneware samples firing and ashing (models with chimney). And is used in laboratories, educational institutions, ceramic studios and in industry for thermal processing.

Features and benefits
- Lift-up door for efficient use of work space and better safety.
- Good stability and uniformity.
- Fast heating and cooling time due to low thermal mass construction.
- Low power consumption for reduced running costs and energy savings.

Introduction
Carbolite EVA 12/300 furnace from Wolflabs. The compact EVA 12/300 vertical compact tube furnace uses free radiating wire elements embedded within the insulation of the furnace body. The benefit of this design is its flexibility with the use of tube adapters as the same furnace can be used with a variety of tube diameters.

Features and benefits
- 1200°C maximum operating temperature.
- Digital PID controller with single ramp to setpoint and process timer.
- Accepts work tubes with outer diameters up to 60 mm.
- Outer mesh guard ensures operator safety.
- Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times.

Introduction
Carbolite ELF 11/14 furnace from Wolflabs.

Features and benefits
- Drop down door with air gap to minimise external temperature.
- 1100°C maximum operating temperature.
- Delayed start / process timer function as standard.
- Hard ceramic hearth fitted as standard.

Introduction

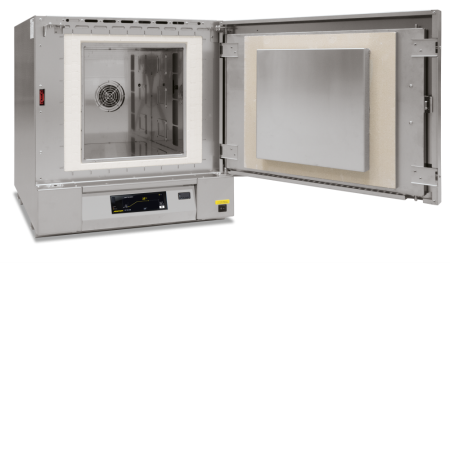

Nabertherm NAT Range of Chamber Furnaces from Wolflabs.

Features and benefits
- up to 850°C maximum operating temperature
- Low noise operation
- Recording of process data with USB-flash drive
- 15 - 50 litre chamber volume
