Melting Point Apparatus News

Introduction

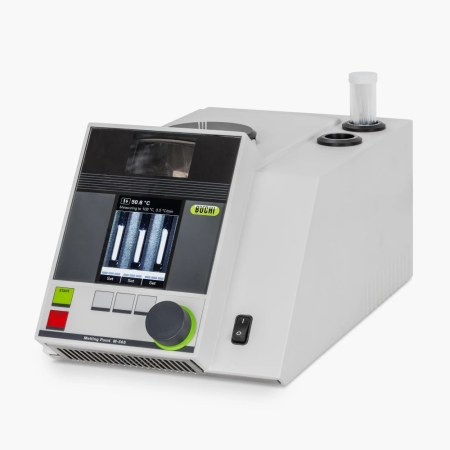

BUCHI's M-560 and M-565 melting point apparatus from WolfLabs.
BUCHI's M-560 and M-565 Melting Point Instruments are designed to provide precise and efficient determination of melting and boiling points, catering to the needs of laboratories focused on quality control and research. These instruments combine user-friendly interfaces with advanced technology to ensure accurate and reproducible results.​

Features and Benefits:
- Accurate Measurements: Both models offer highly precise temperature regulation and measurement, ensuring reliable determination of melting and boiling points.
- User-Friendly Interface: Intuitive menus and programs displayed on an LCD screen facilitate easy navigation and operation.
- Automated Calibration: The instruments feature fail-safe calibration with automated determination and storage of calibration results, enhancing measurement reliability.
- Video Observation: The M-565 model includes real-time video display with 6× magnification and a replay function, allowing detailed observation and analysis of phase transitions.
- Regulatory Compliance: Both instruments comply with Pharmacopeia methods (European, USP, Japanese) and offer comprehensive IQ/OQ procedures, including certified calibration and verification compounds for GLP/GMP laboratories.

Introduction
Cole-Parmer MP-250D series melting point apparatus from Wolflabs.

Features and benefits
- Membrane keypad with simple menus for intuitive use
- Adjustable arm with viewing magnifier can be folded away into the unit
- Samples in 3 capillary tubes may be viewed simultaneously
- Rotating viewing head and safety eye piece to protect against glare and hot zone
- Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain

Offer for Melting Point Apparatus from Electrothermal Engineering. The special offer model is; IA9100.

Offer for Melting Point Apparatus from Stuart. The special offer model is; SMP40.

Dear Sarah,

I have received the unit back and it is working perfectly. Many thanks for your support throughout the repair process it was one of the best customer services I have had from a company for a long time.

Kind Regards

Customer

Hi Emma,

I would just like to thank you for all your assistance and customer service throughout this process. It truly has been exceptional to say the least.

Kind Regards

Javid

Discounts of almost 25% - http://www.wolflabs.co.uk/laboratory-products/melting-point-apparatus

Introduction
New SMP50 melting point apparatus from Stuart has been added. In the Stuart SMP50 Automatic Melting point the latest digital camera technology is employed to produce a high resolution video of the sample melt, this allows the intelligent melt algorithm to identify the smallest of changes within the sample, accurately and reliably determining the melting point of up to three samples simultaneously.

Features and benefits
- The SMP50 features a useful storage drawer to house all standard capillary tubes. The drawer also contains a small glass cutter that can be used to accurately cut capillary tubes sealed at both ends. Not only will the glass cutter always get the cut in the centre of the tube, but it will also reliably give a clean cut making sample loading cleaner and safer.
- The latest digital camera technology is employed to produce a high resolution video of the sample melt, this allows the intelligent melt algorithm to identify the smallest of changes within the sample, accurately and reliably determining the melting point of up to three samples simultaneously.
- All operation is via the 7” high definition colour touchscreen. Once programmed, users can leave the SMP50 to complete the melt analysis independently. Alternatively the melt can also be observed on the screen live or post-melt. During post melt review additional measurement tags, such as meniscus point, can be added if required or the automatically obtained result can be overwritten.
- The SMP50 has a custom designed user interface based on an established Android platform for intuitive setup and navigation. The familiar elements of an Android operating system help the user to feel comfortable, with everything where you would logically expect it.
- The unit also features handy storage for pre-prepared samples, safely away from the heat source eliminating accidental sample melting.
- A generous 8GB on-board storage is included, which should comfortably hold approximately 300 melt files including videos. Results can also be transferred via USB stick on to a PC for a more permanent long term record. All video files include a temperature stamp, so whatever device you view them on you can confirm the automatically obtained result.
- The sample chamber is protected by a safety hood that not only protects your sample from accidental sideswipes but also acts as a light shield, ensuring that any adjustments to the ambient lighting conditions don’t affect the automatic melting point determination.

Introduction
Stuart SMP30 melting point apparatus from Wolflabs. Designed for fast accurate determination of melting points, the SMP30 can take three samples simultaneously within the optimised heating block, the unit has a maximum temperature of 400°C.

Features and benefits
- To allow maximum flexibility a plateau facility is included with variable ramp rate between 0.5 and 10°C in 0.1°C increments.
- The tubes are illuminated with bright white LED’s to give the clearest view of the samples during the melt.
- The block has been designed for easy access for cleaning, the front of the head is fully removable to allow full access to the micro furnace.
- The SMP30 has a large clear back lit alphanumeric LCD display, running the menu system which clearly guides you through the melting process with comprehensive directions.
- Language is switchable between English, German, French and Italian.
- The SMP30 features an innovative head up display. This unique feature displays a floating image of the block temperature, visible through the eyepiece, in front of the tubes. The head up display eliminates the need for the user to keep switching their gaze between the tubes and the temperature display, through the eyepiece they can now see both at once.
- To allow the most comfortable viewing angle the SMP30 features a two stage head adjustment, in the first movement the head is pulled towards the user, then in a separate motion the angle of the head can be adjusted by up to 126°, and will automatically hold in place due to the torsion resistant design to create the perfect viewing angle. The head can then be stored safely back within the body of the unit for storage.
- The design of the unit has lots of other useful features such as slots for storing pre-prepared samples and a storage draw to hold a container of capillary tubes.

Discounts of almost 35% - http://www.wolflabs.co.uk/laboratory-products/melting-point-apparatus

Introduction
Electrothermal Engineering IA9000 series of melting point apparatus from Wolflabs. The updated IA9000 series Digital Melting Point Apparatus offers a quick way to measure the melting points of samples, without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height- adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8x magnification.

Features and benefits
- Membrane keypad with simple menus for intuitive use
- Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
- Digital microprocessor with ±0.1°C resolution provides fast warm-up and accurate temperature control
- Samples in 3 capillary tubes may be viewed simultaneously
- 3 Audible beeps indicate that the oven temperature is stable and ready for sample
- Adjustable arm with 8x viewing magnifier can be folded away into the unit
- Adjustable object lens for sharp focus
- Daylight-balanced LEDs for improved sample illumination
- Rotating viewing head and safety eye piece to protect against glare and hot zone
- Integral light and wide angle 8X magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
- Units can be calibrated in the field or at the factory; if in the field a calibration kit is required
- Improved calibration procedure using a calibration key

Introduction
Stuart SMP11 melting point apparatus from Wolflabs. With new safety features and easy to use, the SMP11 is ideal for use in education. Supplied with a safe, spirit filled mercury free thermometer, the low toxic blue spirit will not pose a health hazard in the event of a breakage. Easy to follow instructions are printed directly on to the apparatus and are available in most European languages.

Features and benefits
- Easy to operate - ideal for educational use
- Supplied with safe spirit filled thermometer
- Economical price

New data for “Integrated glass cutter” has been added to the filters on the melting point apparatus page. Some units have an integrated glass cutter that can be used to accurately cut capillary tubes sealed at both ends. Not only will the glass cutter always get the cut in the centre of the tube, but it will also reliably give a clean cut making sample loading cleaner and safer.

Introduction
Cole-Parmer - Stuart SMP10 and SMP20 metling point apparatus from Wolflabs. The SMP10 and SMP20 have been designed with safety and ease of operation in mind making it ideal for use in education. The temperature is selected, measured and displayed digitally making it accurate and negating the need for a thermometer. The SMP10 displays temperature to 1 degree resolution while the more advanced SMP20 has a 0.1 degree resolution as well as a variable ramp rate and hold key so that the exact melt temperature can be recorded.

Features and benefits
- Digital selection & display of temperature
- Choice of accuracy, 1 or 0.1 degree resolution
- Easy to operate with plateau facility
- Ideal for educational use
- Supplied with calibration certificate

Prices starting at £408 - https://www.wolflabs.co.uk/laboratory-products/melting-point-apparatus

Prices starting at £415 - https://www.wolflabs.co.uk/laboratory-products/melting-point-apparatus

Melting point apparatus Cole-Parmer - Stuart SMP11 no digital display, maximum temperature 250°C, 3 samples, 1°C resolution, fixed ramp rate, no integrated glass cutter, supplied with thermometer and pack of 100 melting point tubes closed at one end
Melting point apparatus Cole-Parmer - Stuart SMP10 digital display, maximum temperature 300°C, 2 samples, 1°C resolution, fixed ramp rate, no integrated glass cutter, supplied with pack of 100 melting point tubes closed at one end
Melting point apparatus Cole-Parmer - Stuart SMP30 digital display, maximum temperature 400°C, 3 samples, 0.1°C resolution, variable ramp rate, no integrated glass cutter, supplied with pack of 100 melting point tubes closed at one end
Melting point apparatus Cole-Parmer - Stuart SMP50 digital display, maximum temperature 400°C, 3 samples, 0.1°C resolution, variable ramp rate, with integrated glass cutter, supplied with pack of 100 melting point tubes closed at one end
