Introduction

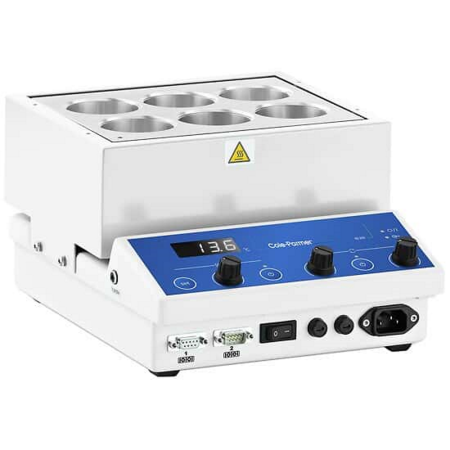

Cole-Parmer RS-250D-25, RS-250D-250, RS-250D-S Reaction Stations from Wolflabs

Features and benefits
- New and updated look with the same great quality
- Compact footprint for easy integration onto a robotic platform
- Sample sizes from 0.2ml to 250ml (model dependant)
- Excellent temperature uniformity across the block

Introduction

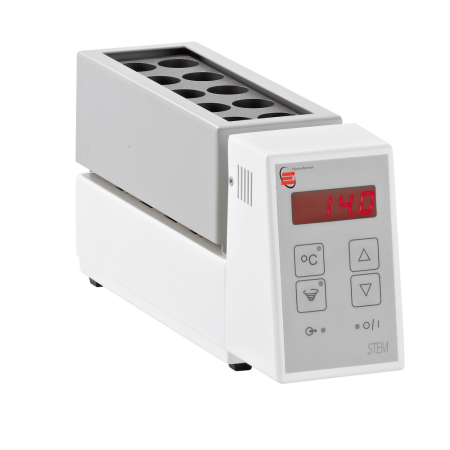

Electrothermal Engineering RS1000 reaction station from Wolflabs. Electrothermal’s heating and stirring Reaction Stations can be used for a wide range of applications from simple synthesis to process optimisation. High performance magnetic stirrers beneath each sample position ensure maximum coupling between the stirrer bar in the sample and the powerful motor. The range accommodates sample sizes from 2ml to 250ml in a wide range of vessel sizes and heating formats. Adaptor sleeves can be used to accommodate non-standard vessel sizes.

Features and benefits
- 10-position reaction station
- 24mm/25mm diameter vessels
- Can accommodate 16mm and other diameter vessels with appropriate adaptor sleeves
- Sample sizes from 10ml to 30ml
- Controlled temperature range from ambient to 150ºC
- Manual and external control via the RS232 interface port
- Powerful stir speed from 400 to 2000rpm
- Compact footprint for easy integration onto a robotic platform
- Low running costs as only 300W power consumption
- Manual and external control via the RS232/RS458 interface port
- High temperature RS1000H option with temperature range from ambient to 300ºC
- RS1000H has 600W power consumption as it can operate at higher temperature

Introduction

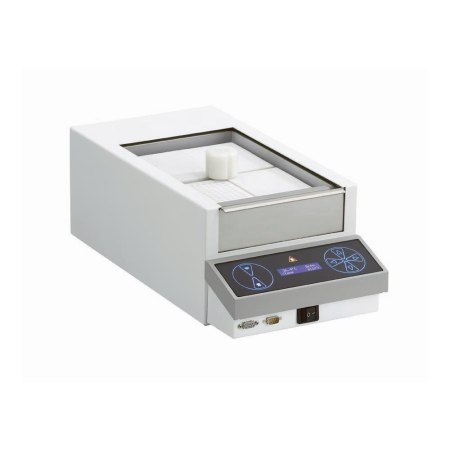

Electrothermal Engineering RS9000 reaction station from Wolflabs. The RS9000 Heater/Shaker Reaction Station can be used within a robotic workstation or as a stand-alone apparatus within the lab. On a robotic platform, heating and shaking cycles can be controlled by external software or as part of a fully automated system, through the RS232/ RS485/ GSIOC ports; for standalone use, there is the additional option of controlling heating and shaking cycles via the user-friendly touchscreen.

Features and benefits
- Very versatile as reaction blocks can be inter-changed to accommodate different vessels and tray formats
- Customised reactor blocks also available
- Can be used on a robotic platform or within a laboratory
- Choice of touchscreen control or external control via RS232/ RS485/ GSIOC ports
- Operates over a temperature range of ambient to 150°C
- Agitation speed of 100-600rpm
- Optional temperature probe
- 2-axis X-Y gyration system on solid bronze chassis that is both reliable and stable
- Auto-park feature enables use on robotic platforms
- Soft start ramping to minimise splashing
- Very safe to operate
- Designed for reliable, continuous 24 hour heating and agitation
