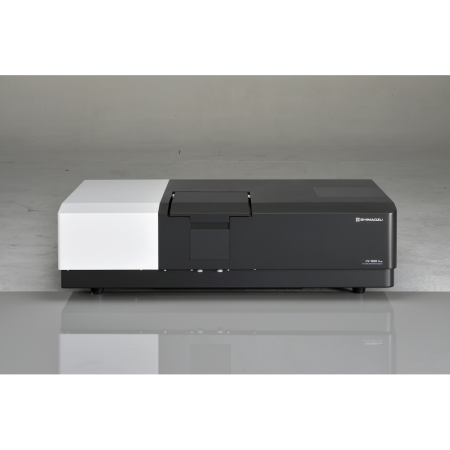

UV-3600i Plus

6-cell positioner Shimadzu CPS-100 thermoelectrically temperature controlled, used in Kinetics mode, this provides measurement of up to 6 temperature-sensitive enzyme samples. Number of cells: 6 on the sample side (temperature-controlled), 1 on the reference side (temperature not controlled).

Automatic 6-cell holder

Cell holder Shimadzu TCC-100, thermoelectrically temperature controlled, single-cell peltier. Number of cells: One each on the sample and reference sides (Peltier temperature-controlled).

Cell Holder Shimzadzu constant temperature four-cell holder. Four 10mm Pathlength Sample and one Reference Cell maintained at Temperature range of 5°C to 90°C, according to selection of water recirculator system (optional purchase of PCB-1500 P/N 980-09081). Water pipe connectors: 9 mm. Note: The Four-Cell Sample Compartment Unit (P/N 206-23670-91) is necessary.

Cell Holder Shimzadzu constant-temperature single, 10mm Pathlength Sample and Reference Cells maintained at Temperature range of 5°C to 90°C, according to selection of water recirculator system (optional purchase of PCB-1500 P/N 980-09081 required). Water pipe connectors: 6 mm and 9 mm (two levels).

Cell Holder Shimzadzu long-path, rectangular, holds two rectangular cells with an optical path length of 10, 20, 30, 50, 70, or 100 mm.

Cell Holder Shimzadzu reference-side, rectangular, long-path, absorption. Note: Requires the Four-Cell Sample Compartment unit (P/N 206-23670-91).

Cell Holder Shimzadzu universal, rectangular, four-cell type. Holds four rectangular cells with an optical path length of 10, 20, 30, 50, 70, or 100 mm. Note: Requires the Four-Cell Sample Compartment unit (P/N 206-23670-91). When a rectangular, long-path cell is used on the reference side, its holder (P/N 204-28720) is also required.

Film holder Shimzadzu used in transmittance measurement of thin samples such as films and filters. Sample Size Mimimum: 16 (W) × 32 (H) mm. Sample Size Maximum: 80 (W) × 40 (H) × 20 (Thickness) mm

Integrating sphere attachment Shimadzu ISR-603, 3-Detector 60 mm diameter (220nm to 2600nm for UV3600Plus), used for total diffuse transmission or reflecatance measurements of liquid or solid samples. The specular components can also be measured. Equiped with three detectors (photomultiplier tube, an InGaAs detector, and a PbS detector), this accessory offers unique optimized sensitivity across a large wavelength range.

Sample compartment unit Shimadzu four-cell, accommodates four square cross-section 10mm pathlength cuvettes in the sample beam, and one similar cuvette in the reference beam. Manual Change of position settings. Note: There is no temperature control capability with this unit. Cuvettes not included.

Test tube holder Shimzadzu outside diameter: 15 to 18 mm. Height: 84 to 115 mm Note: Test tube is not included.

Training Shimadzu half day by Shimadzu product specialist
