- Approved storage of hazardous materials in workrooms according to EN 14470-1 (type 90)
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 90 minutes fire-resistant
- Available in three sizes
- Different equipment options: drawers, shelves, separating plate
- Colour: yellow (RAL 1004) or light grey (RAL 7035
- Door open arrest system (standard)
- Adjusting aids to compensate for uneven floor
- Earthing link (standard)
- Labeling in accordance with EN 14470-1
Folding Door Cabinets Type 30
|

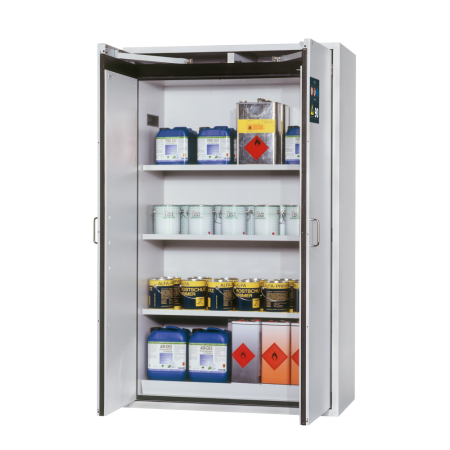

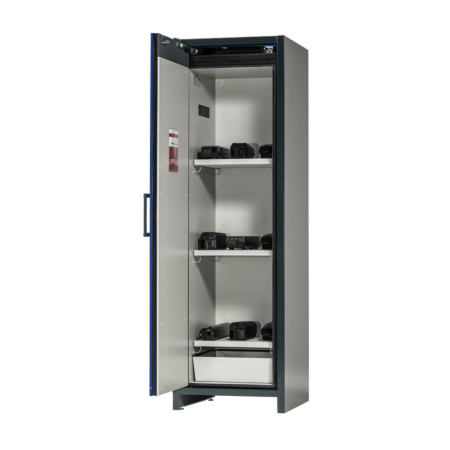

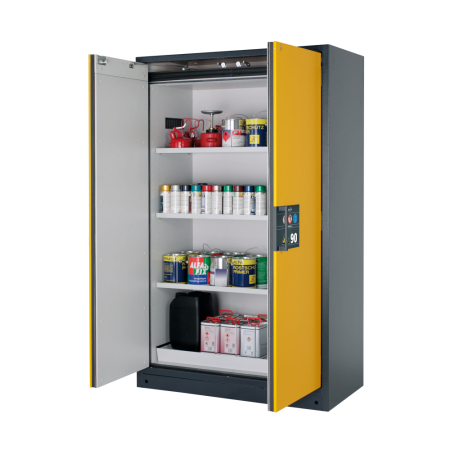

Wing Door Cabinets Type 90
|
|
|
The Classic
All-round efficiency
All safety cabinets are fire chamber tested in accordance with EN 14470-1!
- Approved storage of hazardous materials in workrooms
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 90 minutes fire-resistant
- Available in five dimensions
- Colour: yellow (RAL 1004) or light grey (RAL 7035
- Door open arrest system (optional)
- Smooth, air-damped self-closing doors
- Minimal effort, door-opening easy and save
- Extraction air inlet is flush with the ceiling of the cabinet
- Door closing system outside the storage compartment: increased protection of moving and safety relevant components against corrosion
- Adjusting aids to compensate for uneven floor
- Earthing link (standard)
|
Accessories:
- PE-sump inliner - protects shelves from corrosiv materials
- Door open arrest system
- Box for chemicals - seperate storage of less aggressive chemicals
- >B>Certififed fire protected add-on for access of pipes and cables through cabinet walls and more...
|
Wing Door Cabinets Type 60
|
|
|
The Classic
All-round efficiency
All safety cabinets are fire chamber tested in accordance with EN 14470-1!
- Approved storage of hazardous materials in workrooms
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 60 minutes fire-resistant
- Available in two dimensions
- Colour: yellow (RAL 1004)or light grey (RAL 7035
- Door open arrest system (optional)
- Smooth, air-damped self-closing doors
- Minimal effort, door-opening easy and save
- Extraction air inlet is flush with the ceiling of the cabinet
- Door closing system outside the storage compartment: increased protection of moving and safety relevant components against corrosion
- Adjusting aids to compensate for uneven floor
- Earthing link (standard)
Accessories:
- PE-sump inliner - protects shelves from corrosiv materials
- Door open arrest system
- Box for chemicals - seperate storage of less aggressive chemicals
- and more...
|

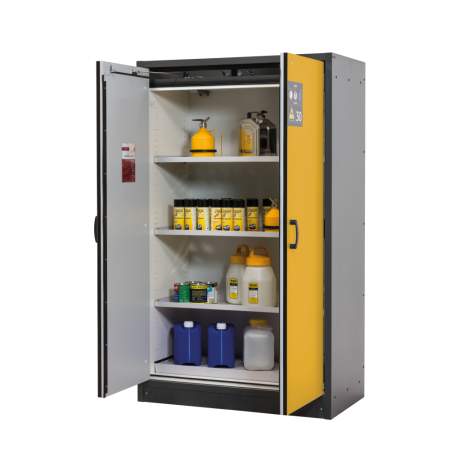

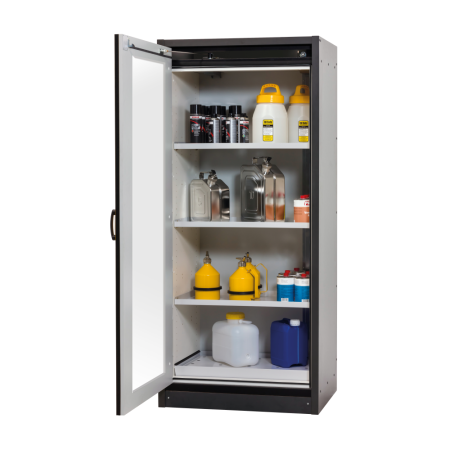

Wing Door Cabinets Type 30
|
|
|
The Basic
All safety cabinets are fire chamber tested in accordance with EN 14470-1!
- Approved storage of hazardous materials in workrooms
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 30 minutes fire-resistant
- Available in two dimensions
- Colour: yellow (RAL 1004) or light grey (RAL 7035
- Door open arrest system (optional)
- Smooth, oil-damped self-closing doors
- Minimal effort, door-opening easy and save
- Extraction air inlet on top of the cabinet
- Door closing system outside the storage compartment: increased protection of moving and safety relevant components against corrosion
- Integrated base ,cabinet can transported easily with a pallet truck
- Earthing link (standard)
- Labeling in accordance with EN 14470-1
Accessories:
- PE-sump inliner - protects shelves from corrosiv materials
- Door open arrest system
- Box for chemicals - seperate storage of less aggressive chemicals
- Storage box - lockable, separate storage of hazardous materials (storage box not aerated)
- and more...
|
Wing Door Cabinets Type 15
|
|
|
The Minimalist
All safety cabinets are fire chamber tested in accordance with EN 14470-1!
- Approved storage of hazardous materials in workrooms
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 15 minutes fire-resistant
- Available in two dimensions
- Colour: doors yellow (RAL 1004), corpus light grey (RAL 7035
- Door open arrest system (optional)
- Smooth, oil-damped self-closing doors
- Minimal effort, door-opening easy and save
- Extraction air inlet on top of the cabinet
- Door closing system outside the storage compartment: increased protection of moving and safety relevant components against corrosion
- Integrated base ,cabinet can transported easily with a pallet truck
- Earthing link (standard)
- Labeling in accordance with EN 14470-1
Accessories:
- PE-sump inliner - prtotects shelevs from corrosiv materials
- Door open arrest system
- Box for chemicals - seperate storage of less aggressive chemicals
- Storage box - lockable, separate storage of hazardous materials (storage box not aerated)
- and more...
|
|

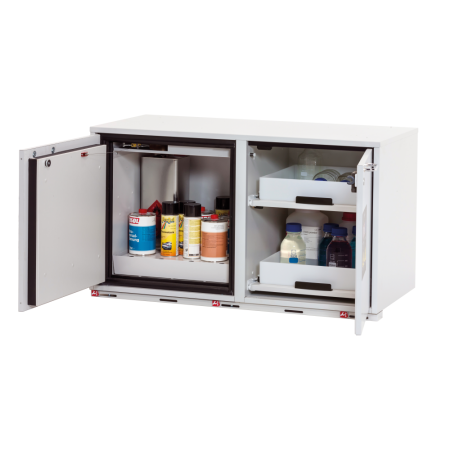

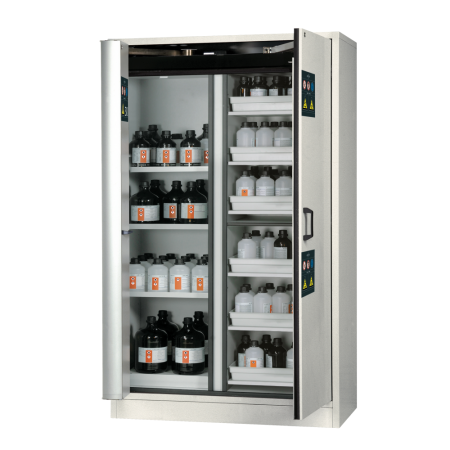

The Multifunctional
Two in one - central and safe.
Cabinet compartment VBFT is fire chamber tested in accordance with EN 14470-1
Cabinet compartment TRG is fire chamber tested in accordance with DIN 12925-2
-
Approved storage of hazardous materials and gas cylinder in workrooms
-
Successfully tested in a fire chamber (type testing), CE/GS conformal
-
One central extraction air inlet for both compartments on the top
-
flexible interior equipment: drawers, shelves, drawers with removable plastic sump
-
Door open arrest system (standrad for compartment VBFT)
-
Adjusting aids to compensate for uneven floor
-
Earthing link (standard)
-
Labeling in accordance with EN 14470-1
|
- Drawers for storage inside the fire resistant folding door cabinet. Safe and convenient storage and removal of small containers
- Shelves inside the fire resistant folding door cabinet. Safe storage of bigger containers. The shelves are height adjustable
- Drawers in the cabinet for acids and alkalis. Strong constrution with removable plastic sumps
- Safety appliance - dampened utilization of the fold-away ramp. Safe manoeuvering of gas cylinders into the cabinet
|
|
|
|
|
|
|

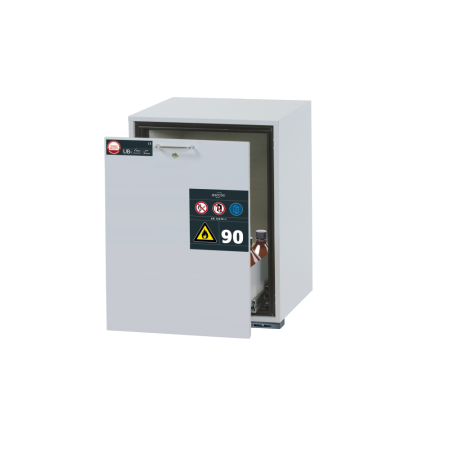

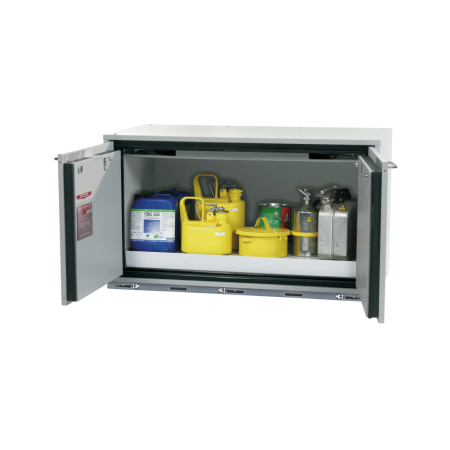

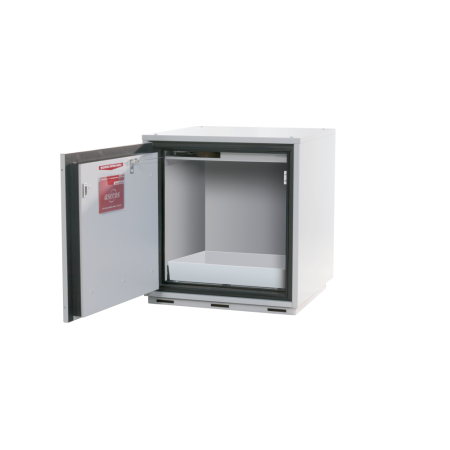

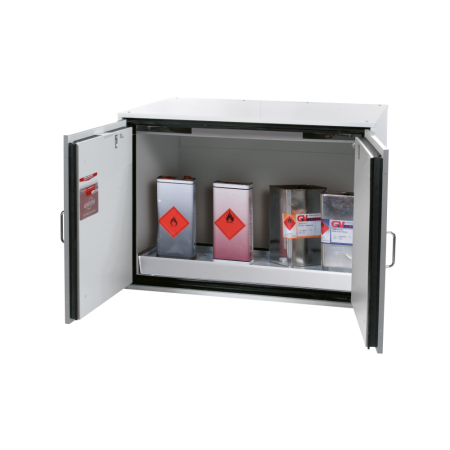

Underbench Cabinets Type 90
|
|
|
The Flexible
Fits under your fume hood
All cabinets are fire chamber tested in accordance with EN 14470-1!
- Approved storage of hazardous materials in workrooms
- Successfully tested in a fire chamber (type testing), CE/GS conformal
- 90 minutes fire-resistant
- Eightdifferent models available
- Exterior made of strong sheet-steel, plastic laminated - optimal corrosion protection by melamin resin plates inside
- Interior completly visible - easy and safe access to all containers
- Safe operation - the drawers remain open in every position
- Safety in the event of fire - self-closing of the drawers by an integrated thermal release system (fusible link)
- Convenience - smooth running drawers
- Earthing - drawers standard equipped with earthing wire incl. clamp, cabinet exterior with earthing link
- Base - to compensate for height diferences underneath the fume hood
- Extraction air inlet on the back of the cabinet
- Practical accessories:
- Second level drawer - ideal to store small containers in a drawer. Optimal use of storage capacities on 2 levels
- Castors - underneath the cabinet to easily move the cabinet from underneath the fume hood
- Removable PP sump inliners for the drawers, precison fitted and removable. Protects sumps from corrosiv materials
- Rubber mats - for optimal stability of containers
- Bottle racks - help to store smallest bottles clearly arranged inside the drawer
- Certififed fire protected add-on - for access of pipes and cables through cabinet walls
|
Fire Resistant Drum Cabinets
|
|
|
The Generous
XXL-sized storage
- Safe storage of hazardous materials in workrooms
- 90 minutes fire resistance (type testing), GS/CE conformal
- Available in two different sizes
- different interior equipment options: steel sump with grid, shelevs or rack systems
- Door open arrest system (standard) with an integrated thermal release system, automazic closing of the doors
- High-quality slide-bar door closer, moving of doors without effort, optimal use of interior height, no door closer arm within the storage area
- Base (optional) for easy indoor transport
- Extraction air inlet on top of the cabinet
- Direct storage of drums in the workroom
- Additional shelf, ideal to additionally store small containers
- Drum mount (optional) for safe filling from a 60 ltr. drum
- Rack system for storage of different larger containers by height adjustable shelves
|
MF.195.95
Equipment cabinet with safety box
|
The Practical
With integrated safety
- Equipment cabinet with fire resistant safety box
- Ideal cabinet combination to store consumables and tools in a single-walled steel cabinet as well as small quantities of flammable liquids, aerosols etc. in the safety box
- Flexible interior equipment with 4 height adjustable, galvanised shelves
- Cabinet dimensions (WxDxH): 950 x 500 x 1950 mm
- Shelf load capacity (evenly distributed load): 50 kg
- Cabinet weight (incl. safety box): 120 kg
The cabinet itself is not suitable for the storage of any hazardous material!
Safety box:
- Approved storage of hazardous materials in workrooms in accordance with EN 14470-1 (Type 30)
- Interior dimensions (WxDxH): 805 x 405 x 405 mm
|
UF.195.95
Environmental cabinet with safety box
The Environmentalist
With integrated safety
- Environmental cabinet with fire resistant safety box
- Ideal cabinet combination for the approved storage of water pollutant liquids in a single walled steel cabinet as well as small quantities of flammable liquids, aerosols etc. in the safety box
- Flexible interior equipment with 3 height adjustable, galvanised sumps
- Cabinet dimensions (WxDxH): 950 x 500 x 1950 mm
- Sump load capacity (evenly distributed load): 50 kg
- Cabinet weight (incl. safety box): 120 kg
The cabinet itself is only suitable for the storage of non-flammable pollutants!
Safety box:
- Approved storage of hazardous materials in workrooms in accordance with EN 14470-1 (Type 30)
- Internal dimensions (WxDxH): 805 x 405 x 405 mm
|

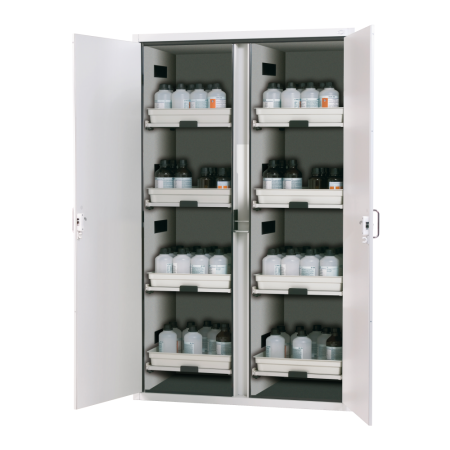

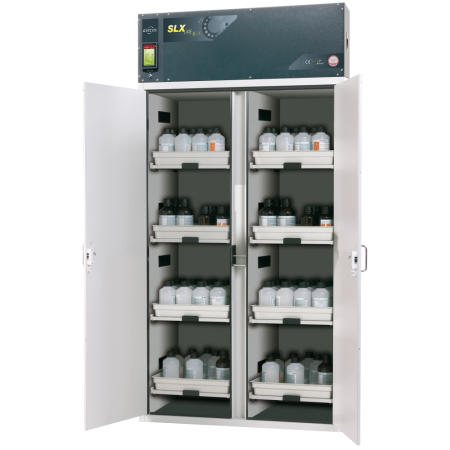

SL.197.60
Cabinet for acid and alkalis with drawers
The Resistant
Even if it gets aggressive!
- Special cabinet for safe storage of aggressive hazardous materials especially acids and alkalis
- Not suitable for the storage of flammable liquids!
- Cabinet inside made from melamin for high chemical resistance
- Drawers, strong construction with removable plastic sumps
- Two hermetically separated storage compartments
- The doors can be operated and locked separately
- Permanent and even air extraction of both compartments with only one extraction air inlet on top
- All around plastic lip seals prevent dangerous vapour escaping from the inside of the cabinet
- Exterior dimensions (WxDxH): 600 x 600 x 1970 mm
- Interior dimensions (WxDxH): 430 x 475 x 80 mm (per compartment)
- Drawer load capacity (evenly distributed load): 25 kg
- Collecting volume of the plastic sump: 15 ltr.
- Cabinet weight: 125 kg
|

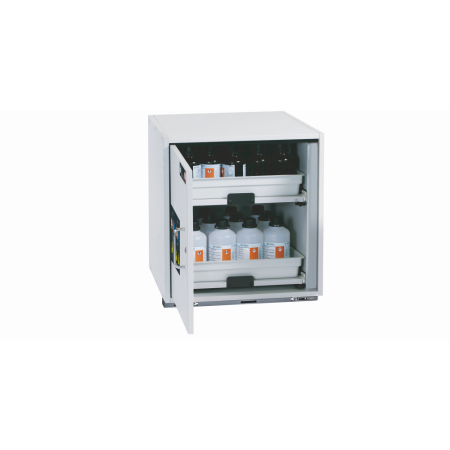

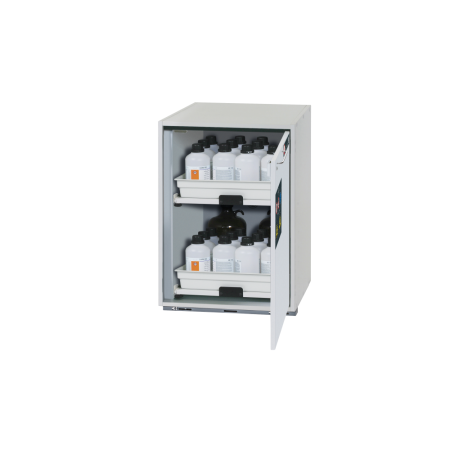

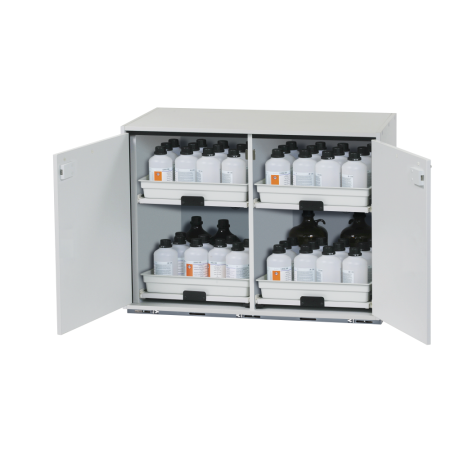

SL.60.110
Underbench cabinet for acids and alkalis with drawers
The Resistant
Even if it gets aggressive!
- Special cabinet for safe storage of aggressive hazardous materials especially acids and alkalis
- Not suitable for the storage of flammable liquids!
- Cabinet made from melamin for high chemical resistance
- Drawers, strong construction with removable plastic sumps
- Two separated storage compartments
- The doors can be operated and locked separately
- Permanent ventilation of both compartments with only one extraction air inlet at the back
- All around plastic lip seals prevent dangerous vapour escaping from the inside of the cabinet
- Exterior dimensions (WxDxH): 1100 x 570 x 600 mm (total depth inc. plastic duct 670 mm)
- Interior dimensions (WxDxH): 430 x 475 x 80 mm (per compartment)
- Drawer load capacity (evenly distributed load): 25 kg
- Collecting volume of the plastic sump: 15 ltr.
- Cabinet weight: 60 kg
|
L.9895
Cabinet for acids and alkalis with shelves
- Special cabinet for safe storage of aggressive hazardous materials especially acids and alkalis
- Not suitable for the storage of flammable liquids!
- Completely made of Polyethylene
- Cabinet top with profiles - containers can be placed there shortly
- Full opening wing door - high convenience when storing and removing
- Air inlets and outlets at the side
- Exterior dimensions (WxDxH): 460 x 460 x 950 mm
|
L.9895
Cabinet for acids and alkalis with shelves
- Special cabinet for safe storage of aggressive hazardous materials especially acids and alkalis
- Not suitable for the storage of flammable liquids!
- Completely made of Polyethylene
- Cabinet top with profiles - containers can be placed there shortly
- Full opening wing doors - high convenience when storing and removing
- Air inlets and outlets at the back
- Exterior dimensions (WxDxH): 900 x 560 x 950 mm
|

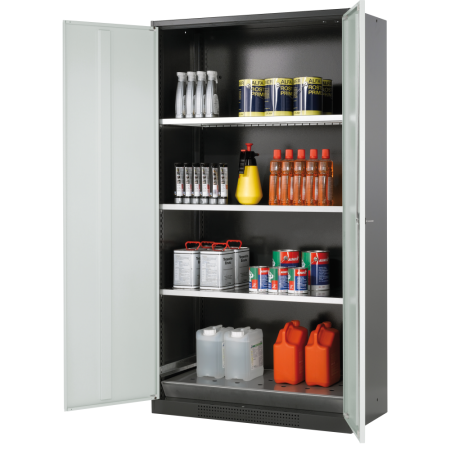

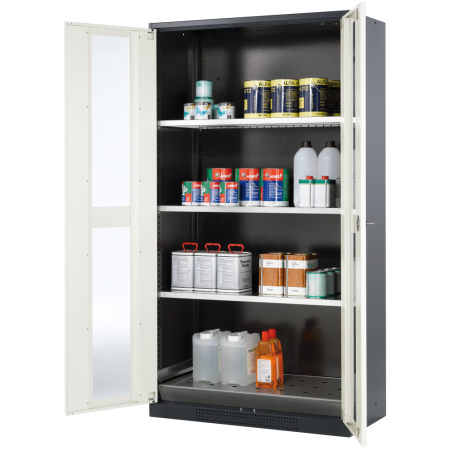

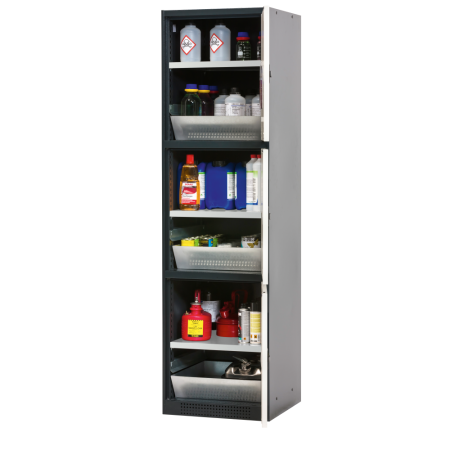

C.197.120
Cabinet for chemicals with shelves
The Reliable
Controlled storage of chemicals
- Cabinet for safe and approved storage of chemicals, toxic materials and other substances that have to be kept under lock in workrooms
- Not suitable for the storage of flammable liquids
- Cabinet made of sheet-steel plastic laminated
- Height adjustable shelves
- Extraction air inlet on top
- Vertical aeration due to air grills at the bottom of the doors
- Exterior dimensions (WxDxH): 1200 x 500 x 1970 mm
- Cabinet weight: 70 kg
|
C.197.60
Cabinet for chemicals
The Reliable
Controlled storage of chemicals
- Cabinet for safe and approved storage of chemicals, toxic materials and other substances that have to be kept under lock in workrooms
- Not suitable for the storage of flammable liquids
- Cabinet made of sheet-steel plastic laminated
- Height adjustable shelves
- Extraction air inlet on top
- Vertical aeration due to air grill at the bottom of the door
- Exterior dimensions (WxDxH): 600 x 500 x 1970 mm
- Cabinet weight: 50 kg
|
C.60.110
Underbench cabinet for chemicals with shelves
The Reliable
Controlled storage of chemicals
- Comparable with Model C.197.60
- Extraction air inlet at the back
- Exterior dimensions (WxDxH): 1100 x 500 x 600 mm
- Cabinet weight: 40 kg
|
U.195.95 and U.130.95
Environmental cabinets with sumps
The Environmentalist
Prevent pollution
- Cabinet for safe and approved storage of pollutant substances
- Not suitable for the storage of flammable liquids
- Cabinet made of sheet-steel plastic laminated, two tone laminated, blue, doors light grey
- Height adjustable sumps (25 mm increments)
- Impervious to fluids, 20 ltr. collecting volume per sump
- Load capacity per sump (evenly spread load): 50 kg
- Exterior dimensions (WxDxH):
U.195.95: 950 x 500 x 1950 mm
U.130.95: 950 x 500 x 1400 mm
|
|
Door open arrest system
- Holds doors open and eases the storage and removal inside the cabinet
- Safety in the event of fire due to integrated thermal release system, releasing the door at a defined temperature between 40°C and 50°C.
|
| |
|
Box for chemicals
- For seperate storage of less aggressive chemicals
|
|
|
PE sump
- PE sump inliner for shelves
- Corrosion protection while storing weak aggressive chemicals
|
|
|
PP sump inliners, Rubber mats and Bottle racks
- PP sump inliners - corrosion protection while storing weak aggressive chemicals
- Rubber mats, bottle racks - for optimal stability of containers inside the cabinet
- Further Details see catalogue Edition 6, page 70-95
|
|
|
Second level drawer
- Perfect utilisation of inside space when storing small units
- Further Details see catalogue Edition 6, page 70-95
|
|
|
Storage box
- Lockable - seperate storage of hazardous materials (storage box not aerated)
|
|
|
Extraction units
- For a safe and approved technical ventilation of safety cabinets
- Suitable for 10-times or up to 120-times air change inside the cabinet
- Available with extraction air monitoring system
- Further Details see catalogue Edition 6, page 143
|
|
|
Radial ventilators
- For a safe and approved technical ventilation of safety cabinets
- Suitable for all safety and gas cylinder cabinets
- Available in an explosion proof version
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
