22/05/2020

Cleaver Scientific crosslinker from Wolflabs

Product Update

Introduction

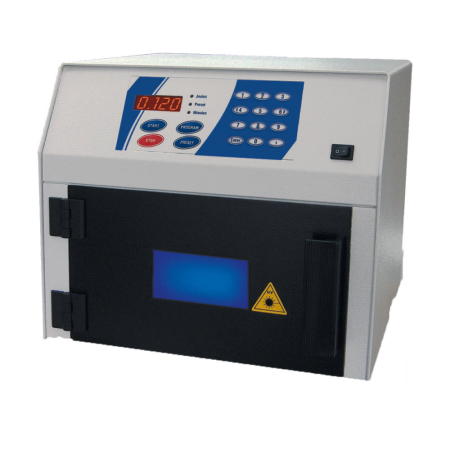

Cleaver Scientific CL-508.G crosslinker from Wolflabs.

Features and benefits
- Programmable microprocessor control.
- Automatic monitoring of UV energy.
- Small footprint with large interior.
- Large visible front panel LED, with non-UV transmissible front door connected to safety interlock switches.
- Membrane keypad operation.

Product Category: Crosslinkers

Manufacturer: Cleaver Scientific

14/02/2020

Cleaver Scientific gel electrophoresis horizontal tanks from Wolflabs

Product Update

Introduction
Cleaver Scientific multiSUB choice T25 gel electrophoresis horizontal tanks from Wolflabs.

Features and benefits
- Low buffer volumes.
- Runs up to 210 samples.
- Multichannel pipette compatible combs for speed loading.
- Three tray options.

03/02/2020

New Cleaver Scientific vertical gel electrophoresis tank from Wolflabs

Product Update

Introduction
New VS20WAVE-DGGE vertical gel electrophoresis tank from Cleaver Scientific has been added.

Features and benefits
- Maximum 96-sample throughput compatible with microplates and thermal cycler blocks.
- Four-screw vertical clamping technology accelerates set up.
- Microprocessor-controlled temperature control unit accurate to 0.02C.

28/01/2020

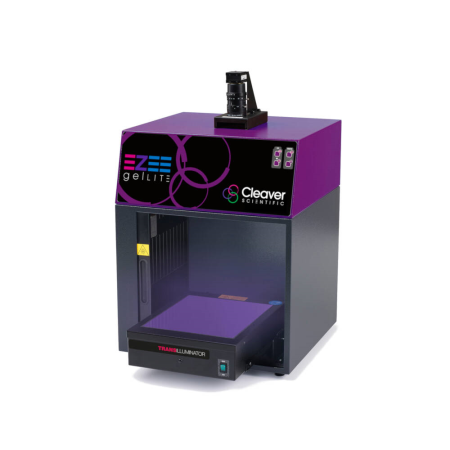

New Cleaver Scientific gel documentation systems from Wolflabs

Product Update

Introduction
New gelLITE gel documentation systems from Cleaver Scientific have been added. The gelLITE range of gel and chemiluminescence documentation systems have an economical and effective solution for agarose gel imaging. The manually controlled camera zoom and focus gives users complete control of their imaging, and intuitive genePIX acquisition software enable a fast and efficient workflow.

Features and benefits
- White light and blue light options.
- Engineered and manufactured in the UK.
- Full manual control of camera focus and zoom.

Product Category: Gel Documentation Systems

Manufacturer: Cleaver Scientific

16/01/2020

New Cleaver Scientific gel electrophoresis horizonatal tank from Wolflabs

Product Update

New gel electrophoresis horizonatal tank from Cleaver Scientific have been added.

Gel Electrophoresis Tanks - Vertical - Cleaver Scientific


The omniPAGE mini wide vertical gel unit with a gel width of 20cm effectively allows double the number of samples to be resolved as the omniPAGE mini unit. This allows consistency of sample comparison on a single gel and is designed for those with greater than 20 samples to compare and resolve.

Simple set up using ultra soft silicone seals guarantees trouble free glass plate loading and gel casting. Dual gaskets on the gel running insert along with notched and plain glass plates ensure leak proof gel running. Rapid set up cooling retains resolution in extended separations and also saves on buffer volume without affecting run quality.

4mm thick glass plates reduce breakage and have bonded spacers for added convenience. A wide range of accessories is available allowing many techniques to be performed using the same unit. Prep combs can be used to maximise sample loading and recovery.

Accessory electroblotting and tube gel modules are available which use the same outer tank and lid


Technical Information

Plate dimensions
Gel dimensions
(W x L)

20 x 10cm
18 x 8cm
Unit dimensions (W x D x H) 26 x 16 x 16cm

Max sample capacity



192 samples
48 samples per gel
Buffer volume Min 600ml; max 2800ml

Combs available:

No. of samples
Thickness



1, 5, 10, 18MC, 20, 30, 36MC, 48
0.75, 1, 1.5, 2mm

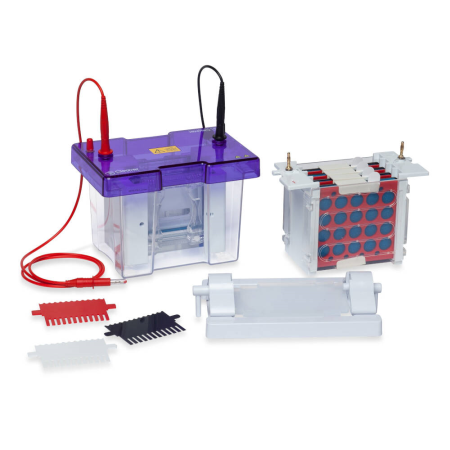

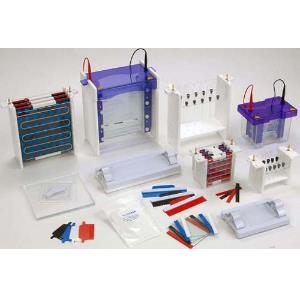

Gel Electrophoresis Tanks - Vertical - Cleaver Scientific

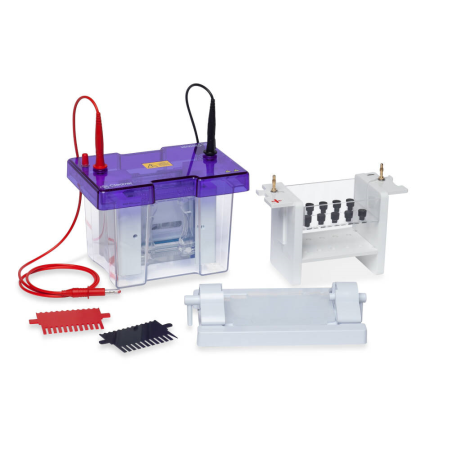

The preferred unit for routine mini protein electrophoresis, the omniPAGE mini is constructed using the latest injection moulding manufacturing techniques. This gives a high quality, low cost product with unsurpassed finish, durability and strength.

The unit incorporates a sealing system which is compatible with all major types of 8 x 10cm and 10 x 10cm precast gel.

Gel casting and running utilise the same insert, no transfer of glass plates during gel casting is necessary. The insert contains the option of sliding clamps or just one screw per clamping bar side allowing very rapid set up of both hand cast and precast gels. Ultra soft silicone seals and pressure bars

which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates prevent breakage and have bonded spacers for convenience.

Accessory electroblotting and tube gel modules are available which use the same outer tank and lid.



Technical Information

Plate dimensions
Gel dimensions
(W x L)

10 x 10cm
7.5 x 8cm
Unit dimensions (W x D x H) 19 x 13 x 15cm

Max sample capacity



80 samples
20 samples per gel
Buffer volume Min 250ml; max 1200ml

Combs available:

No. of samples
Thickness



1, 5, 8MC, 9, 10, 12, 16MC, 20
0.75, 1, 1.5, 2mm

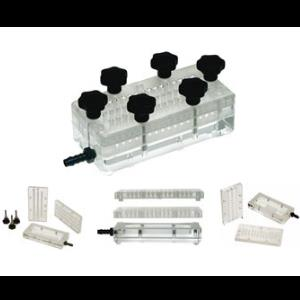

Gel Electrophoresis Blotters & Accessories - Cleaver

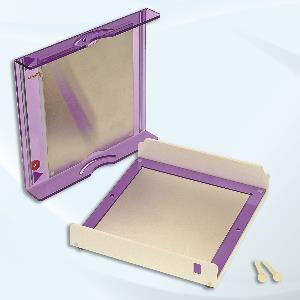

These Semi Dry Blotters offer rapid transfer times for DNA, RNA and protein blotting – typically 15 to 30 minutes. All units can be used for all types of blotting: western, southern and northern via uncomplicated buffer and set up procedures and are compatible with gel thicknesses from 0.25 up to 10mm without the need for additional equipment. Each unit is compatible with their respective omniPAGE vertical gel system. Semi Dry Blotting has the added benefit of economic transfers due to very low buffer volumes – typically only a few millilitres of buffer are required per transfer. These Semi-Dry Blotters utilise a screw down lid, which secures the blot sandwich and allows complete control of pressure ensuring even transfer. The electrodes, comprising platinum coated anode and stainless steel cathode, will exhibit practically no corrosion and so provide many years of trouble free use. Uniform heat dispersion across the blot sandwich ensures stable transfer times and no heat induced sample loss or transfer distortions. Being translucent, it allows viewing of the blot sandwich to ensure correct positioning and transfer is occurring correctly. Electrode plates are fully separated to prevent arching or damage.

• Rapid transfer times
• Western, Southern and Northern Blots
• Economic Transfers due to very low buffer volumes
• Screw down lid – gels from 0.25 up to 10mm thick can be blotted
• Uniform heat dispersion
• Long life electrodes

Technical Information

Unit Dimensions (WxLxH)
MINI 160x160x70mm
MAXI 260x260x70mm
MAXI PLUS 330x450x70mm
MAXI LONG 260x560x70mm
Max.Sample Capacity
MINI 1 Blot, 100x100mm
MAXI 1 Blot, 200x200mm
4 Blots, 100x100mm
MAXI PLUS 1 Blot, 350x450mm
MAXI LONG 1 Blot, 200x500mm
Buffer Volume
MINI 5ml
MAXI 20ml
MAXI PLUS 75ml
MAXI LONG 50ml

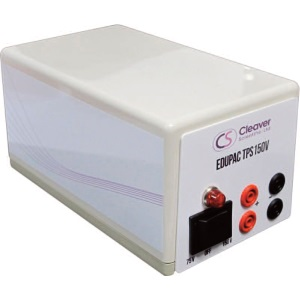

Gel Electrophoresis - Power Supplies - Cleaver Scientific

omniPAC MINI power supplies have been developed specifically for horizontal gel electrophoresis systems. These ultra compact power units with dual outlets, are recognised as amongst the most compact and inexpensive power supplies currently available and are designed and constructed to the most rigorous safety standards.

Features
- Compact size
- Safety design: shrouded plug and socket; no load detection
- Constant voltage
- Low cost and economical

Technical Information

Model Mini150V Mini300V
Max. Voltage 150V 300V
Max. Current 600mA 400mA
Max. Watt 60W 60W
Output Type 25; 50; 75; 100; 125 & 150V 50; 100; 150; 200; 250 & 300V
Safety --- No load detection ---
Dimensions (w x l x h) 11.5 x 15 x 8cm
Operation Voltages 110/220V

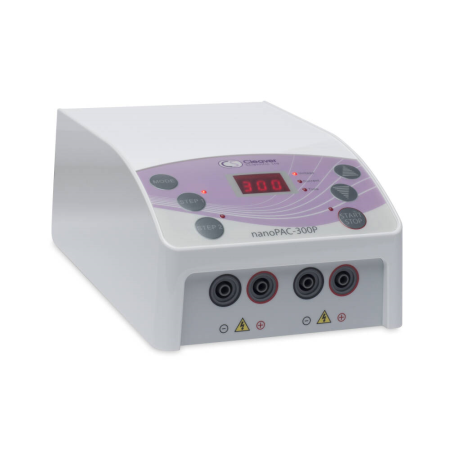

Gel Electrophoresis - Power Supplies - Cleaver Scientific

These inexpensive, compact omniPAC MIDi power supplies are ideal for routine horizontal and mini vertical electrophoresis. Microprocessor control allows setting in constant voltage and constant current. Four gel chambers can be connected at any one time. An optional timer can be set to end the run and sound an alarm. Safety features include shrouded plugs and sockets, no load detection and ground leakage detection.

Features
- Run in constant voltage and current
- Alarm can be set at the end of program
- Auto cut-off function
- Current up to 700mA

Technical Information

Model CS-300V
Max. Voltage 300V
Max. Current 700mA
Max. Watt 150W
Output Type Constant Voltage or Current
Timer 1-999mins
Dimensions (w x l x h) 19 x 30.5 x 9.5cm
Operation Voltages 110/220V

Gel Electrophoresis Tanks - Horizontal - Cleaver Scientific

Designed for rapid screening of very large numbers of Clonal or PCR samples, the multiSUB Screen horizontal gel unit has a 672 maximum sample capacity per gel. This allows loading and analysis of exactly seven 96 well format micro titre plates.

The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis.

The unit is available with a full length tray or with other tray length options of 16 or 24cm so that the user’s exact requirements can be matched. In addition to options for single length gel trays, multiSUB Screen is available with all three gel tray lengths to provide the maximum in flexibility, versatility and value.

Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs while loading guides enhance well visibility for easy sample loading

Technical Information

Gel dimensions (W x L)

26 x 16cm
26 x 24cm
26 x 32cm



Unit dimensions (W x L x H) 28 x 50 x 9cm (L x W x H)
Max. sample capacity

26 x 16cm tray – 336

samples
26 x 24cm tray – 504 samples
26 x 32cm tray – 672 samples

Buffer volume 1400ml
Combs available :

No. of samples

Thickness



28MC, 56MC



0.75, 1, 1.5, 2mm

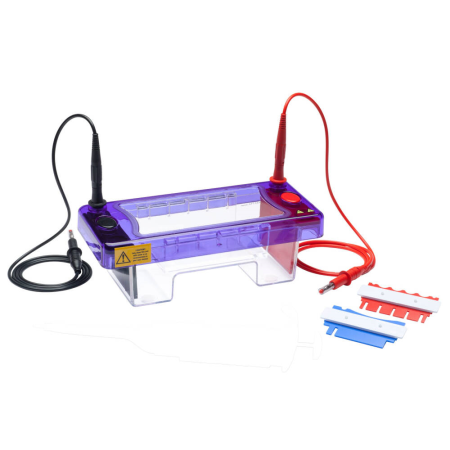

Gel Electrophoresis Tanks - Horizontal - Cleaver Scientific

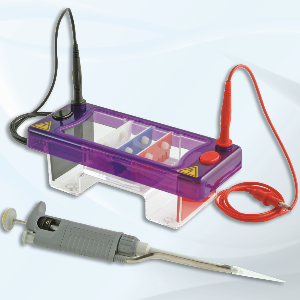

The multiSUB Mini is the smallest unit in the range, designed for low to medium numbers of samples. The small gel size maximises run economy but does not compromise versatility as two tray options are available – 7 x 7cm and 7 x 10cm, and combs ranging from preparative up to 16 samples. Simply by altering the gel tray or comb, this compact unit is capable of resolving up to 64 different samples, prepping 1ml of sample or separating sample bands over a distance of 9cm.

Technical Information

Gel dimensions (W x L) 7 x 7cm 7 x 10cm
Unit dimensions (W x L x H) 21 x 9 x 9cm
Max.Sample capacity 7 x 7cm tray - 32 samples 7 x 10cm tray - 64 samples
Buffer volume 225ml
Combs available:

No. of samples
Thicknesses

1, 2, 4, 8MC, 8, 10, 12MC, 16
0.75, 1, 1.5, 2mm

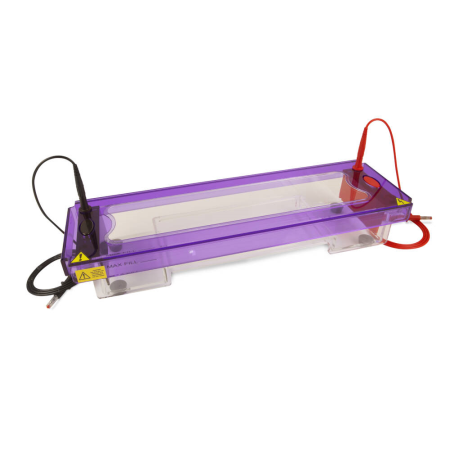

Gel Electrophoresis Tank - Horizontal 96 Well - Cleaver Scientific



The multiSUB Midi 96 Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands.
Its 10x12cm (WxL) gel dimensions and 96-well comb block format correspond to the standard microplate configuration, with additional lanes for markers. Two different types of comb are available: one which has 8 wells and one additional lane for DNA markers and one which has 8 wells and 2 additional lanes for markers.

The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation. multiSUB Midi 96 can accommodate samples from a 96-well plate – samples can be loaded directly using 8-channel pipettes.

As with all multiSUB units, leak-proof casting is simplified using the supplied casting dams while their ultra-compact size minimises buffer usage and bench space requirements. MSMIDI96 Stretch Systems are also available for those users requiring an extended run length per well of up to 3.6cm.

Technical Information

Gel dimensions (W x L)

MSMIDI96: 10 X 12cm
MSMIDI96ST: 10 X 24cm



Unit dimensions (W x D x H)

MSMIDI96: 22 X 12.5 X 9cm
MSMIDI96ST: 46.5 X 12.5 X 8cm

Max. sample capacity

96 samples plus 1 or 2 marker lanes



Buffer volume (W x L)

MSMIDI96: 300ml
MSMIDI96ST: 700ml

Combs available :

No. of samples

Thickness



8 + 1x marker, 8 + 2x markers

1, 1.5mm

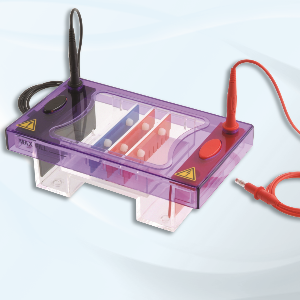

Gel Electrophoresis Tanks - Horizontal - Cleaver Scientific

With gel tray options of 10 x 7cm and 10 x 10cm, the multiSUB Midi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the multiSUB Mini without a significant increase in buffer or gel volumes.

A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths.

Technical Information

Gel dimensions (W x L)

10 x 7cm 10 x 10cm



Unit dimensions (W x L x H) 22 x 12.5 x 9cm
Max sample capacity

10 x 7 cm tray – 50 samples
10 x 10 cm tray – 100 samples



Buffer volume 300 ml
Combs available :

No. of samples

Thickness



1, 2, 4, 8, 10MC, 12, 16, 20MC, 25

0.75, 1, 1.5, 2mm

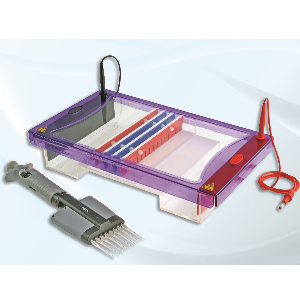

Gel Electrophoresis Tanks - Horizontal - Cleaver Scientific

The multiSUB Maxi is primarily designed for resolution of high numbers of samples such as from Cloning or PCR. The multiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.

Four gel tray sizes are available – 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs up to 40 sample facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel

Technical Information

Gel dimensions (W x L) 20 x 10cm
20 x 15cm
20 x 20cm
20 x 25cm
Unit dimensions (W x L x H) 39.5 x 23 x 9cm
Max. sample capacity

20 x 10cm tray – 200 samples
20 x 20cm tray – 450 samples
20 x 25cm tray – 550 samples

Buffer volume 1200ml
Combs available :

No. of samples

Thickness



1, 2, 4, 10, 16, 20MC, 25, 30, 36, 40MC, 50

0.75, 1, 1.5, 2mm

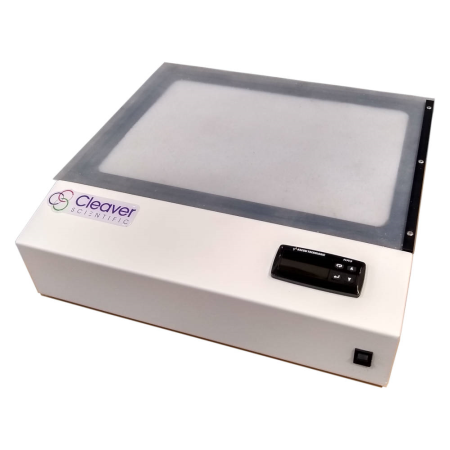

Cleaver Scientific Gel Dryers

With a drying area of 21 x 31 cm, the Midi gel dryer can dry six 10 x 10cm gels or a single larger gel. The Maxi Gel Dryer with a 35 x 45cm drying area can dry twelve 10 x 10cm mini gels simultaneously. The unit’s microprocessor controls temperature and time, each parameter being displayed on its own LED display. The gels are heated from the base plate while the vacuum removes the moisture from below to dry the gel homogeneously. These dryers feature optimal sealing using a silicone rubber cover and supporting mask. When applying the vacuum, a groove that frames the drying surface provides an optimal tight seal during the drying.

Ordering Information

CSL-GDVH Midi Gel Dryer 220V, 21 x 31 cm
CSL-GDVH35 Maxi Gel Dryer 220V, 35 x 45 cm

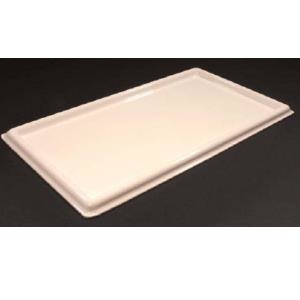

Radiation Safety Trays and Liners

Spilltrays provide a re-usable work area with the added benefit of safe containment of spillages and lab bench protection. Three types are available – General purpose, Radiation and Biohazard. All trays come complete with one free liner when purchased.

Additional liners are available in packs of 25.

Radiation Rack Inserts

Interchangeable inserts between the boxes can hold Eppendorf tubes, Centrifuge tubes, Falcon tubes, Scintillation vials, Universals and Cryotubes of various sizes.

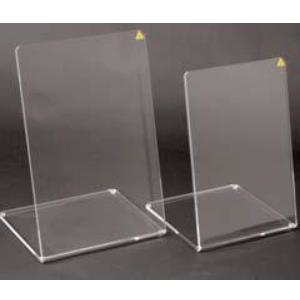

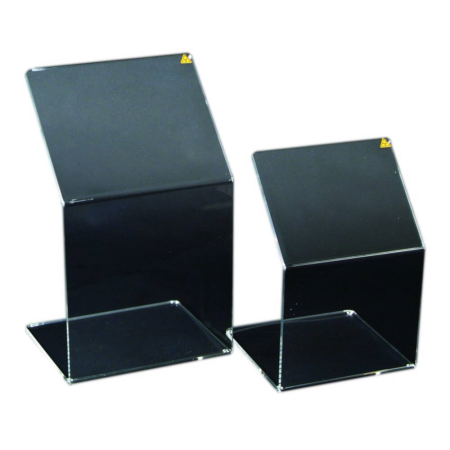

Radiation Shielding - Cleaver Scientific
Click here to request a quotation.


(Image shows many different products)

Most of the CSL shields come in a variety of sizes, small or large, and styles, flat or curved base. The flat base is 300mm x 300mm and offers under bench protection. The curved base is 150mm deep and is used in conjunction with a safety spill tray.

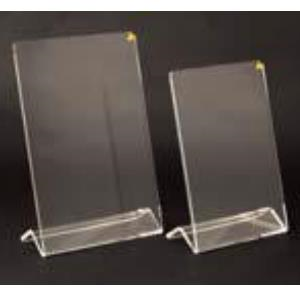

This DuoShield is specifically for those applications which require safe protection from both beta and gamma emissions.

Radiation Shielding - Cleaver Scientific

A hinged lid carboy cover for placing over large equipment, available for both Beta and Gamma radiation

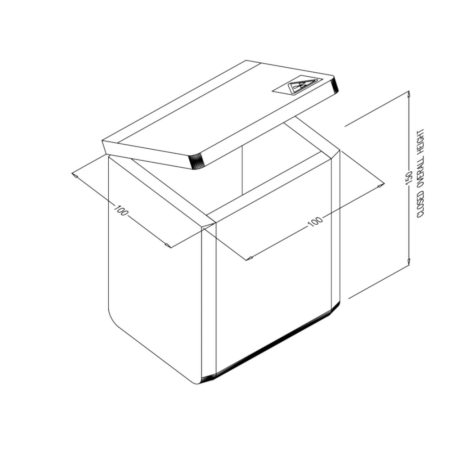

Radiation Storage - Cleaver Scientific

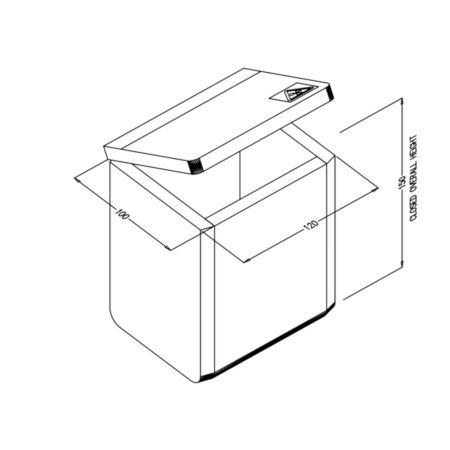

CSL manufacture a range of standard and non standard beta and gamma boxes for specific applications. These utilise Interchangeable inserts for various sizes of tubes such as microcentrifuge, and centrifuge tubes, scintillation vials, universals, cryotubes and Falcon tubes.

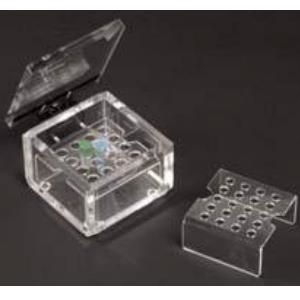

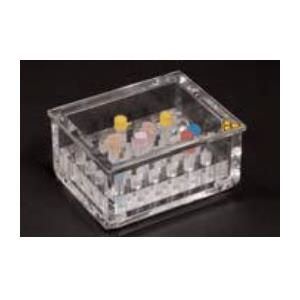

The ultra compact mini box is designed for storage of low numbers of Eppendorf or cryotubes samples and uses little lab bench space.

The Midi box model is available for either beta or gamma protection and can hold twice as many microcentrifuge tubes than the mini box as well as 32 x 2ml Eppendorf or cryotubes.

The maxi box model is also available for either beta or gamma protection, and can hold up to three midi box inserts as well as inserts for taller tube types.

GLE-UVSC

UV STERILISATION CABINET
A UV sterilisation cabinet used to decontaminate reagents and equipment prior to carrying out PCR reactions. The powerful UV lights denatures nucleic acids in 5 to 30 minutes making them unsuitable for amplification, therefore eliminating any possible cross contamination between samples. The UV lights are timer controlled, thus reducing the time of UV exposure to the minimum. Safety interlocks on the cabinet doors prevents the user from any exposure to the UV light. The 10mm thick optical acrylic cabinet also acts as an efficient shield of beta radioactive emissions and can therefore be safety used with isotopes such as 32P. A white light provides the user with good visibility when working within the cabinet.

Destroys unwanted PCR products in less than 30 minutes.

Built in timer control.
Protects the sample from user contamination.
Protects the user from Biohazard samples.
Suitable shielding for work with 32P.
Four powerful, timer controlled UV tubes, combined with optimal reflectors, provide efficient irradiation of the complete work surface.
Doors equipped with safety cutouts.
Use with safety trays and easy to clean tray liners.

Description Part No.
UV Sterilisation Cabinet GLE-UVSC

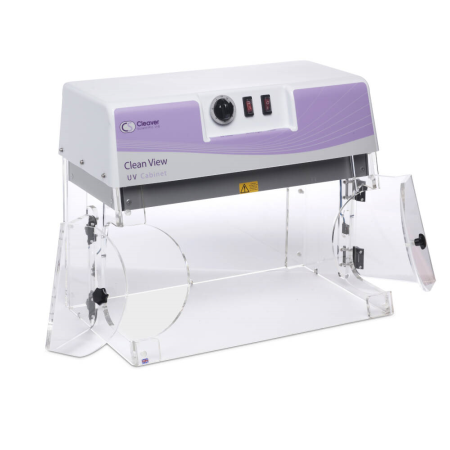

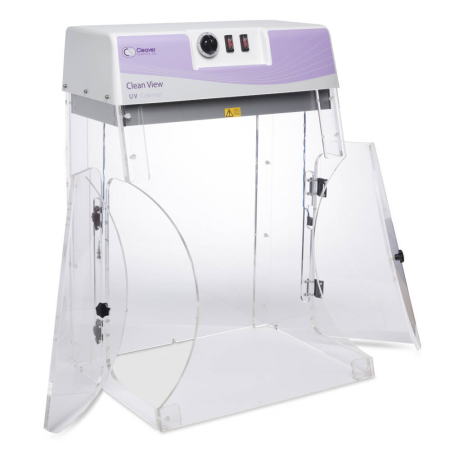

PCR Cabinets - Cleaver

These UV Sterilisation Cabinets provide a convenient area for setting up PCR reactions in a nucleic acid free environment thus limiting PCR reaction contamination.


Technical Information



UV LIGHTS MAXI 4 X 15 WATT
MINI 4 X 15 WATT
WHITE LIGHT MAXI 15 WATT
MINI 15 WATT
DIMENSIONS MAXI 770 (H) X 560 (W) X 420MM (D)
MINI 510 (H) X 560 (W) X 350MM (D)
WEIGHT MAXI 19 KG
MINI 12 KG

Rockers - Cleaver

MiniMix 3D shaker

The Cleaver Scientific MiniMix combines the motions of orbital shaking and rocking to produce a gentle, but thorough, 3-D action that is perfect for antibody incubation of western blots and staining gels. The pitch and speed of the Cleaver Scientific MiniMix are optimised to generate a tilt angle that is large enough to ensure uniform distribution of solutions, yet small enough to prevent the centre of the blot from drying out. This has the added benefit of allowing users to work with minimal volumes, thus conserving valuable probes and antibodies.

A non-slip rubber mat keeps the boxes in place on the agitating platform, which, along with the housing, is very easy to clean and decontaminate after use. The MiniMix’s compact and light weight design allows it to be moved around the lab where needed. It is also safe for use in an incubator or cold room for temperature controlled reactions.

Blot Boxes

These gel staining/blotting boxes are available in 4 sizes and are the ideal accessory for incubating blots or staining gels. The two smaller sized boxes are available in packs of ten. The smallest box has dimensions of 9.1 x 6.6cm and a capacity for 3-5ml of solution. This is ideal for incubating cut blot strips. The next box in the range holds 6-10ml of solution and is appropriate for mini gels and blots up to 11.7 x 8.9cm. Two larger boxes, available in single packs, can be used for staining gels or incubating blots up to 12 x 12cm or 20 x 16.5cm respectively.

Technical Information

Model: CSL3DSHAKER
Speed 18rpm (115V)/20rpm (230V)
Motion 3D Nutatung
Tilt angle
Platform size wxd 200x165mm
Ambient operating range 4-65°
Dimension wxdxh 203x178x105mm
Weight 0.88kg
Electrical 115/230V 50/60Hz

Large Format Vertical Gel Electrophoresis

Ideal for a variety of large format vertical gel applications, these units offer advanced features for enhancing gel resolution and ease of use, essential when handling gels of this size.

HB-SET

BATTERY OPERATED MINI-HORIZONTAL GEL WITH BUILT-IN CASTING TRAY
HB-SET

Designed for electrophoresis with complete safety - NO POWER SUPPLY REQUIRED, and only requires minimum amounts of gel and running buffer. The unit is ideal for a wide range of samples including those from plasmid preps, PCR* reactions etc. The gel is cast directly in the UV-transparent tank, with the gels casting gates in place. Simply remove the gates, add running buffer and samples to run the system. The complete unit can be run in any location and can easily be placed on a transilluminator for visualisation during electrophoresis. The unit can be used in conjunction with a low voltage power supply, with a specially adapted lid, available as an accessory.
* The PCR process is covered by US patents owned by Hoffman La Roche Inc.

  • Compact size:
    110 x 170 x 30mm (W x L) x H).

  • Gel Dimensions:
    60 x 75mm (W x L)

  • Maximum number of samples - 32

  • Robust UV-transparent plastic construction.

  • Gels cast directly in the unit.

  • Battery pack with integral safety lid.

  • Safety lid provides complete protection to the user.

  • Corrosion-free gold plated connectors and terminals.

  • User replaceable platinum wire electrodes.

  • Wide range of combs available.

  • Recommended power supplies are
    MPSU-125/200 or
    MPSU-200/100,
    (when used with HB-LID).

Description

Part No.
Battery Operated Mini Horizontal Gel Unit with Built-in Gel Casting Tray. HB-SET
Includes: 2 x Gel Casting Gates, 1 x 1.0mm
8 Sample Comb, 2 x Non-rechargeable PP3 batteries.


Accessories


Comb 1.0mm, 4 Sample.
H2-C1-4
Comb 1.0mm, 8 Sample.
H2-C1-8
Comb 1.0mm, 12 Sample.
H2-C1-12
Comb 1.0mm, 16 Sample.
H2-C1-16
Gel Casting Gates, PK/2.
HB-CG
PP3, Non-rechargeable batteries, PK/2.
HB-BAT
PP3, Rechargeable batteries, PK/2.
HB-RBAT
Battery Life Checker.
HB-LC
Lid with Power Supply Leads.
HB-LID
Replacement Platinum Electrode, 50cm.
PT-0.2

HU25

MAXI-PLUS HORIZONTAL UNIT HU25
This electrophoresis unit has been specifically designed to allow quick and convenient screening of PCR* products. When using a 96 well PCR* machine all samples can be screened on a single gel. Loading is simple using a standard multi-channel pipette. The unit is constructed of 12mm thick acrylic to prevent warping, and is supplied with a UV-transparent tray for easy visualisation. For varying sample numbers a range of alternative combs can be used. As there are 12 comb positions, up to 624 samples can be separated on a single gel. Gel casting gates which have a silicone rubber edge gasket, fit into a removable gel casting tray, to provide leak-free gel pouring.

* The PCR process is covered by US patents owned by Hoffman La Roche Inc.

Gel dimensions:
250 x 300mm (W x L).
Maximum number of samples: 624.
Buffer volume: 3.75 Litres.
Complete with six combs.
Wide range of combs available.
Removable gel casting tray.
Casting gates with edge gasket.
Recommended power supplies are PSU-400/200 or PSU-400/600.
Buffer recirculation ports.

Description
Part No.
Maxi-Plus Horizontal Gel Unit with
Removable Gel Casting Tray.
HU25
Includes: 1 x Gel Casting Tray, 6 x 1.0mm
26 Sample Combs, Buffer Recirculation Ports.

Accessories
Comb 1.0mm, 26 Sample.
HU25-C1-26MC*
Comb 1.0mm, 52 Sample.
HU25-C1-52MC*
Comb 1.5mm, 26 Sample.
HU25-C1.5-26MC*
Comb 1.5mm, 52 Sample.
HU25-C1.5-52MC*
Comb 2.0mm, 26 Sample.
HU25-C2-26MC*
Comb 2.0mm, 52 Sample.
HU25-C2-52MC*
Gel Casting Tray.
HU25-UT
Gel Casting Gates, PK/2.
HU25-CG
Silicone Gasket, 1 metre.
HU-SG
Coloured Loading Strips.
HU25-CS
Replacement Platinum Electrode, 50cm.
PT-0.2
Buffer Recirculation Ports.
HU-BRP

CHU20

COOLED MAXI-HORIZONTAL UNIT CHU20
This unit offers the same features as the HU20 unit but with the addition of cooling in the base. The cooling allows the gel to be run at higher voltages for quicker running times without the loss of resolution.

  • Gel dimensions:
    200 x 220mm (W x L).

  • Maximum number of
    samples: 160.

  • Buffer Volume: 3.0 Litres.

  • Complete with two combs.

  • Wide range of combs available.

  • Removable gel casting tray.

  • Casting gates, with edge gasket.

  • Recommended power supplies are PSU-400/200 or PSU-400/600.

  • Buffer recirculation ports.

Description
Part No.
Cooled Maxi Horizontal Gel Unit with
Removable Gel Casting Tray.
CHU20
Includes: 1 x Gel Casting Tray, 2 x 1.0mm
16 Sample Combs, Buffer Recirculation Ports.

Accessories
Comb 1.0mm, 16 Sample
HU20-C1-16
Comb 1.0mm, 20 Sample.
HU20-C1-20MC*
Comb 1.0mm, 28 Sample.
HU20-C1-28
Comb 1.0mm, 40 Sample.
HU20-C1-40MC*
Comb 1.5mm, 16 Sample.
HU20-C1.5-16
Comb 1.5mm, 20 Sample.
HU20-C1.5-20MC*
Comb 1.5mm, 28 Sample.
HU20-C1.5-28
Comb 1.5mm, 40 Sample.
HU20-C1.5-40MC*
Comb 2.0mm, 16 Sample.
HU20-C2-16
Comb 2.0mm, 20 Sample.
HU20-C2-20MC*
Comb 2.0mm, 28 Sample.
HU20-C2-28
Comb 2.0mm, 40 Sample.
HU20-C2-40MC*
Gel Casting Tray.
HU20-UT
Gel Casting Gates, PK/2.
HU20-CG
Silicone Gasket, 1 metre.
HU-SG
Coloured Loading Strips.
HU20-CS
Replacement Platinum Electrode, 50cm.
PT-0.2
Buffer Recirculation Ports.
HU-BR

HU13

MIDI-HORIZONTAL ELECTROPHORESIS UNIT
HU13

Designed for both analytical and preparative studies of nucleic acids. These units have the same features as the Mini-Units but with the addition of buffer recirculation ports. Four comb positions allow up to 112 samples to be screened on one gel.

  • Gel dimensions:
    130 x 150mm (W x L).
  • Maximum number of samples: 112.
  • Buffer Volume: 900 mls.
  • Complete with two combs.
  • Wide range of combs available.
  • Recommended power supplies are PSU-400/200 or PSU-400/600.
  • Buffer recirculation ports.
  • External gel casting unit for 3 gels.
