New Consort gel electrophoresis power supplies from Wolflabs

Product Update

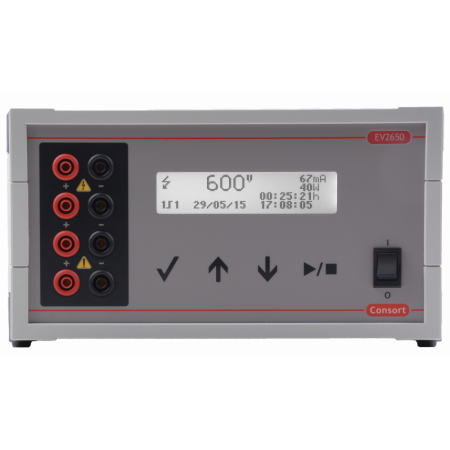

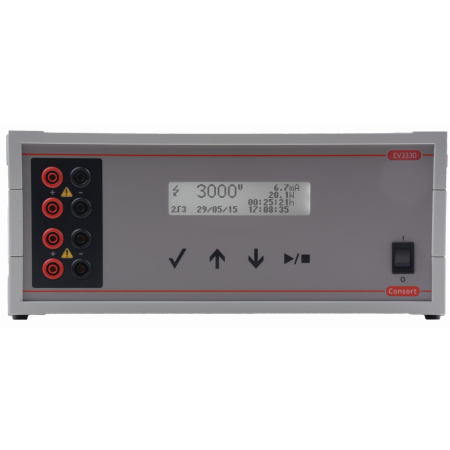

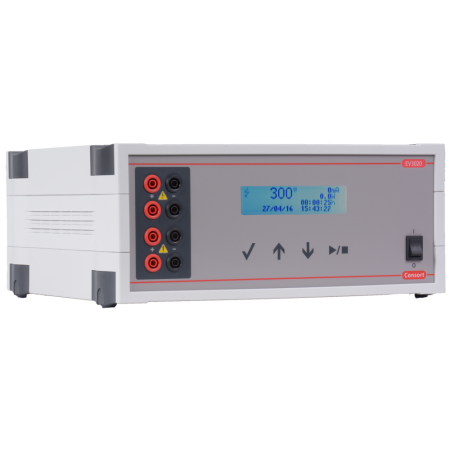

New EV0220, EV1450, EV2650, EV2230, EV2320, EV3020, EV3610, EV3150, EV3330 and EV3620 gel electrophoresis power supplies from Consort have been added.

Consort gel electrophoresis power supply from Wolflabs

Product Update

Introduction
Consort EV262 gel electrophoresis power supply from Wolflabs.

Features and benefits
- The manual mode allows to set voltage, current, power and time for a routine electrophoresis run. Parameters can be changed temporarily without interrupting the run.
- Up to 9 different programs, each with 9 steps, of frequently used parameters can be stored in the non-volatile memory for future recall. Reads voltage in 1 V steps, current in 1 mA steps and power in 1 W steps. Each step is able to recall a next one, providing a flexible multiple step function for special techniques. Parameters of the running step can be changed temporarily without interrupting the run.
- The method mode also allows to program a linear voltage gradient for any step provided the limiting current or power is not attained.
- Timer or volt-hour controlled operation is a useful standard feature on all models. The microcomputer will automatically terminate the run and sound an alarm when the countdown of the selected value is achieved.
- Password protection prevents any unauthorised modification of the instrument's settings allowing the user only to run or stop an electrophoresis.
- After a mains power failure the instrument will automatically continue the run for the remaining time.
- The interactive LCD screen provides step by step instructions in the language of your choice (English, Dutch, French, German).
- Data logging stores up to 3600 output values (voltage, current and power) including program number and step.
- Free data acquisition software for PC can be downloaded from our website. It allows to visualize and examine the stored run details via RS232.

New Consort gel electrophoresis power supply from Wolflabs

Product Update

Introduction
New EV2310 gel electrophoresis power supply from Consort has been added. EV2310 (300V, 1000mA) is an excellent choice for blotting, multiple horizontal and vertical gels. The front panel and graphical display are designed for ease of use. The display provides all useful information during runs and will show an on screen help to guide the user in setting up the power supply. In Simple Mode you just have to set your power supply to the desired parameters and press run.

Features and benefits
- On screen help in 4 languages to assist setting up the power supply parameters and solve errors.
- Firmware updates allows for upgrades to the latest version via the USB interface. Feature requests can also be implemented via the firmware system.
- Real Time Clock date and time are kept in a battery backup system and is used logging an electrophoresis run.
- Various running modes: Simple Mode: just set voltage, current, power and time for a routine electrophoresis run. 9x9 Method Programming Mode: Up to 9 different programs, each with 9 steps, can be stored in the non-volatile memory. Each step is able to recall a next one, providing a flexible multiple step function for special techniques. Parameters of the running step can be changed temporarily without interrupting the run. Voltage Ramp Mode: a linear voltage gradient for any step provided the limiting current or power is not attained. Timer Mode: Timer or volt-hour controlled operation will automatically stop the run and sound an alarm.
- Automatic cross-over. Each model has constant voltage, constant current, constant power capabilities with automatic cross-over and shows which parameter is kept constant.
- Automatic recovery after power failure
- Password protection
- Data logging of about 100 hours of runs are automatically stored. Data includes data/time, voltage, current, power and date/time of following events: start, stop, pause, program number, step, changes, mains failure and auto restart.
- Data Transfer. Free data acquisition software for PC can be downloaded from the Consort website. It allows to visualize and examine the stored run details.
- Remote control EV2000 series can be controlled by a computer using special commands. These commands can be found in the support section of the Consort website.
- Safety features: Ground leakage detection: protection from potential shock hazard when a ground leakage path is detected. Overload protection: full protection against any overload condition including accidental short circuit of the output.
Smooth voltage rise: high voltage cannot suddenly appear at the outputs but will increase smoothly up to the pre-set limits. No load detection: prevents errors such as a bad or a dangling connection. Isolated communication: Optically isolated USB input/output connection to prevent any high voltage on the communication lines.
- 3 year warranty on factory faults.

Wolflabs Consort :: Gel Electrophoresis - Power Supplies Update

Product Update

The EV222 Gel Electrophoresis Power Supply from Consort has now been added to the website
