GAS INJECTION SYSTEM

FAN BOXES

Coy Laboratory Products catalyst boxes come in two styles, heated and unheated.

DIGITAL, HEATED

UNHEATED
The unheated catalyst box is designed for those laboratories which do not require elevated temperatures in their chambers. It functions in a manner similar to the heated box. Air is quietly drawn in and up through the desiccant and catalyst Stak-Paks*, thus ensuring a complete mix of the atmosphere to control humidity and oxygen levels.

GAS LEAK DETECTOR

Part #: 7000-050

Manufactured for Coy Laboratory Products by Quantum Inc., this is a sensitive electronic instrument that can detect the presence of a variety of gases. Its ability to detect the hydrogen found in anaerobic gas mixtures, even at very low concentrations, makes it useful for finding leaks in anaerobic chambers, both at start-up and during regular maintenance.

The palm-sized Gas Leak Probe responds to minute concentrations of certain gases by emitting a geiger-counter like sound that increases in speed as you pin-point the source of leaks. There are no meters or lights to be monitored. In addition to its use with anaerobic gas systems, it can be used in detecting leaks in other gas systems carrying most combustible gases as well as certain refrigerant gases.

SPECIFICATIONS: MODEL BT-45
Factory Mutual Approved for use in Class 1, Division 1, groups B, C, and D hazardous areas.

Gases Detected: Hydrogen, (e.g. in anaerobic gas mixtures); most combustible gases; types R-1 1, R-22, and R-502 refrigerants.

Minimum Detectable Leak: 1/1000 oz./yr., or 1/2 cu.ft./month from a pinhole leak under ideal conditions.

Detection Range: 25-10,000 ppm (e.g., .0025% to 1% of hydrogen).

Battery Life: 15-20 hr.., continuous use.

Size: 43/4" x 33/4" xl 5/B (12 cm x 9.5cm x 4cm)

MICROSCOPE SOCK

EXTERNAL MOUNT LAMP

External Mount Lamp Part #: 7001-140

GAS PURGE SYSTEM

Gas Purge System Part #: 8546-025

POP-LOK

FLAMING DEVICE

DRY NITROGEN PURGE SYSTEM

Part #: 8546-050

This system is an alternative way to dehumidify a chamber through a purging procedure with a dry nitrogen gas. This process ensures a constant positive pressure inside the glove boxes and atmospheric Coy chambers to block contamination and moisture inflow. The Dry Nitrogen Purge System can work in tandem with the Humidity Controller to automatically maintain moisture levels down to 5% Rh. The Pressure Relief/Bleed Valves provided with all Humidity control systems safely relieves excess pressure before it can cause any damage.

FYRITE TESTER

Fyrite Tester Part #: 2550-010

Other Modifications

Coy Laboratory Products, the leading supplier of flexible controlled-environment chambers, has available a modular chamber concept incorporating a new one-piece cast airlock and an innovative microprocessor-based automatic controller.

The modular approach allows multiple chambers to be chained with a three-port airlock, which increases ease of operation and significantly reduces space requirements and cost. A new casting process eliminates pinhole leaks sometimes found in older cast units. Leaks are now a thing of the past.

Features:
FRONT LOADING... makes the airlock easier for the operator to use, and more importantly, eliminates the need for extra clear space at the end of the chamber for opening the door. The airlock end of the chamber can now be right against a side wall.

RECTANGULAR SHAPE... has more usable space. The flat floor prevents bottles and flasks from tipping over, taller jars will pass through upright.

SYMMETRICAL DESIGN... allows the airlock to be used at either end of the chamber, or
with multiple chambers.

SPECIFICATIONS:

CONSTRUCTION - Body and door flanges are precision one-piece cast aluminum. Doors are 3/4" clear acrylic. Door closures are lever-operated with cam actuation for high, uniform sealing pressure.

DOOR OPENINGS - 12" high x 9" wide (30.5 x 22.9cm) Interior-- 13.4" high x 13.6" wide x 13.5" deep (34.O x 34.6 x 34.6cm)

ELECTRICAL - Maximum with vacuum pump 115V +/- 1O%/60 Hz, l5amp. 220V +/- 10%/50 Hz, 7.5amp.

VACUUM PUMP - (Included with all airlocks when ordered as original equipment) 7.2 CFM (3.4 cu, cm/sec), oil-less rotary vane, 26" Hg (0.89 kg/sq. cm) ultimate vacuum capability, 1/2 HP motor. 110V/6OHz, 220V/50 Hz. In-house vacuum systems must meet 4 CFM capacity to 24 in, Hg minimum requirements.

Part #: 8150-110
For Polymer Gloveboxes Only.

s

Part #: 8508-275
For Custom Aluminium and Vinyl Chamber

The Airlocks timer is preset at the factory but you can adjust it to your needs. Longer purge times for stricter applications. The chamber gas mix maintenance system is also factory set, but again, may be adjusted. With this system, the gas mix is automatically injected into the chamber for the selected time period on the selected time interval to easily maintain a safe, adequate hydrogen content. Any excess pressure is exhausted from the chamber by a pressure relief valve.

This model incorporates all the features of the manual air lock and adds the convenience and economy of automatic airlock cycling. A single push of a button frees the operator for other tasks while the airlock automatically cycles through a programmable sequence. Gas savings are realized by perfectly consistent vacuum and pressure levels.

Front-panel lamps indicate cycle progression, airlock status, and any fault condition, such as open door, empty gas cylinder, etc. An audible alarm emits a pleasant beep at cycle completion and other different sounds to indicate fault conditions.

All utility connections for electricity, vacuum pump hookup, and gas connections, as well as manual operation switches are at the rear of the airlock. The manual switches are intended for use when first setting up a chamber or to override the automatic control. They are operational even with the automatic control circuitry totally removed.

Microprocessor control not only enhances reliability, but allows any user-specified sequence to be programmed into the unit. The sequence(s) can be changed later for a nominal charge.

Custom, modular, affordable laboratory chambers provide isolation, containment, humidity, temperature and oxygen control. These epoxy-coated, aluminum chambers are designed to your individual needs by selecting components from numerous interchangeable parts and accessories.

DETAILED DESCRIPTION
Available in 6' and 3' lengths.
All construction is from the following durable materials: Epoxy-coated aluminum (1/8", 3.2mm thick),Clear polycarbonate or acrylic (1/4", 6.4mm thick),Optically clear flexible PVC, polyvinyl chloride, (20-30 mils, 0.5--0.8mm thick),
EPOM rubber gaskets,
Advanced silicone adhesives and sealants,
Leakproof self sealing fasteners.
To maximize interior work area and ease of maintenance, many accessories are mounted to the exterior of the cabinet.
Quick disconnect fittings have been used wherever possible.
Many of the accessories can be used together to simultaneously control multiple aspects of the chamber environment.
The viewing screen is designed to provide good interior shadow-free ambient light.
For applications where complete isolation of the chamber environment is required, hermitic seals can be added.
All sealed airtight systems are pressure checked at the factory for leaks. An inexpensive leak probe can be purchased for field testing.GFI power lines are installed in humidified systems.Any accessories which involve the flow of gas in or out of the chamber have relief valve(s) installed to prevent accidental evacuation or pressurization of the cabinet.

Chambers may be ordered in any size Any number of chambers, with or without intermediate airlocks, may be connected for ultimate flexibility in current and future needs. Options available for any single Coy chamber may be ordered, including separate gas supplies and temperature controls.

Part #: 6311-000

This airlock allows a modular approach to controlled environment chambers. The unit provides access to a double chamber, serviced by only a single vacuum pump and gas supply pair The benefits of dual chambers are made available without the usual drawbacks of high cost, complexity and large space requirement.

The three-port system allows isolation or chamber to chamber transfer, and any size chambers may be connected. In addition, separate gas mixtures and temperature controls may be ordered as an option. Airlock operation may be either manual or automatic.

ENZYME PURIFICATION
BIOCHEMICAL ASSAY WORKSTATION
OXYGEN CONTROLLED ENVIRONMENT
AEROSOL OR SPLASH CONTAINMENT
MICROBIOLOGY
TISSUE CULTURE
INCUBATION CHAMBER
STERILE ENVIRONMENTS

The chamber front is made of 20 mil pressed polished clear vinyl with 40 mil vinyl bottom extending 2" (51 mm) up on all sides. It is mounted on a 3/4" (19 mm) plywood base covered with a 1/4" (6 mm) foam pad and heavy vinyl. A 1" (25mm) aluminum tubular frame supports the chamber. All chambers come with a large equipment entry installed opposite the entry lock. This entrance consists of a 28" (71 cm) entry cap that is taped in place after installing large equipment in the chamber.

Glove ports, 10" x 17" oval opening (25 x 43 cm) on 19" (48 cm) centers, are constructed of a special highly flexible vinyl frosted to prevent cracking and gas leakage at bend points.

Two 1 1/2" (38 mm) I.D. nipples are attached for electrical wiring input. (Additional nipples may be ordered at the time of purchase.)

Also included as standard with all chambers is a six receptacle electric outlet with a foot switch for controlling one outlet
Medium gloves are supplied with the chamber (replacements or other sizes are available from Coy Laboratory Products).
The latex gloves are placed over a special cuff and then placed in the permanently attached sleeves and taped in place. This system provides a means of replacing damaged gloves without affecting the atmosphere of the chamber. Additional glove ports can be ordered mounted in most positions if requested at the time of purchase.
Standard equipment supplied with each Coy Anaerobic Chamber:

Pictured below are the floor plans for the three standard chamber types. Please note that the dimentsions given represent the overall size of the base as well as required clearances for operating the chamber. Also shown are typical placements of the fan boxes (standard equipment), as will as the typical placement of shelves, incubator and gas cylinders.

• Oxygen Control (Anaerobic/Hypoxic)

• Inert Atmospheres

• Aerosol or Splash Containment

• Microbiology

• Incubation Chamber

• Sterile Environments

• Particulate Control

• Controlled Humidity

• Enzyme Purification

• Biochemical Assay Workstation

• Static or Recirculating Atmosphere

• Dry Weighing/Packaging

• Temperature Regulation

• Tissue/Cell Culture Feeding

Part #: 6400-025 (includes vacuum pump)

The unit is cast in a single piece by a new process that provides a leakfree unit for life. The integrity and reliability obtained by this technique far surpass that of any earlier cast unit. Valves for operation are conveniently located on the top, with a vacuum gauge that monitors internal vacuum. The doors are specially spring-loaded as a safety measure against inadvertent over-pressure. The door closing mechanism is a center-point pressure design that ensures complete seal against the single-piece molded silicone door seal. Clear acrylic doors allow perfect vision into the airlock during operation.

This unit may be returned to the factory for upgrade to the Automatic Airlock Model.

Part #: 7002-050

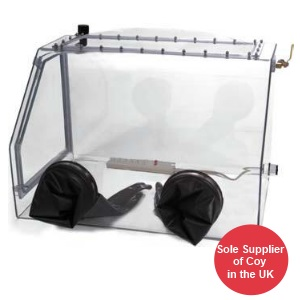

This Glove Box is an economical method to obtain a temperature, humidity, and oxygen controlled, or anaerobic environment. Used with a variety of accessories and available in polycarbonate or UV resistant plastic, this chamber is easy and affordably customized for your needs.
Coy Laboratory Products has been manufacturing controlled environment chambers for over 25 years. Other designs include flexible PVC and epoxy-coated aluminum chambers.

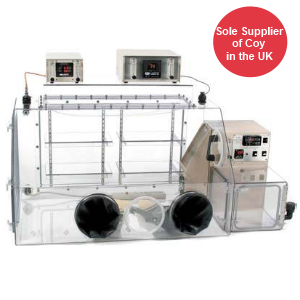

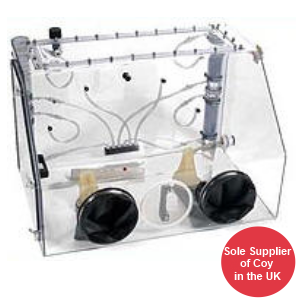

Polymer Glove Box Part #: 8400-001 (4 ft. Length)

Length)

DETAILED DESCRIPTION

Coy Laboratory Products Polymer Glove Boxes can provide your desired environment for critical operations in such industries as semiconductor and pharmaceutical testing and manufacturing. Hermetically sealed enclosures provide a controlled atmosphere for a wide range of manufacturing and testing operations. Their modular design lets you select the options you need for your operation.

Select from materials to suit your requirements. Use polycarbonate for operations that involve thermal stress or UV-Resistant Acrylic which permits the use of UV light inside the chamber without damage to the integrity of the plastic.

All glove boxes are fabricated to meet rigorous standards for cleanliness and durability. Solvent welding ensures a strong, airtight structure that won't leak. The gaskets on the side doors provide a safe, positive seal without interfering with full access to the internal chamber. The 45deg front slope allows the operator an uninterrupted view of work in progress.

For applications involving large equipment, request the optional, fully gasketed 32" x 20" (81 cm x 51 cm) removable back wall or oversize door in the side wall. Dual 8" (20 cm) round arm ports come equipped with flanges for easy connection of gloves or gloveless sleeve, which may be ordered as desired. The optional Arm Port Plugs maintain an airtight chamber while gloves are changed.

CONTROLLED PACKAGING
SMALL ANIMAL CONTAINMENT
HUMIDITY CONTROL
OXYGEN CONTROL

The Glove Box can be attached to an Airlock to maintain the integrity of the controlled environment without sacrificing convenience.

Standard and Pass-Thru Airlocks mount on the right side of the chamber (left-mounting available on request). They minimize chamber atmosphere loss and contamination when parts are moved in and out. Connecting Airlocks can extend system flexibility by mounting to either the right or left side of the chamber; a double flange desing allows several chambers to be connected in series. All airlocks include a 1/4" NPT pipe tapped opening for connection of purge gas, and a 3/4" NPT outlet to accommodate a safety relief/bleed valve.

Gloveless Sleeves and Arm Port Plug

• ENZYME PURIFICATION
• BIOCHEMICAL ASSAY WORKSTATION
• OXYGEN CONTROLLED ENVIRONMENT
• AEROSOL OR SPLASH CONTAINMENT

• MICROBIOLOGY
• TISSUE CULTURE
• INCUBATION CHAMBER
• STERILE ENVIRONMENTS

PVC CONSTRUCTION The chambers are constructed of heavy duty, flexible PVC mounted on a rigid base. Thickness ranges from 20 to 40 mils.

RELIABLE AND DURABLE All seams are radio-frequency welded to produce a one-piece bag that will withstand many years of service.

MANY APPLICATIONS In addition to medical laboratory applications, Coy controlled environment chambers have found other applications in industry due to their design and economy. These include microwelding, handling of hazardous materials, dry atmosphere, optical and electronic equipment assembly.

ECONOMICAL Not only are Coy chambers less expensive than many comparable rigid box chambers, but gas requirements are lower, keeping operating costs at a minimum.

REDUCES OPERATOR FATIGUE The optically clear vinyl greatly increases operator vision, and the gloves do not fight back when entered, as in rigid chambers. In addition, there are no rigid ports to interfere with and consequently tire the operator's arms.

MODULAR DESIGN Coy systems are designed to be expandable and easily modified through the many options available.

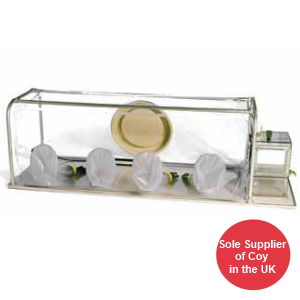

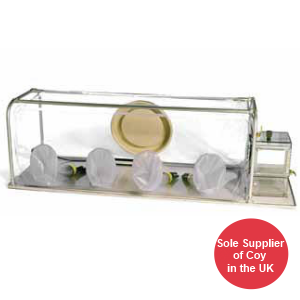

3 STANDARD SIZES Chambers are available in three lengths: 36", 59" and 78" (91 cm, 150 cm and 198 cm). All are 32" (81 cm) deep and 40" (102 cm) tall.

CUSTOM SIZES AND CONFIGURATIONS Special size chambers are available at minimal additional cost, and accessories are available to economically create special configurations.

• The chamber front is made of 20 mil pressed polished clear vinyl with 40 mil vinyl bottom extending 2" (51 mm) up on all sides. It is mounted on a 3/4" (19 mm) plywood base covered with a 1/4" (6 mm) foam pad and heavy vinyl. A 1" (25mm) aluminum tubular frame supports the chamber. All chambers come with a large equipment entry installed opposite the entry lock. This entrance consists of a 28" (71 cm) entry cap that is taped in place after installing large equipment in the chamber.

• Glove ports, 10" x 17" oval opening (25 x 43 cm) on 19" (48 cm) centers, are constructed of a special highly flexible vinyl frosted to prevent cracking and gas leakage at bend points.

  Two 1 1/2" (38 mm) I.D. nipples are attached for electrical wiring input. (Additional nipples may be ordered at the time of purchase.)

  Also included as standard with all chambers is a six receptacle electric outlet with a foot switch for controlling one outlet.

• Medium gloves are supplied with the chamber (replacements or other sizes are available from Coy Laboratory Products).

• The latex gloves are placed over a special cuff and then placed in the permanently attached sleeves and taped in place. This system provides a means of replacing damaged gloves without affecting the atmosphere of the chamber. Additional glove ports can be ordered mounted in most positions if requested at the time of purchase.

• Standard equipment supplied with each Coy Anaerobic Chamber:

Pictured below are the floor plans for the three standard chamber types. Please note that the dimentsions given represent the overall size of the base as well as required clearances for operating the chamber. Also shown are typical placements of the fan boxes (standard equipment), as will as the typical placement of shelves, incubator and gas cylinders.

Dehumidification Apparatus: A recirculating pump draws chamber air through two drying capsules filler with desiccant mounted on the outside rear of the chamber until the desired humidity level is achieved and the pump is shut off (either manually or automatically by the controller.) The desiccant has an indicator to show when rejuvenation is needed.

NOTE: An optional Dry Nitrogen Purge system is now available. If desired you may use a manually controlled dry nitrogen purge instead of desiccant capsules.

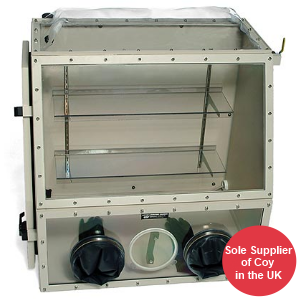

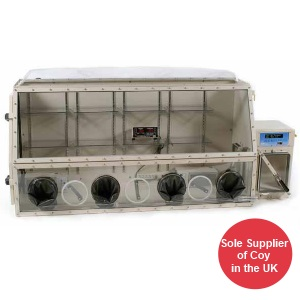

Available in Polymer Glove Box (pictured) and Custom Aluminum Chamber Styles.

Dehumidification Appparatus

Dry Nitrogen Purge System

Humidification Apparatus

Accuracy: Humidity sensors have traditionally been unstable, show large measurement hysteresis and dramatic changes in accuracy with small temperature changes. The design of this advance sensor has addressed all of these shortcomings. (See chart)

• Unaffected by C02
• Wide range-0 to 2000 PPM
• NO routine maintenance procedures
• Constant L.E.D. display
• Compact and self-contained
• Accuracy not user dependent
• Adjustable visible and audible alarms
• Detects transient level changes

Model 10 Gas Analyzer Part #: 6200-000

SPECIFICATIONS

Cultures are incubated in the heated, humidified, gas controlled (up to 60% O2 ) incubation box which resides inside the chamber. The chamber is heated and gas regulated, but not humidified. This allows samples to be analyzed with delicate equipment that would be damaged by high humidity. More importantly, controlled oxygen conditions are maintained in the sample analysis area. Tests that could not be performed with a bench top enclosure and CO(2) incubator because of the biologically fast reaction to ambient oxygen can now be performed.

Available in Custom Aluminum ( 3 ft. length pictured above), Polymer Glove Box and Flexible Vinyl (pictured below)

Coy Labs Oxygen Controller w/Sensor

Large Humidified Incubation Box Accessory

• 3 sizes of Vinyl Chambers A (59"/150cm), B (78"/198cm), or C (36"/91cm) to chose from
  (Flexible Vinyl Chambers)


• 3 sizes of Polymer Chambers to chose from 3, 4 or 5 ft. sizes, with glove or gloveless options. (Polymer Glove Box)


• 3 sizes of Aluminum Chambers to chose from 3 ft. or
  6 ft., with glove or gloveless options. (Custom Aluminum Chambers)

APPLICATIONS:

The Glove Box can be attached to an Airlock to maintain the integrity of the controlled environment without sacrificing convenience.

Standard and Pass-Thru Airlocks mount on the right side of the chamber (left-mounting available on request). They minimize chamber atmosphere loss and contamination when parts are moved in and out. Connecting Airlocks can extend system flexibility by mounting to either the right or left side of the chamber; a double flange desing allows several chambers to be connected in series. All airlocks include a 1/4" NPT pipe tapped opening for connection of purge gas, and a 3/4" NPT outlet to accommodate a safety relief/bleed valve.

• Glove Box, 36" w x 24" d x 24" h
  (91cm x 61cm x 61cm), acrylic
• Gasketed (sealed) door openings,
  9" x 9" (23cm x 23cm)
• Arm ports to accept 8" x 30" gloves
  or Iris openings
• 5-outlet plug strip
• 1/4" NPT inlet/outlet ball valves
• Diaphragm top

• Humidity control <5% - 90% Rh
• Oxygen control <5% - 60%
• Temperature control--13 degrees C -- 65 degrees C
• Airlock or pass-thru
• Polycarbonate or UV-Resistant Acrylic
• Clean, filtered atmosphere
• Removable, gasketed rear wall for large equipment
• Arm port plugs
• Oversized door in side wall

• ENZYME PURIFICATION
• BIOCHEMICAL ASSAY WORKSTATION
• OXYGEN CONTROLLED ENVIRONMENT
• AEROSOL OR SPLASH CONTAINMENT

• MICROBIOLOGY
• TISSUE CULTURE
• INCUBATION CHAMBER
• STERILE ENVIRONMENTS

PVC CONSTRUCTION The chambers are constructed of heavy duty, flexible PVC mounted on a rigid base. Thickness ranges from 20 to 40 mils.

RELIABLE AND DURABLE All seams are radio-frequency welded to produce a one-piece bag that will withstand many years of service.

MANY APPLICATIONS In addition to medical laboratory applications, Coy controlled environment chambers have found other applications in industry due to their design and economy. These include microwelding, handling of hazardous materials, dry atmosphere, optical and electronic equipment assembly.

ECONOMICAL Not only are Coy chambers less expensive than many comparable rigid box chambers, but gas requirements are lower, keeping operating costs at a minimum.

REDUCES OPERATOR FATIGUE The optically clear vinyl greatly increases operator vision, and the gloves do not fight back when entered, as in rigid chambers. In addition, there are no rigid ports to interfere with and consequently tire the operator's arms.

MODULAR DESIGN Coy systems are designed to be expandable and easily modified through the many options available.

3 STANDARD SIZES Chambers are available in three lengths: 36", 59" and 78" (91 cm, 150 cm and 198 cm). All are 32" (81 cm) deep and 40" (102 cm) tall.

CUSTOM SIZES AND CONFIGURATIONS Special size chambers are available at minimal additional cost, and accessories are available to economically create special configurations.

• The chamber front is made of 20 mil pressed polished clear vinyl with 40 mil vinyl bottom extending 2" (51 mm) up on all sides. It is mounted on a 3/4" (19 mm) plywood base covered with a 1/4" (6 mm) foam pad and heavy vinyl. A 1" (25mm) aluminum tubular frame supports the chamber. All chambers come with a large equipment entry installed opposite the entry lock. This entrance consists of a 28" (71 cm) entry cap that is taped in place after installing large equipment in the chamber.

• Glove ports, 10" x 17" oval opening (25 x 43 cm) on 19" (48 cm) centers, are constructed of a special highly flexible vinyl frosted to prevent cracking and gas leakage at bend points.

  Two 1 1/2" (38 mm) I.D. nipples are attached for electrical wiring input. (Additional nipples may be ordered at the time of purchase.)

  Also included as standard with all chambers is a six receptacle electric outlet with a foot switch for controlling one outlet.

• Medium gloves are supplied with the chamber (replacements or other sizes are available from Coy Laboratory Products).

• The latex gloves are placed over a special cuff and then placed in the permanently attached sleeves and taped in place. This system provides a means of replacing damaged gloves without affecting the atmosphere of the chamber. Additional glove ports can be ordered mounted in most positions if requested at the time of purchase.

• Standard equipment supplied with each Coy Anaerobic Chamber:

Pictured below are the floor plans for the three standard chamber types. Please note that the dimentsions given represent the overall size of the base as well as required clearances for operating the chamber. Also shown are typical placements of the fan boxes (standard equipment), as will as the typical placement of shelves, incubator and gas cylinders.

Dehumidification Apparatus: A recirculating pump draws chamber air through two drying capsules filler with desiccant mounted on the outside rear of the chamber until the desired humidity level is achieved and the pump is shut off (either manually or automatically by the controller.) The desiccant has an indicator to show when rejuvenation is needed.

NOTE: An optional Dry Nitrogen Purge system is now available. If desired you may use a manually controlled dry nitrogen purge instead of desiccant capsules.

Available in Polymer Glove Box (pictured) and Custom Aluminum Chamber Styles.

Dehumidification Appparatus

Dry Nitrogen Purge System

Humidification Apparatus

Accuracy: Humidity sensors have traditionally been unstable, show large measurement hysteresis and dramatic changes in accuracy with small temperature changes. The design of this advance sensor has addressed all of these shortcomings. (See chart)

• Unaffected by C02
• Wide range-0 to 2000 PPM
• NO routine maintenance procedures
• Constant L.E.D. display
• Compact and self-contained
• Accuracy not user dependent
• Adjustable visible and audible alarms
• Detects transient level changes

Model 10 Gas Analyzer Part #: 6200-000

SPECIFICATIONS

Cultures are incubated in the heated, humidified, gas controlled (up to 60% O2 ) incubation box which resides inside the chamber. The chamber is heated and gas regulated, but not humidified. This allows samples to be analyzed with delicate equipment that would be damaged by high humidity. More importantly, controlled oxygen conditions are maintained in the sample analysis area. Tests that could not be performed with a bench top enclosure and CO(2) incubator because of the biologically fast reaction to ambient oxygen can now be performed.

Available in Custom Aluminum ( 3 ft. length pictured above), Polymer Glove Box and Flexible Vinyl (pictured below)

Coy Labs Oxygen Controller w/Sensor

Large Humidified Incubation Box Accessory

• 3 sizes of Vinyl Chambers A (59"/150cm), B (78"/198cm), or C (36"/91cm) to chose from
  (Flexible Vinyl Chambers)


• 3 sizes of Polymer Chambers to chose from 3, 4 or 5 ft. sizes, with glove or gloveless options. (Polymer Glove Box)


• 3 sizes of Aluminum Chambers to chose from 3 ft. or
  6 ft., with glove or gloveless options. (Custom Aluminum Chambers)

APPLICATIONS:

The Glove Box can be attached to an Airlock to maintain the integrity of the controlled environment without sacrificing convenience.

Standard and Pass-Thru Airlocks mount on the right side of the chamber (left-mounting available on request). They minimize chamber atmosphere loss and contamination when parts are moved in and out. Connecting Airlocks can extend system flexibility by mounting to either the right or left side of the chamber; a double flange desing allows several chambers to be connected in series. All airlocks include a 1/4" NPT pipe tapped opening for connection of purge gas, and a 3/4" NPT outlet to accommodate a safety relief/bleed valve.

• Glove Box, 36" w x 24" d x 24" h
  (91cm x 61cm x 61cm), acrylic
• Gasketed (sealed) door openings,
  9" x 9" (23cm x 23cm)
• Arm ports to accept 8" x 30" gloves
  or Iris openings
• 5-outlet plug strip
• 1/4" NPT inlet/outlet ball valves
• Diaphragm top

• Humidity control <5% - 90% Rh
• Oxygen control <5% - 60%
• Temperature control--13 degrees C -- 65 degrees C
• Airlock or pass-thru
• Polycarbonate or UV-Resistant Acrylic
• Clean, filtered atmosphere
• Removable, gasketed rear wall for large equipment
• Arm port plugs
• Oversized door in side wall

Coy Anaerobic Chamber / Glove Box Gas Injection System

FAN BOXES

Coy Laboratory Products catalyst boxes come in two styles, heated and unheated.

DIGITAL, HEATED

UNHEATED
The unheated catalyst box is designed for those laboratories which do not require elevated temperatures in their chambers. It functions in a manner similar to the heated box. Air is quietly drawn in and up through the desiccant and catalyst Stak-Paks*, thus ensuring a complete mix of the atmosphere to control humidity and oxygen levels.

GAS LEAK DETECTOR

Part #: 7000-050

Manufactured for Coy Laboratory Products by Quantum Inc., this is a sensitive electronic instrument that can detect the presence of a variety of gases. Its ability to detect the hydrogen found in anaerobic gas mixtures, even at very low concentrations, makes it useful for finding leaks in anaerobic chambers, both at start-up and during regular maintenance.

The palm-sized Gas Leak Probe responds to minute concentrations of certain gases by emitting a geiger-counter like sound that increases in speed as you pin-point the source of leaks. There are no meters or lights to be monitored. In addition to its use with anaerobic gas systems, it can be used in detecting leaks in other gas systems carrying most combustible gases as well as certain refrigerant gases.

SPECIFICATIONS: MODEL BT-45
Factory Mutual Approved for use in Class 1, Division 1, groups B, C, and D hazardous areas.

Gases Detected: Hydrogen, (e.g. in anaerobic gas mixtures); most combustible gases; types R-1 1, R-22, and R-502 refrigerants.

Minimum Detectable Leak: 1/1000 oz./yr., or 1/2 cu.ft./month from a pinhole leak under ideal conditions.

Detection Range: 25-10,000 ppm (e.g., .0025% to 1% of hydrogen).

Battery Life: 15-20 hr.., continuous use.

Size: 43/4" x 33/4" xl 5/B (12 cm x 9.5cm x 4cm)

MICROSCOPE SOCK

EXTERNAL MOUNT LAMP

External Mount Lamp Part #: 7001-140

GAS PURGE SYSTEM

Gas Purge System Part #: 8546-025

POP-LOK

FLAMING DEVICE

DRY NITROGEN PURGE SYSTEM

Part #: 8546-050

This system is an alternative way to dehumidify a chamber through a purging procedure with a dry nitrogen gas. This process ensures a constant positive pressure inside the glove boxes and atmospheric Coy chambers to block contamination and moisture inflow. The Dry Nitrogen Purge System can work in tandem with the Humidity Controller to automatically maintain moisture levels down to 5% Rh. The Pressure Relief/Bleed Valves provided with all Humidity control systems safely relieves excess pressure before it can cause any damage.

FYRITE TESTER

Fyrite Tester Part #: 2550-010

Other Modifications

• Unaffected by C02
• Wide range-0 to 2000 PPM
• NO routine maintenance procedures
• Constant L.E.D. display
• Compact and self-contained
• Accuracy not user dependent
• Adjustable visible and audible alarms
• Detects transient level changes

Model 10 Gas Analyser Part #: 6200-000

SPECIFICATIONS

Coy Laboratory Products, the leading supplier of flexible controlled-environment chambers, has available a modular chamber concept incorporating a new one-piece cast airlock and an innovative microprocessor-based automatic controller.

The modular approach allows multiple chambers to be chained with a three-port airlock, which increases ease of operation and significantly reduces space requirements and cost. A new casting process eliminates pinhole leaks sometimes found in older cast units. Leaks are now a thing of the past.

FEATURES

FRONT LOADING... makes the airlock easier for the operator to use, and more importantly, eliminates the need for extra clear space at the end of the chamber for opening the door. The airlock end of the chamber can now be right against a side wall.

RECTANGULAR SHAPE... has more usable space. The flat floor prevents bottles and flasks from tipping over, taller jars will pass through upright.

SYMMETRICAL DESIGN... allows the airlock to be used at either end of the chamber, or
with multiple chambers.

SPECIFICATIONS

CONSTRUCTION - Body and door flanges are precision one-piece cast aluminium. Doors are 3/4" clear acrylic. Door closures are lever-operated with cam actuation for high, uniform sealing pressure.

DOOR OPENINGS - 12" high x 9" wide (30.5 x 22.9cm) Interior-- 13.4" high x 13.6" wide x 13.5" deep (34.O x 34.6 x 34.6cm)

ELECTRICAL - Maximum with vacuum pump 115V +/- 1O%/60 Hz, l5amp. 220V +/- 10%/50 Hz, 7.5amp.

VACUUM PUMP - (Included with all airlocks when ordered as original equipment) 7.2 CFM (3.4 cu, cm/sec), oil-less rotary vane, 26" Hg (0.89 kg/sq. cm) ultimate vacuum capability, 1/2 HP motor. 110V/6OHz, 220V/50 Hz. In-house vacuum systems must meet 4 CFM capacity to 24 in, Hg minimum requirements.

Anaerobic Chambers/Glove Boxes Accessories

Model 10 Gas Analyzer for Oxygen/Hydrogen

This patented analyzer constantly monitors both oxygen and hydrogen levels within a chamber at a fraction of the cost of two separate analyzers. The unit monitors both oxygen and hydrogen directly from the chamber atmosphere. The analyzer’s constant LED display keeps users continually informed of minute changes in oxygen and hydrogen levels and provides the operator the opportunity to make adjustments. If there is an incorrect gas mix or a problem with valves and regulators, users are alerted by visible and audible alarms. Use of the Model 10 Gas Analyzer can typically pay for itself. For example, labs can use less-expensive, non-certified gas mixes by employing the Model 10. This enables labs to reduce operating costs while also protecting against possible gas mix concentration issues. Voltage outputs are available as an upgrade to new and existing Model 10 units. The outputs allow the readings to transfer to a data logger, chart recorder or computer program, which is especially helpful when 24-hour documentation is required.


Gas Injection System

Coy’s automatic gas injection system frees the operator from worrying about having enough hydrogen to maintain an anaerobic environment. The system injects the hydrogen gas mix into the chamber on a fixed time schedule for a fixed time period, allowing users to leave the chamber unattended for days at a time. Laboratories achieve improved performance and ease of use when the gas injection system is teamed with the Coy Model 10 Gas Analyzer.

Control oxygen and humidity

• Media completely enclosed and convenient to handle
• Paks maybe stacked
• More surface area exposed to air flow
• Adaptable to other media
• May be refilled with fresh media
• Can withstand high temperatures
• Efficient and economical

Coy Laboratory Products has increased both the convenience and efficiency of handling controlled environment media. The palladium catalyst STAK-PAK will conveniently and economically facilitate the necessary reaction between hydrogen and oxygen to drive off the oxygen and maintain the anaerobic environment. The desiccant STAK-PAK will help maintain low humidity. The STAK-PAK is included as standard equipment on all new Coy Anaerobic Chambers. They may be purchased as an upgrade for use with all Coy Fan Boxes - an investment we heartily recommend.

Here's why: the small cost today will be repaid in the increased efficiency and convenience the STAK-PAK will bring you. Made of durable brushed aluminum with a stainless steel screen, these enclosures allow high temperature rejuvenation and may be refilled indefinitely with fresh media. They may be stacked for great flexibility in controlling your atmosphere.

The STAK-PAK is guaranteed to improve every chamber, as well as the disposition of every operator.

Technical Information

Ordering Information

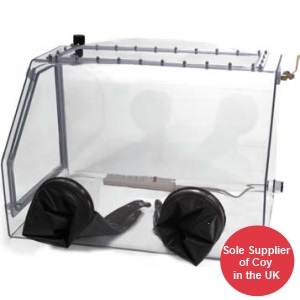

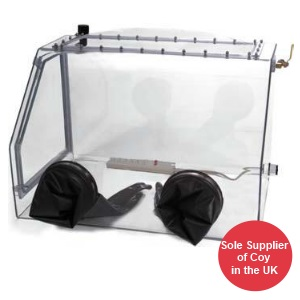

Coy Basic Polymer Basic Glove Boxes

These glove boxes are an economical way to perform and maintain a wide range of atmospheres and functions, including use as a dry glove box, inert gas (nitrogen) glove box, isolation glove box, anaerobic chambers, oxygen, and humidity control glove boxes. Used with a variety of accessories and available in polycarbonate or UV resistant plastic, this glove box is easy and affordably customized for your needs.

DETAILED DESCRIPTION

Coy Laboratory Products Polymer Glove Boxes can provide your desired environment for critical operations in such industries as semiconductor and pharmaceutical testing and manufacturing. Hermetically sealed enclosures provide a controlled atmosphere for a wide range of manufacturing and testing operations. Their modular design lets you select the options you need for your operation.

Select from materials to suit your requirements. Use polycarbonate for operations that involve thermal stress or UV-Resistant Acrylic which permits the use of UV light inside the chamber without damage to the integrity of the plastic.

All glove boxes are fabricated to meet rigorous standards for cleanliness and durability. Solvent welding ensures a strong, airtight structure that won't leak. The gaskets on the side doors provide a safe, positive seal without interfering with full access to the internal chamber. The 45-degree front slope allows the operator an uninterrupted view of work in progress.

The patented Diaphragm Top increase the ease with which the operators hands enter and exit the glove box and increase cost savings as less glove box gas is expelled to the lab atmosphere. For applications involving large equipment, request the optional, fully gasketed 32" x 20" (81 cm x 51 cm) removable back wall or oversize door in the side wall. Dual 8" (20 cm) round arm ports come equipped with flanges for easy connection of gloves or gloveless sleeve, which may be ordered as desired. The optional Arm Port Plugs maintain an airtight chamber while gloves are changed.


Technical Information

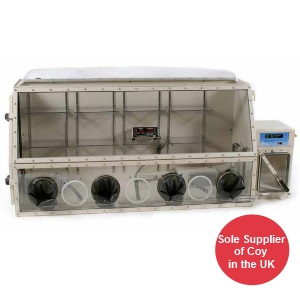

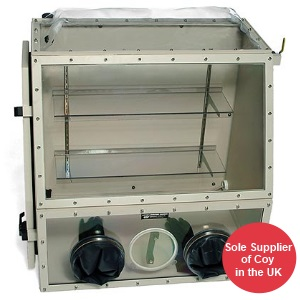

Glove Boxes - Basic - Aluminium - Coy

Affordable, modular, Aluminum Glove Boxes provide isolation, containment, humidity, temperature,oxygen control, and anaerobic (complete removal of oxygen) atmospheres. These epoxy-coated, aluminum glove boxes are designed to your individual needs by selecting components from numerous interchangeable COY parts and accessories.
Available in 1 and 2 Person Sizes (182 cm and 91 cm). 24" depth (61 cm) and 36" height (91 cm)

•All construction is from the following durable materials:
•Epoxy-coated aluminum (1/8", 3.2mm thick),
•Clear polycarbonate (1/4", 6.4mm thick),
•Optically clear flexible PVC, polyvinyl chloride, (20-30 mils, 0.5-0.8mm thick)
•EPOM rubber gaskets
•Advanced silicone adhesives and sealants
•Leakproof self sealing fasteners.

To maximize interior work area and ease of maintenance, many accessories are mounted to the exterior of the glove box.

Quick disconnect fittings have been used wherever possible.

Many of the accessories can be used together to simultaneously control multiple aspects of the glove box environment, such as humidityand oxygen control, or temperature and humidity.

The viewing screen is designed to provide good interior shadow-free ambient light. Tempered Glass may be substituted for the standard polycarbonate for certain chemical operations.

All units are hermitically sealed and pressure checked at the factory for leaks. An inexpensive gas leak detector can be purchased for field testing.

GFI power lines are installed in humidified systems.

A Pressure Relief Valve and Ball Valve are installed on all units to provide a simple Flow thru gas system without over pressurizing the Glove Box. For Isolation Systems the Pressure Relief Valve that vents to room air can be removed or sealed and equiped with tubing for routing to a fume hood or house evacuation system.

Also standard is the Patented Diaphragm Top for easy of operation and cost savings under anaerobic conditions.

Technical Information

Glove Boxes - Basic - Vinyl - Coy

FLEXIBLE VINYL CHAMBERS These Flexible Glove Boxes are a simple low cost alternative to rigid glove boxes for sealed environments that can be purged with any inert gas through the standard Ball Valve and Pressure Relief Valve.

PVC CONSTRUCTION The glove boxes are constructed of heavy duty, flexible PVC mounted on a rigid base. Thickness ranges from 20 to 40 mils.

RELIABLE AND DURABLE All seams are radio frequency welded to produce a one piece bag that will withstand many years of service.

MANY APPLICATIONS In addition to medical laboratory applications, Coy controlled environment glove boxes have found other applications in industry due to their design and economy. These include micro welding, handling of hazardous materials, dry atmosphere, optical and electronic equipment assembly.

REDUCES OPERATOR FATIGUE The optically clear vinyl greatly increases operator vision, and the gloves do not fight back when entered, as in rigid glove boxes. In addition, there are no rigid ports to interfere with and consequently tire the operator's arms.

MODULAR DESIGN Coy glove boxes are designed to be expandable and easily modified through the many options available.

CUSTOM SIZES AND CONFIGURATIONS Special size glove boxes are available at minimal additional cost, and accessories are available to economically create special configurations.

GLOVE BOX DETAILS

•The glove box front is made of 20 mil pressed polished clear vinyl with 40 mil vinyl bottom extending 2" (51 mm) up on all sides. It is mounted on a 3/4" (19 mm) plywood base covered with a 1/4" (6 mm) foam pad and heavy vinyl. A 1" (25 mm) aluminum tubular frame supports the glove box. All glove boxes come with a large equipment entry installed opposite the entry lock. This entrance consists of a 20" (50 cm) entry cap that is taped in place after installing large equipment in the glove box.
•Glove ports, 10" x 13" oval opening (25 x 33 cm) on 19" (48 cm) centers, are constructed of a special highly flexible vinyl frosted to prevent cracking and gas leakage at bend points.
•Two 1 1/2" (38 mm) I.D. nipples are attached for electrical wiring input. (Additional nipples may be ordered at the time of purchase.)
•Also included as standard with all glove boxes, is a six receptacle electric outlet.
•Large gloves are supplied with the glove box (replacements or other sizes are available from Coy Laboratory Products).
•The latex gloves are placed over a special cuff and then placed in the permanently attached sleeves and taped in place. This system provides a means of replacing damaged gloves without affecting the atmosphere of the glove box. Additional glove ports can be ordered mounted in most positions if requested at the time of purchase.

Technical Information

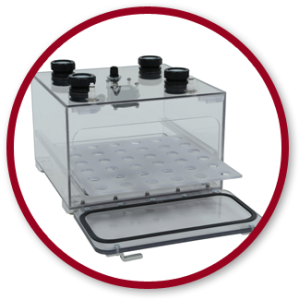

Glove boxes - Hypoxic - Aluminium - Coy

The only complete system available for hypoxic/hyperoxic tissue culture and live animal studies that allow CO2 incubation AND sample manipulation conveniently in a heated oxygen controlled atmosphere.

Through a strategically positioned oxygen sensor and controller the Coy Hypoxic Glove Box can maintain a uniform gas concentration throughout the chamber and optimum control. As gases are required in the glove box, they are introduced through a unique gas tube shower system which, along with the internal fan, provides the circulation required for uniform gas distribution and fast response of the controller. To allow for the relief of pressure induced by gas addition, special check/bleed valves are installed in the glove box.

Temperature Control (option) Units can either be heated or unheated or unheated with a separate Incubator. A solid state heater provides reliable, stable temperature control with digital display and controls in both our Incubators and Heated Glove Boxes.

CO2 Control (option) All COY Hypoxic units can be equipped with optional CO2 Controls. A revolutionary controller and sensor, allows for precise control and monitoring of CO2 gases inside the glove box. The sensor relays information to the controller which then opens the appropriate Solenoid controlling a CO2 or N2 Gas to equilibrate the CO2 levels inside the glove box. The digital display allows the user to monitor the CO2 Levels constantly.

Humidity Control (option) COY offers a few different ways to control the humidity of the glove box depending on the application. Some heated units have a built in solid state dehumidifier with digital displays and controls. Typically the Solid State Automatic Dehumidifier is recommended but for some low volume/small size animals a more affordable desiccant drying system may be utilized. Cell Culture units typically are provided with an optional Humidified Incubation Box (high humidity box within the glove box) to prevent samples from drying out however since these are not air tight the moisture eventually escapes into the glove box atmosphere so the Solid State Dehumidifier or Desiccant drying system is used to maintain ideal relative humidity.

Cell Culture Units Cultures are incubated in the heated, humidified, gas controlled (up to 100% O2) incubation box which resides inside the glove box. The glove box is heated and gas regulated, but not humidified. This allows samples to be analyzed with delicate equipment that would be damaged by high humidity. More importantly, controlled oxygen conditions are maintained in the sample analysis area. Tests that could not be performed with a bench top enclosure and CO2 incubator because of the biologically fast reaction to ambient oxygen can now be performed.

Live Animal Containment Depending on the labs animal care requirements the units can be heated or unheated. Most units for live animal containment will also require the COY Animal Filtration System to remove the animal waste byproducts, these units can be automatic or manual, with the manual based on a simple protocol the lab establishes, automatic units are based off the CO2 levels. The Animal Filtration system is a closed loop circuit with a pump drawing the glove box atmosphere out and through the filters (Carbolime and activated carbon) and back into the glove box.

Airlock Sizes for Live Animal Containment Due to the variety of number and size of animals kept in these glove boxes COY manufactures each unit to specifically match a labs cage size to the airlock providing optimum efficiency.


Technical Information

Glove boxes - Humidity Controlled - Aluminium - Coy

These units allow the user to control interior humidity levels above or below ambient conditions. All units are equipped with the latest in Humidity Sensor technology and Ultra Sonic Humidifier and either Desiccant Drying System or a Dry Gas Purge System.
STYLES Two standard styles available, a clear Polycarbonate unit that features a lower cost to purchase, and relatively low cost to customize. The Aluminium units while more expensive on initial purchase are a longer lasting, sturdy build that with the addition of tempered Glass can be used in highly corrosive chemical use. Polycarbonate units have 4 standard sizes and Aluminium units have two.

AUTOMATIC CONTROL The automatic controller provides monitoring and control of the relative humidity. It activates the necessary system (dehumidification for humidification) when the moisture level deviates from the adjustable set point. Flow rates, sensor position circulation, and orifice positions were all considered in the design to maximize control capabilities and humidity uniformity across the glove box. Since this is a closed loop circulation system, an inert gas environment can be maintained in the glove box while controlling the humidity.

HUMIDIFIER The Ultra Sonic Humidifier vibrates the water in the reservoir to provide a cloud of mist that is pushed into the glove box from the pump system. At the same time air is pulled out of the glove box and circulated through the water reservoir, completing the Humidification System's closed loop circuit. Water reservoir is equipped with Self Sealing Quick Disconnect inlet for refilling under sealed conditions.

DRYING SYSTEMS Two systems are available to dry these Humidity Control Glove Boxes a Desiccant Drying System (Pictured above) and a Dry Gas Purge System. The Desiccant System is standard however the Dry Gas Purge System can be substituted at no extra cost. The Dry Gas Purge System allows for a lower attainable humidity level 3% (1% using special dry gas) vs 5% for the desiccant System. The Gas Purge System is also cleaner, provides faster drying times and requires less maintenance (Desiccant needs to be rejuvenated). The Desiccant Drying system can be a lot less expensive to operate. The two systems can also be used to work together to minimize the cost of the dry gas purge system.

GLOVELESS SLEEVE All units are equipped with gloveless sleeves to allow superior handling of interior samples. However the moisture from skin does influence Humidity levels below 15% Rh and for these applications the user may need to operate with gloves which can easily placed over COY over the gloveless sleeve cuff. (Click here to see Gloveless Sleeves)

TRANSFER CHAMBER OPTION All units have an optional pass thru chamber (air lock) available. This enables transfer of equipment and samples with out drastic changes to the interior environment.


Technical Information

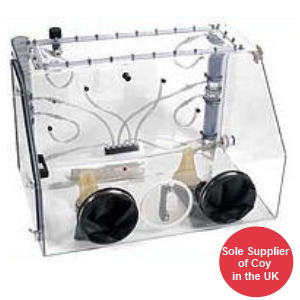

Glove boxes - Humidity Controlled - Polymer - Coy

These units allow the user to control interior humidity levels above or below ambient conditions. All units are equipped with the latest in Humidity Sensor technology and Ultra Sonic Humidifier and either Desiccant Drying System or a Dry Gas Purge System.
STYLES Two standard styles available, a clear Polycarbonate unit that features a lower cost to purchase, and relatively low cost to customize. The Aluminium units while more expensive on initial purchase are a longer lasting, sturdy build that with the addition of tempered Glass can be used in highly corrosive chemical use. Polycarbonate units have 4 standard sizes and Aluminium units have two.

AUTOMATIC CONTROL The automatic controller provides monitoring and control of the relative humidity. It activates the necessary system (dehumidification for humidification) when the moisture level deviates from the adjustable set point. Flow rates, sensor position circulation, and orifice positions were all considered in the design to maximize control capabilities and humidity uniformity across the glove box. Since this is a closed loop circulation system, an inert gas environment can be maintained in the glove box while controlling the humidity.

HUMIDIFIER The Ultra Sonic Humidifier vibrates the water in the reservoir to provide a cloud of mist that is pushed into the glove box from the pump system. At the same time air is pulled out of the glove box and circulated through the water reservoir, completing the Humidification System's closed loop circuit. Water reservoir is equipped with Self Sealing Quick Disconnect inlet for refilling under sealed conditions.

DRYING SYSTEMS Two systems are available to dry these Humidity Control Glove Boxes a Desiccant Drying System (Pictured above) and a Dry Gas Purge System. The Desiccant System is standard however the Dry Gas Purge System can be substituted at no extra cost. The Dry Gas Purge System allows for a lower attainable humidity level 3% (1% using special dry gas) vs 5% for the desiccant System. The Gas Purge System is also cleaner, provides faster drying times and requires less maintenance (Desiccant needs to be rejuvenated). The Desiccant Drying system can be a lot less expensive to operate. The two systems can also be used to work together to minimize the cost of the dry gas purge system.

GLOVELESS SLEEVE All units are equipped with gloveless sleeves to allow superior handling of interior samples. However the moisture from skin does influence Humidity levels below 15% Rh and for these applications the user may need to operate with gloves which can easily placed over COY over the gloveless sleeve cuff. (Click here to see Gloveless Sleeves)

TRANSFER CHAMBER OPTION All units have an optional pass thru chamber (air lock) available. This enables transfer of equipment and samples with out drastic changes to the interior environment.


Technical Information

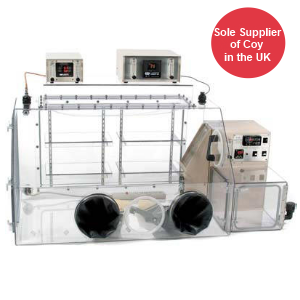

Glove boxes - Hypoxic - Polymer - Coy

The only complete system available for hypoxic/hyperoxic tissue culture and live animal studies that allow CO2 incubation AND sample manipulation conveniently in a heated oxygen controlled atmosphere.

Through a strategically positioned oxygen sensor and controller the Coy Hypoxic Glove Box can maintain a uniform gas concentration throughout the chamber and optimum control. As gases are required in the glove box, they are introduced through a unique gas tube shower system which, along with the internal fan, provides the circulation required for uniform gas distribution and fast response of the controller. To allow for the relief of pressure induced by gas addition, special check/bleed valves are installed in the glove box.

Temperature Control (option) Units can either be heated or unheated or unheated with a separate Incubator. A solid state heater provides reliable, stable temperature control with digital display and controls in both our Incubators and Heated Glove Boxes.

CO2 Control (option) All COY Hypoxic units can be equipped with optional CO2 Controls. A revolutionary controller and sensor, allows for precise control and monitoring of CO2 gases inside the glove box. The sensor relays information to the controller which then opens the appropriate Solenoid controlling a CO2 or N2 Gas to equilibrate the CO2 levels inside the glove box. The digital display allows the user to monitor the CO2 Levels constantly.

Humidity Control (option) COY offers a few different ways to control the humidity of the glove box depending on the application. Some heated units have a built in solid state dehumidifier with digital displays and controls. Typically the Solid State Automatic Dehumidifier is recommended but for some low volume/small size animals a more affordable desiccant drying system may be utilized. Cell Culture units typically are provided with an optional Humidified Incubation Box (high humidity box within the glove box) to prevent samples from drying out however since these are not air tight the moisture eventually escapes into the glove box atmosphere so the Solid State Dehumidifier or Desiccant drying system is used to maintain ideal relative humidity.

Cell Culture Units Cultures are incubated in the heated, humidified, gas controlled (up to 100% O2) incubation box which resides inside the glove box. The glove box is heated and gas regulated, but not humidified. This allows samples to be analyzed with delicate equipment that would be damaged by high humidity. More importantly, controlled oxygen conditions are maintained in the sample analysis area. Tests that could not be performed with a bench top enclosure and CO2 incubator because of the biologically fast reaction to ambient oxygen can now be performed.

Live Animal Containment Depending on the labs animal care requirements the units can be heated or unheated. Most units for live animal containment will also require the COY Animal Filtration System to remove the animal waste byproducts, these units can be automatic or manual, with the manual based on a simple protocol the lab establishes, automatic units are based off the CO2 levels. The Animal Filtration system is a closed loop circuit with a pump drawing the glove box atmosphere out and through the filters (Carbolime and activated carbon) and back into the glove box.

Airlock Sizes for Live Animal Containment Due to the variety of number and size of animals kept in these glove boxes COY manufactures each unit to specifically match a labs cage size to the airlock providing optimum efficiency.


Technical Information

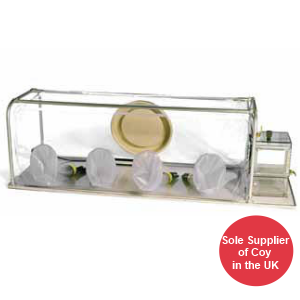

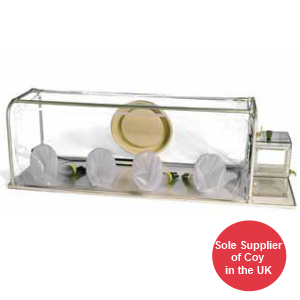

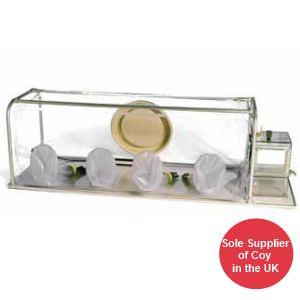

Glove boxes - Hypoxic - Vinyl - Coy

The only complete system available for hypoxic/hyperoxic tissue culture and live animal studies that allow CO2 incubation AND sample manipulation conveniently in a heated oxygen controlled atmosphere.

Through a strategically positioned oxygen sensor and controller the Coy Hypoxic Glove Box can maintain a uniform gas concentration throughout the chamber and optimum control. As gases are required in the glove box, they are introduced through a unique gas tube shower system which, along with the internal fan, provides the circulation required for uniform gas distribution and fast response of the controller. To allow for the relief of pressure induced by gas addition, special check/bleed valves are installed in the glove box.

Temperature Control (option) Units can either be heated or unheated or unheated with a separate Incubator. A solid state heater provides reliable, stable temperature control with digital display and controls in both our Incubators and Heated Glove Boxes.

CO2 Control (option) All COY Hypoxic units can be equipped with optional CO2 Controls. A revolutionary controller and sensor, allows for precise control and monitoring of CO2 gases inside the glove box. The sensor relays information to the controller which then opens the appropriate Solenoid controlling a CO2 or N2 Gas to equilibrate the CO2 levels inside the glove box. The digital display allows the user to monitor the CO2 Levels constantly.

Humidity Control (option) COY offers a few different ways to control the humidity of the glove box depending on the application. Some heated units have a built in solid state dehumidifier with digital displays and controls. Typically the Solid State Automatic Dehumidifier is recommended but for some low volume/small size animals a more affordable desiccant drying system may be utilized. Cell Culture units typically are provided with an optional Humidified Incubation Box (high humidity box within the glove box) to prevent samples from drying out however since these are not air tight the moisture eventually escapes into the glove box atmosphere so the Solid State Dehumidifier or Desiccant drying system is used to maintain ideal relative humidity.

Cell Culture Units Cultures are incubated in the heated, humidified, gas controlled (up to 100% O2) incubation box which resides inside the glove box. The glove box is heated and gas regulated, but not humidified. This allows samples to be analyzed with delicate equipment that would be damaged by high humidity. More importantly, controlled oxygen conditions are maintained in the sample analysis area. Tests that could not be performed with a bench top enclosure and CO2 incubator because of the biologically fast reaction to ambient oxygen can now be performed.

Live Animal Containment Depending on the labs animal care requirements the units can be heated or unheated. Most units for live animal containment will also require the COY Animal Filtration System to remove the animal waste byproducts, these units can be automatic or manual, with the manual based on a simple protocol the lab establishes, automatic units are based off the CO2 levels. The Animal Filtration system is a closed loop circuit with a pump drawing the glove box atmosphere out and through the filters (Carbolime and activated carbon) and back into the glove box.

Airlock Sizes for Live Animal Containment Due to the variety of number and size of animals kept in these glove boxes COY manufactures each unit to specifically match a labs cage size to the airlock providing optimum efficiency.


Technical Information

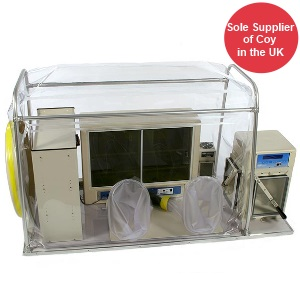

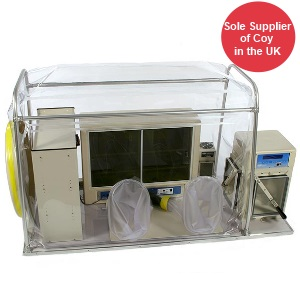

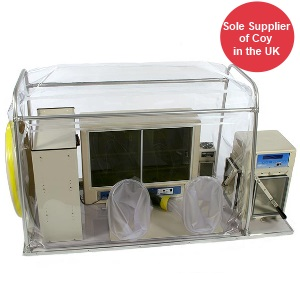

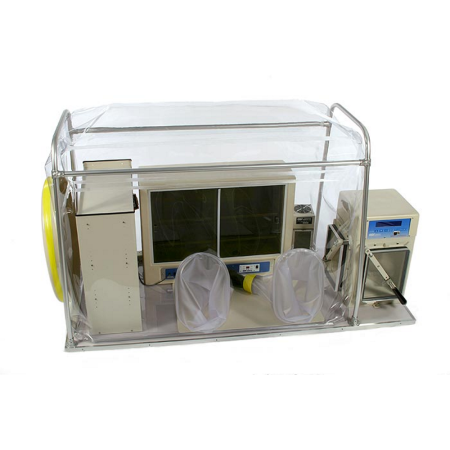

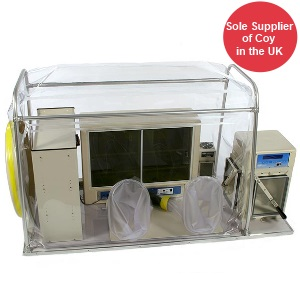

Glove Boxes - Anaerobic - Vinyl - Coy

DESIGN THEORY

The Vinyl Anaerobic Chambers provide a strict anaerobic atmosphere of 0-5 parts per million (ppm) using a palladium catalyst and hydrogen gas mix of 5%. The heavy duty vacuum airlock allows sample transfer without changes to the internal atmosphere. The Programmable airlock allows the user to tailor an interchange sequence ideal for their lab experiments.
The Flexible nature of the unit allows for the user to reach deeper and higher into the unit. And the flexible nature of the unit combined with padded base and larger glove ports allows for greater ergonomics vs. a rigid glove box. The optically clear vinyl greatly increases operator vision, and the user does not encounter any glove "fight back" as the flexible nature allows the entire glove box to give with changes to internal volume.

PVC CONSTRUCTION

The glove boxes are constructed of heavy duty, flexible PVC mounted on a rigid base. Thickness ranges from 20 to 40 mils.

RELIABLE AND DURABLE

All seams are radio frequency welded to produce a one piece bag that will withstand many years of service.

AIRLOCK

A single push button begins the automatic sequencing of oxygen reduction within the airlock. Airlock can be adjusted to optimize the settings for the operation of the lab from experiment to experiment including number of cycles to level of the vacuum.

ECONOMICAL

Not only are Coy vinyl glove boxes less expensive than many comparable rigid glove boxes, but gas requirements are lower, the flexible glove box does not require any pressure relief or vent for excess gas keeping operating costs about 1/3 less than a rigid glove box of comparable size.

MODULAR DESIGN

Coy glove boxes are designed to be expandable and easily modified through the many options available.

CUSTOM SIZES AND CONFIGURATIONS

Available at minimal additional cost, and accessories are available to economically create special configurations.

GLOVE BOX DETAILS

• The glove box front is made of 20 mil pressed polished clear vinyl with 40 mil vinyl bottom extending 2" (51 mm) up on all sides. It is mounted on a 3/4" (19 mm) plywood base covered with a 1/4" (6 mm) foam pad and heavy vinyl. A 1" (25 mm) aluminium tubular frame supports the glove box. All glove boxes come with a large equipment entry installed opposite the entry lock. This entrance consists of a 20" (50 cm) entry cap that is taped in place after installing large equipment in the glove box.
• Glove ports, 10" x 13" oval opening (25 x 33 cm) on 19" (48 cm) centres, are constructed of a special highly flexible vinyl frosted to prevent cracking and gas leakage at bend points.
• Two 1 1/2" (38 mm) I.D. nipples are attached for electrical wiring input. (Additional nipples may be ordered at the time of purchase.)
• Also included as standard with all glove boxes, is a six receptacle electric outlet.
• Large gloves are supplied with the glove box (replacements or other sizes are available from Coy Laboratory Products).
• The neoprene gloves are placed over a special cuff and then placed in the permanently attached sleeves and taped in place. This system provides a means of replacing damaged gloves without affecting the atmosphere of the glove box. Additional glove ports can be ordered mounted in most positions if requested at the time of purchase.

Technical Information

Glove Boxes - Anaerobic - Aluminium - Coy

Rigid Anaerobic units

Rigid Anaerobic units can be manufacture from economical Polymer or the sturdy Aluminium.
The Aluminium units are ideal for labs with chemical resistance needs, due to the ability to upgrade the standard polycarbonate viewing screen to a Tempered Glass, and the Glove Port Panel to an Aluminium style. Aluminium Anaerobic Chambers also have the advantage to upgrade to a gloveless style.

The Polymer units are an easy and economical way to get started with an Anaerobic Chamber. Equipped with a purge only airlock these units are typically half the cost of the other style Anaerobic Chambers. It is important to keep in mind that while less expensive to purchase it may cost more to operate due to the purge only application of the airlock, but in a low volume lab this may be just the unit for you.

Anaerobic Atmosphere The COY Anaerobic Chambers provide a strict anaerobic atmosphere of 0-5 parts per million (ppm) using a palladium catalyst and hydrogen gas mix of 5%. Air is circulated through a Fan Box which is designed to house the wire mesh container of catalyst called a Stak-Pak. The process of removing O2 from the atmosphere can produce moisture so often times these Stak-Paks are filled with desiccant and stacked on top of the Catalyst. The airlock allows sample transfer without changes to the internal atmosphere by equilibrating the O2 levels through a Vacuum and Purge Procedure (Purge only for the Polymer Units).

Gloveless Anaerobic Chambers

Gloveless Anaerobic Chambers offer the operator a convenient glove-free ability to handle and inspect samples under low oxygen (0-5 ppm) conditions. A special cuff and sleeve-vacuum system allows the operator to work barehanded (or with surgical gloves) inside the glove box. After the operator inserts their arms into the gloveless sleeves, a foot operated sleeve-vacuum system creates an inert atmosphere in the sleeves prior to removing the Arm Port Plugs. This permits the operator's arms to enter the glove box without compromising the anaerobic chamber atmosphere. Tactile efficiency is improved. The Arm Port Plugs are used to seal the glove box while it is idle.
Units operate similar to other COY anaerobic chambers using a palladium catalyst to remove O2 through a H2 Gas Mix (5%). Equipped with an airlock to establish low O2 conditions prior to transferring samples and instrumentation in/out of the work area.

All COY Polymer Gloveless Anaerobic Chamber include a built in heating system (up to 40° C) and Glove Box Dehumidifier to maintain proper moisture levels through automatic digital control.

From the two basic glove box styles, choose the design which suits your laboratory volume. Select either the compact, all clear, polycarbonate style with automatic purge airlock, or the larger aluminium glove box available with an automatic vacuum airlock.


Technical Information

Glove Boxes - Anaerobic - Polymer - Coy

Rigid Anaerobic units

Rigid Anaerobic units can be manufacture from economical Polymer or the sturdy Aluminium.
The Aluminium units are ideal for labs with chemical resistance needs, due to the ability to upgrade the standard polycarbonate viewing screen to a Tempered Glass, and the Glove Port Panel to an Aluminium style. Aluminium Anaerobic Chambers also have the advantage to upgrade to a gloveless style.

The Polymer units are an easy and economical way to get started with an Anaerobic Chamber. Equipped with a purge only airlock these units are typically half the cost of the other style Anaerobic Chambers. It is important to keep in mind that while less expensive to purchase it may cost more to operate due to the purge only application of the airlock, but in a low volume lab this may be just the unit for you.

Anaerobic Atmosphere The COY Anaerobic Chambers provide a strict anaerobic atmosphere of 0-5 parts per million (ppm) using a palladium catalyst and hydrogen gas mix of 5%. Air is circulated through a Fan Box which is designed to house the wire mesh container of catalyst called a Stak-Pak. The process of removing O2 from the atmosphere can produce moisture so often times these Stak-Paks are filled with desiccant and stacked on top of the Catalyst. The airlock allows sample transfer without changes to the internal atmosphere by equilibrating the O2 levels through a Vacuum and Purge Procedure (Purge only for the Polymer Units).


Gloveless Anaerobic Chambers

Gloveless Anaerobic Chambers offer the operator a convenient glove-free ability to handle and inspect samples under low oxygen (0-5 ppm) conditions. A special cuff and sleeve-vacuum system allows the operator to work barehanded (or with surgical gloves) inside the glove box. After the operator inserts their arms into the gloveless sleeves, a foot operated sleeve-vacuum system creates an inert atmosphere in the sleeves prior to removing the Arm Port Plugs. This permits the operator's arms to enter the glove box without compromising the anaerobic chamber atmosphere. Tactile efficiency is improved. The Arm Port Plugs are used to seal the glove box while it is idle.
Units operate similar to other COY anaerobic chambers using a palladium catalyst to remove O2 through a H2 Gas Mix (5%). Equipped with an airlock to establish low O2 conditions prior to transferring samples and instrumentation in/out of the work area.

All COY Polymer Gloveless Anaerobic Chamber include a built in heating system (up to 40° C) and Glove Box Dehumidifier to maintain proper moisture levels through automatic digital control.

From the two basic glove box styles, choose the design which suits your laboratory volume. Select either the compact, all clear, polycarbonate style with automatic purge airlock, or the larger aluminium glove box available with an automatic vacuum airlock.


Technical Information

HYPOXIA CHAMBER

Incubator Chambers - CO2 And Multigas - Coy

The Hypoxic Cabinet allows you to quickly and conveniently incubate samples (animal or cell culture) at reduced or elevated O2 levels. Cell Culture cabinets are designed to fit into an existing incubator for longer term incubation. The System
offers you the ability to change the O2 levels automatically with a sensor monitoring the conditions constantly and the Controller adjusting for changes to the desired set point by purging N2 gas or optionally O2 gas for Hyperoxic operation.
This avoids the purchase of costly gas mixes to satisfy a complete range of O2 levels.

Complete System Includes:
• O2 Controller + Sensor
• N2 Gas Regulator
• Pressure relief valve
• 2 sensor ports
• Circulation Fan
• Gas Inlet
• Sliding Shelf(s) for Cell culture units

The Hermetic Seal insures that even with the controllers unattached you can maintain set O2 levels for long periods of time. This also translates into better gas consumption as the “diffusion rate” is significantly reduced over a semi sealed cabinet.

System Options
• Heaters for precise temperature control.
• CO2 Control System (Sensor, tubing and gas regulator included) 0-20% control
• Tray for containment of water/desiccant or animal waste byproducts removal
• Cycling between multiple O2 set points automatically
• Voltage Output for readouts sent to computer or other such program.

Technical Information

Glove Boxes - Dry - Polymer - Coy

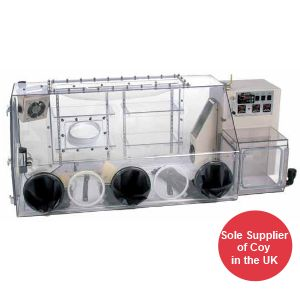

Coy Dry Glove Boxes control and maintain humidity levels below ambient conditions, achieving a humidity level of 5% or lower through either a desiccant system for removing moisture or through a dry gas purge system, typically utilizing dry nitrogen or argon. Control is through a revolutionary sensor and monitor/controller providing precise control in .1% increments, with tuning features.
STYLES Two standard styles are available: a clear Polycarbonate unit that features a lower cost to purchase, and relatively low cost to customize. The Aluminium units while more expensive on initial purchase are a longer lasting, sturdy build that with the addition of tempered Glass can be used in highly corrosive chemical use. Polycarbonate units have 4 standard sizes and Aluminium units have two.

AUTOMATIC CONTROL The automatic controller provides monitoring and control of the relative humidity. It activates the necessary system (dehumidification for humidification) when the moisture level deviates from the adjustable set point. Flow rates, sensor position circulation, and orifice positions were all considered in the design to maximize control capabilities and humidity uniformity across the glove box. Since this is a closed loop circulation system, an inert gas environment can be maintained in the glove box while controlling the humidity.

DRYING SYSTEMS Two systems are available to dry these Humidity Control Glove Boxes a Desiccant Drying System (Pictured above) and a Dry Gas Purge System. The Desiccant System is standard however the Dry Gas Purge System can be substituted at no extra cost. The Dry Gas Purge System allows for a lower attainable humidity level 3% (1% using special dry gas) vs 5% for the desiccant System. The Gas Purge System is also cleaner, provides faster drying times and requires less maintenance (Desiccant needs to be rejuvenated). The Desiccant Drying system can be a lot less expensive to operate. The two systems can also be used to work together to minimize the cost of the dry gas purge system.

GLOVELESS SLEEVE All units are equipped with gloveless sleeves to allow superior handling of interior samples. However, the moisture from skin does influence Humidity levels below 15% Rh and for these applications the user may need to operate with gloves which can easily placed over COY over the gloveless sleeve cuff. Click here for more info on Gloveless Sleeves.

TRANSFER CHAMBER OPTION All units have an optional pass thru chamber (air lock) available. This enables transfer of equipment and samples with out drastic changes to the interior environment.


FULL RANGE OF HUMIDITY Click here for more on Humidity Control Glove Boxes.


Technical Information

Glove Boxes - Isolation - Polymer - Coy

The Isolation Glove Box is designed to place an added barrier between you and any suspected contaminants contained within an envelope or package. This containment glove box's hermetically sealed interior and neoprene gloves provide the air tight atmosphere you desire when opening tainted mail, and the neoprene gloves provide the greatest dexterity available while keeping your skin safe from contamination.

The 18" x 18" side door of the glove box allows for larger packages to be passed into the glove box before being opened. Finally the patented COY Diaphragm Top allows the user to comfortably enter the chamber through the glove ports without fighting the gloves, and with out expelling the interior atmosphere to the room air through a bubblier or pressure relief valve. The COY Isolation Glove Box for anthrax containment is the peace of mind you and your employees have been looking for.
