Grant Unstirred Baths

Specifications

Bath
for direct immersion of samples

Analogue temperature setting
easy-to-use analogue temperature setting dial, graduated in 5°C divisions
a reference thermometer will be necessary for accurate temperature setting; a thermometer clip is provided as standard

Design features
heater and temperature sensors are tucked underneath a perforated tray within the tank, leaving the working area free
robust construction, for durability and resistance to corrosion and tough treatment

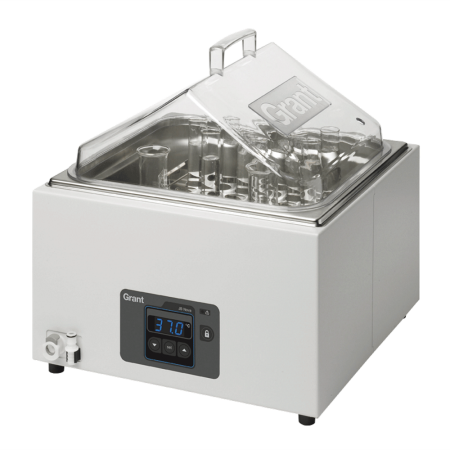

JB unstirred water baths

20 to 90°C operation
Stability ±0.3°C
Sizes: 3.5, 10, 16 and 24 litres

Construction
Each bath consists of a polypropylene tank in an outer case, with heater and temperature sensors mounted at the base of the tank; a perforated tray enhances the performance, mixing the liquid by means of convection

Safety
JB2, 4, 5 user-resettable fixed overtemperature cut-out
JB1 non-resettable thermal fuse
for confidence that equipment and workplace are protected

PB transparent unstirred water bath

PB baths are ideal for procedures for which it is useful to view reactions occurring inside the vessels. PB baths also make an excellent 'personal' waterbath for scientists using a small number of tubes and needing only a small working area, with a very small footprint.

20 to 60°C operation
Stability ±0.3°C
Size: 3.5 litres

Construction
PB consists of a polycarbonate tank with a removable control unit mounted at one end, from which heater and temperature sensors project down into the bath; a perforated tray enhances the performance, mixing the liquid by means of convection

Safety
user-resettable fixed overtemperature cut-out for confidence that equipment and workplace are protected

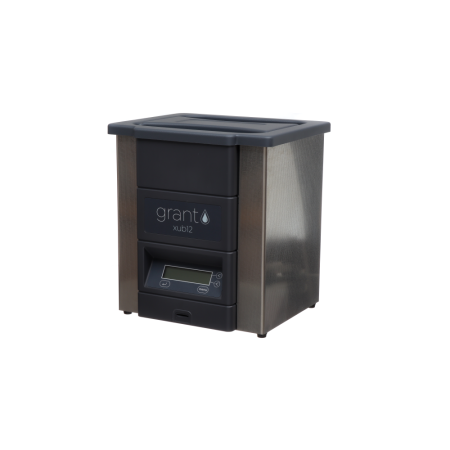

Grant Ultrasonic Waterbaths

Specifications

Ultrasonic baths

temperature controlled operation

timed operation

high performance

Sizes: XB2, XB3, MXB6, MXB14 and MXB 22 litres

design features

safety
MXB6, MXB14 and MXB22 litre baths have dual safety features, for overtemperature and low liquid level

Ultrasonic - ultra-efficient
Piezoelectric transducers emit continuous alternating pressure through the liquid in the bath. The waves of high and low pressure cause bubbles to form, to increase in size and then to collapse violently. This process, called cavitation, acts on any object placed in the bath.

The gentle scrubbing action provides consistently quick and thorough cleaning. Cavitation works wherever an object is in contact with the liquid, cleaning even the most intricate and fragile objects inside and out. Ultrasonic cleaning gives a high standard of cleanliness in a fraction of the time required by conventional cleaning methods. It is also safer than manual cleaning if there is any danger of contamination or infection.

Ultrasonic action is also used to de-gas liquids before use in chromatography, to prevent cavitation in high pressure pumps, and to modify reactions in sonochemistry, such as inducing rapid crystallisation of materials.

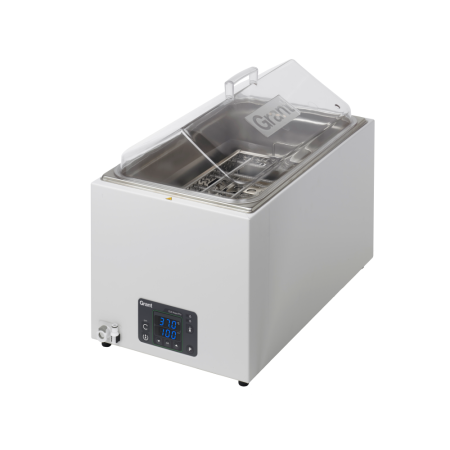

Grant Shaking Water Baths

Linear/orbital shaking bath

Unique shaking mechanism

Grant's unique shaking mechanism allows both orbital and linear shaking within one product for maximum flexibility of application: a wide range of shaking protocols can be evaluated and executed within a single unit
the shaking mechanism is robust and reliable, for long term, steady shaking
easy transfer from orbital to linear motion simply by changing the orientation of the tray
adjustable shaking speed and stroke length allow you to set the optimal speed and agitation for your application

Adjustable shaking speed
  maximum orbital speed: 20 to 200 rpm
  maximum linear speed: 40 to 360 strokes/min

0 to 99°C operation

Stability ±0.1°C, uniformity ±0.1°C
high performance electronic control provides consistent, uniform, precisely controlled conditions for temperature sensitive applications

Digital setting and display
ensure accuracy and reproducibility of set temperature and shaking speed, for precise repeatability of procedures
constant display of actual liquid temperature and shaking speed for at-a-glance assurance that the equipment is functioning correctly
in linear motion the number of strokes/min is double the number displayed

Construction
each bath consists of a stainless steel tank in an outer case, with heater and temperature sensors mounted underneath the tank
the shaker trolley is operated by a magnetically coupled driver

Design features
quiet operation maintains a peaceful working environment
drain for easy emptying
designed to be placed 'end-on' rather than 'sideways' on the bench for convenient access and observation, and for efficient utilization of bench space
a recessed control panel protects the controls from water spillage and accidental alteration
all immersed parts are removable for ease of cleaning
exposed or immersed parts are made of stainless steel or appropriate plastics, to minimize the risks of
corrosion
pressed stainless steel tanks with large radiused corners minimize the risks of corrosion and ensure ease of cleaning
OLS200 is robust and reliable, designed to stand up to everyday wear and tea
installation and operation are straight forward - no training is required
concise working instructions are printed on the outer case for permanent reference

The Grant bio mini magnetic stirrer MMS-3000 is a compact magnetic stirrer for handling small volumes in routine laboratory procedures such as pH metering, extraction and dialysing.

• Adjustable speed control: 0 to 3000 rpm
• Stirring volume: 2 litres
• Quiet operation, small size - fits neatly into the workspace
• Easy to use graduated dial for quick and convenient selection of mixing speed
• Rugged stainless steel plate provides a working surface of 110 x 110 mm
• Choice of different magnetic stirrer bar sizes to optimise stirring action in different vessel sizes

Technical Information

Grant Universal SUB Series

One of the world's best-selling range of water baths, the Grant SUB series of universal water baths provides good temperature stability for a wide range of routine laboratory applications.

Grant Economy JB Series

Grant Water Baths Digital High Performance GP200 Series

The Grant Optima™ GP200 series of digitally controlled stirred water baths and circulators provides outstanding performance for routine and sophisticated applications requiring accurate temperature control up to a maximum of 200ºC.

Grant GP200 series systems combine the powerful and versatile Grant Optima™ GP200 digital immersion thermostat with a choice of three economy plastic (P) tanks or five stainless steel (S) tanks with different capacities.

The Grant GP200 immersion thermostat incorporates Intelligent Control Optimisation™ (ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making GP200 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. The temperature range and heater power are automatically limited according to the liquid type selected.

The GP200 control unit has a host of powerful and convenient programming features for optimum application flexibility. These include a convenient heater timer for early starts/late shutdowns, two programmable relays for switching external devices on/off, option for remote temperature monitoring, RS232 interface for PC communication and data collection, and memory capacity for five programs of up to 30 segments each.

• Dual display: bright LED for temperature display plus 2-line 16 character LCD for easy programming
• Twin heaters, 2kW heater power for fast heat up
• Pt1000 external probe socket for remote monitoring
• Powerful integral pump with multi-stage variable flow rate, maximum flow 21L/min
• Variable high and low temperature alarm settings - configurable to switch relays
• Choice of 5 operator languages
• Optional Labwise™ PC software for program set-up, data logging and real-time graphing
• Maximum cooling/heating range (dependent on tank size): ambient +5 to 99ºC with plastic (P) tank, or -15 to 200ºC with stainless steel (S) tank
• Stability ± 0.005ºC

Note: Alternatively, the Grant Optima™ GP200 immersion thermostat can also be used to regulate the temperature in vessels other than Grant tanks. Such vessels must have vertical sides and a maximum wall thickness of 35 mm for rectangular tanks, 30 mm for circular tanks (300 mm diameter) and a capacity of up to 50 litres. The control unit is attached to other vessels by means of a clamp.

Grant Transparent Water Bath PB1

Water bath Grant SUBAQUADUAL unstirred stainless steel digital display temperature range ambient + 5°C to 99°C including lid and tray dual tank 5 litre and 12 litre

The Grant SUB Aqua Dual combines two baths in one – 5 and 12 litres. It is a robust, high quality water bath for direct immersion of samples. It combines reliability, performance and value for money and provides excellent temperature stability for a wide range of routine laboratory applications. It is deal when two different temperatures are needed and space and value for money are primary concerns.

• 12 and 5-litre high grade stainless steel tanks
  • Ambient +5^oC to 99^oC
    • Excellent temperature stability of + 0.2^oC
      • Good value for money
        • Grant non-drip polycarbonate lid, included as standard
          • Designed to improve performance and reduce energy consumption
            • Wide range of options to suite different applications < >3-year warranty as standard Stainless steel tank – high grade steel with durable polished finish
              • Heater mat and sensor bonded to underside of tank – optimises temperature uniformity, workspace and it is easy to clean
                • Simple and intuitive programming – immediate temperature re-setting from -/+ buttons
                  • Grant non-drip polycarbonate lid, included as standard – improves performance, limits evaporation and conserves energy
                    • Clean, painted steel case – maximum chemical and abrasion resistance
                      • Clear, digital LED display – makes it easy keep an eye on the temperature, even from a distance
                        • Fixed thermal cut-out – protects the user if the bath is accidentally run without water or in the very unlikely event of failure of control system
                          • Grant polycarbonate perforated base tray, included as standard – promotes heat convection and optimal temperature uniformity and allows any container to be placed directly in the bath
                            • User settable, over-temperature sample protection - protects samples from over-heating
                              • Digital PID temperature control circuitry – with sensitive PT1000 temperature control probe
                                • User calibration – single or dual-point for optimum re-calibration of your working temperature < >Raised feet – allow lifting whilst holding base of tank Specifications



                                  			SUB Aqua Dual
                                  Tank capacity		litres	5 and 12
                                  Overall dimensions	h/d/w	mm	215/360/530
                                  Temperature range		°C	ambient + 5°C to 99°C
                                  Temperature setting range		°C	10 to 99 in 0.1 steps
                                  Stability		°C	± 0.2
                                  Temperature setting/energy regulation			digital
                                  Temperature display			3 digit bright, wide-angle view LED
                                  Working volume	l/w/d	mm	150/300/140 and 325/300/140
                                  Overall dimensions	l/w/d	mm	360/530/215
                                  Overall consumption	220-240V	kW	1.2
                                  Supply voltage		V	220-240
                                  Sample protection			adjustable cut-out
                                  CSA approved			yes

                                  Accessory options for SUB Aqua Dual

                                  Lids and polypropylene spheres

                                  AQL5 and AQL12 Polycarbonate transparent lid (blue) – directs condensation away from immersed vessels, avoids contamination, reduces evaporation and saves energy

                                  LF6 and LF14 Flat lids (2 and 4 ring sets)* - with ring sets of variable hole diameter to accommodate tall vessels whilst reducing evaporation

                                  PS20 polypropylene spheres* – Useful alternative to a lid, minimises evaporation and heat loss whilst allowing easy access to vessels in the bath; particularly useful for tall vessels

                                  *should be used above 60 ^oC



                                  Trays and racks

                                  AQBT5 and AQBT12 base tray – Required if flat-bottom flasks are to be placed directly on the base of the bath and to promote thermal convection in the bath

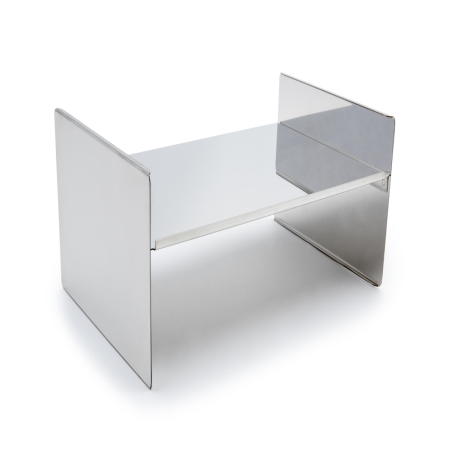

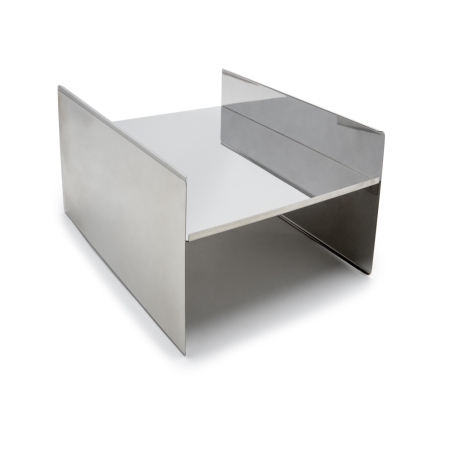

                                  RS14H raised shelves (for 12 litre bath) – Provides two alternative depths to accommodate different sizes/shapes of vessels simultaneously. More than one shelf can be used to achieve a range of depths. 100 x 80 x 80mm (w x l x h), covers 30% of the area of 12 litre bath of the SUB Aqua Dual.

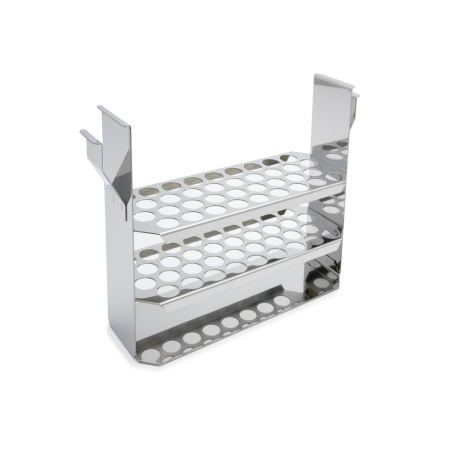

                                  J2 test tube rack – The 5 litre bath of the SUB Aqua Dual will accommodate one J2 test tube rack and the 12 litre bath will accommodate 2 J2 test tube racks. There is a choice of eight variants to accommodate different tubes diameters and microtubes

                                  Tube size Tubes per J2 rack

                                  10mm 84

                                  13mm 55

                                  16mm 36

                                  19mm 32

                                  25mm 18

                                  30mm 12

                                  Microcentrifuge Tubes

                                  0.5ml 105

                                  1.5ml 65

Water bath Grant SUBAQUA18 unstirred stainless steel digital display temperature range ambient + 5°C to 99°C including lid and tray including lid and tray 18 litre

The Grant SUB Aqua 18 is a robust, high quality water bath for direct immersion of samples. It combines reliability, performance and value for money and provides excellent temperature stability for a wide range of routine laboratory applications.

• 18-litre high grade stainless steel tank (other models/sizes also available)
  • Ambient +5^oC to 99^oC
    • Excellent temperature stability of + 0.2^oC
      • Good value for money
        • Grant non-drip polycarbonate lid, included as standard
          • Designed to improve performance and reduce energy consumption
            • Wide range of options to suite different applications < >3-year warranty as standard Stainless steel tank – high grade steel with durable polished finish
              • Heater mat and sensor bonded to underside of tank – optimises temperature uniformity, workspace and it is easy to clean
                • Simple and intuitive programming – immediate temperature re-setting from -/+ buttons
                  • Grant non-drip polycarbonate lid, included as standard – improves performance, limits evaporation and conserves energy
                    • Clean, painted steel case – maximum chemical and abrasion resistance
                      • Clear, digital LED display – makes it easy keep an eye on the temperature, even from a distance
                        • Fixed thermal cut-out – protects the user if the bath is accidentally run without water or in the very unlikely event of failure of control system
                          • Grant polycarbonate perforated base tray, included as standard – promotes heat convection and optimal temperature uniformity and allows any container to be placed directly in the bath
                            • User settable, over-temperature sample protection - protects samples from over-heating
                              • Digital PID temperature control circuitry – with sensitive PT1000 temperature control probe
                                • User calibration – single or dual-point for optimum re-calibration of your working temperature < >Raised feet – allow lifting whilst holding base of tank Specifications



                                  			SUB Aqua 18
                                  Tank capacity		litres	18
                                  Overall dimensions	h/d/w	mm	270/560/330
                                  Temperature range		°C	ambient + 5°C to 99°C
                                  Temperature setting range		°C	10 to 99 in 0.1 steps
                                  Stability		°C	± 0.2
                                  Temperature setting/energy regulation			digital
                                  Temperature display			3 digit bright, wide-angle view LED
                                  Working volume	l/w/d	mm	505/300/140
                                  Overall consumption	220-240V	kW	1.5
                                  Supply voltage		V	220-240
                                  Sample protection			adjustable cut-out
                                  CSA approved			yes



                                  Accessory options for SUB Aqua 18

                                  Lids and polypropylene spheres

                                  AQL26 Polycarbonate transparent lid (blue) – directs condensation away from immersed vessels, avoids contamination, reduces evaporation and saves energy

                                  LF28 Flat lids (6 ring sets)* - with ring sets of variable hole diameter to accommodate tall vessels whilst reducing evaporation

                                  PS20 polypropylene spheres* – Useful alternative to a lid, minimises evaporation and heat loss whilst allowing easy access to vessels in the bath; particularly useful for tall vessels

                                  *should be used above 60 ^oC



                                  Trays and racks

                                  AQBT26 base tray – Required if flat-bottom flasks are to be placed directly on the base of the bath and to promote thermal convection in the bath

                                  RS14H raised shelves – Provides two alternative depths to accommodate different sizes/shapes of vessels simultaneously. More than one shelf can be used to achieve a range of depths. 120 x 90 x 80mm (w x l x h), covers 20% of the area of SUB Aqua 18

                                  J2 test tube rack – SUB Aqua 18 will accommodate three J2 test tube racks. There is a choice of eight variants to accommodate different tubes diameters and microtubes

                                  Tube size Tubes per J2 rack

                                  10mm 84

                                  13mm 55

                                  16mm 36

                                  19mm 32

                                  25mm 18

                                  30mm 12

                                  Microcentrifuge Tubes

                                  0.5ml 105

                                  1.5ml 65

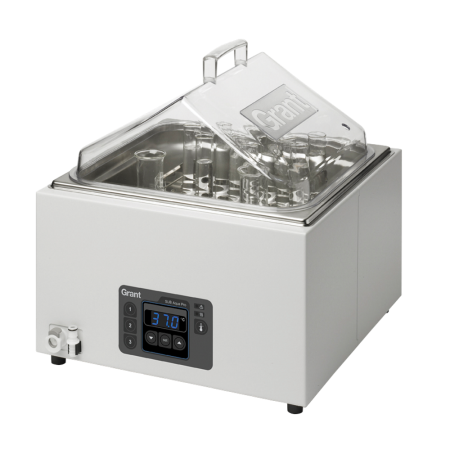

Water bath Grant SUBAQUA12 unstirred stainless steel digital display temperature range ambient + 5°C to 99°C including lid and tray including lid and tray 12 litre

The Grant SUB Aqua 12 is a robust, high quality water bath for direct immersion of samples. It combines reliability, performance and value for money and provides excellent temperature stability for a wide range of routine laboratory applications.

• 12-litre high grade stainless steel tank (other models/sizes also available)
• Ambient +5^oC to 99^oC
• Excellent temperature stability of + 0.2^oC
• Good value for money
• Grant non-drip polycarbonate lid, included as standard
• Designed to improve performance and reduce energy consumption
• Wide range of options to suite different applications
• 3-year warranty as standard

Available as 220V only.

Features

• Stainless steel tank – high grade steel with durable polished finish
• Heater mat and sensor bonded to underside of tank – optimises temperature uniformity, workspace and it is easy to clean
• Simple and intuitive programming – immediate temperature re-setting from -/+ buttons
• Grant non-drip polycarbonate lid, included as standard – improves performance, limits evaporation and conserves energy
• Clean, painted steel case – maximum chemical and abrasion resistance
• Clear, digital LED display – makes it easy keep an eye on the temperature, even from a distance
• Fixed thermal cut-out – protects the user if the bath is accidentally run without water or in the very unlikely event of failure of control system
• Grant polycarbonate perforated base tray, included as standard – promotes heat convection and optimal temperature uniformity and allows any container to be placed directly in the bath
• User settable, over-temperature sample protection - protects samples from over-heating
• Digital PID temperature control circuitry – with sensitive PT1000 temperature control probe
• User calibration – single or dual-point for optimum re-calibration of your working temperature
• Raised feet – allow lifting whilst holding base of tank

Specification

Water bath Grant SUBAQUA5 unstirred stainless steel digital display temperature range ambient + 5°C to 99°C including lid and tray including lid and tray 5 litre

The Grant SUB Aqua 5 is a robust, high quality water bath for direct immersion of samples. It combines reliability, performance and value for money and provides excellent temperature stability for a wide range of routine laboratory applications.

• 5-litre high grade stainless steel tank (other models/sizes also available)
• Ambient +5^oC to 99^oC
• Excellent temperature stability of + 0.2
• Good value for money
• Grant non-drip polycarbonate lid, included as standard
• Designed to improve performance and reduce energy consumption
• Wide range of options to suite different applications
• 3-year warranty as standard

Available as 220V only.

Water bath Grant SUBAQUA2S unstirred stainless steel digital display temperature range ambient+ 5°C to 99°C including lid and tray shallow version 2 litre

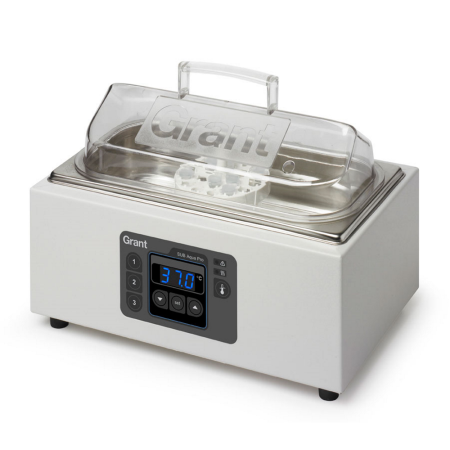

The Grant SUB Aqua 2 s is a robust, high quality shallow water bath for direct immersion of samples. It combines reliability, performance and value for money and provides excellent temperature stability for a wide range of routine laboratory applications. It is deal for applications where only a limited bath volume is required. Energy is not wasted heating up too much water and it provides easy access to tubes. Ideal for use in laboratories where space is at a premium or inside fume cupboards.

• 2-litre high grade stainless steel tank (other models/sizes also available)
• Ambient +5^oC to 99
• Excellent temperature stability of + 0.2^oC
• Good value for money
• Grant non-drip polycarbonate lid, included as standard
• Designed to improve performance and reduce energy consumption
• Wide range of options to suite different applications
• 3-year warranty as standard

Available as 220V only

Features

• Stainless steel tank – high grade steel with durable polished finish
• Heater mat and sensor bonded to underside of tank – optimises temperature uniformity, workspace and it is easy to clean
• Simple and intuitive programming – immediate temperature re-setting from -/+ buttons
• Grant non0drip polycarbonate lid, included as standard – improves performance, limits evaporation and conserves energy
• Clean, painted steel case – maximum chemical and abrasion resistance
• Clear, digital LED display – makes it easy keep an eye on the temperature, even from a distance
• Fixed thermal cut-out – protects the user if the bath is accidentally run without water or in the very unlikely event of failure of control system
• Grant polycarbonate perforated base tray, included as standard – promotes heat convection and optimal temperature uniformity and allows any container to be placed directly in the bath
• User settable, over-temperature sample protection - protects samples from over-heating
• Digital PID temperature control circuitry – with sensitive PT1000 temperature control probe
• User calibration – single or dual-point for optimum re-calibration of your working temperature
• Raised feet – allow lifting whilst holding base of tank

Specification

The Grant JB Aqua 2 is a robust, high quality water bath designed to give years of trouble free service. It can be used for a wide range of routine laboratory and educational applications and offers fantastic value for money.

• 2-litre high grade stainless steel tank (other models/sizes also available)
• Ambient + 5^oC to 98^oC
• Temperature stability of + 1.0^oC
• Excellent value for money
• Grant non-drip polycarbonate lid, included as standard
• Designed for longevity
• Wide range of options to suite different applications
• 3-year warranty as standard

Available as 220V only.

Features

• Stainless steel tank – high grade steel with durable polished finish
• Clean, painted steel case – maximum chemical and abrasion resistance
• User settable, over-temperature sample protection - protects samples from over-heating
• Fixed thermal cut-out – protects the user if the bath is accidentally run without water or in the very unlikely event of failure of control system
• Raised feet – allow lifting whilst holding base of tank
• Grant non-drip polycarbonate lid, included as standard – improves performance, limits evaporation and conserves energy
• Simple dial temperature setting – easy to use and provides quick visual indication of temperature and ability to re-set dial position
• Polycarbonate perforated base tray, included as standard – promotes heat convection and optimal temperature uniformity, also allows any container to be placed directly in bath
• Heater mat and sensor bonded to the underside of the tank – optimises temperature uniformity and workspace
• Removable dial – enables calibration

Specifications

High specification model with high performance digital thermostat control and stainless steel tank for sophisticated applications requiring complex programming and/or ultra precise temperature control.


• Optima™ high performance digital thermostat (GP200) for ultra precise temperature control
• Stability ± 0.005°C
• Cooling/heating range 0 to +200°C*
• 26 litre tank volume (other tank sizes available)
• Comprehensive range of sophisticated and automated programming and control functions

Grant Refrigerated Thermostatic Bath Model GD200 R series - High Performance

The Grant Optima^TM GP200 series of digitally controlled refrigerated baths and re-circulators provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -47 to 100°C.

Grant GP200 series refrigerated systems combine the powerful and versatile Grant Optima™ digital immersion thermostat GP200 with a choice of five rugged stainless steel refrigeration units with different facilities and working volumes.

The GP200 immersion thermostat incorporates Intelligent Control Optimisation^TM (ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making GP200 series refrigerated systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. The temperature range and heater power are automatically limited according to the liquid type selected.

The GP200 control unit has a host of powerful and convenient programming features for optimum application flexibility. These include a convenient heater timer for early starts/late shutdowns, two programmable relays for switching external devices on/off, option for remote temperature monitoring, RS232 interface for PC communication and data collection, and memory capacity for five programs of up to 30 segments each.

• Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up
• Dual display: bright LED for temperature display plus 2-line 16 character LCD for easy programming
• Twin heaters, 2kW heater power for fast heat up
• Pt1000 external probe socket for remote monitoring
• Powerful integral pump with multi-stage variable flow rate, maximum flow 21L/min
• Operating setpoint plus 3 adjustable preset temperatures for convenience
• User calibration facility for optimum accuracy at the required operating temperature
• Variable high and low temperature alarm settings - configurable to switch relays
• Visual and audible alarm - alert you when your attention is required
• Choice of five operator languages
• Choice of five refrigerated (R) tanks with different facilities, working volumes and cooling capacities
• Cooling/heating range: -47 to 100°C (dependent on refrigeration unit selected)
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the thermostat to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

Grant Refrigerated Thermostatic Bath Model GD120 R series - digital control

The Grant Optima™ GD120 R series of refrigerated baths and re-circulators with digital control provides excellent value for money for more demanding applications requiring accurate heating and cooling in the range of -20 to 100°C.

Grant GD120 series refrigerated systems combine the versatile Grant Optima™ digital immersion thermostat GD120 with a choice of five Grant refrigerated stainless steel tanks.

The GD120 immersion thermostat incorporates Intelligent Control Optimisation (ICO)™ for adaptive intelligent PID temperature control and includes a powerful integral pump, making GD120 series refrigerated systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. It includes a convenient timer function for reaction timing and a variable high temperature alarm setting. The temperature range and heater power are automatically limited according to the liquid type selected.

• Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up
• Clear digital display for instant reassurance - easy to read from a distance
• Visual and audible alarm - alert you when your attention is required
• Operating setpoint plus 3 adjustable preset temperatures for convenience
• User calibration facility for optimum accuracy at the required operating temperature
• Powerful integral pump - maximum flow rate 17L/min
• Choice of five refrigerated (R) tanks with different facilities, working volumes and cooling capacities
• Cooling/heating range: -20 to 100°C
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the thermostat to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

Accessory options for the Grant Optima GD120 R series

Accessory vertical turbine pumps

Required only where the application demands a higher pressure than that delivered by the GD120 internal pump to maintain flow. Note: When an accessory pump is fitted, the available working area is reduced.

Grant accessory pumps feature a unique low noise, compact design which produces high pressure with low heat input to the liquid.

Supplied with pipe connections and special lid for fitting to tank, pipe bore 12.7 mm.

VTP1 - max. pressure 1000 mbar, max. flow 9 L/min
VTP 2 - max. pressure 1650 mbar, max. flow 12 L/min


Specification comparison table – VTP optional pumps and Optima GD120 thermostat pumps

Grant Mid-range digital Model GD120-S12

One of our most popular mid-range models, the Grant GD120-S12 is a versatile system with digital thermostatic control unit, stainless steel tank, integral pump and a comprehensive specification to suit most applications for high precision temperature control.


• Optima™ digital thermostat (GD120) for precise temperature control
• Integral pump
• Cooling/heating range 0 to 120ºC*
• Stability ± 0.02ºC
• 12 litre tank volume (other tank sizes available)
• Range of convenient programming features

Accessory options for GD120-S12 bath

Lids and polypropylene spheres

Between 60ºC and 100ºC and below room temperature a lid or layers of polypropylene spheres should be used to help reduce evaporation/heat loss and avoid sample contamination. Above 100ºC a lid must be used.

Note: Polypropylene spheres are particularly useful where tall vessels need to be immersed.

Lids

LG12 gabled, hinged, removable stainless steel lid

Polypropylene spheres

PS20 pack of polypropylene spheres: 1 pack required


Rack systems and raised shelves

Grant custom designed racks and shelves enable you to optimise the available baths capacity. Raised shelves allow shallow vessels to be accommodated.

Racks


VR : - 2 VR racks per GD120-S12 bath

Tube size Number of tubes per VR rack
Ø 10-13 mm 65
Ø 16-19 mm 36
Ø 24 mm 23
Ø 30 mm 14
0.5 ml 102
1.5 ml 75

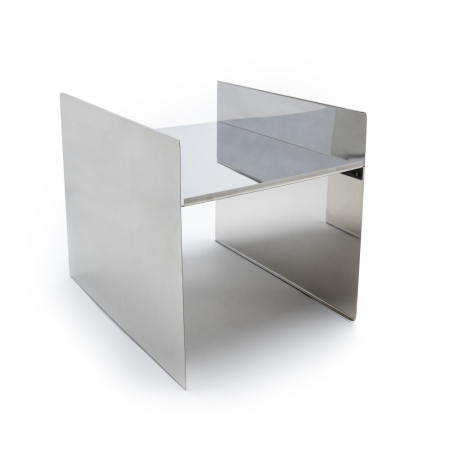

Raised shelves
Reduce the effective liquid depth to allow shallow vessels to be placed in the baths.

RS14 raised shelf


Accessory cooling systems

To allow systems to operate at or below room temperature by means of a cooling coil dipped into the bath. Designed for minimal impact on working area.

Refrigerated immersion coolers
Consist of a cooling coil connected to a refrigeration unit by a flexible pipe. Extract heat continuously, with the bath control unit controlling temperature.

C1G immersion cooler , temperature range 0 to 40ºC

Heat exchange coil
Designed to be attached to a supply of cooling tap water or a refrigerated circulator

CW5 heat exchange coil , temperature range 2ºC above coolant temperature


Accessory vertical turbine pumps

Required only where the application demands a higher pressure than that delivered by the GD120 internal pump to maintain flow. Note: When an accessory pump is fitted, the available working area is reduced.

Low noise, compact design. Supplied with pipe connections and special lid for fitting to tank, pipe bore 12.7 mm.

VTP1 - max. pressure 1000 mbar, max. flow 9 L/min
VTP2 - max. pressure 1650 mbar, max. flow 12 L/min

Grant Refrigerated Thermostatic Bath Model GD100 R series - digital control

The Grant Optima™ GD100 R series of refrigerated baths and re-circulators with digital control provides excellent value for money for straightforward applications requiring accurate heating and cooling in the temperature range of 0 to 100°C.

The Grant GD100 immersion thermostat incorporates Intelligent Control Optimisation™ (ICO) for adaptive intelligent PID temperature control and can be combined with four of Grant's refrigeration units.

• Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up
• Clear digital display for instant reassurance - easy to read from a distance
• Visual alarm - alerts you when your attention is required
• Operating setpoint plus 3 adjustable preset temperatures for convenience
• User calibration facility for optimum accuracy at the required operating temperature
• Choice of four refrigerated (R) tanks with different facilities, working volumes and cooling capacities
• Cooling/heating range: 0 to 100°C
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the thermostat to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

Grant Round Tissue Bath RTB
