Performance:
RCF of max. 23,907 in angle rotor, max. speed: 18,000 rpm
RCF of max. 3,396 in swing-out rotor, max. speed: 4,500 rpm
RCF of max. 21.382 in hematocrit rotor, max. speed: 15,000 rpm

Operation and Additional Features

Clearly arranged, water-protected foil keypad for entering the parameters
3 complete running programmes can be stored and recalled
Speed (RPM): input in increments of 10
Radius (r): input in mm
Relative Centrifugal Force (RCF): input in increments of 10
Impulse key: For short centrifuging operations. The rotor spins at the preselected speed or RCF as long as the key remains pressed.
Change-over RPM/RCF: By entering the rotor radius r/mm the centrifuge will calculate/indicate speed or RCF.
Running time (t): input in minutes and seconds
Run-up/run-down time: Input of acceleration and braking ramps in levels 1-9 or unbraked run-down.
Temperature: Input in increments of 1°C within a range of - 20 °C to + 40 °C with UNIVERSAL 32 R.
Digital display of the actual values of the parameters during centrifugation

Accessories

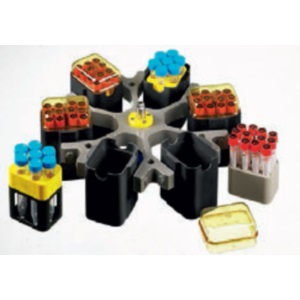

A choice of 15 easily exchangeable rotors and an extensive range of accessories almost every kind of centrifuging required in practice can be undertaken:

UNIVERSAL 32 and UNIVERSAL 32 R

1624, swing-out rotor, 4-place, for max. 4 x 100 ml, max. RCF 2,665
1611, swing out rotor, 8-place, for max. 8 x 15 ml, max. RCF 2,415
1628, swing out rotor, 12-place for max. 12 x 15 ml, max. RCF 3,396
1617, swing out rotor, 8-place, for max. 8 x 50 ml (Falcon), max. RCF 3,124
1619, swing out rotor, 6-place for max. 6 x 50 ml (Falcon), max. RCF 2,683
1622, swing out rotor, 2-place for max. 4 microtitration plates or 2 culture plates, max. RCF 2,093
1650, Hematocrit rotor with lid as evaluation disc, 24-place, for Capillaries, max. RCF 21,382
1626, swing out rotor, 6-place for cyto-suspensions, max. RCF 2,039
1648, swing out rotor, 8-place for cyto-suspensions, max. RCF 2,218
1620A, angle rotor, 6-place, for max. 6 x 85 ml, max. RCF 9,418
1613, angle rotor, 12 place, for max. 12 x 15 ml, max. RCF 4,105
1615, angle rotor, 12-place, for max. 12 x 15 ml, max. RCF 16,421
1612, angle rotor, 12-place, for 12 microlitre tubes, max. RCF 23,907



Only for UNIVERSAL 32 R

1645, swing out rotor, 4-place for max. 4 microtitration plates, max. RCF 1,896
1653, angle rotor, light metal with hygienically sealing lid, autoclavable, phenol resistant,



• for 30 microlitre tubes, max. RCF 20,598

Technical Data

Power Supply:	UNIVERSAL 32:	208-240 V1~ / 50-60 Hz 1
	UNIVERSAL 32 R:	230-240 V1~ / 50-60 Hz 1
Consumption:	UNIVERSAL 32:	400 VA
	UNIVERSAL 32 R:	950 VA
H x W x D in mm:	UNIVERSAL 32:	300 x 420 x 490
	UNIVERSAL 32 R:	300 x 420 x 660
Weight:	UNIVERSAL 32:	24,0 kg
	UNIVERSAL 32 R:	46,0 kg
Order No.	1605, UNIVERSAL 32, w/o rotor
	1610, UNIVERSAL 32 R, w/o rotor

* other voltages on request

Centrifuges - Cyto - Hettich

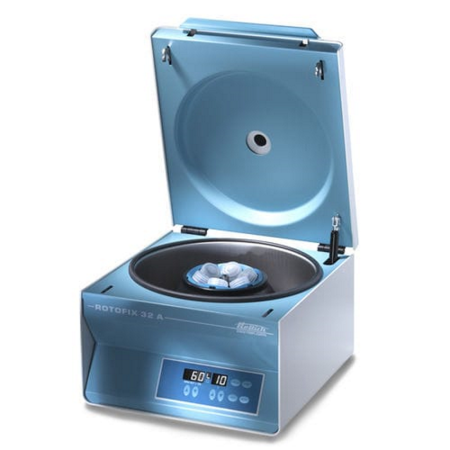

The non-refrigerated ROTOFIX 32A is the ideal bench-top centrifuge for performing daily routine tasks in doctors laboratories and small hospitals. Its performance and capacity are designed to easily and efficiently process all incoming samples. Larger hospitals appreciate the ROTOFIX 32A for spinning an occasional sample in between. Not only in clinical chemistry, but also in cytology the ROTOFIX 32A does a perfect job. Special cytology accessories turn the ROTOFIX 32A into a cyto-centrifuge that can process a maximum of 8 slides per run. Technical Information Model: Rotofix 32A Power Supply 208 – 240 V 1 ~ 100 – 127 V 1 ~ Frequency 50 – 60 Hz Consumption 300 VA 250 VA Emission EN 55011 group 1, class B, EN 61000-3-2, EN 61000-3-3 FCC class B Immunity EN 61000-6-2 - Max.Capacity 4 x 100 ml / 32 x 15 ml Max.RPM (speed) 6,000 min-1 Max.RCF 4,186 Running Time 1– 99 min, continuous run, short cycle mode (impulse key) Dimensions (HxWxD) 257x 366 x 430 mm Weight approx. 25 kg

Bench-top Centrifuge ROTOFIX 32 non-refrigerated

The non-refrigerated ROTOFIX 32 is the ideal bench-top centrifuge for performing daily routine tasks in doctors´ laboratories and small hospitals.
Its performance and capacity are designed to easily and efficiently process all incoming samples.
Larger hospitals appreciate the ROTOFIX 32 for spinning an occasional sample in between.
Not only in clinical chemistry, but also in cytology the ROTOFIX 32 does a perfect job. Special cytology accessories turn the ROTOFIX 32 into a cyto-centrifuge that can process a maximum of 8 slides per run.

Features and Advantages of the ROTOFIX 32

Ergonomically arranged controls and displays
Metal housing and metal lid, finished in a scratch and impact resistant coating.
Centrifuging chamber of stainless steel
See-through glass in the lid
A special locking device allows effortless opening and closing of the lid with just one hand.
Emergency lid lock release
Frequency-controlled drive
Imbalance switch-off
Easily exchangeable rotors
Automatic rotor recognition

Performance:
RCF of max. 4.186 in angle rotor, max. speed: 6.000 rpm
RCF of max. 2.665 in swing-out rotor, max. speed: 4.000 rpm

Operation and Additional Features

Entry of parameters can be carried out fast and conveniently via the water-proof foil-keypad. Just a few keys are all it takes to programme the centrifuging parameters.
The clearly arranged display is easy to read. During centrifugation the actual values are digitally displayed.
Speed, RPM: Input in increments of 100 min^-1
Time, t/min: Input in minutes.
Impulse key: For short centrifuging operations. The rotor spins at the preselected RPM as long as the key remains pressed.

Accessories

With just 9 rotors and an extensive range of accessories almost every kind of centrifuging required in practice can be undertaken:

1624, Swing-out rotor, 4-place, for max. 4 x 100 ml, max. RCF 2.665, can also be used for

• cytological preparations

1626, Cyto rotor, 6-place, have been especially developed for cytology

1648, Cyto rotor, 8-place, have been especially developed for cytology

1611, Swing-out rotor, 8-place, for max. 8 x 15 ml, max. RCF 2.415

1628, Swing-out rotor, 12-place, for max. 12 x 15 ml, max. RCF 2.683

1619, Swing-out rotor, 6-place, for max. 6 x 50 ml (Falcon), max. RCF 2.683

1617, Swing-out rotor, 8-place, for max. 8 x 50 ml, max. RCF 2.469

1618, Angle rotor, 6-place, for max. 6 x 85 ml, max. RCF 4.186

1613, Angle rotor, 12-place, for max. 12 x 15 ml, max. RCF 4.105

Technical details of the ROTOFIX 32:

Power supply:	208 - 240 V 1~* / 50-60 Hz
Consumption:	300 VA
H x W x D in mm:	261 x 368 x 437
Weight:	15,5 kg
Cat.-No.	1205 without rotor

* other voltages on request.

Bench-top Centrifuges ROTINA 35/35 R Non-refrigerated/Refrigerated

The high-performance bench-top centrifuges ROTINA 35 and ROTINA 35 R impress by state-of-the-art technology, large capacity, extremely easy handling and exceptionally smooth and quiet running. Accommodating a multitude of tubes used in modern laboratory routine the ROTINA 35 type centrifuges enable a wide range of applications. Developed for professional users these innovative centrifuges are mainly used in the following fields of application: diagnostics, cell culture, genetic research and microbiology. Features and Advantages of the ROTINA 35 Centrifuges Ergonomically arranged controls and displays Metal housing and metal lid, the housing is finished in scratch and impact resistant powder coating. Shackle lock for easy lid locking and holding. Lid with see-through glass for speed control during centrifugation. A convenient twist lock enables effortless opening and closing of the lid, lid holding during rotor run. Brushless induction drive Smooth and quiet running High speed stability Extremly short run-up and run-down times Automatic rotor recognition Imbalance switch-off Efficient cooling controllable from -20°C to +40°C. Performance: RCF of max. 23,646 in angle rotor, max. speed 15,000 rpm RCF of max. 4,556 in swing-out rotor, max. speed 5,000 rpm Operation and Additional Features Entry of parameters can be carried out fast and conveniently via the water-proof foil-keypad. Just a few keys are all it takes to programme the centrifuging parameters. The last entered values will be stored. They remain in the memory even after centrifuge has been switched off. By pressing the START key the parameters are recalled. The clearly arranged display is easy to read. During centrifugation the actual values are digitally displayed. Programable small control, 3 complete operation programs can be stored and recalled. Speed, RPM: Input in increments of 10 Running time t/min: Input in minutes Relative Centrifugal Force RCF: Input in increments of 1 Run-up/run-down time: Input of acceleration and braking ramps in levels 1-9 and unbraked run-down. Radius r/mm: Input of the radius is required for determining RPM and RCF. Short cycle mode Temperature, T/°C: Input in increments of 1°C within a range of -20°C to +40°C. Pre-cooling programme Accessories With just 9 rotors and an extensive range of accessories almost every kind of centrifuging required in practice can be undertaken: 1724, swing-out rotor, 4-place, for max. 4 x 100 ml, max. RCF 4,528 1726, swing-out rotor, 6-place, for max. 6 x 50 ml, max. RCF 2,808 1718, angle rotor for max. 6 x 85 ml, max. RCF 13,934 1714, angle rotor, light metal, with lid, phenol resistant, autoclavable, for 30 microlitre tubes, max. RCF 23,646 1711, drum rotor, light metal with lid and 6 compartments for 60 microlitre tubes, max. RCF 16,435 1717, swing-out rotor, 10-place, for max. 10 x 50 ml (Falcon), max. RCF 4,556 1725, swing-out rotor, 4-place, for 4 microtitration plates, max. RCF 2,147 1722, swing-out rotor, 2-place, for max. 4 microtitration plates or 2 culture plates, max. RCF 2,093 1748, swing out rotor, 8-place for cyto-suspensions, max. RCF 2,218 Technical Data Power Supply: ROTINA 35: 230 V / 50/60 Hz 1 ~   ROTINA 35 R: 230 V / 50 Hz Consumption: ROTINA 35: 670 VA   ROTINA 35 R: 1050 VA H x W x D in mm: ROTINA 35: 380 x 468 x 540   ROTINA 35 R: 380 x 468 x 695 Weight: ROTINA 35: 42,0 kg   ROTINA 35 R: 70,0 kg Order No. 1705, ROTINA 35, w/o rotor   1710, ROTINA 35 R, w/o rotor * other voltages on request

Hettich Microfuge Mikro 22R

MIKRO 22 and MIKRO 22 R are small, compact benchtop centrifuges for processing microlitre
tubes of 0.2 ml to 2.0 ml, and hematocrit capillaries.

Yet, they have a lot more to offer!

The refrigerated MIKRO 22 R also accommodates cyto suspensions and tubes up to a capacity of 50 ml.
The MIKRO 22 type centrifuges are used for routine examinations of patients’ sera as well as in genetics
research, virology, cytology, and bacteriology.

Capacity, performance and cooling of the MIKRO 22 R are specifically designed to meet the demands
of PCR examinations. Super rapid run-up and run-down times shorten the centrifuging operations
significantly without stirring the sediment during deceleration.

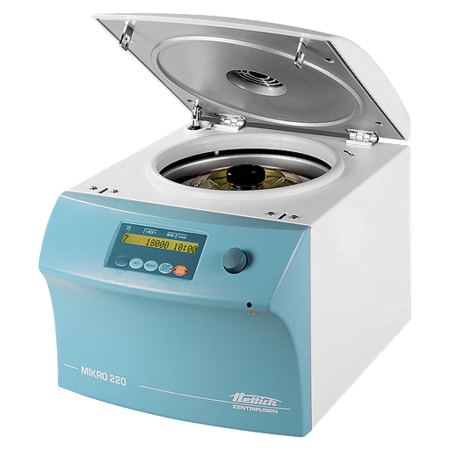

MIKRO 220 is a powerful, compact benchtop centrifuge for processing microlitre tubes of 0.2 ml to 2.0 ml. It is used in genetic research, virology and bacteriology. In an angle rotor, RCF values up to 31,514, in a swing-out rotor up to 18,516 can be generated. A drum rotor allows spinning a maximum of 60 microlitre tubes per run. Quiet and smooth running contribute to a good working atmosphere.

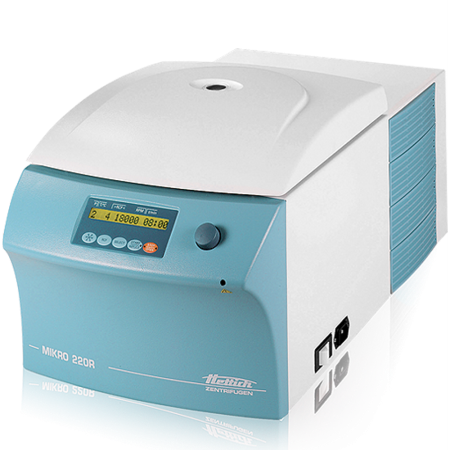

MIKRO 220 R is a powerful, compact benchtop centrifuge for processing microlitre tubes of 0.2 ml to 2.0 ml. At variance with the MIKRO 220, it also accepts standard tubes up to a volume of 50 ml. It is used in clinical laboratories as well as in genetic research, virology and bacteriology. Thanks to its efficient cooling, the MIKRO 220 R is also used for DNA and RNA extraction. In an angle rotor, RCF values up to 31,514, in a swing-out rotor up to 18,516 can be generated. A drum rotor allows spinning a maximum of 60 microlitre tubes per run. Quiet and smooth running contribute to a good working atmosphere.

Technical Information

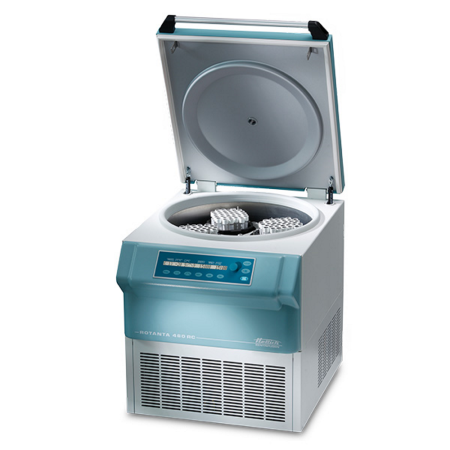

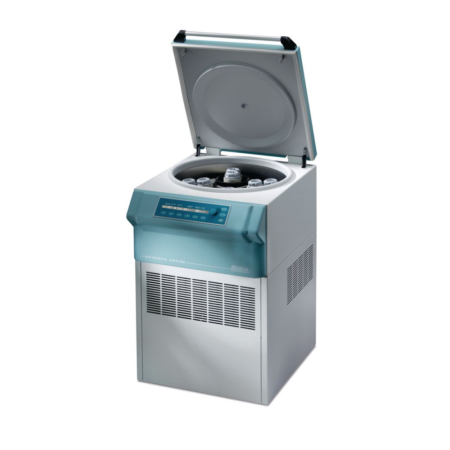

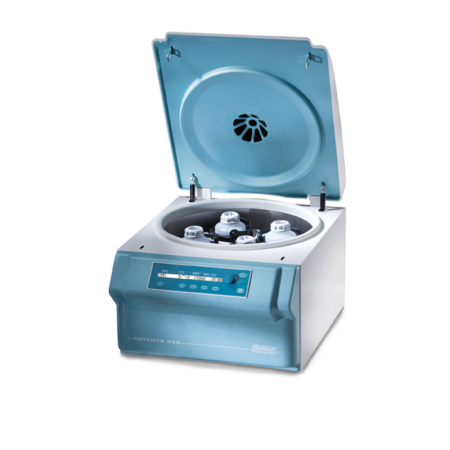

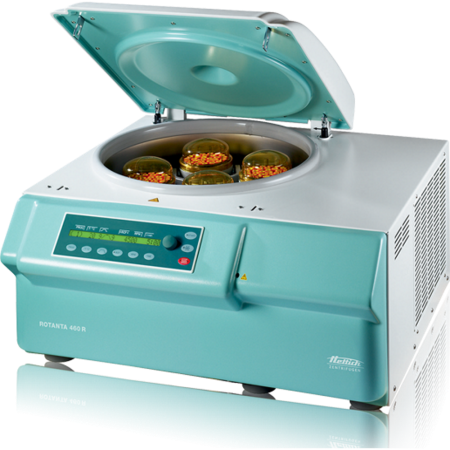

Rotanta 460 Centrifuges

The ROTANTA 460 family of centrifuges is an extraordinary line that meets a wide range of demands. They feature high capacity, versatility and performance. Their state-of-the-art technology and high safety standards ensure smooth running for any laboratory application. Working with a ROTANTA 460 is taking a step into the future. ROTANTA 460 centrifuges accommodate a wide range of tubes and microtiter plates, as well as containers with volumes up to 750 ml. This is why the ROTANTA 460 is the centrifuge of choice when high sample throughput and versatility are in demand. The ROTANTA 460 bench-top centrifuges are suited for routine centrifuging tasks in clinical laboratories and pharmaceutical and biotechnology research. Features and Accessories

Features and Advantages of the ROTANTA 460 Centrifuges Optional: Standard control panel or "S" control panel for storing 89 complete running programs. Extremely short run-up and run-down times Efficient cooling in the ROTANTA 460R and 460RS centrifuges Frequency-controlled drive, only maintenance required according to UVV regulations Metal housing and metal lid, panelling finished in scratch and impact resistant coating Easy to clean stainless steel chamber Lid locking and holding Lid dropping protection Automatic rotor recognition Imbalance switch-off Lid with see-through glass for speed control during centrifugation Motor overheating protection Chamber overheating protection in the ROTANTA 460R and 460RS centrifuges

Technical Data Power Supply: ROTANTA 460/460S: 115 V * / 50-60 Hz   ROTANTA 460R/460RS: 115 V * / 50 Hz H x W x D: ROTANTA 460/460S: 18" x 22" x 28"   ROTANTA 460R/460RS: 18" x 30" x 28" Weight: ROTANTA 460/460S: 209 lbs.   ROTANTA 460R/460RS: 298 lbs.

Performance RCF of max. 24,400 in angle rotor, max. speed 15,000 rpm RCF of max. 5,858 in swing-out rotor, max. speed 5,900 rpm
