Partec CyLab Plus
CyLab™ Plus
Mobile HIV Monitoring Laboratory
Advanced mobile HIV Monitoring laboratory employing the Partec CyFlow® FCM technology for use in resource-poor settings and rural areas. This unique concept based on a 4-wheeldrive transporter vehicle (Mercedes, Volkswagen, Toyota, and others) offers easy and efficient management of one or more self-sufficient laboratory containers featuring air condition, lab tables and lab furniture, patient bed, refrigerator, rest room (including sink, douche, and toilet), large power generator for electricity supply. Flow cytometric determination of absolute CD4+ T-cell concentrations, CD4% (CD4/CD45) and other lymphocyte subsets for monitoring and follow-up of adult and pediatric patients can be performed with the implemented mobile/portable CyFlow® FCM system.
|
|
|
|
|
CyLab™ Plus Highlights:
| |
offroad 4-wheeldrive transporter car with air condition |
| |
easy-to-load/unload self-sufficient laboratory containers |
| |
air conditioned lab container |
| |
equipped with complete laboratory furniture |
| |
patient bed |
| |
safety air-lock entrance area |
| |
water supply, waste water collection |
| |
safety containers for disposables |
| |
refrigerator for reagent storage |
| |
built-in CyFlow® Flow Cytometer |
| |
network connection to central labs or medical substations via Internet |
| |
rest room |
| |
for all applications in remote places and resource-poor settings
|
|
|
|
|
Partec CyLab Plus
CyLab™ Plus
Mobile HIV Monitoring Laboratory
Advanced mobile HIV Monitoring laboratory employing the Partec CyFlow® FCM technology for use in resource-poor settings and rural areas. This unique concept based on a 4-wheeldrive transporter vehicle (Mercedes, Volkswagen, Toyota, and others) offers easy and efficient management of one or more self-sufficient laboratory containers featuring air condition, lab tables and lab furniture, patient bed, refrigerator, rest room (including sink, douche, and toilet), large power generator for electricity supply. Flow cytometric determination of absolute CD4+ T-cell concentrations, CD4% (CD4/CD45) and other lymphocyte subsets for monitoring and follow-up of adult and pediatric patients can be performed with the implemented mobile/portable CyFlow® FCM system.
|
|
|
|
Flow Cytometer - Partec CyFlow® space
6-Colour FCM System and Cell Sorter for Clinical Routine and Research
Ultracompact Tri-Laser Flow Cytometer for applications in cell and particle analysis as well as absolute counting. With the CyFlow® space, analysis employing 8 optical parameters is available - by featuring an instrument size of 45x30x65cm, only: Forward Scatter (FSC), Side Scatter (SSC) in combination with 6 flourescence channels (FL1-FL6). Built-in PPCS Cell Sorter Module optionally available.
|
|
|
|
| Two standard instrument versions are being offered (alternative configurations on request):
CyFlow® space for High End Research:
Employing three laser light sources: a powerful 200mW or 500mW blue 488nm solid state laser, a red 25mW@635nm diode laser, and a 50mW or 100mW violet 405nm solid state laser (alternatively 8mW@375nm UV diode laser) using 8 optical parameters - 6 colours. PPCS Particle and Cell Sorter Option.
CyFlow® space for Clinical Routine:
Employing a regular 20mW@488nm solid state laser and a red 25mW@635nm diode laser with 6 optical parameters for 4-colour immunophenotyping.
|
|
|
|
Flow Cytometer - Partec CyFlow® SL_3
Portable FCM System for Routine HIV Monitoring of Adults and Children
Compact and dedicated portable Flow Cytometer for accurate and affordable cell analysis and true volumetric absolute counting in HIV Monitoring and AIDS patient follow-up by precise and direct CD4 and CD4% measurement. The CyFlow® SL_3 allows to analyze side scatter signals in combination with 2 fluorescence channels. Data acquisition, analysis, and real-time display is performed with a PC or laptop employing Windows FloMax® software including automated clinical report generation.
|
|
|
|
HIGHLIGHTS:
| _ |
|
ultracompact and fully equipped mobile/portable instrument |
| _ |
|
dimensions [cm]: L 43 x H 16 x D 37 |
| _ |
|
highest stability/robustness and highest precision |
| _ |
|
single platform True Volumetric Absolute Counting (TVAC) |
| _ |
|
high fluorescence sensitivity < 50 MESF (PE) |
| _ |
|
power connection: regular 100/240 V AC or car battery (12V DC) |
| _ |
|
set-up time:< 5 minutes |
| _ |
|
volumetric absolute counting of CD4, CD45, CD8, CD3 |
| _ |
|
capacity: up to 250 CD4 or CD4% tests per day |
|
|
|
|
|
| Especially in HIV Monitoring by CD4+ T-cell counting, conventional flow cytometers suffer from being too large, too expensive, service intensive, and not robust enough to be used in developing countries and resource-poor settings. Progress in component development and the availability of powerful and robust small solid state lasers allowed to design an entirely new compact dedicated flow cytometer, which has the size of a regular PC, only.
The CyFlow® SL_3 instrument is dedicated to perform true volumetric absolute counting of CD4 for adult patients (as well as CD8, CD3) and CD4% for pediatric patients by counting CD4, total lymphocyte count (TLC), CD45 (leukocytes) and the CD4 percentage within the total lymphocyte count (CD4%) out of one sample tube. Automatic display/print of clinical reports.With the CyFlow® SL_3 clinically validated and scientfically proven reliable routine monitoring in HIV/AIDS is now possible at a highly affordable cost level: For adult patients, the CD4 count can be offered at EUR 1.75 per test. For pediatric patients, the cost for CD4% measurements is EUR 2.50 per test. At this cost level, scaling-up of long-term sustainable treatment programmes is significantly supported.
The CyFlow® SL_3 runs on 12 V DC power (e.g. on a car battery) and therefore does not depend on a stabile regular power supply which might be important for remote places and for developing countries.
|
|
|
|
|
Flow Cytometer - Partec CyFlow® SL
The ultimative routine FCM
Compact mobile Flow Cytometer for any kind of cell analysis and absolute volumetric counting. The CyFlow® SL allows to analyze forward and side scatter signals in combination with up to 3 fluorescence channels. Data acquisition, analysis, and real-time display is performed with a PC or laptop employing Windows FloMax® software.
|
|
|
|
| More and more routine applications for FCM have been introduced, such as: detection and counting of microorganisms in food processing, process control, life - dead analysis, and counting of immunolabelled cells like CD4, CD8 cell counting in HIV screening and treatment follow-up. In all these cases conventional flow cytometers suffer from being too large, too expensive, service intensive and not robust enough to be used in developing countries (e.g. HIV screening). Progress in component development and the availability of powerful and robust solid state lasers allowed to design an entirely new compact dedicated flow cytometer, which has the size of a regular PC, only.
The CyFlow® SL instrument can perform in a wide variety of analyses in human healthcare (3 colour immunophenotying), microbiology, industrial applications, process control, ecology, etc.
The CyFlow® SL allows forward and side scatter analysis together with up to 3 fluorescence parameters. Realtime data acquisition and display are performed by using FloMax®, a Windows-based FCM software. The CyFlow® SL allows to perform true volumetric absolute counting based on scatter signals after cell labelling with fluorescent dyes or antibodies. For different excitation wavelengths various solid state or Nd:YAG-lasers can be used. In addition, new laser diodes – emitting blue or violet light – allow to perform all those measurements, too, which have been performed with large air cooled lasers up to now.
The CyFlow® SL runs on 12 V DC power (e.g. on a car battery) and therefore does not depend on a stabile regular power supply which might be important for remote places and for developing countries.
|
|
|
|
| Code |
Article |
Description |
| CY-S-101n |
CyFlow SL Red |
Mobile flow cytometer with red laser and 1-5 optical parameters |
| CY-S-102n |
CyFlow SL Green |
Mobile flow cytometer with green laser and 1-5 optical parameters |
| CY-S-103n |
CyFlow SL Blue |
Mobile flow cytometer with blue laser and 1-5 optical parameters |
| CY-S-104n |
CyFlow SL Violet |
Mobile flow cytometer with blue laser and 1-5 optical parameters |
n= number of optical parameters
|
|
|
|
Flow Cytometer - Partec CyFlow® ML
Multilaser 16 Parameter
Desktop Flow
Cytometry System
Ultracompact high end desktop multilaser Flow Cytometer for all applications in cell analysis and absolute counting. The CyFlow® ML allows to analyze two different forward scatter and one side scatter signals in combination with up to 13 fluorescence channels.
|
|
|
|
|
Desktop High End Flow Cytometer
4-Laser Configurations (red, green, yellow, blue, violet, UV lasers)
New 200mW@488nm and 500mW@488nm blue solid state lasers
UV lamp for high resolution DNA measurements
13 Colours, 16 Optical Parameters: 2 x FSC, SSC, FL-1 - FL-13
True Volumetric Absolute Counting
Ultracompact and Robust Design: Dimensions [cm]: L 56 x H 30 x D 65
New Windows™ XP FloMax® Software
New 16 bit Digital Pulse Processing Board for Each Parameter
Superior Fluorescence Sensitivity: < 100 MESF (FITC) < 50 MESF (PE)
Small Particle Detection < 200nm in both Scatter Parameters and Fluorescence
Progress in component development and the availability of powerful and robust solid state lasers allowed to design an entirely new ultracompact high end flow cytometer. The new CyFlow® ML instrument can perform in the widest variety of measurements. Realtime data acquisition and data analysis as well as realtime data display is performed by using FloMax®, the Windows™ XP based FCM software. The CyFlow® ML allows to perform true volumetric absolute counting. For different excitation wavelengths various diode, solid state or Nd:YAG-lasers can be used in 3 laser + UV lamp configurations.
Flow Cytometer - Partec CyFlow® Counter
Ultracompact mobile/portable Flow Cytometer with Partec's unique alignFree™ technology especially suited for cell analysis and true absolute volumetric counting.
The CyFlow® Counter allows to analyze side scatter signals in combination with up to 2 fluorescence channels. Data acquisition, analysis, and real-time display is performed with a built-in PC employing Partec DPAC software, built-in TFT colour monitor and pushbutton system.

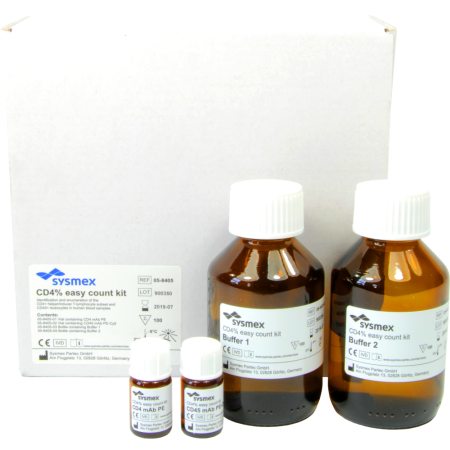

In combination with the unique "Partec CD4 easy count kit" protocol the CyFlow® Counter offers highly precise routine CD4 counting.
|
|
|
|
HIGHLIGHTS:
| _ |
|
ultracompact and fully equipped mobile/portable instrument |
| _ |
|
dimensions [cm]: L 30 x H 35 x D 38 |
| _ |
|
highest stability/robustness and highest precision |
| _ |
|
single platform True Volumetric Absolute Counting (TVAC) |
| _ |
|
high fluorescence sensitivity < 50 MESF (PE) |
| _ |
|
power connection: regular 100/240 V AC or car battery (12V DC) |
| _ |
|
set-up time:< 5 minutes |
| _ |
|
volumetric absolute counting of CD4, CD45, CD8, CD3 |
| _ |
|
capacity: up to 250 CD4 or CD4% tests per day |
|
|
|
|
|
| The CyFlow® Counter is the dedicated flow cytometer for absolute counting of CD4+ T-cells (as well as CD45, CD8, and CD3) in routine HIV monitoring and AIDS patient follow-up for adults and children. Its easy-to-learn-easy-to-use pushbutton system interface, the direct and rapid counting result display in terms of cells per µl blood sample, the long lasting laser, and the highest stability of the optical and fluidic systems makes the CyFlow® Counter the ideal CD4 counter.
The CyFlow® Counter allows to perform true volumetric absolute counting without the need of any reference method (e.g. hematology counter, expensive reference beads) by employing realtime data acquisition and realtime data display.
The CyFlow® Counter runs either on 100-240 V and on 12 V DC power (e.g. on a car battery) and therefore does not depend on a stabile regular power supply which is important for remote places and for developing countries.
|
|
|
|
|
