Sigma Laboratory Centrifuges is a worldwide leading manufacturer of laboratory centrifuges.

Centrifuges are standard equipment in every laboratory and are used intensively to separating components with different densities from liquids, for which they are virtually indispensable.

Sigma offers a broad spectrum of laboratory centrifuges, fixed-angle and swing-out rotors and accessories. All of our products meet high standards of reliability and safety. The application areas include pharmaceutical research, biotechnology, medical analytics, environmental analytics, petroleum analyses and many other areas.

Martin Christ Sr started producing centrifuges in 1948. In 1975 he founded the company Sigma Laborzentrifugen. Sigma gained worldwide recognition with a new maintenance-free drive system for laboratory centrifuges, and the company grew rapidly. The company culture of the family-owned business is based on flat organisational structures with short communication paths, sustainable business operations, and close networking with international representatives and dealers.

Sigma centrifuges are known for their performance and reliability as well as a high standard of safety. Sigma has the right solution for every specific customer need – compact small centrifuges, high-speed or stand-alone centrifuges, refrigerated or unrefrigerated, heated, or especially low noise. We also make special models tailored to individual requirements. Our products are developed by a team of engineers at our Osterode facility, who also support production from start to end.  Our customers additionally benefit from our expert worldwide service.

Sigma Laboratory Centrifuges collaborates closely with our affiliated company Martin Christ Freeze Dryers to share knowledge. This generates large synergies, which benefit both product domains as well as our customers.

Authorised dealer for:

UK only

05/01/2023

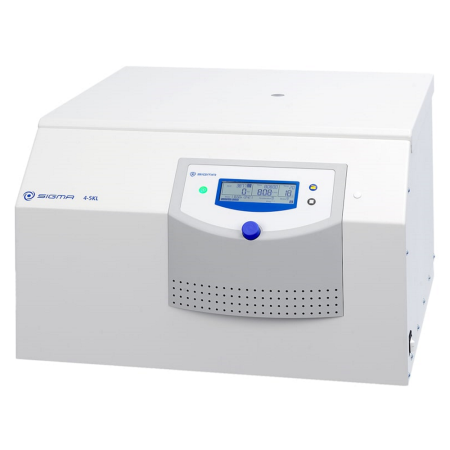

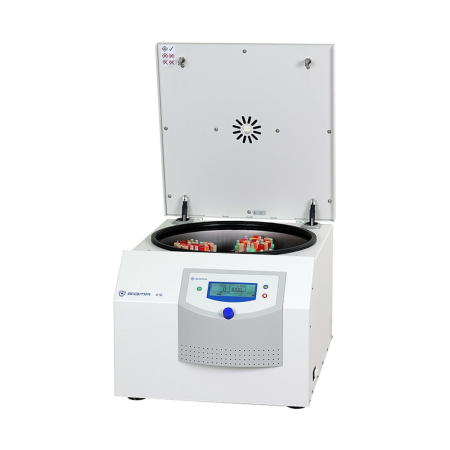

NEW Sigma 4-5KL benchtop centrifuge from Wolflabs.

Product Update

Introduction
NEW Sigma 4-5KL benchtop centrifuge from Wolflabs.

Features and benefits
- High-performance benchtop centrifuge
- Speed range up to 13,500 rpm
- Temperature adjustment range
- 10 °C to +40 °C
- Compact, space-saving and low noise level
- Easily cleaned stainless steel chamber
- Adjustable ECO mode for energy-efficient standby mode

Product Category: Centrifuges - Benchtop

Manufacturer: Sigma

05/01/2023

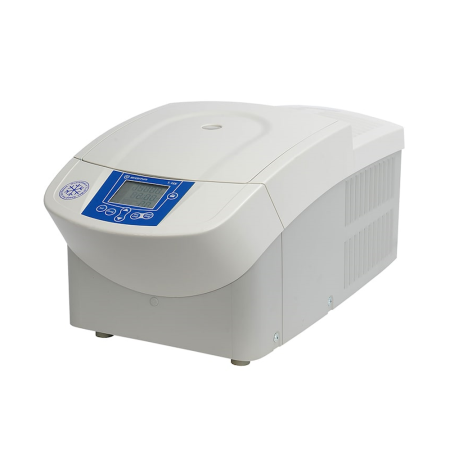

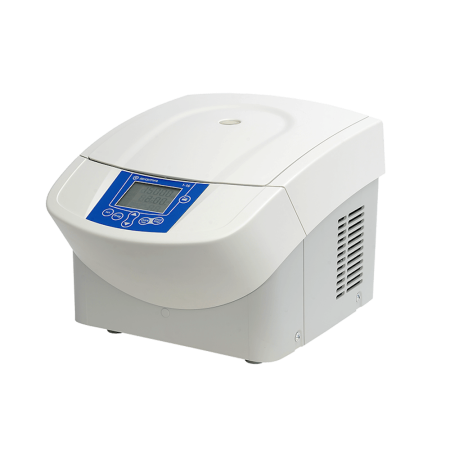

NEW Sigma 1-16K microfuge from Wolflabs.

Product Update

Introduction
NEW Sigma 1-16K microfuge from Wolflabs.

Features and benefits
- High-performance cooling
- Durable, easy-care stainless steel chamber
- Speed range up to 15,000 rpm
- Temperature setting range: -10 °C to +40 °C
- Energy-efficient and low-noise fan control

Product Category: Centrifuges - Microfuges

Manufacturer: Sigma

07/06/2019

Sigma benchtop centrifuge from Wolflabs

Product Update

Introduction

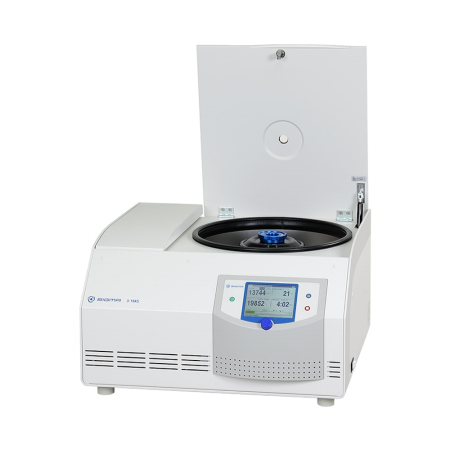

Sigma 3-18KHS benchtop centrifuge from Wolflabs. The 3-18KHS centrifuge is designed for routine and research tasks in laboratories. LED illumination, a choice of five languages, speed up to 18,000 rpm and a broad range of accessories are just a few of it's selling points.

Features and benefits
- Speed range up to 18.000 rpm.
- Iluminated keys for start, stop, and lid open.
- Various angle and swing-out rotors available.
- Maximum capacity of 4 x 400 ml down to microtubes with different adapters in the same bucket.
- Suitable for low speeds.
- Stainless steel bow.
- Easy lid opening due pneumatic spring support.
- Produced according to national and international safety regulations.

Product Category: Centrifuges - Benchtop

Manufacturer: Sigma

10/01/2019

Sigma microfuge from Wolflabs

Product Update

Introduction
Sigma 1-16K microfuge from Wolflabs.

Features and benefits
- Bright display.
- Minimal temperature increase during run.
- Maintenance free brushless drive motor.
- Emergency lid lock release.

Product Category: Centrifuges - Microfuges

Manufacturer: Sigma

10/09/2018

Sigma benchtop centrifuge from Wolflabs

Product Update

Introduction

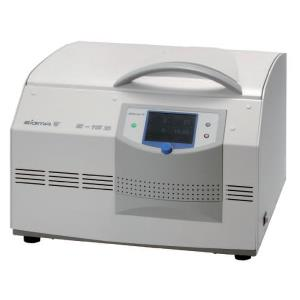

Sigma 6-16S benchtop centrifuge from Wolflabs.

Features and benefits
- Speed range up to 13,500 rpm.
- Various angle and swing-out rotors available.
- Lid can easily be opened due to pneumatic swing support.
- Maximum capacity of 4 x 800 ml down to microtubes with different adapters in the same bucket.
- Suitable for low speeds e.g. for cell sedimentation.
- Magnetic rotor identification prevents the rotor from overspeeding.
- Stainless steel bowl.
- Imbalance switch.
- No need to open the casing for emergency lid lock release.
- Produced according to national and international safety regulations (e.g. EN 61010-2-020).

Product Category: Centrifuges - Benchtop

Manufacturer: Sigma

Centrifuges - Microfuges - Sigma

Small microfuge's for research, biotechnology and medical laboratory. Our Sigma Centrifuges are suitable for all laboratory, clinical, research and industrial applications

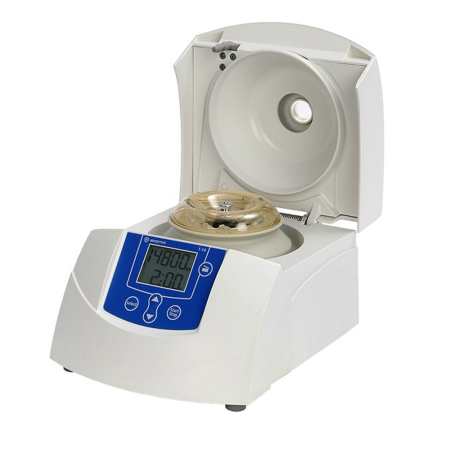

SIGMA 1-14

• bright display
• big push buttons
• minimal temperature increase during run
• maintenance free brushless drive motor
• motorized lid lock, auto lid open
• 200 - 14,800 rpm
• timer: 10 sec - 99 min, 1 sec increments, short run, continuous run
• display speed or g-force
• preselection speed or g-force
• speed increments 100 rpm
• RCF increments 10 x g– last run memory
• 2 acceleration- and deceleration curves, soft or fast
• emergency lid lock release
• window in the lid for external speed control
• overspeed controller
• according to IEC 61010
• RoHS conform

SIGMA 1-14K - the same as the 1-14 except for;

• identical rotor library additional
• 200 - 15,000 rpm
• stainless steel bowl
• rapid cooling program– 10 programs
• refrigerant R134a (CFC-free)
• temperature setting range -10 - +40°C

Technical Information

Model: 1-15P 1-15PK
Power consumption [W]  240 625
Max. capacity [ml] 24 x 2.2 30 x 2.2
Max. speed [rpm] 14,000 14,000
Max. RCF [xg] 17,968xg 21,913xg
Min. speed [rpm] 100 100
Dimensions: h x w x d [mm] 245 x 240 x 320 300 x 365 x 575
Height with open lid [mm] 400 620
Weight [kg] 13 41
Max. kinetic energy [Nm] 1480 8723
Interference suppression EN 61326 EN 61326
Noise level at max speed [dB] 62 dB (A) < 56 dB (A)


Sigma 1-15P Microcentrifuge



  • Higher speed bench top centrifuge for sedimentation in microtubes
  • Brushless drive motor practically maintenance-free
  • Low noise level through modern drive system
  • Short acceleration and deceleration of the standard rotor
  • Control with Spincontrol Easy
  • Acoustic signal, switchable
  • Automated opening of lid, switchable
  • Steel housing for optimal safety and stability
  • No need to open the centrifuge for emergency lid lock release
  • Window in the centrifuge lid for external speed control
  • Illuminated keys for start, stop, lid open
  • Produced according to national and international safety regulations (e.g. IEC 1010)
  • RoHS conform
  • Additional versions are available:
    SIGMA 1-15PK - refrigerated version of 1-15P



Specification




Spincontrol Easy
Timer

10 sec - 11 h 59 min
Time increments [sec]

10; 1
Continuous run

+
Short run

+
Speed increments [rpm]

100; 1
Display RCF

+
RCF-Increments [x g]

10; 1
Display speed or g-force

+
Display speed and g-force

-
Display temperature selected, actual

-
Temperature increments [°C]

-
Programs

10
Fast cool program Rapid cool

-
Acceleration

fast, soft
Deceleration

fast, soft, brake off
Control unit lockable

+

Accessories for the SIGMA 1-15P centrifuge

Rotors

Order No.

 Description

Max. rpm

Max. rcf

12124

 Angle rotor made of polypropylene 24 x 1.5/2.2 ml, for e.g. reaction vials no. 15008, 15040, incl. lid

14.000 1/min

17.968 x g

11024

 Microhematocritrotor incl. lid, suitable for 24 capillary tubes Ø 1.5 x 75 mm, 50 µl

14.000 1/min

18.626 x g

12101

 Angle rotor made of polypropylene, for 4 PCR-strips with 8 tubes 0.2 ml e.g no. 15042, incl. lid

14.000 1/min

14.462 x g

12126

 Angle rotor made of polypropylene 36 x 0.5/0.75 ml, e.g. no. 15005 incl. lid

14.000 1/min

15.996 x g

Accessories

Order No.

 Description Suitable for:

13000

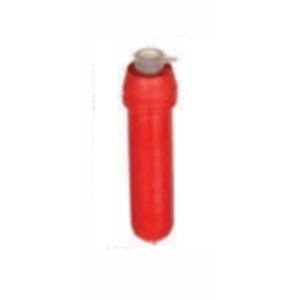

 Adapter for reaction vials 0.25/0.4 ml no. 15014 1 set = 2 pcs.

12124

13002

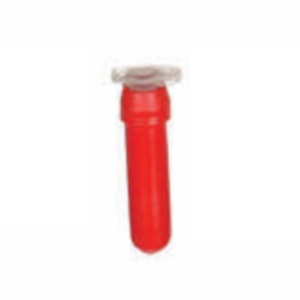

 Adapter for reaction vials 0.5/0.75 ml, Ø 7.9/10 x 28/31 mm, 1 set = 2 pcs.

12124

13021

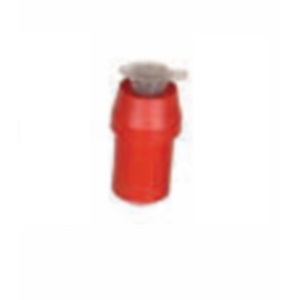

 Adapter for PCR-tube 0.2 ml, eg no. 15042, 1 set = 2 pcs.

12124

15040

 Reaction vials 2.2 ml, 100 pcs. per pack

11124, 12124

15042

 Reaction vials 0.2 ml, 100 pcs. per pack

13021, 12101

15005

 Reaction vials 0.5 ml, 100 pcs. per pack

12126, 13002

15014

 Reaction vials made of polypropylene 0.4 ml, 100 pcs. per pack

13000

15008

 Reaction vials 1.5 ml, 100 pcs. per pack

12124

Technical Specifications

Electric supply

220-240 V; 50/60 Hz
100-120 V; 50/60 Hz
Power consumption [W]

240
Max. capacity [ml]

24 x 2,2
Max. speed [rpm]

14,000
Min. speed [rpm]

100
Interference suppression

EN 61326
Height x Width x Depth [mm]

245 x 240 x 320
Height with open lid [mm]

400
Weight without rotor [kg]

13
Kinetic energy max. [Nm]

1480
Noise level at max. speed (approx.)

62 dB(A)
Max. Acceleration (No. 12124) [sec]

13
Min. Deceleration (No. 12124) [sec]

13
Temperature setting range [°C]

-
Min. Rotor temperature
incl. hermetic plastic lid

-
Rotor 12124 at 14.000 rpm [°C]

-



Sigma 1-15K Refrigerated Centrifuge





  • Refrigerated table top centrifuge for sedimentation in microtubes.
    Maintenance-free brushless drive motor with speed pre-selection and display.
  • Speed range 100 to 14000 rpm.
  • Extremely smooth running even at maximum speed.
  • Simple 2-knob pre-selection of speed/RCF, time and temperature.
  • Short run with display in seconds cycle.
  • Softstart and Softstop
  • Indication of speed/RCF, time and temperature.
  • Temperature control of rotors also during standstill.
  • Refrigerant and insulation CFC-free.
  • Efficient refrigerating machine for temperatures between -10 and +40 °C
  • Imbalance sensor with indication.
  • Double lid lock device with latches according to VBG 7z.
  • Product compliant with national and international safety regulations
    (IEC 1010, CE).
  • No. 10148 for 230V 50+60 Hz.
  • No. 10149 for 120V 60 Hz.
  • No. 10150 for 100V 50+60 Hz.

Rotors

Order. no. Description Max. rpm Max. rcf
12124  PP-angle rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. PC lid

14.000 1/min

17.970 x g
12024  Alu-angle rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14.000 1/min

17.970 x g
12132 Alu-angle rotor 30 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14.000 1/min

21.918 x g
11124 Swing-out rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14.000 1/min

16.219 x g
12031 Tabelle">PP-angle rotor for 40 reaction vials 0.25 or 0.4 ml no. 15014, incl. PC lid

14.000 1/min

17.530 x g
09336 PP-angle rotor for 30 vials 0. 5 or 0.7 ml no. 15005, incl. PC lid

14.000 1/min

18.845 x g
12104 Angle rotor, hermetically sealed for 12 PCR-Stripes with 8 tubes 0,2 ml

14.000 1/min

18.845/21.475 x g
12126 Angle rotor polypropylene 36 x 0.5/0.75 ml

14.000 1/min

17.968 x g

Accessories

Order no.

Description

Suitable for:
13000  Adapter for reaction vials 0,25/0,4 ml no. 15014 12024, 12124, 12132, 11124
13002  Adapter for Eppendorf reaction vials 0.5/0.75 ml, ø 7.9/10 x 28/31 mm no. 15005 12024, 12124, 12132, 11124
13021 Adapter for PCR tubes 0,2 ml 12024, 12124, 12132, 11124

Technical specifications



Power supply 100V/50+60Hz, 120V/60Hz, 230V/50+60Hz
Power consumption drive 380 W
Power consumption refrig. 240 W
Maximum rotational speed 14.000 1/min
Minimum rotational speed 100 1/min
Maximum capacity 30 x 2,2 ml
Interference suppression EN 61326
Dimensions: Height x Width x Depth 300x365x585 mm
Weight without accessories 41 kg
Max. kinetic energy 8.723 Nm
Noise level at max. speed < 56 [dB (A)]
Max. acceleration 18 s
Max. deceleration 20 s

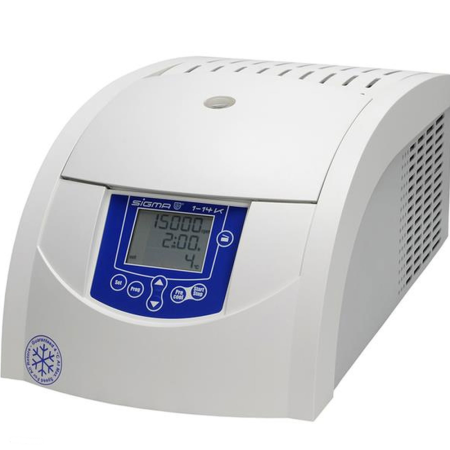

Microfuge Sigma 1-14K refrigerated with aluminium rotor for 24x1.5/2ml tubes

Small microfuge's for research, biotechnology and medical laboratory. Our Sigma Centrifuges are suitable for all laboratory, clinical, research and industrial applications



SIGMA 1-14

No. 10014 (220 – 240 V, 50/60 Hz), No. 10015 (100 – 120 V, 50/60 Hz)

– bright display
– big push buttons
– minimal temperature increase during run
– maintenance free brushless drive motor
– motorized lid lock, auto lid open
– 200 - 14,800 rpm
– timer: 10 sec - 99 min, 1 sec increments, short run, continuous run
– display speed or g-force
– preselection speed or g-force
– speed increments 100 rpm
– RCF increments 10 x g– last run memory
– 2 acceleration- and deceleration curves, soft or fast
– emergency lid lock release
– window in the lid for external speed control
– overspeed controller
– according to IEC 61010
– RoHS conform

SIGMA 1-14K

No. 10020 (220 – 240 V, 50/60 Hz), No. 10021 (100 – 120 V, 50/60 Hz)

– refrigerated version of Sigma 1-14
– identical rotor library additional
– 200 - 15,000 rpm
– stainless steel bowl
– rapid cooling program– 10 programs
– refrigerant R134a (CFC-free)
– temperature setting range -10 - +40°C


Technical specification

Technical data Sigma 1-14 Sigma 1-14K
power consumption [W] 95 230
max. capacity [ml] 24 x 2 24 x 2
max. speed [rpm] 14,800 15,000
max. RCF [xg] 16,163 16,602
min. speed [rpm] 200 200
dimensions: h x d x w [mm] 176 x 266 x 212 236 x 515 x 273
height with open lid [mm] 310 404
weight [kg] 6 19
max. kinetic energy [Nm] 1721 1768
interference supression EN61326 EN61326
noise level at max speed [dB] < 60 53-59



Centrifuges - Microfuges - Sigma



Small microfuge's for research, biotechnology and medical laboratory. Our Sigma Centrifuges are suitable for all laboratory, clinical, research and industrial applications

SIGMA 1-14

• bright display
• big push buttons
• minimal temperature increase during run
• maintenance free brushless drive motor
• motorized lid lock, auto lid open
• 200 - 14,800 rpm
• timer: 10 sec - 99 min, 1 sec increments, short run, continuous run
• display speed or g-force
• preselection speed or g-force
• speed increments 100 rpm
• RCF increments 10 x g– last run memory
• 2 acceleration- and deceleration curves, soft or fast
• emergency lid lock release
• window in the lid for external speed control
• overspeed controller
• according to IEC 61010
• RoHS conform

SIGMA 1-14K - the same as the 1-14 except for;

• identical rotor library additional
• 200 - 15,000 rpm
• stainless steel bowl
• rapid cooling program– 10 programs
• refrigerant R134a (CFC-free)
• temperature setting range -10 - +40°C

Technical Information

Model: 1-14 1-14K
Power consumption [W]  95 230
Max. capacity [ml] 24 x 2 24 x 2
Max. speed [rpm] 14,800 15,000
Max. RCF [xg] 16,163 16,602
Min. speed [rpm] 200 200
Dimensions: h x d x w [mm] 176 x 266 x 212 236 x 515 x 273
Height with open lid [mm] 310 404
Weight [kg] 6 19
Max. kinetic energy [Nm] 1721 1768
Interference suppression EN61326 EN61326
Noise level at max speed [dB] < 60 53-59







Benchtop Centrifuge Sigma 3-18/3-18K



SIGMA 3-18 centrifuge

•Universal table top centrifuge; speed range up to 16.000rpm
•Illuminated keys for start, stop, lid open
•Various angle and swing-out rotors
•Maximum capacity of 4 x 400 ml down to microtubes with different adapters in the same bucket (13190)
•Maintenance-free induction drive motor
•suitable for low speeds e.g. cell sedimentation, accuracy +/- 1 rpm
•For capacities from 0,2 ml up to 250 ml.
•Magnetic rotor identification prevents the rotor from overspeeding
•Stainless steel bowl
•Imbalance switch
•No need to open the casing for emergency lid lock release
•Easy lid opening due pneumatic spring support
•window in the centrifuge lid for external speed control
•Motorized lid lock
•Produced according to national and international safety regulations (e.g. IEC 1010)

SIGMA 3-18K

•Refrigerated version of SIGMA 3-18
•Universal refrigerated table top centrifuge; speed range up to 18.000 rpm
•Possibility of precooling the rotors during standstill; Refrigerant CFC-free (R 134 a)

Technical Information

Model: 3-18 3-18K
Power consumption [W]  480 1010
Max. capacity [ml] 4 x 250 4 x 250
Max. speed [rpm] 16000 18000
Max. RCF [xg] 23,469xg 30,070xg
Min. speed [rpm] 100 100
Dimensions: h x w x d [mm] 355 x 460 x 600 355 x 630 x 600
Height with open lid [mm] 770 785
Weight [kg] - without rotor 48 78
Max. kinetic energy [Nm] 11250 22989
Interference suppression EN 61326 EN 61326


Refrigerated centrifuge SIGMA 6K15
  • High capacity table top centrifuge with built-in refrigeration system.
  • Single-knob control with LCD-display.
  • Temperature control of rotors also during standstill. CFC-free refrigerant (R 404a).
  • Maintenance-free Brushless drive motor with exact speed preselection and display. Speed range 100 to 15 000 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for preselection of gravitational field, speed, rotor, time and temperature.
  • 20 curves for acceleration and deceleration. 50 programs can be stored.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Optimum safety complying to national and international regulations (e.g. IEC 1010), bearing the CE and GS-mark.
  • Free programming of all centrifugation paramaters.
  • Nr. 10680 für 230V50Hz.


 Rotors     Accessories      Specialized accessories for mineral oil   Technical specifications

   Rotors and Accessories for the SIGMA 6K15 centrifuge

Rotors

Order. no. Description Max. rpm Max. rcf
12130 H Angle rotor 30 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid 15 000 1/min 25160 x g
12200 Angle rotor 100 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040 (2 lines) 9 600 1/min 16800/15640 x g
12168 H Angle rotor 20 x 10 ml, for tubes no. 15000, 15010, 15019, incl. hermetic lid 12 500 1/min 21480 x g
12172 H Angle rotor 12 x 30 ml, for tubes no. 15029, 15030, 15032, 15034, incl. hermetic lid 14 000 1/min 24100 x g
12176 H Angle rotor 6 x 50 ml for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 14 000 1/min 19940 x g
12166 H Angle rotor 8 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 14 000 1/min 21040 x g
12161 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 15 000 1/min 21480 x g
12165 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 14 000 1/min 21480 x g
12170 H Angle rotor for 12 Falcon tubes 15 ml no. 15115, incl. hermetic lid 13 500 1/min 20376 x g
12169 H Angle rotor for 8 Falcon tubes 50 ml no. 15151, incl. hermetic lid 13 500 1/min 21191 x g
12500 Angle rotor 6 x 500 ml for bottles no. 13507, 15508, 15509 9 600 1/min 17000 x g
12256 Angle rotor 6 x 250 ml for bottles 15247, 15248, 15249 11 200 1/min 20340 x g
11152 Swing-out rotor 96 x 15 ml complete, no. 11150, incl. 4 double rectangular buckets no. 13420, 8 rectangular carriers no. 18015 and 96 PS-tubes no. 15020 4 700 1/min 4770 x g
11150 Swing-out rotor for 4 buckets no. 13215, 13220, 13230, 13350, 13420, 13520, 13525, 13550 5 100 1/min 3007/5290 x g
11157 Swing-out rotor 72 x 15 ml complete, no. 11156, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 72 PS-tubes no. 15020 5 100 1/min 5290 x g
11156 Swing-out rotor for 6 rectangular buckets no. 13115, 13127 5 100 1/min 5290/5550 x g

09414		 Swing out rotor, incl. 4 buckets no. 09415 for 8 Dimension® RxL sample segments from Dade Behring. Click here for more information. 4 000 1/min

3550 x g

The Centrifuge 6k15 is also designed to accommodate the deep-well Plate Rotor 2 x 96 and provides the necessary force of more than 5600 x g for centrifuging QIAGEN® 96-well plates.

Accessories

Order no.              Description Suitable for:
17916 Table for centrifuge centrifuge 6K15
13220 Bucket for microtiter plates 11150
13420 Double rectangular bucket, suitable for the system of rectangular carriers, closable with sealing caps no. 17114, 17115 11150
13525 Bucket for 1 blood bag system, volume of the bucket approx. 950 ml 11150
13520 Bucket for 1 bottle 500 ml no. 13507, 15508, 15509 and adapter no. 13174 11150
13215 Rectangular bucket for the system of rectangular carriers, closable with sealing caps 17112, 17113 11150
13115 Rectangular bucket, suitable for the system of rectangular carriers 11156

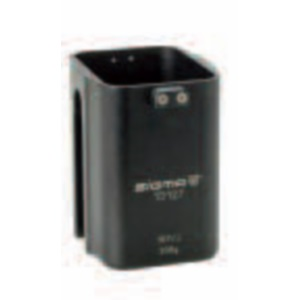

13127 Rectangular bucket, suitable for the system of rectangular carriers, incl. sealing cap 17112 11156

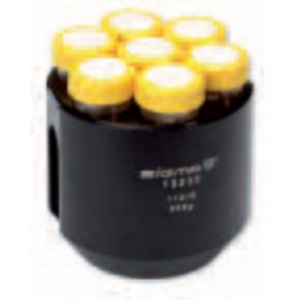

13235 Bucket for 5 Falcontubes 50 ml no. 15151 11150

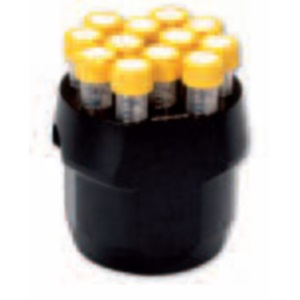

13236 Bucket for 12 Falcontubes 50 ml no. 15115 11150
13350 Round bucket, aluminium, with thread, for carriers no. 17350-17405, closeable with sealing cap 17135 11150
13550 Round bucket, aluminium, with thread, for carriers no. 17350-17405, closeable with sealing cap 17135 11150
13555 Adapter for 1 bottle 500 ml no. 13507, 15508, 15509 13550
15500 PC-bottle 500 ml incl. cap 13350/13550
15501 PP-bottle 500 ml incl. cap 13350/13550
15750 PC-bottle 750 ml incl. cap 13350/13550
15751 PP-bottle 750 ml incl. cap 13550 without cap 17135
17135 Round sealing cap for buckets 13350 and 13550 13350/13550
17350 Round carrier for 24 reaction vials 0,5/0,75 ml  7,9/10 x 28/31 mm e.g. no. 15005 13350
17353 Round carrier for 16 e.g. Eppendorfreaction vials 1,5 to 2,2 ml no. 15008, 15040 13350
17354 Round carrier for 16 glass tubes 7 ml, Ø 12 x 100 mm no. 15007, 15027 13350
17355 Round carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13350
17356 Round carrier for 16 vacutainer/hemolyse/RIA tubes Ø 12 to 12,9/16 x 60/85 mm e.g. no. 15060 13350
17357 Round carrier for 10 tubes 15 ml with sealing cap Ø 17/19,4 x 107 mm e.g. Monovettes 13350
17358 Round carrier for 12 tubes 15 ml, max. Ø 17 x 115 mm no. 15015, 15020, 15023, 15024 13350
17359 Adapter for 9 Falcontubes 15 ml no. 15115 13350
17365 Round carrier for 5 glass tubes 25 ml no. 15025, 15026 13350
17370 Round carrier for 5 tubes with screw cap 30 ml ´no. 15029, 15030, 15032, 15034 13350
17375 Round carrier for 3 tubes 50 ml no. 15049, 15050, 15056 13350
17376 Round carrier for 3 tubes with screw cap 50 ml no. 15048, 15051, 15052, 15054 and stainless chromium steel tube no. 13055 13350
17377 Adapter for 4 Falcontubes 50 ml no. 15151 13350
17378 Round carrier for 4 Falcontubes 50 ml with standing rim 13350
17385 Round carrier for 1 tube with screw cap 80/85 ml no. 15074, 15075, 15076, 15080 and stainless chromium steel tube no. 13085 13350
17390 Round carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13350
17395 Round carrier for 1 bottle with screw cap 125 ml no. 15125 13350
17400 Round carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13350
17401 Round carrier for 1 tube 200 or 250 ml no. 15201, 15206, 15250 13350
17405 Round carrier for 1 bottle with screw cap 250 ml no. 13255, 15247, 15248, 15249 13350
18100 Rectangular carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13115, 13127, 13215, 13420
18050 Rectangular carrier for 2 tubes 50 ml no. 15049, 15050, 15056 13115, 13127, 13215, 13420
18025 Rectangular carrier for 5 glass tubes 25 ml no. 15025, 15026 13115, 13127, 13215, 13420
18015 Rectangular carrier for 12 tubes 15 ml no. 15015, 15020, 15023, 15024 13115, 13127, 13215, 13420
18007 Rectangular carrier for 20 glass tubes 7 ml 13115, 13127, 13215, 13420
18200 Rectangular carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13115, 13127, 13215, 13420
18000 Rectangular carrier, undrilled, can be drilled up to ø50 mm 13115, 13127, 13215, 13420
18005 Rectangular carrier for 20 RIA-tubes e.g. no. 15060 13115, 13127, 13215, 13420
18052 Rectangular carrier for 2 Falcontubes 50 ml no. 15151 13115, 13127, 13215, 13420
18016 Rectangular carrier for 4 Falcontubes 15 ml no. 15115 13115, 13127, 13215, 13420



Specialized accessories

Specialized accessories for the centrifugation of mineral oil.
Following specialized accessories for the SIGMA 6-15 and 6K15 centrifuges are available:

Order. no. Description Max. rpm Max. rcf
11165 Swing-out rotor for 4 buckets no. 13113, 13114, 13116 for glass tubes for mineral oil 3 000 1/min
13113 Bucket for 1 glass tube for mineral oil 100 ml, 8", ø 37 x 200 mm, ASTM D 91/96 no. 15130 3 000 1/min 2143 x g
15130 Glass tube for mineral oil 100 ml, 8", ø 37 x 200 mm, ASTM D 91/96
16103 Rubber cushion for glass tube for mineral oil 100 ml, 8" no. 15130
13114 Bucket for 1 glass tube for mineral oil 100 ml, 6", ø 44 x 165 mm, ASTM D 96 no. 15132 3 000 1/min 1922 x g
15132 Glass tube for mineral oil, 6", ø 44 x 165 mm, ASTM D 96
16104 Rubber cushions for glass tube for mineral oil 100 ml, 6" no. 15132
13116 Bucket for 1 glass tube for mineral oil, pear-shaped, ø 59 x 160 mm, ASTM D 96 no. 15131 3 000 1/min 1741 x g
15131 Glass tube for mineral oil, 6", pear-shaped, ø 59 x 160 mm, ASTM D 96
16106 Rubber cushions for glass tube for mineral oil 100 ml, pear-shaped no. 15131


Mineral oil can be centrifugated better at higher temperatures. To be able to heat the mineral oil during centrifugation, e.g. to 55°C, the centrifuge SIGMA 6K15 with heating should be chosen.

Please observe that depending on the medium the glass tubes might break at centrifugal forces over 1 000 x g.

   Technical specifications SIGMA 6K15
Power supply [V/Hz] 230 / 50 or 220 / 60 or 240 / 60
Power consumption drive [W] 1200
Power consumption refrig. [W] 1000
Maximum rotational speed [rpm] 15 000
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 6 x 500
Interference suppression 55011 / B
Dimensions: Height x Width x Depth [mm] 425x780x685
Weight without accessories [kg] 158
Max. kinetic energy [Nm] 154 007
Noise level at max. speed (approx.) [dB (A)]
Rotor No. 12130 at 15000 rpm 70
Rotor No. 11150 at 5100 rpm 63
Max. acceleration [s]
Rotor No. 12256 110
Rotor No. 11150 29
Max. deceleration [s]
Rotor No. 12256 140
Rotor No. 11150 34
Min. rotor temperature at 23°C ambient temperature [°C]
Rotor No. 12256 at 10000 rpm < 4 °C
Rotor No. 11150 at 4500 rpm + 4 °C



SIGMA 6-15
  • Laboratory centrifuge, aircooled, for universal high volume use.
  • Single-knob control with LCD-display.
  • Maintenance-free brushless drive motor with exact speed preselection and display.
  • Speed range 100 to 13 500 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for preselection of gravitational field, speed, rotor, and time.
  • New: Easy handling by one control knob for all centrifugation parameters, LCD-display.
  • 20 curves for acceleration and deceleration. 50 programs can be stored.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Optimum safety complying to national and international regulations (e.g. IEC 1010), bearing the CE and GS-mark.
  • Free programming of all centrifugation parameters.
  • Nr. 10670 for 230V / 50Hz. Nr. 10672 for 110/120V 50/60Hz
  • also available with heating device up to 60°C


    Rotors     Accessories      Specialized accessories for mineral oil   Technical specifications

    Rotors and Accessories for the SIGMA 6-15 centrifuge

Rotors

Order. no. Description Max. rpm Max. rcf
12130 H Angle rotor 30 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid 13 500 1/min 20380 x g
12200 Angle rotor 100 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040 (2 lines) 9 000 1/min 14760/13750 x g
12168 H Angle rotor 20 x 10 ml, for tubes no. 15000, 15010, 15019, incl. hermetic lid 12 500 1/min 17120 x g
12172 H Angle rotor 12 x 30 ml, for tubes no. 15029, 15030, 15032, 15034, incl. hermetic lid 12 500 1/min 19220 x g
12176 H Angle rotor 6 x 50 ml for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 12 500 1/min 15900 x g
12166 H Angle rotor 8 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 12 500 1/min 16770 x g
12161 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 13 500 1/min 20170 x g
12165 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 12 500 1/min 17120 x g
12170 H Angle rotor for 12 Falcontubes 15 ml no. 15115, incl. hermetic lid 12 500 1/min 17469 x g
12169 H Angle rotor for 8 Falcontubes 50 ml no. 15151, incl. hermetic lid 12 500 1/min 18168 x g
12500 Angle rotor 6 x 500 ml for bottles no. 13507, 15508, 15509 8 000 1/min 11800 x g

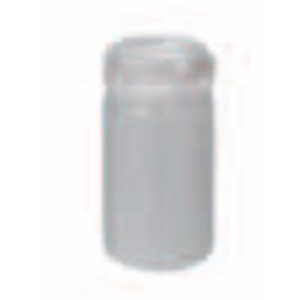

12256 Angle rotor 6 x 250 ml for bottles 15247, 15248, 15249 9 000 1/min 13130 x g
11152 Swing-out rotor 96 x 15 ml complete, no. 11150, incl. 4 double rectangular buckets no. 13420, 8 rectangular carriers no. 18015 and 96 PS-tubes no. 15020 4 200 1/min 3810 x g
11150 Swing-out rotor for 4 buckets no. 13215, 13220, 13230, 13350, 13420, 13520, 13525, 13550 4 500 1/min 3810/4120 x g
11157 Swing-out rotor 72 x 15 ml complete, no. 11156, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 72 PS-tubes no. 15020 4 500 1/min 4120 x g
11156 Swing-out rotor for 6 rectangular buckets no. 13115, 13127 4 500 1/min 4120/4320 x g

09414		 Swing out rotor, incl. 4 buckets no. 09415 for 8 Dimension® RxL sample segments from Dade Behring. Click here for more information. 4 000 1/min

3550 x g

The Centrifuge 6-15 is also designed to accommodate the deep-well Plate Rotor 2 x 96 and provides the necessary force of more than 5600 x g for centrifuging QIAGEN® 96-well plates.



 Accessories

Order no. Description Suitable for:
17917 Table for centrifuge centrifuge 6-15
13220 Bucket for microtiter plates 11150
13420 Double rectangular bucket, suitable for the system of rectangular carriers, closable with sealing caps no. 17114, 17115 11150
13525 Bucket for 1 blood bag system, volume of the bucket approx. 950 ml 11150
13520 Bucket for 1 bottle 500 ml no. 13507, 15508, 15509 and adapter no. 13174 11150
13215 Rectangular bucket for the system of rectangular carriers, closable with sealing caps 17112, 17113 11150
13115 Rectangular bucket, suitable for the system of rectangular carriers 11156
13127 Rectangular bucket, suitable for the system of rectangular carriers, incl. sealing cap 17112 11156
13235 Bucket for 5 Falcontubes 50 ml no. 15151 11150
13236 Bucket for 12 Falcontubes 50 ml no. 15115 11150
13350 Round bucket, aluminium, with thread, for carriers no. 17350-17405, closeable with sealing cap 17135 11150
13550 Round bucket, aluminium, with thread, for carriers no. 17350-17405, closeable with sealing cap 17135 11150
13555 Adapter for 1 bottle 500 ml no. 13507, 15508, 15509 13550
15500 PC-bottle 500 ml incl. cap 13350/13550
15501 PP-bottle 500 ml incl. cap 13350/13550
15750 PC-bottle 750 ml incl. cap 13350/13550
15751 PP-bottle 750 ml incl. cap 13550 without cap 17135
17135 Round sealing cap for buckets 13350 and 13550 13350/13550
17350 Round carrier for 24 reaction vials 0,5/0,75 ml  7,9/10 x 28/31 mm e.g. no. 15005 13350
17353 Round carrier for 16 e.g. Eppendorfreaction vials 1,5 to 2,2 ml no. 15008, 15040 13350
17354 Round carrier for 16 glass tubes 7 ml, Ø 12 x 100 mm no. 15007, 15027 13350
17355 Round carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13350
17356 Round carrier for 16 vacutainer/hemolyse/RIA tubes Ø 12 to 12,9/16 x 60/85 mm e.g. no. 15060 13350
17357 Round carrier for 10 tubes 15 ml with sealing cap Ø 17/19,4 x 107 mm e.g. Monovettes 13350
17358 Round carrier for 12 tubes 15 ml, max. Ø 17 x 115 mm no. 15015, 15020, 15023, 15024 13350
17359 Adapter for 9 Falcontubes 15 ml no. 15115 13350
17365 Round carrier for 5 glass tubes 25 ml no. 15025, 15026 13350
17370 Round carrier for 5 tubes with screw cap 30 ml ´no. 15029, 15030, 15032, 15034 13350
17375 Round carrier for 3 tubes 50 ml no. 15049, 15050, 15056 13350
17376 Round carrier for 3 tubes with screw cap 50 ml no. 15048, 15051, 15052, 15054 and stainless chromium steel tube no. 13055 13350
17377 Adapter for 4 Falcontubes 50 ml no. 15151 13350
17378 Round carrier for 4 Falcontubes 50 ml with standing rim 13350
17385 Round carrier for 1 tube with screw cap 80/85 ml no. 15074, 15075, 15076, 15080 and stainless chromium steel tube no. 13085 13350
17390 Round carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13350
17395 Round carrier for 1 bottle with screw cap 125 ml no. 15125 13350
17400 Round carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13350
17401 Round carrier for 1 tube 200 or 250 ml no. 15201, 15206, 15250 13350
17405 Round carrier for 1 bottle with screw cap 250 ml no. 13255, 15247, 15248, 15249 13350
18100 Rectangular carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13115, 13127, 13215, 13420
18050 Rectangular carrier for 2 tubes 50 ml no. 15049, 15050, 15056 13115, 13127, 13215, 13420
18025 Rectangular carrier for 5 glass tubes 25 ml no. 15025, 15026 13115, 13127, 13215, 13420
18015 Rectangular carrier for 12 tubes 15 ml no. 15015, 15020, 15023, 15024 13115, 13127, 13215, 13420
18007 Rectangular carrier for 20 glass tubes 7 ml 13115, 13127, 13215, 13420
18200 Rectangular carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13115, 13127, 13215, 13420
18000 Rectangular carrier, undrilled, can be drilled up to ø50 mm 13115, 13127, 13215, 13420
18005 Rectangular carrier for 20 RIA-tubes e.g. no. 15060 13115, 13127, 13215, 13420
18052 Rectangular carrier for 2 Falcontubes 50 ml no. 15151 13115, 13127, 13215, 13420
18016 Rectangular carrier for 4 Falcontubes 15 ml no. 15115 13115, 13127, 13215, 13420



 Specialized accessories for the centrifugation of mineral oil

 Following specialized accessories for the SIGMA 6-15 and 6K15 centrifuges are available:


Order. no. Description Max. rpm Max. rcf
11165 Swing-out rotor for 4 buckets no. 13113, 13114, 13116 for glass tubes for mineral oil 3 000 1/min
13113 Bucket for 1 glass tube for mineral oil 100 ml, 8", ø 37 x 200 mm, ASTM D 91/96 no. 15130 3 000 1/min 2143 x g
15130 Glass tube for mineral oil 100 ml, 8", ø 37 x 200 mm, ASTM D 91/96
16103 Rubber cushion for glass tube for mineral oil 100 ml, 8" no. 15130
13114 Bucket for 1 glass tube for mineral oil 100 ml, 6", ø 44 x 165 mm, ASTM D 96 no. 15132 3 000 1/min 1922 x g
15132 Glass tube for mineral oil, 6", ø 44 x 165 mm, ASTM D 96
16104 Rubber cushions for glass tube for mineral oil 100 ml, 6" no. 15132
13116 Bucket for 1 glass tube for mineral oil, pear-shaped, ø 59 x 160 mm, ASTM D 96 no. 15131 3 000 1/min 1741 x g
15131 Glass tube for mineral oil, 6", pear-shaped, ø 59 x 160 mm, ASTM D 96
16106 Rubber cushions for glass tube for mineral oil 100 ml, pear-shaped no. 15131


Mineral oil can be centrifugated better at higher temperatures. To be able to heat the mineral oil during centrifugation, the centrifuge SIGMA 6-15 with heating up to 60°C should be choosen.

Please observe that depending on the medium the glass tubes might break at centrifugal forces over 1 000 x g.


    Technical specifications SIGMA 6-15
Power supply [V/Hz] 230 / 50 or 120 / 60
Power consumption drive [W] 1200
Maximum rotational speed [rpm] 13 500
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 6 x 500
Interference suppression 55011 / B
Dimensions: Height x Width x Depth [mm] 425 x 574 x 685
Weight without accessories [kg] 116
Max. kinetic energy [Nm] 106950
Noise level at max. speed (approx.) [dB (A)]
Rotor 12500 at 8000 rpm 73
Rotor 11150 at 4000 rpm 75
Max. acceleration [s]
Rotor 12256 78
Rotor 11150 29
Max. deceleration [s]
Rotor 12256 108
Rotor 11150 28

SIGMA 4K15
  • Refrigerated table top centrifuge with built in refrigeration system.
  • Single-knob control with LCD-display.
  • Temperature control of rotors also during standstill. CFC-free refrigerant (R 404a).
  • Maintenance-free Brushless drive motor with exact speed preselection and display. Speed range 100 to 15 000 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for preselection of gravitational field, speed, rotor, time and temperature.
  • 20 acceleration and deceleration curves and 10 program memory locations are available.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Product according to national and international safety regulations (IEC 1010).
  • Available with free programming of all centrifugation parameters and 50 program memory locations as well.
  • Available with heating device up to 60°C
  • Available for use with laboratory robot.
  • Nr. 10740 for 230V50Hz


    Rotors     Accessories    Technical specifications

   Rotors and Accessories for the SIGMA 4K15 centrifuge

Rotors

Order. no. Description Max. rpm Max. rcf
12130 H Angle rotor 30 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid 15 000 1/min 25160 x g
12200 Angle rotor 100 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040 (2 lines, angle°) 9 600 1/min 16800/15640 x g
12168 H Angle rotor 20 x 10 ml, for tubes no. 15000, 15010, 15019, incl. hermetic lid 12 500 1/min 21480 x g
12172 H Angle rotor 12 x 30 ml, for tubes no. 15029, 15030, 15032, 15034, incl. hermetic lid 14 000 1/min 24100 x g
12176 H Angle rotor 6 x 50 ml for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 14 000 1/min 19940 x g
12166 H Angle rotor 8 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 14 000 1/min 21040 x g
12161 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 15 000 1/min 21480 x g
12165 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 14 000 1/min 21480 x g
12170 H Angle rotor for 12 Falcontubes 15 ml no. 15115, incl. hermetic lid 13 500 1/min 20376 x g
12169 H Angle rotor for 8 Falcontubes 50 ml no. 15151, incl. hermetic lid 13 500 1/min 21191 x g
12256 Angle rotor 6 x 250 ml for bottles 15247, 15248, 15249 9 600 1/min 13130 x g
11141 Swing-out rotor 48 x 15 ml complete, no. 11140, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 48 PS-tubes no. 15020 5 500 1/min 5340 x g
11157 Swing-out rotor 72 x 15 ml complete, no. 11156, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 72 PS-tubes no. 15020 5 100 1/min 5290 x g
11156 Swing-out rotor for 6 rectangular buckets no. 13115, 13127 5 100 1/min 5290/5550 x g
11140 Swing-out rotor for 4 rectangular buckets no. 13115, 13127 or buckets with screw cap no. 13118 5 500 1/min 5340/5650 x g
11150 Swing-out rotor for 4 buckets no. 13215, 13220, 13230, 13350, 13420, 13520, 13525, 13550 5 100 1/min 3007 - 5550 x g

The Centrifuge 4K15C (free programmable) is also designed to accommodate the deep-well Plate Rotor 2 x 96 and provides the necessary force of more than 5600 x g for centrifuging QIAGEN® 96-well plates.

 Accessories

Order no. Description Suitable for:
13215 Rectangular bucket for the system of rectangular carriers, closable with sealing caps 17112, 17113 11150
13220 Bucket for up to 2 microtiter plates 11150
13230 Bucket for 1 tube 250 ml no. 15250, 15251, 15254, ø57 x 135 mm, incl. rubber cushion 16250 11150
13115 Rectangular bucket, suitable for the system of rectangular carriers 11156 and 11140
13127 Rectangular bucket, suitable for the system of rectangular carriers, incl. sealing cap 17112 11156 and 11140
13235 Bucket for 5 Falcontubes 50 ml no. 15151 11150
13236 Bucket for 12 Falcontubes 15 ml no. 15115 11150
13350 Round bucket, aluminium, with thread, for carriers no. 17350-17405, closeable with sealing cap 17135 11150
15500 PC-bottle 500 ml incl. cap 13350/13550
15501 PP-bottle 500 ml incl. cap 13350/13550
17135 Round sealing cap for buckets 13350 and 13550 13350
17350 Round carrier for 24 reaction vials 0,5/0,75 ml  7,9/10 x 28/31 mm e.g. no. 15005 13350
17353 Round carrier for 16 e.g. Eppendorf reaction vials 1,5 to 2,2 ml no. 15008, 15040 13350
17354 Round carrier for 16 glass tubes 7 ml, Ø 12 x 100 mm no. 15007, 15027 13350
17355 Round carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13350
17356 Round carrier for 16 vacutainer/hemolyse/RIA tubes Ø 12 to 12,9/16 x 60/85 mm e.g. no. 15060 13350
17357 Round carrier for 10 tubes 15 ml with sealing cap Ø 17/19,4 x 107 mm e.g. Monovettes 13350
17358 Round carrier for 12 tubes 15 ml, max. Ø 17 x 115 mm no. 15015, 15020, 15023, 15024 13350
17359 Adapter for 9 Falcontubes 15 ml no. 15115 13350
17365 Round carrier for 5 glass tubes 25 ml no. 15025, 15026 13350
17370 Round carrier for 5 tubes with screw cap 30 ml ´no. 15029, 15030, 15032, 15034 13350
17375 Round carrier for 3 tubes 50 ml no. 15049, 15050, 15056 13350
17376 Round carrier for 3 tubes with screw cap 50 ml no. 15048, 15051, 15052, 15054 and stainless chromium steel tube no. 13055 13350
17377 Adapter for 4 Falcontubes 50 ml no. 15151 13350
17378 Round carrier for 4 Falcontubes 50 ml with standing rim 13350
17385 Round carrier for 1 tube with screw cap 80/85 ml no. 15074, 15075, 15076, 15080 and stainless chromium steel tube no. 13085 13350
17390 Round carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13350
17395 Round carrier for 1 bottle with screw cap 125 ml no. 15125 13350
17400 Round carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13350
17401 Round carrier for 1 tube 200 or 250 ml no. 15201, 15206, 15250 13350
17405 Round carrier for 1 bottle with screw cap 250 ml no. 13255, 15247, 15248, 15249 13350
18100 Rectangular carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13115, 13127, 13215
18050 Rectangular carrier for 2 tubes 50 ml no. 15049, 15050, 15056 13115, 13127, 13215
18025 Rectangular carrier for 5 glass tubes 25 ml no. 15025, 15026 13115, 13127, 13215
18015 Rectangular carrier for 12 tubes 15 ml no. 15015, 15020, 15023, 15024 13115, 13127, 13215
18007 Rectangular carrier for 20 glass tubes 7 ml 13115, 13127, 13215
18200 Rectangular carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13115, 13127, 13215
18000 Rectangular carrier, undrilled, can be drilled up to ø50 mm 13115, 13127, 13215
18005 Rectangular carrier for 20 RIA-tubes e.g. no. 15060 13115, 13127, 13215
18052 Rectangular carrier for 2 Falcontubes 50 ml no. 15151 13115, 13127, 13215
18016 Rectangular carrier for 4 Falcontubes 15 ml no. 15115 13115, 13127, 13215
18010 Rectangular carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13115, 13127, 13215

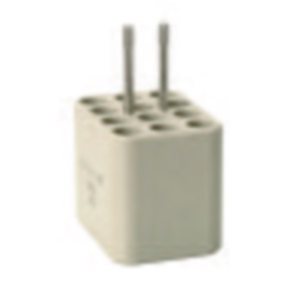

18012 Rectangular carrier for 12 Vacutainer-tubes, ø12/16 x 75/80 mm 13115, 13127, 13215



  Technical specifications SIGMA 4K15
Power supply [V/Hz] 230 / 50 or 220 / 60 or 240 / 60
Power consumption drive [W] 1200
Power consumption refrig. [W] 800
Maximum rotational speed [rpm] 15 000
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 4 x 500
Interference suppression 55011 / B
Dimensions: Height x Width x Depth [mm] 405x650x685
Weight without accessories [kg] 124
Max. kinetic energy [Nm] 63897
Noise level at max. speed (approx.) [dB (A)]
Rotor No. 12130 at 15000 rpm 68
Rotor No. 11150 at 5100 rpm 68
Max. acceleration [s]
Rotor No. 12130 34
Rotor No. 11140 16
Max. deceleration [s]
Rotor No. 12130 40
Rotor No. 11140 23
Min. rotor temperature at 23°C ambient temperature [°C]
Rotor No. 12130 at 15000 rpm < 0 °C
Rotor No. 11150 at 4800 rpm + 2 °C

SIGMA 4-15
  • Laboratory centrifuge, aircooled, for the universal use in laboratories.
  • Single-knob control with LCD-display.
  • Maintenance-free brushless drive motor with exact speed preselection and display. Speed range 100 to 13 500 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for preselection of gravitational field, speed, rotor, and time.
  • 20 acceleration and deceleration curves and 10 program memory locations are available.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Product according to national and international safety regulations (IEC 1010).
  • Available with free programming of the centrifugation paramaters and 50 program memory locations as well.
  • Available for use with laboratory robot.
  • Nr. 10730 für 230V50Hz


    Rotors     Accessories    Technical specifications

    Rotors and Accessories for the SIGMA 4-15 centrifuge


 Rotors

Order. no. Description Max. rpm Max. rcf
12130 H Angle rotor 30 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid 13 500 1/min 20380 x g
12200 Angle rotor 100 x 1.5 - 2.2 ml, e.g. Eppendorf reaction vials no. 15008, 15040 (2 lines) 9 000 1/min 14760/13750 x g
12168 H Angle rotor 20 x 10 ml, for tubes no. 15000, 15010, 15019, incl. hermetic lid 12 500 1/min 17120 x g
12172 H Angle rotor 12 x 30 ml, for tubes no. 15029, 15030, 15032, 15034, incl. hermetic lid 12 500 1/min 19220 x g
12176 H Angle rotor 6 x 50 ml for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 12 500 1/min 15900 x g
12166 H Angle rotor 8 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054, incl. hermetic lid 12 500 1/min 16770 x g
12161 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 13 500 1/min 20170 x g
12165 H Angle rotor 4 x 80/85 ml, for tubes no. 13095, 15074, 15075, 15076, 15080, incl. hermetic lid 12 500 1/min 17120 x g
12170 H Angle rotor for 12 Falcontubes 15 ml no. 15115, incl. hermetic lid 12 500 1/min 17469 x g
12169 H Angle rotor for 8 Falcontubes 50 ml no. 15151, incl. hermetic lid 12 500 1/min 18168 x g
12256 Angle rotor 6 x 250 ml for bottles 15247, 15248, 15249 8 000 1/min 10380 x g
11141 Swing-out rotor 48 x 15 ml complete, no. 11140, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 48 PS-tubes no. 15020 5 000 1/min 4420 x g
11157 Swing-out rotor 72 x 15 ml complete, no. 11156, incl. 4 rectangular buckets no. 13115, 4 rectangular carriers no. 18015 and 72 PS-tubes no. 15020 4 500 1/min 4120 x g
11156 Swing-out rotor for 6 rectangular buckets no. 13115, 13127 4 500 1/min 4120/4324 x g
11140 Swing-out rotor for 4 rectangular bucktes no. 13115, 13127 or buckets with screw cap no. 13118 5 000 1/min 4420/4668 x g
11150 Swing-out rotor for 4 buckets no. 13215, 13220, 13230, 13350, 13420, 13520, 13525, 13550 4 500 1/min 3007 - 4300 x g

The Centrifuge 4-15C (free programmable) is also designed to accommodate the deep-well Plate Rotor 2 x 96 and provides the necessary force of more than 5600 x g for centrifuging QIAGEN® 96-well plates.


 Accessories

Order no. Description Suitable for:
13215 Rectangular bucket for the system of rectangular carriers, closable with sealing caps 17112, 17113 11150
13220 Bucket for up to 2 microtiter plates 11150
13230 Bucket for 1 tube 250 ml no. 15250, 15251, 15254, ø57 x 135 mm, incl. rubber cushion 16250 11150
13235 Bucket for 5 Falcontubes 50 ml no. 15551 11150
13236 Bucket for 12 Falcontubes 15 ml no. 15115 11150
13115 Rectangular bucket, suitable for the system of rectangular carriers 11156 and 11140
13127 Rectangular bucket, suitable for the system of rectangular carriers, incl. sealing cap 17112 11156 and 11140
13350 Round bucket, aluminum, with thread for carriers no. 17350 - 17405, closeable with sealing cap 17135 11150
15500 PC-bottle 500 ml incl. cap, 13350,13550
15501 PP-bottle 500 ml incl. cap, 13350,13550
17135 Round sealing cap for buckets 13350 and 13550 13350
17350 Round carrier for 24 reaction vials 0,5/0,75 ml  7,9/10 x 28/31 mm e.g. no. 15005 13350
17353 Round carrier for 16 e.g. Eppendorfreaction vials 1,5 to 2,2 ml no. 15008, 15040 13350
17354 Round carrier for 16 glass tubes 7 ml, Ø 12 x 100 mm no. 15007, 15027 13350
17355 Round carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13350
17356 Round carrier for 16 vacutainer/hemolyse/RIA tubes Ø 12 to 12,9/16 x 60/85 mm e.g. no. 15060 13350
17357 Round carrier for 10 tubes 15 ml with sealing cap Ø 17/19,4 x 107 mm e.g. Monovettes 13350
17358 Round carrier for 12 tubes 15 ml, max. Ø 17 x 115 mm no. 15015, 15020, 15023, 15024 13350
17359 Adapter for 9 Falcontubes 15 ml no. 15115 13350
17365 Round carrier for 5 glass tubes 25 ml no. 15025, 15026 13350
17370 Round carrier for 5 tubes with screw cap 30 ml no. 15029, 15030, 15032, 15034 13350
17375 Round carrier for 3 tubes 50 ml no. 15049, 15050, 15056 13350
17376 Round carrier for 3 tubes with screw cap 50 ml no. 15048, 15051, 15052, 15054 and stainlees chromium steel tube no. 13055 13350
17377 Adapter for 4 Falcontubes 50 ml no. 15151 13350
17378 Round carrier for 4 Falcontubes 50 ml with standing rim 13350
17385 Round carrier for 1 tube with screw cap 80/85 ml no. 15074, 15075, 15076, 15080 and stainless chromium steel tube no. 13085 13350
17390 Round carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13350
17395 Round carrier for 1 bottle with screw cap 125 ml no. 15125 13350
17400 Round carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13350
17401 Round carrier for 1 tube 200 or 250 ml no. 15201, 15206, 15250, 15251, 15254 13350
17405 Round carrier for 1 bottle with screw cap 250 ml no. 13255, 15247, 15248, 15249 13350
18100 Rectangular carrier for 1 tube 100 ml no. 15100, 15102, 15103, 15106 13115, 13127, 13215
18050 Rectangular carrier for 2 tubes 50 ml no. 15049, 15050, 15056 13115, 13127, 13215
18025 Rectangular carrier for 5 glass tubes 25 ml no. 15025, 15026 13115, 13127, 13215
18015 Rectangular carrier for 12 tubes 15 ml no. 15015, 15020, 15023, 15024 13115, 13127, 13215
18007 Rectangular carrier for 20 glass tubes 7 ml 13115, 13127, 13215
18200 Rectangular carrier for 1 bottle with screw cap 200 ml no. 15202, 15203 13115, 13127, 13215
18000 Rectangular carrier, undrilled, can be drilled up to ø50 mm 13115, 13127, 13215
18005 Rectangular carrier for 20 RIA-tubes e.g. no. 15060 13115, 13127, 13215
18052 Rectangular carrier for 2 Falcontubes 50 ml no. 15151 13115, 13127, 13215
18016 Rectangular carrier for 4 Falcontubes 15 ml no. 15115 13115, 13127, 13215
18010 Rectangular carrier for 12 tubes with screw cap 10 ml no. 15000, 15010, 15019 13115, 13127, 13215
18012 Rectangular carrier for 12 Vacutainer-tubes, ø12/16 x 75/80 mm 13115, 13127, 13215

   Technical specifications SIGMA 4-15
Power supply [V/Hz] 230 / 50 or 120 / 60
Power consumption [W] 1200
Maximum rotational speed [rpm] 13 500
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 4 x 500
Interference suppression EN 55011 / B
Dimensions: Height x Width x Depth [mm] 405x490x685
Weight without accessories [kg] 82
Max. kinetic energy [Nm] 50486
Noise level at max. speed (approx.) [dB (A)]
Rotor 12130 at 13500 rpm 65
Rotor 11150 at 4500 rpm 75
Max. acceleration [s]
Rotor 12130 35
Rotor 11140 20
Max. deceleration [s]
Rotor 12130 38
Rotor 11140 20

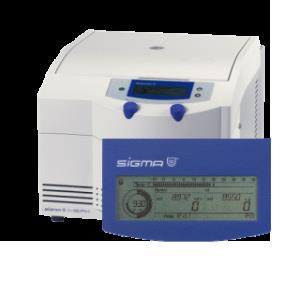

Sigma Centrifuge Refrigerated 2-16PK

  • refrigerated version of SIGMA 2-16P
  • Universal laboratory centrifuge;
    speed range up to 15.300 rpm
  • Possibility of pre-cooling the rotors during standstill;
    Refrigerant CFC-free (R 134 a)

Specification



Spincontrol Universal
Timer

10 sec - 11 h 59 min
Display

LCD
Plain text pop up windows

-
Time increments [sec]

10; 1
Short run

+
Continuous run

+
Speed increments [rpm]

100; 1
Permanent display preselected,
actual values

+
g-force increments [x g]

10; 1
Temperature increments [°C]

1
Programs

50
Program list shows all parameters

-
Linear acceleration curves

2
Quadratic acceleration curves

-
Acceleration or deceleration curves user defined

-
Linear deceleration curves

2
Quadratic deceleration curves

-
Brakeless

+
Auto lid open, switchable

+, +
Acoustic signal, switchable

+, +
Optical display stillstand

+
Signal length pre-selectable

-
Languages

English
Counting cycles centrifuge, each rotor

+, -
Stillstand cooling, switchable

+, -
All rotors pre programmed

+
Max. radius reducible

-
Calculation for liquid density >1,2 g/cm3

-
Start delay

-
Control unit lockable

+
4-digit code protection, free selectable

-

 Accessories for the SIGMA 2-16P centrifuge

Rotors

Order. No.

 Description

Max. rpm

Max. rcf

11124

 Swing-out rotor 24 x 1.5 / 2.2 ml, incl. 3 sets buckets no. 13124, incl. hermetic lid

12.500 1/min

12.927 x g

12148

 Angle rotor 24 x 1.5 / 2.2 ml e.g. for reaction vials no. 15008, 15040, incl. hermetic lid

15.000 1/min

20.627 x g

12133

 Angle rotor 30 x 1.5 / 2.2 ml e.g. reaction vials no. 15008, 15040, incl. hermetic lid

12.000 1/min

16.099 x g

12141

 Angle rotor 10 x 10 ml, e.g. for tubes no. 15000, 15010, incl. hermetic lid

13.500 1/min

15.485 x g

12139

 Angle rotor 6 x 30 ml, e.g. for tubes no. 15029, 15030, incl. hermetic lid

13.500 1/min

15.893 x g

12151

 Angle rotor 6 x 50 ml culture, e.g. for tubes no. 15151, incl. hermetic lid

7.800 1/min

6.462 x g

11190

 Swing-out rotor 4 x 100 ml complete, rotor no. 11192, 2 bucket sets no. 13097, 4 glass tubes no. 15100

4.500 1/min

3.056 x g

11191

 Swing-out rotor 16 x 15 ml complete, rotor no. 11192, incl. 2 sets carriers no. 13012, 16 PS-tubes no. 15020

4.500 1/min

3.034 x g

11192

 Swing-out rotor, 4 place, e.g. for buckets no. 13009, 13012, 13041, 13042, 13097, 13150, 13152

4.500 1/min

2.558/3.260 x g

11122

 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13222, max. height of plates 56 mm

3.000 1/min

1.238 x g

11123

 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13223, max. height of plates 50 mm

4.000 1/min

2.129 x g

12071

 Angle rotor for 12 x 15 ml culture, e.g. no. 15115 and 6 x 50 ml culture e.g no. 15151

4.000 1/min

2.254 x g

12072

 Angle rotor 20 x 15 ml complete, 10 sets buckets no. 13011, for tubes Ø 17 x up to 120 mm, Monovettes and culture tubes 15 ml

4.000 1/min

2.486 x g

12073

 Angle rotor 30 x 15 ml complete, incl. 15 sets buckets no. 13011, for tubes Ø 17 x up to 120 mm, Monovettes and culture tubes 15 ml

4.000 1/min

2.486 x g

11409

 Microhematocritrotor suitable for 24 capillary tubes Ø 1.5 x 75 mm, 50 µl

12.000 1/min

14.489 x g

12107

 Angle rotor, for 12 PCR-strips with 8 tubes 0.2 ml e.g no. 15042, incl. hermetic lid

12.000 1/min

15.777 x g

Accessories

Order no.

 Description

Suitable for:

13000

 Adapter for reaction vials 0.25/0.4 ml, no. 15014

12148, 12133, 11124

13002

 Adapter for reaction vials 0.5/0.75 ml, no. 15005

12148, 12133, 11124

13021

 Adapter for PCR-tube 0.2ml, no. 15042

12148, 12133, 11124

13009

 Multiple carrier for 5 RIA-tubes Ø 12 x 75 mm no. 15060

11192

13012

 Multiple carrier for 4 tubes 15 ml no. 15015, 15020, 15023, 15024

11192

13150

 Bucket with screw cap for 1 Falcon tube 50 ml no. 15151

11192

13059

 Adapter for 1 tube 10 ml, no. 15000, 15010, 15039, max. Ø 16.2/19 x 75 - 85 mm

12139

13060

 Adapter for 1 Falcon tube 15 ml no. 15115

12151, 13150

13041

 Bucket with screw cap, max. length of tubes 110 mm, for round carriers no. 14028, 14029, 14030, 14031, 14032, 14033, 14034, 14035

11192

13152

 Multiple carrier for 2 culture tubes 15 ml

11192

13079

 Adapter for 1 tube 50 ml, no. 15052, 15054

12151

13097

 Bucket for 1 tube 100 ml, no. 15100, 15102, 15103, 15106

11192

14028

 Adapter for 4 reaction vials, no. 15008, 15040

13041

14029

 Adapter for 5 tubes 5 - 7 ml, max. Ø 12.5/15 x 65 - 105 mm

13041

14030

 Adapter for 4 tubes 10 - 15 ml, max. Ø 16.2/17.5 x 80 - 110 mm

13041

14031

 Adapter for 1 tube 25 - 30 ml, max. Ø 25/30 x 70 - 105 mm

13041

14032

 Adapter for 1 tube 50 ml, max. Ø 35/38 x 70 - 105 mm

13041

14033

 Adapter for 4 tubes 5 ml, max. Ø 13.5/17.5 x 70 - 110 mm

13041

14034

 Adapter for 3 tubes 15 ml, max. Ø 17.3/19 x 80 - 110 mm

13041

14035

 Adapter for 1 Sterilin-tube 30 ml with cap, flat bottom, Ø 25/31 x 65 - 95 mm

13041

13037

 Multiple carrier for 6 x 5 - 15 ml 17/19 x 90 - 110, Monovettes

11192

13064

 Adapter for 1 x 30 ml 25/31 x 65 mm Sterilin no. 3008

13150

Technical specifications

Technical data

2-16P
Power consumption [W]

240
Max. capacity [ml]

4 x 120
Max. speed [rpm]

15.000
Min. speed [rpm]

100
Interference suppression

EN 61326
Height x Width x Depth [mm]

300 x 365 x 452
Height with open lid [mm]

610
Weight without rotor [kg]

32
Kinetic energy max. [Nm]

7.750
Noise level at max. speed (approx.)
- rotor 12148
- rotor 11190


<67 dB(A)
-
Max. acceleration [sec]
- rotor 12148
- rotor 11190


33
36
Max. deceleration [sec]
- rotor 12148
- rotor 11190


27
20
Temperature setting range [°C]

-

Sigma Centrifuge 2-16P



  • Universal laboratory centrifuge for swing-out and angle rotors
  • Spincontrol Universal
  • Illuminated keys for start, stop, lid open
  • For sedimentation up to 4 x 120 ml in swing-out-rotors or up to 20.000 x g in angle rotors
  • Brushless drive practically maintenance-free
  • Speed pre-selection up to 15.000 rpm
  • Low speed operation from 100 rpm possible
  • A magnetic rotor identification prevents rotors from over-speeding
  • Stainless steel bowl
  • Imbalance switch
  • No need to open the casing for emergency lid lock release
  • Easy lid opening due pneumatic spring support
  • Window in the centrifuge lid for external speed control
  • Produced according to national and international safety regulations (e.g. IEC 1010)
  • Additional versions are available:

    SIGMA 2-16PK - refrigerated version of 2-16P

    SIGMA 2-16KC - with control unit Spincontrol Comfort

    SIGMA 2-16KCH - heated version of 2-16KC


Specification



Spincontrol Universal
Timer

10 sec - 11 h 59 min
Display

LCD
Plain text pop up windows

-
Time increments [sec]

10; 1
Short run

+
Continuous run

+
Speed increments [rpm]

100; 1
Permanent display preselected,
actual values

+
g-force increments [x g]

10; 1
Temperature increments [°C]

1
Programs

50
Program list shows all parameters

-
Linear acceleration curves

2
Quadratic acceleration curves

-
Acceleration or deceleration curves user defined

-
Linear deceleration curves

2
Quadratic deceleration curves

-
Brakeless

+
Auto lid open, switchable

+, +
Acoustic signal, switchable

+, +
Optical display stillstand

+
Signal length pre-selectable

-
Languages

English
Counting cycles centrifuge, each rotor

+, -
Stillstand cooling, switchable

+, -
All rotors pre programmed

+
Max. radius reducible

-
Calculation for liquid density >1,2 g/cm3

-
Start delay

-
Control unit lockable

+
4-digit code protection, free selectable

-

Accessories for the SIGMA 2-16P centrifuge

Rotors

Order. No.

 Description

Max. rpm

Max. rcf

11124

 Swing-out rotor 24 x 1.5 / 2.2 ml, incl. 3 sets buckets no. 13124, incl. hermetic lid

12.500 1/min

12.927 x g

12148

 Angle rotor 24 x 1.5 / 2.2 ml e.g. for reaction vials no. 15008, 15040, incl. hermetic lid

15.000 1/min

20.627 x g

12133

 Angle rotor 30 x 1.5 / 2.2 ml e.g. reaction vials no. 15008, 15040, incl. hermetic lid

12.000 1/min

16.099 x g

12141

 Angle rotor 10 x 10 ml, e.g. for tubes no. 15000, 15010, incl. hermetic lid

13.500 1/min

15.485 x g

12139

 Angle rotor 6 x 30 ml, e.g. for tubes no. 15029, 15030, incl. hermetic lid

13.500 1/min

15.893 x g

12151

 Angle rotor 6 x 50 ml culture, e.g. for tubes no. 15151, incl. hermetic lid

7.800 1/min

6.462 x g

11190

 Swing-out rotor 4 x 100 ml complete, rotor no. 11192, 2 bucket sets no. 13097, 4 glass tubes no. 15100

4.500 1/min

3.056 x g

11191

 Swing-out rotor 16 x 15 ml complete, rotor no. 11192, incl. 2 sets carriers no. 13012, 16 PS-tubes no. 15020

4.500 1/min

3.034 x g

11192

 Swing-out rotor, 4 place, e.g. for buckets no. 13009, 13012, 13041, 13042, 13097, 13150, 13152

4.500 1/min

2.558/3.260 x g

11122

 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13222, max. height of plates 56 mm

3.000 1/min

1.238 x g

11123

 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13223, max. height of plates 50 mm

4.000 1/min

2.129 x g

12071

 Angle rotor for 12 x 15 ml culture, e.g. no. 15115 and 6 x 50 ml culture e.g no. 15151

4.000 1/min

2.254 x g

12072

 Angle rotor 20 x 15 ml complete, 10 sets buckets no. 13011, for tubes Ø 17 x up to 120 mm, Monovettes and culture tubes 15 ml

4.000 1/min

2.486 x g

12073

 Angle rotor 30 x 15 ml complete, incl. 15 sets buckets no. 13011, for tubes Ø 17 x up to 120 mm, Monovettes and culture tubes 15 ml

4.000 1/min

2.486 x g

11409

 Microhematocritrotor suitable for 24 capillary tubes Ø 1.5 x 75 mm, 50 µl

12.000 1/min

14.489 x g

12107

 Angle rotor, for 12 PCR-strips with 8 tubes 0.2 ml e.g no. 15042, incl. hermetic lid

12.000 1/min

15.777 x g

Accessories

Order no.

 Description

Suitable for:

13000

 Adapter for reaction vials 0.25/0.4 ml, no. 15014

12148, 12133, 11124

13002

 Adapter for reaction vials 0.5/0.75 ml, no. 15005

12148, 12133, 11124

13021

 Adapter for PCR-tube 0.2ml, no. 15042

12148, 12133, 11124

13009

 Multiple carrier for 5 RIA-tubes Ø 12 x 75 mm no. 15060

11192

13012

 Multiple carrier for 4 tubes 15 ml no. 15015, 15020, 15023, 15024

11192

13150

 Bucket with screw cap for 1 Falcon tube 50 ml no. 15151

11192

13059

 Adapter for 1 tube 10 ml, no. 15000, 15010, 15039, max. Ø 16.2/19 x 75 - 85 mm

12139

13060

 Adapter for 1 Falcon tube 15 ml no. 15115

12151, 13150

13041

 Bucket with screw cap, max. length of tubes 110 mm, for round carriers no. 14028, 14029, 14030, 14031, 14032, 14033, 14034, 14035

11192

13152

 Multiple carrier for 2 culture tubes 15 ml

11192

13079

 Adapter for 1 tube 50 ml, no. 15052, 15054

12151

13097

 Bucket for 1 tube 100 ml, no. 15100, 15102, 15103, 15106

11192

14028

 Adapter for 4 reaction vials, no. 15008, 15040

13041

14029

 Adapter for 5 tubes 5 - 7 ml, max. Ø 12.5/15 x 65 - 105 mm

13041

14030

 Adapter for 4 tubes 10 - 15 ml, max. Ø 16.2/17.5 x 80 - 110 mm

13041

14031

 Adapter for 1 tube 25 - 30 ml, max. Ø 25/30 x 70 - 105 mm

13041

14032

 Adapter for 1 tube 50 ml, max. Ø 35/38 x 70 - 105 mm

13041

14033

 Adapter for 4 tubes 5 ml, max. Ø 13.5/17.5 x 70 - 110 mm

13041

14034

 Adapter for 3 tubes 15 ml, max. Ø 17.3/19 x 80 - 110 mm

13041

14035

 Adapter for 1 Sterilin-tube 30 ml with cap, flat bottom, Ø 25/31 x 65 - 95 mm

13041

13037

 Multiple carrier for 6 x 5 - 15 ml 17/19 x 90 - 110, Monovettes

11192

13064

 Adapter for 1 x 30 ml 25/31 x 65 mm Sterilin no. 3008

13150

Technical specifications

Technical data

2-16P
Power consumption [W]

240
Max. capacity [ml]

4 x 120
Max. speed [rpm]

15.000
Min. speed [rpm]

100
Interference suppression

EN 61326
Height x Width x Depth [mm]

300 x 365 x 452
Height with open lid [mm]

610
Weight without rotor [kg]

32
Kinetic energy max. [Nm]

7.750
Noise level at max. speed (approx.)
- rotor 12148
- rotor 11190


<67 dB(A)
-
Max. acceleration [sec]
- rotor 12148
- rotor 11190


33
36
Max. deceleration [sec]
- rotor 12148
- rotor 11190


27
20
Temperature setting range [°C]

-



Refrigerated centrifuge SIGMA 1-15K



  • Refrigerated table top centrifuge for sedimentation in microtubes.
  • Maintenance-free brushless drive motor with speed preselection and display.
    Speed range 100 to 14000 rpm.
  • Extremely smooth running even at maximum speed.
  • Simple 2-knob preselection of speed/RCF, time and temperature.
  • Short run with display in seconds cycle.
  • Indication of speed/RCF, time and temperature.
  • Temperature control of rotors also during standstill.
  • Efficient refrigerating machine for temperatures between -10 and +40 °C
  • Double lid lock device with latches according to VBG 7z.
  • Imbalance sensor with indication.
  • Product complient with national and international safety  regulations
    (IEC 1010, CE).
  • No. 10690 for 230V 50+60 Hz.
  • No. 10691 for 120V 60 Hz.
  • No. 10692 for 100 V 50+60 Hz.


   Rotors     Accessories      Technical Specifications



   Rotors and Accessories for the SIGMA 1-15K centrifuge


Rotors


Order. no.  Description  Max. rpm  Max. rcf
12124 PP-angle rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. PC lid

14 000 1/min

17970 x g
12024 Alu-angle rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14 000 1/min

17970 x g
12132 Alu-angle rotor 30 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14 000 1/min

21918 x g
11124 Swing-out rotor 24 x 2,2/1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid

14 000 1/min

16219 x g
12031 PP-angle rotor for 40 reaction vials 0.25 or 0.4 ml no. 15014, incl. PC lid

14 000 1/min

17530 x g
09336 PP-angle rotor for 30 vials 0. 5 or 0.7 ml no. 15005, incl. PC lid

14 000 1/min

17970 x g


Accessories

Order no.  Description  Suitable for:
13000  Adapter for reaction vials 0,25/0,4 ml no. 15014  12024, 12124, 12132, 11124
13002  Adapter for Eppendorf reaction vials 0.5/0.75 ml, ø 7.9/10 x 28/31 mm no. 15005  12024, 12124, 12132, 11124
13021 Adapter for PCR tubes 0,2 ml 12024, 12124, 12132, 11124



   Technical specifications SIGMA 1-15K
Power supply  100V/50+60Hz, 120V/60Hz
230V/50+60Hz
Power consumption drive 200 W
Power consumption refrig.  300 W
Maximum rotational speed  14 000 1/min
Minimum rotational speed 100 1/min
Maximum capacity 30 x 2,2 ml
Interference suppression  EN 55011 Kl. B
Dimensions: Height x Width x Depth  300x365x585 mm
Weight without accessories  41 kg
Max. kinetic energy 8723 Nm
Noise level at max. speed < 56 [dB (A)]
Max. acceleration 18 s
Max. deceleration 20 s

SIGMA 1-15 microcentrifuge
  • Centrifuge for sensitive sedimentations, for biotechnology, microbiological research, biochemistry and molecular biology, for DNA.
  • Brushless drive motor practically maintenance-free.
  • Low noise level through modern drive system.
  • Short acceleration and deceleration of the standard rotor.
  • Time preselection up to 30 min., short run or continous operation.
  • Electric brake.
  • Doube lid locking and closing device.
  • Low speed operation from 100 rpm possible.
  • Modern design.
  • Simple operation is a special feature of this centrifuge. Operation with two knobs only.
  • Time display in sec. or min.
  • LCD-display of run-time, speed and RCF. Illuminated keys for start, lid and brake.
  • Steel housing for optimal safety and stability.
  • Optimum safety complying to national and international regulations (e.g. IEC 1010), bearing the CE and GS-mark.
  • Nr. 10115 für 230V50/60Hz.


   Rotors & Accessories     Technical Specifications



   Rotors and Accessories for the SIGMA 1-15 centrifuge


Rotors

Order. no. Description Max. rpm Max. rcf
12124 Angle rotor made of polypropylene, 24 x 2,2-1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. lid 14 000 1/min 17970 x g
11024 Microhematocritrotor 24 x Ø 1,57 x 17 mm 14 000 1/min 18840 x g


Accessories

Order no. Description Suitable for:
13000 Adapter for reaktion vials 0,25/0,4 ml no. 15014 Rotor 12124
13002 Adapter for 1.5 ml Eppendorf reaction vials 0.5/0,75 ml, ø 7.9/10 x 28/31 mm no. 15005 Rotor 12124
15001 Cappilars, Ø 1,5 x 75 mm, 200 pieces 11024
17005 Cappilary tube sealing putty (6 plates) 15001
17024 Reader 11024



   Technical specifications SIGMA 1-15
Power supply [V/Hz] 230 / 50  / 60 or 120 / 60
Power consumption [W]   240
Maximum rotational speed [1/min] 14 000
Maximum capacity [ml] 24 x 2,2
Interference suppression EN 55011 / B
Dimensions: Height x Width x Depth [mm]   245 x 240 x 320
Weight without accessories [kg]   13
Max. kinetic energy [Nm]   1480

Centrifuges - Floor Standing - Sanyo and Sigma

The Sigma 8K is the successor model of the Sigma 8K10 and in its current design in the market since 2006. The centrifuge has proven performance in blood bag centrifugation in many blood banks around the world. The users highly appreciate the excellent sedimentation results, which are enabled by an optimized drive system, ensuring low vibrations in particular during the critical slow-down phase. Furthermore quiet operation, fast cooling as well as comfortable handling and loading of the blood bag adapters are attested.


A selection of relevant features is highlighted below:

Rapid Temp
The Rapid Temp function realizes fast cooling and thus enables fast switching between temperatures for different processes. Cooling from 20 °C to 4 °C will be completed in less than 40 min. This result is valid for the interior of the bucket and use of a windshield rotor. (Without windshield the cooling is even faster, however the max. rpm are slightly lower.)
The Sigma 8K features superior cooling performance to temperatures well below 0 °C, and more importantly fulfils the specification of “Guaranteed 4 °C At Max. Speed For All Rotors” (also valid for the rotor with optional windshield).

Start Delay
Start Delay is typically used to have the centrifuge ready for use in the morning. The centrifuge can be preset to start cooling, or even the complete processing ahead of time, by simple input of the number of hh:min until start.

Ease of operation
Specific centrifugation processes can be easily programmed and saved under an intuitive name, e.g. “PRP soft” for the soft-spin processing of platelet rich plasma with preset parameters, or “Cryo” starting the production process of cryoprecipitate with preset parameters. The programs include all parameters, i.e. also individual acceleration and deceleration curves.

Code
The user-defined programs can be protected by a 4-digit code, in order to eliminate the risk of accidental changes to the process parameters. This ensures maximum process safety and user friendliness, since normal users can very conveniently select the programs, while changing of the programming can only be done with a key user code.

Blood bag adapters
An updated design of the blood bag adapters has been released in May 2010. The adapters are available in three sizes, and feature extended life-time and safe standing on a table.

• Compact refrigerated floor standing centrifuge for use in blood banks
• Capacity up to 12 blood bags in swing-out rotor
• Solid construction, suitable for continous use
• Maintenance-free drive, high imbalance tolerance up to approx. 80 g
• Speed range 100 - 10.500 rpm
• Automatic rotor identification prevents spinning rotors overspeed
• Efficient refrigeration; temperature adjustable between -20 °C and +40 °C, standstill cooling, with refrigerant R404a
• Stainless steel chamber
• The lid is hinged on the left hand side
• Easy open the centrifuge lid via pneumatic springs
• Two motorized lid locks provide safe, assured lid-locking
• Power failure, emergency lid opening
• Ergonomic loading height of just 88 cm
• The user friendly control unit is integrated in the front panel
• Centrifuge fits through a door opening of only 82 cm
• The centrifuge stands on movable castors an adjustable feet to even out the floor
• Easily serviceable
• All international standards are met, e.g. IEC 1010, CE, WEEE

Technical Information

Model: 8k
Power consumption [kW]  6.5
Max. capacity [ml] 6 x 1000
Max. speed [rpm] 10,500
Max. RCF [xg] 8,578xg
Min. speed [rpm] 100
Dimensions: h x d x w [mm] 980 x 910 x 810
Height with open lid [mm] 1690
Weight [kg] - without rotor 420
Max. kinetic energy [Nm] 279
Interference suppression EN 61326


Centrifuges - Benchtop - Sigma

Sigma 6-16


Replacing the 6-15, the 6-16 is a Very Large Capacity (6 x 500ml), High Speed Bench Centrifuge

Features include:

Maintenance-free brushless drive motor with exact speed preselection and display.
Speed range 100 to 13500 rpm, accuracy 1 rpm.
Extremely smooth running even at maximum speed.
20 curves for acceleration and deceleration. 50 programs can be stored.
Magnetic rotor identification prevents overspeeding rotors.

Sigma 6-16K

Replacing the 6K15, the 6-16K is a Very Large Capacity (6 x 500ml), High Speed Bench Centrifuge (refrigerated version of 6-16)

Features include:

Maintenance-free brushless drive motor with exact speed preselection and display.
Speed range 100 to 13500 rpm, accuracy 1 rpm.
Extremely smooth running even at maximum speed.
20 curves for acceleration and deceleration. 50 programs can be stored.
Magnetic rotor identification prevents overspeeding rotors.


Technical Information

Model: 6-16 6-16K
Power consumption [W]  1680 2280
Max. capacity [ml] 4 x 800 4 x 800
Max. speed [rpm] 13500 15000
Max. RCF [xg] 20,376xg 25,155xg
Min. speed [rpm] 100 100
Dimensions: h x d x w [mm] 483 x 581 x 711 485 x 790 x 711
Height with open lid [mm] 990 990
Weight [kg] - without rotor 116 158
Max. kinetic energy [Nm] 106950 154007
Interference suppression EN 61326 EN 61326






Sigma Centrifuge 6-15 / 6-15K



SIGMA 6-15 laboratory centrifuge
  • Laboratory centrifuge, air-cooled, for universal high volume use.
  • Single-knob control with LCD-display.
  • Maintenance-free brushless drive motor with exact speed pre-selection and display.
  • Speed range 100 to 13 500 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for pre-selection of gravitational field, speed, rotor, and time.
  • New: Easy handling by one control knob for all centrifugation parameters, LCD-display.
  • 20 curves for acceleration and deceleration. 50 programs can be stored.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Optimum safety complying to national and international regulations (e.g. IEC 1010), bearing the CE and GS-mark.
  • Free programming of all centrifugation parameters.
  • Also available with heating device up to 70°C

Technical Specifications Sigma 6-15

Power supply [V/Hz] 230 / 50
Power consumption drive [W] 1.200
Maximum rotational speed [rpm] 13.500
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 6 x 500
Interference suppression EN 61326
Dimensions: Height x Width x Depth [mm] 425 x 570 x 685
Weight without accessories [kg]g 116
Max. kinetic energy [Nm] 106.950
Noise level at max. speed (approx.) [dB (A)]
Rotor 12500 at 8000 rpm 73
Rotor 11150 at 4000 rpm 75
Max. acceleration [s]
Rotor 12256 78
Rotor 11150 29
Max. deceleration [s]
Rotor 12256 108
Rotor 11150 28
Refrigerated centrifuge SIGMA 6K15

  • High capacity table top centrifuge with built-in refrigeration system.
  • Single-knob control with LCD-display.
  • Temperature control of rotors also during stand-stil. CFC-free refrigerant (R 404a).
  • Maintenance-free brushless drive motor with exact speed pre-selection and display. Speed range 100 to 15 000 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for pre-selection of gravitational field, speed, rotor, time and temperature.
  • 20 curves for acceleration and deceleration. 50 programs can be stored.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Optimum safety complying to national and international regulations (e.g. IEC 1010), bearing the CE and GS-mark.
  • Free programming of all centrifugation parameters.
  • Motorized lid lock system.
  • Available with heating device up to 60°C
  • Available for use with laboratory robot.
  • Available with water-cooled refrigerating unit

Technical Specifications Sigma 6-15K

Power supply [V/Hz] 230 / 50
Power consumption drive [W] 1.200
Power consumption refrig. [W] 1.000
Maximum rotational speed [rpm] 15.000
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 6 x 500
Interference suppression EN 61326
Dimensions: Height x Width x Depth [mm] 425 x 780 x 685
Weight without accessories [kg] 158
Max. kinetic energy [Nm] 154.007
Noise level at max. speed (approx.) [dB (A)]
Rotor 12256 at 10000 rpm 70
Rotor 11150 at 4500 rpm 63
Max. acceleration [s]
Rotor 12256 110
Rotor 11150 29
Max. deceleration [s]
Rotor 12256 140
Rotor 11150 34
Min. rotor temperature at 23°C ambient temperature [°C]
Rotor 12256 at 10000 rpm < +8°C
Rotor 11150 at 4500 rpm < +4°C

Centrifuges - Benchtop - Sigma




Sigma 4-16

Replacing the Sigma 4-15 this laboratory centrifuge is aircooled, for universal use in laboratories with a speed range 100 to 13 500 rpm and accuracy to 1 rpm

Features include:

Single-knob control with LCD-display.
Maintenance-free brushless drive motor with exact speed preselection and display.
Extremely smooth running even at maximum speed.
20 acceleration and deceleration curves and 10 program memory locations are available.
Magnetic rotor identification prevents overspeeding rotor
Available with free programming of the centrifugation paramaters and 50 program memory locations as well.
Available for use with laboratory robot.
Available for use with cover opens via a linear drive

Sigma 4-16K

Replacing the Sigma 4K15 this laboratory centrifuge is aircooled, for universal use in laboratories with a speed range 100 to 13 500 rpm and accuracy to 1 rpm< (refrigerated version of 4-16)

Features include:

Single-knob control with LCD-display.
Maintenance-free brushless drive motor with exact speed preselection and display.
Extremely smooth running even at maximum speed.
20 acceleration and deceleration curves and 10 program memory locations are available.
Magnetic rotor identification prevents overspeeding rotor
Available with free programming of the centrifugation paramaters and 50 program memory locations as well.
Available for use with laboratory robot.
Available for use with cover opens via a linear drive

Technical Information

Model: 4-16 4-16K
Power consumption [W]  1680 2280
Max. capacity [ml] 500 x 4 500 x 4
Max. speed [rpm] 13,500 15,000
Max. RCF [xg] dependant on rotor and tubes used
Min. speed [rpm] 100 100
Dimensions: h x d x w [mm] 489 x 650 x 496 489 x 650 x 570
Height with open lid [mm] 940 940
Weight [kg] - without rotor 82 124
Max. kinetic energy [Nm] 50.486 63.897
Interference suppression EN61326 EN61326
Noise level at max speed [dB] -Appox 73 60 - 63

Sigma Centrifuge 4-15 / 4-15K



SIGMA 4-15 laboratory centrifuge
  • Laboratory centrifuge, air-cooled, for the universal use in laboratories.
  • Single-knob control with LCD-display.
  • Maintenance-free brushless drive motor with exact speed pre-selection and display. Speed range 100 to 13 500 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for pre-selection of gravitational field, speed, rotor, and time.
  • 20 acceleration and deceleration curves and 10 program memory locations are available.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Product according to national and international safety regulations (IEC 1010).
  • Available with free programming of the centrifugation parameters and 50 program memory locations as well.
  • Available for use with laboratory robot.
  • Available for use with cover opens via a linear drive.Nr. 10730 for 230V50Hz

Technical Specifications - Sigma 4-15

Power supply [V/Hz] 230 / 50 or 120 / 60
Power consumption [W] 1.200
Maximum rotational speed [rpm] 13.500
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 4 x 500
Interference suppression EN 61326
Dimensions: Height x Width x Depth [mm] 405 x 490 x 685
Weight without accessories [kg] 82
Max. kinetic energy [Nm] 50.486
Noise level at max. speed (approx.) [dB (A)]
Rotor 12130 at 13500 rpm 65
Rotor 11150 at 4500 rpm 75
Max. acceleration [s]
Rotor 12130 35



SIGMA 4-15K laboratory centrifuge
  • Refrigerated table top centrifuge with built in refrigeration system.
  • Single-knob control with LCD-display.
  • Temperature control of rotors also during standstill. CFC-free refrigerant (R 404a).
  • Maintenance-free brushless drive motor with exact speed pre-selection and display. Speed range 100 to 15 000 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for pre-selection of gravitational field, speed, rotor, time and temperature.
  • 20 acceleration and deceleration curves and 10 program memory locations are available.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Product according to national and international safety regulations (IEC 1010).
  • Available with free programming of all centrifugation parameters and 50 program memory locations as well.
  • Available with heating device up to 60°C
  • Available with water-cooled refrigerating unit
  • Available for use with laboratory robot.
  • Available for use with cover opens via a linear drive, alternatively window in lid
  • No. 10740 for 230V 50Hz

Technical Specifications - Sigma 4-15K

Power supply [V/Hz] 230 / 50
Power consumption drive [W] 1.200
Power consumption refrig. [W] 800
Maximum rotational speed [rpm] 15.000
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 4 x 500
Interference suppression EN 61326
Dimensions: Height x Width x Depth [mm] 405 x 650 x 685 mm
Weight without accessories [kg] 124
Max. kinetic energy [Nm] 63.897
Noise level at max. speed (approx.) [dB (A)]
Rotor No. 12130 at 15000 rpm 68
Rotor No. 11150 at 5100 rpm 68
Max. acceleration [s]
Rotor No. 12130 34
Rotor No. 11140 16
Max. deceleration [s]
Rotor No. 12130 40
Rotor No. 11140 23
Min. rotor temperature at 23°C ambient temperature [°C]
Rotor No. 12130 at 15.000 rpm < 0 °C
Rotor No. 11150 at 4.800 rpm + 2 °C




Sigma Refrigerated Centrifuge 3-30K



  • High speed refrigerated table top centrifuge for centrifugal forces of up to and more than 60 000 x g.
  • Single-knob control with LCD-display.
  • Efficient cooling system, pre-selection from -20°C to +40°C.
  • Maintenance-free brushless drive motor, controlled by a microcontroller. No changing of motorbrushes, no carbon dust, unusually quiet operation.
  • 20 curves for acceleration and deceleration (10 quadratic; 10 linear), altogether 50 programs can be stored. With free programming of all centrifugation parameters including possibility of pre-cooling the rotor during standstill.
  • Speed range from 20 to 30 000 rpm., selectable in steps of 1 rpm. Alternatively the selection and display may be toggled to gravitational field instead of rotor speed even during operation.
  • Magnetic rotor identification prevents over-speeding rotors.
  • Simple operation e.g.: for routine research use, start/stop button on the front of the centrifuge.
  • Motorized (Soft close) lid lock system.
  • Time pre-setting infinite or up to 9h 59min.
  • Available with heating device up to 60°C.

Technical Specifications

Power Supply

230 V / 50 Hz

Power consumption drive

700 Watt

Power consumption refrig.

560 Watt

Maximum rotational speed

30.000 1/min

Maximum capacity

6 x 85 ml

Interference suppression

EN 61326

Dimensions: Height x Width x Depth

400 x 550 x 650 mm

Weight without accessories

100 kg

Max. kinetic energy

max. 43.753 Nm

Accessories for the SIGMA 3K30 centrifuge

Rotors

Order. no.

Description

Max. rpm

Max. rcf

12159

Angle rotor 6 x 80/85 ml, for tubes no. 13085, 15074, 15075, 15076, 15080

15.500 1/min

26.323 x g

12156

Angle rotor 8 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054

16.500 1/min

29.220 x g

12155

Angle rotor 4 x 80/85 ml, for tubes no. 13085, 15074, 15075, 15076, 15080

20.000 1/min

40.695 x g

12158

Angle rotor 6 x 30 ml, for tubes no. 15029, 15030, 15032, 15034

26.200 1/min

60.628 x g

12150

Angle rotor 6 x 50 ml, for tubes no. 13055, 15048, 15051, 15052, 15054

21.000 1/min

41.415 x g

12157

Angle rotor 20 x 10 ml, for tubes no. 15000, 15010, 15019

16.000 1/min

28.048 x g

12111

Angle rotor 10 x 10 ml, for tubes no. 15000, 15010, 15019

26.000 1/min

57.438 x g

12154

Angle rotor 24 x 2,2 - 1,5 ml, e.g. reaction vials no. 15008, 15040

26.000 1/min

61.973 x g

12110

Angle rotor 12 x 1,5 - 2,2 ml, e.g. reaction vials no. 15008, 15040

30.000 1/min

64.397 x g

19776

Angle rotor for 6 Falcon tubes 50 ml no. 15151

14.000 1/min

20.379 x g

12171

Angle rotor 12 x 15 ml culture tubes

13.500 1/min

2.072 x g

11390

Rotor fo 4 buckets

5.000 1/min

3.773 x g

11391

Swing-out rotor 4 x 100 ml

5.000 1/min

3.773 x g

11136

Drum rotor for 6 inserts No. 14000, 14002, 14020, 14021, for reaction tubes (max. 60/120 pcs.), incl. lid

16.000 1/min

20.035 x g

11222

Rotor for 2-6 Mikrotiter-plates, max. height of plates 56 mm

3.000 1/min

1.238 x g

12112

Angle rotor 12 x 15 ml, for Greiner No. 187261, max. Ø 17/22 x 95 - 100 mm

14.000 1/min

21.913 x g

12131

Angle rotor 30 x 1,5/2,2 ml, for reaction tube

20.000 1/min

44.720 x g

12348

Angle rotor 48 x 1,5/2,2 ml

15.300 1/min

21.984 x g

11392

Swing-out rotor 16 x 15 ml

5.000 1/min

3.750 x g

Accessories

Order. no.

Description

Suitable for:

15074

Tube made of polycarbonate 80 ml, incl. special screw cap made of aluminium with seal for high speeds, ø38 x 112 mm

12159 and 12155

15076

Tube made of polycarbonate 80 ml, incl. screw cap, ø38 x 112 mm

12159 and 12155

15080

Tube made of polyflor 80 ml, incl. screw cap, ø38 x 112 mm

12159 and 12155

15054

Tube made of polycarbonate 50 ml, incl. screw cap, ø28.5 x 107 mm

12156 and 12150

15051

Tube made of teflon 50 ml, incl. screw cap, ø28.5 x 107 mm

12156 and 12150

15052

Tube made of polypropylene 50 ml, incl. screw cap, ø28.5 x 107 mm

12156 and 12150

15030

Tube made of polycarbonate 30 ml, incl. screw cap, ø25.3 x 92 mm

12158

15032

Tube made of polypropylene 30 ml, incl. screw cap, ø25.3 x 92 mm

12158

15029

Tube made of teflon 30 ml, incl. screw cap, ø25.3 x 92 mm

12158

15010

Tube made of polycarbonate 10 ml, incl. screw cap, ø16.1 x 81.1 mm

12157 and 12111

15019

Tube made of polyallomer 10 ml, incl. screw cap, ø16.1 x 81.1 mm

12157 and 12111

15000

Tube made of teflon 10 ml, incl. screw cap, ø16.1 x 81.1 mm

12157 and 12111

13000

Adapter for reaction tube 0,25/0,4 ml

Rotors for 1,5/2,2 ml

13002

Adapter for reaction tubes 0,5/0,75 ml

Rotors for 1,5/2,2 ml

13021

Adapter for PCR-tube 0,2 ml

Rotors for 1,5/2,2 ml

13059

Adapter for 1 tube 10 ml, No. 15000, 15010, 15039, max. Ø 16,2/19 x 75 - 85 mm

12158

13060

Adapter for 1 culture tube 15 ml

1315, 19776

13062

Adapter for 1 Greiner-tube with cap 15 ml, Ø 17/22 x 75 - 100 mm

12150

13063

Adapter for 1 Greiner-tube with cap 15 ml, Ø 17/22 x 75 - 100 mm

12159

13079

Adapter for 1 tube 50 ml

19776

13080

Adapter for 1 culture tube 50 ml

12159

13081

Adapter for 1 culture tube 15 ml

12155, 12159

13083

Adapter for 1 tube 30 ml, max. Ø 25,5 x 90 - 100 mm

12155, 12159

13082

Adapter for 1 tube 50 ml, max. Ø 28,8 x 105 - 110 mm,

12155, 12159

13084

Adapter for 2 tubes 10 ml, Ø 16/17,5 x 75 - 90 mm

12155, 12159

13130

Bucket with thread for 3 culture tubes 15 ml sealable with cap no. 17111

11133

14000

Adapter 20 x 0,25 ml

11136

14002

Adapter 10 x 2,2/1,5 ml

11136

14020

Adapter 10 x PCR-tubes 0,2 or 0,5 ml

11136

14021

Adapter 32 x PCR-tubes 0,2 ml or 4 stripes a´ 8 tubes

11136

13004

Multiple carrier for 5 tubes 7 ml, max. Ø 12,5/16 x 95 - 105 mm

11390

13009

Multiple carrier for 5 tubes 5 ml, max. Ø 12,5/16,5 x 65 - 85 mm, RIA-tubes, Vacutainer-tubes

11390

13012

Multiple carrier for 4 tubes 5 - 15 ml, max.Ø 17 x 90 - 110mm

11390

13097

Round bucket for 1 tube 100 ml, max. Ø 45,5 x 95 - 105 mm

11390

13041

Bucket for round carriers no. 14029, 14030, 14031, 14032, 14033, 14034, incl. polysulfone screw cap No. 17130 (for rotor No. 11192 and 11390, production 2003 and later only)

11192

13150

Carrier incl. polysulfone screwcap No. 17151 for 1 culture tube 50 ml

11390

13152

Carrier for 2 culture tubes 15 ml

11390

14029

Carrier for 5 tubes 7 ml Nr. 15007, 15027 and RIA-tubes 5 ml Nr. 15060, max. Ø 12 x 100 mm

13041

14030

Round carrier for 4 tubes 15 ml no. 15015, 15020, 15023, 15024, max Ø 16,5 x 110 mm, Ø of cap 17 mm

13041

14031

Round carrier for 1 glass tube 25 ml no. 15025, 15026

13041

14032

Round carrier for 1 tube 50 ml no. 15049, 15050, 15056

13041

14033

Round carrier for 4 hemolyse or Vacutainer tubes Ø 12,5/16,5 x 60/70 mm and RIA-tubes 5 ml No. 15060

13041

14034

Round carrier for 3 tubes 15 ml no. 15015, 15020, 15023, 15024, or e. g. Monovettes 9 ml, max. Ø 17,2 x 110 mm, Ø of cap 19 mm

13041

14035

Round carrier for 1 Sterilin-tubes 30 ml with cap, flat bottom, Ø 25/31 x 65 - 95 mm

11390

17920

Centrifuge table, varnished steel container with 2 doors, room to store accessories, movable, with lockable reels, Dimensions: Width 550 mm, Depth 600 mm, Height 497 mm

3K30

13037

Multiple carrier made of synthetic material for 6 x 5-15 ml 17/19x90-110, Monovettes

11390

13064

Adapter 1 x 30 ml 25/31 x 65 mm Sterilin No. 3008

13150

Sigma Centrifuge 3-16PK



refrigerated version of SIGMA 3-16P

  • Universal refrigerated table top centrifuge; speed range up to 15.300 rpm
  • Possibility of pre-cooling the rotors during standstill
    Refrigerant CFC-free (R 134 a)
  • Fast cooling program: Rapid cool
Specifications


Spincontrol Universal
Timer

10 sec - 11 h 59 min
Display

LCD
Time increments [sec]

10, 1
Short run

+
Continuous run

+
Speed increments [rpm]

100, 1
Permanent display preselected,
actual values

+
g-force increments [x g]

10, 1
Temperature increments [°C] (only 3-16PK)

1
Programs

50
Linear acceleration curves

2
Linear deceleration curves

2
Brakeless

+
Auto lid open, switchable

+, +
Acoustic signal, switchable

+, +
Optical display standstill

+
Counting cycles centrifuge

+
Fast cool program Rapid cool (only for 3-16PK)

+
All rotors are pre programmed

+
Control unit lockable

+

Accessories for the SIGMA 3-16PK centrifuge

Rotors

Order No. Description

Max. rpm

Max. rcf.
11132 Swing-out rotor 28 x 15 ml complete, rotor no. 11133, 2 sets buckets no. 13104, 2 sets round carriers no. 17015, 28 PS-tubes 15 ml no. 15020

5.500 min-1

5.242 x g
11133 Swing-out rotor, 4 place, for buckets no. 13104, 13130

5.500 min-1

5.242 x g
11135 Swing-out rotor 24 x 1.5/2.2 ml, incl. 3 sets buckets no. 13124, incl. hermetic aluminium lid

14.000 min-1

16.215 x g
11136 Drum rotor for 6 cassettes no. 14000, 14002, 14020, 14021, for reaction vials (max. 60/192 pcs.), incl. lid

14.500 min-1

16.454 x g
11180 Swing-out rotor, 4 place, for buckets no. 13180, 13190, 13194

4.500 min-1

3.894 x g
11222 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13222, max. height of plates 56 mm

3.000 min-1

1.238 x g
11224 Swing-out cytology rotor complete, rotor 11225, incl. 2 sets buckets no. 13224, 4 inserts no. 15223

3.000 min-1

1.137 x g
11240 Swing-out rotor for microtiter plates, 1 set buckets no. 13145, plate holder no. 17977, max. height of plates 64 mm

4.200 min-1

2.169 x g
12111 Angle rotor 10 x 10 ml, incl. hermetic aluminium lid

15.300 min-1

19.890 x g
12112 Angle rotor 12 x 15 ml, round bottom tubes, Ø 17/22 x 95 - 100 mm, incl. hermetic aluminium lid

9.000 min-1

9.056 x g
12115 Angle rotor, for 12 PCR-strips with 8 tubes 0.2 ml, incl. hermetic aluminium lid

14.000 min-1

21.475 x g
12131 Angle rotor 30 x 1.5/2.2 ml, incl. hermetic aluminium lid

14.000 min-1

21.913 x g
12150 Angle rotor 6 x 50 ml, incl. hermetic aluminium lid no. 17837, max. Ø 28,8 mm

11.000 min-1

11.363 x g
12154 Angle rotor 24 x 1.5/2.2 ml, incl. hermetic aluminium lid

15.300 min-1

21.460 x g
12155 Angle rotor 4 x 80/85 ml, incl. hermetic aluminium lid

10.000 min-1

10.174 x g
12156 Angle rotor 8 x 50 ml, incl. hermetic aluminium lid

10.000 min-1

10.733 x g
12157 Angle rotor 20 x 10 ml, incl. hermetic aluminium lid

10.000 min-1

10.956 x g
12158 Angle rotor 6 x 30 ml, incl. hermetic aluminium lid

15.300 min-1

20.675 x g
12159 Angle rotor 6 x 85 ml, incl. hermetic aluminium lid

8.000 min-1

7.012 x g
12171 Angle rotor for 12 x 15 ml culture, incl. hermetic aluminium lid

9.500 min-1

9.989 x g
12348 Angle rotor 48 x 1.5/2.2 ml, for reaction vials, 1 set holder no. 14348, incl. aluminium hermetic

15.300 min-1

21.984 x g
19776 Angle rotor for 6 x 50 ml culture, incl. hermetic aluminium lid

9.500 min-1

9.384 x g

Accessories

Order no.  Description  Suitable for:
13000 Adapter 0.4 ml (tube order no. 15014) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13002 Adapter 0.5-0.75 ml PCR (tube order no. 15005) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13021 Adapter 0.25-0.4 ml (tube order no. 15042) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13059 Adapter 10 ml (tube order no. 15000, 15010, 15039) for rotor type 30 ml 12158
13060 Adapter 15 ml Culture (tube order no. 15115) for rotor type 50 ml Culture 19776
13062 Adapter 15 ml Greiner (tube order no. 15065) for rotor type 50 ml 12150, 12156
13063 Adapter 15 ml Greiner (tube order no. 15065) for rotor type 85 ml 12155, 12159
13079 Adapter 50 ml (tube order no. 15051, 15052, 15054) for rotor type 50 ml Culture 19776
13080 Adapter 50 ml Culture (tube order no. 15151) for rotor type 85 ml 12155, 12159
13081 Adapter 15 ml Culture (tube order no. 15115) for rotor type 85 ml 12155, 12159
13082 Adapter 50 ml (tube order no. 15051, 15052, 15054) for rotor type 85 ml 12155, 12159
13083 Adapter 30 ml (tube order no. 15029, 15030, 15032) for rotor type 85 ml 12155, 12159
13084 Adapter 10 ml (tube order no. 15000, 15020, 15034) for rotor type 85 ml 12155, 12159
16018 Adapter 15 ml Corex (tube order no. 15022) for rotor type 50 ml 12150, 12156
16019 Adapter 15 ml Corex (tube order no. 15022) for rotor type 85 ml 12155, 12159
16030 Adapter 30 ml Corex (tube order no. 15033) for rotor type 50 ml 12150, 12156
16031 Adapter 30 ml Corex (tube order no. 15033) for rotor type 85 ml 12155, 12159
13104 Sealable bucket 11133
    Accessories for bucket 13104:
13130 Adapter 3 x 5 ml Culture (tube order no. 15115) 13104
15202 PP-bottle 190 ml 13104
15203 PC-bottle 200 ml 13104
17006 Adapter 12 x 5 ml RIA, Hemolyse (tube order no. 15060) 13104
17007 Adapter 12 x 7 ml (tube order no. 15007) 13104
17008 Adapter 12 x 1.5-2.2 ml (tube order no. 15008, 15040) 13104
17012 Adapter 6 x 10 ml (tube order no. 15010) 13104
17015 Adapter 7 x 15 ml (tube order no. 15015) 13104
17018 Adapter 4 x 9-10 ml Monov. + 15 ml 13104
17019 Adapter 3 x 15 ml Culture (without bucket cap) (tube order no. 15115) 13104
17025 Adapter 2 x 25 ml (tube order no. 15025) 13104
17027 Adapter 7 x 5-7ml Vacutainer 13104
17030 Adapter 2 x 25-30 ml (tube order no. 15030) 13104
17032 Adapter 1 x 30 ml Sterilin 13104
17048 Adapter 1 x 50 ml Culture (with skirt) 13104
17049 Adapter 1 x 50 ml Culture (tube order no. 15151) 13104
17050 Adapter 1 x 50ml (tube order no. 15050) 13104
17052 Adapter 1 x 40-50 ml (tube order no. 15052) 13104
17085 Adapter 1 x 78-85 ml (tube order no. 15076) 13104
17100 Adapter 1 x 100 ml (tube order no. 15100) 13104
17111 PC-screw cap 13104
13130 Threaded bucket for 3 x 15 ml Culture, sealable with cap no. 17111 11133
13180 Sealable rectangular bucket 11180
    Accessories for bucket 13180:
17112 Sealing cap 13180
18002 Adapter 20 x 1.5-2.2 ml (tube order no. 15008, 15040) 13180
18005 Adapter 20 x 5ml RIA (tube order no. 15006) 13180
18007 Adapter 20 x 7 ml (tube order no. 15007) 13180
18009 Adapter 20 x 5-6 ml Hemolyse 13180
18010 Adapter 12 x 9-12 ml (tube order no. 15010) 13180
18012 Adapter 12 x 5-7 ml Vacutainer 13180
18015 Adapter 12 x 15 ml (tube order no. 15015) 13180
18016 Adapter 4 x 15 ml Culture (tube order no. 15115) 13180
18017 Adapter 10 x 9-15 ml Monov. + 15 ml (tube order no. 15015) 13180
18018 Adapter 6 x 15 ml Culture (without bucket cap) (tube order no. 15115) 13180
18022 Adapter 4 x 30 ml Sterilin 13180
18025 Adapter 5 x 25 ml (tube order no. 15025) 13180
18030 Adapter 5 x 25-30 ml (tube order no. 15050) 13180
18050 Adapter 2 x 50 ml (tube order no. 15150) 13180
18051 Adapter 2 x 40-50 ml (tube order no. 15152) 13180
18052 Adapter 2 x 50 ml Culture (tube order no. 15151) 13180
18053 Adapter 2 x 50 ml Culture (with skirt) 13180
18085 Adapter 1 x 78-85 ml (tube order no. 15076) 13180
18100 Adapter 1 x 100 ml (tube order no. 15100) 13180
18125 Adapter 1 x 125 ml (tube order no. 15125) 13180
18200 Adapter 1 x 200 ml (tube order no. 15202) 13180
13190 Sealable round bucket 11180
    Accessories for bucket 13190:
17190 Round sealing cap 13190
17344 Adapter 3 x 50 ml Culture (with skirt) 13190
17345 Adapter 5 x 15 ml Culture (tube order no. 15115) 13190
17346 Adapter 5 x 50 ml Culture (tube order no. 15151) 13190
17347 Adapter 1 x 250 ml (tube order no. 15248) 13190
17350 Adapter 24 x 0.5-0.75 ml (tube order no. 15005) 13190
17351 Adapter 12 x 7-9 ml Monovette 13190
17352 Adapter 25 x 5 ml RIA (tube order no. 15006) 13190
17353 Adapter 20 x 1.5-2.2 ml (tube order no. 15008, 15040) 13190
17354 Adapter 16 x 7 ml (tube order no. 15007) 13190
17355 Adapter 12 x 10-12 ml (tube order no. 15010) 13190
17356 Adapter 16 x 5-6 ml RIA, Hemolyse, Vacutainer 13190
17358 Adapter 12 x 9-10 ml Monov. + 15ml (tube order no. 15015) 13190
17359 Adapter 9 x 15 ml Culture (tube order no. 15115 )(without bucket cap) 13190
17362 Adapter 5 x 30 ml Sterilin 13190
17370 Adapter 5 x 25-30 ml (tube order no. 15025) 13190
17375 Adapter 3 x 50 ml (tube order no. 15050) 13190
17376 Adapter 4 x 40-50 ml (tube order no. 15052) 13190
17377 Adapter 4 x 50 ml Culture (tube order no. 15151)(without bucket cap) 13190
17385 Adapter 1 x 78-85 ml (tube order no. 15076) 13190
17390 Adapter 1 x 100 ml (tube order no. 15100) 13190
17393 Adapter 1 x 175 ml Culture (tube order no. 15174)(without bucket cap) 13190
17395 Adapter 1 x 125 ml (tube order no. 15125) 13190
17400 Adapter 1 x 200 ml (tube order no. 15202) 13190
17401 Adapter 1 x 200 ml (without bucket cap)(tube order no. 15201) 13190
13194 Hexagonal bucket 11180
    Accessories for bucket 13194:
18309 Adapter 4 x 50 ml Culture (with skirt) (tube order no. 15151)(without bucket cap) 13194
18310 Adapter 4 x 50 ml Culture (tube order no. 15151)(without bucket cap) 13194
18311 Adapter 10 x 15 ml Culture (tube order no. 15115)(without bucket cap) 13194
17918 Table with 2 doors and lockable castors (H x W x D, 497 x 690 x 635) 3-16PK, 3-18K

Technical specifications

Technical data

3-16PK
Power supply

230 V, 50Hz
120 V, 60Hz
Power consumption [W]

1010
Max. capacity [ml]

4 x 250
Max. speed [rpm]

15.300
Min. speed [rpm]

100
Height x Width x Depth [mm]

355 x 630 x 600
Height with open lid [mm]

785
Interference suppression

EN 61326
Weight without rotor [kg]

78
Kinetic energy max. [Nm]

9.970
Noise level at max. speed (approx.)
- Rotor 12154 at 14.500/15.300 rpm
- Rotor 11132 at 5.000 rpm


60 dB(A)
66 dB(A)
Max. acceleration [sec]
- Rotor 12154
- Rotor 11132


28
20
Max. deceleration [sec]
- Rotor 12154
- Rotor 11132


53
12
Temperature setting range
- Rotor 11132 5.500 rpm [°C]
- Rotor 12154 15.300 rpm [°C]

-10°C - +40°C
<2
<4

Sigma Centrifuge 3-16P



  • Universal table top centrifuge; speed range up to 14.500 rpm
  • Spincontrol Universal
  • Various angle and swing-out rotors available
  • Maximum capacity of 4 x 250 ml down to microtubes with different adapters in the same bucket
  • Maintenance-free induction drive motor
  • Magnetic rotor identification prevents rotor from over-speeding, active rotor identification
  • Stainless steel bowl
  • Window in the lid for external speed control
  • Wearless electric fuse
  • Imbalance switch
  • Motor over excess temperature switch
  • No need to open the casing for emergency lid lock release
  • Easy lid opening due pneumatic spring support
  • Produced according to national and international safety regulations (e.g. IEC 1010)
  • Additional versions are available:
    SIGMA 3-16PK - refrigerated version of 3-16P

Specifications



Spincontrol Universal
Timer

10 sec - 11 h 59 min
Display

LCD
Time increments [sec]

10; 1
Short run

+
Continuous run

+
Speed increments [rpm]

100; 1
Permanent display preselected, actual values

+
g-force increments [x g]

10; 1
Temperature increments [°C] (only 3-16PK)

1
Programs

50
Linear acceleration curves

2
Linear deceleration curves

2
Brakeless

+
Auto lid open, switchable

+, +
Acoustic signal, switchable

+, +
Optical display standstill

+
Counting cycles centrifuge

+
Fast cool programme Rapid cool (only for 3-16PK)

+
All rotors are pre programmed

+
Control unit lockable

+

Accessories for the SIGMA 3-16P centrifuge

Rotors

Order No. Description

Max. rpm

Max. rcf
11132 Swing-out rotor 28 x 15 ml complete, rotor no. 11133, 2 sets buckets no. 13104, 2 sets round carriers no. 17015, 28 PS-tubes 15 ml no. 15020

5.000 min-1

4.332 x g
11133 Swing-out rotor, 4 place, for buckets no. 13104, 13130

5.000 min-1

4.332 x g
11135 Swing-out rotor 24 x 1.5/2.2 ml, incl. 3 sets buckets no. 13124, incl. hermetic aluminium lid

12.500 min-1

12.927 x g
11136 Drum rotor for 6 cassettes no. 14000, 14002, 14020, 14021, for reaction vials (max. 60/192 pcs.), incl. lid

13.000 min-1

13.226 x g
11180 Swing-out rotor, 4 place, for buckets no. 13180, 13190, 13194

4.200 min-1

3.392 x g
11222 Swing-out rotor for microtiter plates, incl. 1 set carriers no. 13222, max. height of plates 56 mm

3.000 min-1

1.238 x g
11224 Swing-out cytology rotor complete, rotor 11225, incl. 2 sets buckets no. 13224, 4 inserts no. 15223

3.000 min-1

1.137 x g
11240 Swing-out rotor for microtiter plates, 1 set buckets no. 13145, plate holder no. 17977, max. height of plates 64 mm

4.200 min-1

2.169 x g
12111 Angle rotor 10 x 10 ml, incl. hermetic aluminium lid

14 500 min-1

17.865 x g
12112 Angle rotor 12 x 15 ml, round bottom tubes, Ø 17/22 x 95 - 100 mm, incl. hermetic aluminium lid

8.000 min-1

7.155 x g
12115 Angle rotor, for 12 PCR-strips with 8 tubes 0.2 ml, incl. hermetic aluminium lid

14.000 min-1

21.475 x g
12131 Angle rotor 30 x 1.5/2.2 ml, incl. hermetic aluminium lid

13.200 min-1

19.480 x g
12150 Angle rotor 6 x 50 ml, incl. hermetic aluminium lid no. 17837, max. Ø 28,8 mm

10.000 min-1

9.391 x g
12154 Angle rotor 24 x 1.5/2.2 ml, incl. hermetic aluminium lid

14.500 min-1

19.275 x g
12155 Angle rotor 4 x 80/85 ml, incl. hermetic aluminium lid

10.000 min-1

10.174 x g
12156 Angle rotor 8 x 50 ml, incl. hermetic aluminium lid

9.000 min-1

8.694 x g
12157 Angle rotor 20 x 10 ml, incl. hermetic aluminium lid

9.000 min-1

8.875 x g
12158 Angle rotor 6 x 30 ml, incl. hermetic aluminium lid

14.500 min-1

18.570 x g
12159 Angle rotor 6 x 85 ml, incl. hermetic aluminium lid

8.000 min-1

7.012 x g
12171 Angle rotor for 12 x 15 ml culture, incl. hermetic aluminium lid

9.000 min-1

8.965 x g
12348 Angle rotor 48 x 1.5/2.2 ml, for reaction vials, 1 set holder no. 14348, incl. aluminium hermetic

14.000 min-1

18.407 x g
19776 Angle rotor for 6 x 50 ml culture, incl. hermetic aluminium lid

9.000 min-1

8.422 x g

Accessories

Order no.  Description  Suitable for:
13000 Adapter 0.4 ml (tube order no. 15014) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13002 Adapter 0.5-0.75 ml PCR (tube order no. 15005) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13021 Adapter 0.25-0.4 ml (tube order no. 15042) for rotor type 1.5-2.2 ml 11135, 12154, 12131, 12348
13059 Adapter 10 ml (tube order no. 15000, 15010, 15039) for rotor type 30 ml 12158
13060 Adapter 15 ml Culture (tube order no. 15115) for rotor type 50 ml Culture 19776
13062 Adapter 15 ml Greiner (tube order no. 15065) for rotor type 50 ml 12150, 12156
13063 Adapter 15 ml Greiner (tube order no. 15065) for rotor type 85 ml 12155, 12159
13079 Adapter 50 ml (tube order no. 15051, 15052, 15054) for rotor type 50 ml Culture 19776
13080 Adapter 50 ml Culture (tube order no. 15151) for rotor type 85 ml 12155, 12159
13081 Adapter 15 ml Culture (tube order no. 15115) for rotor type 85 ml 12155, 12159
13082 Adapter 50 ml (tube order no. 15051, 15052, 15054) for rotor type 85 ml 12155, 12159
13083 Adapter 30 ml (tube order no. 15029, 15030, 15032) for rotor type 85 ml 12155, 12159
13084 Adapter 10 ml (tube order no. 15000, 15020, 15034) for rotor type 85 ml 12155, 12159
16018 Adapter 15 ml Glass (tube order no. 15085) for rotor type 50 ml 12150, 12156
16019 Adapter 15 ml Glass (tube order no. 15085) for rotor type 85 ml 12155, 12159
16030 Adapter 30 ml Glass (tube order no. 15086) for rotor type 50 ml 12150, 12156
16031 Adapter 30 ml Glass (tube order no. 15086) for rotor type 85 ml 12155, 12159
13104 Sealable bucket 11133
    Accessories for bucket 13104:
15202 PP-bottle 190 ml 13104
15203 PC-bottle 200 ml 13104
17006 Adapter 12 x 5 ml RIA, Hemolyse (tube order no. 15060) 13104
17007 Adapter 12 x 7 ml (tube order no. 15007) 13104
17008 Adapter 12 x 1.5-2.2 ml (tube order no. 15008, 15040) 13104
17012 Adapter 6 x 10 ml (tube order no. 15010) 13104
17015 Adapter 7 x 15 ml (tube order no. 15015) 13104
17018 Adapter 4 x 9-10 ml Monov. + 15 ml 13104
17019 Adapter 3 x 15 ml Culture (without bucket cap) (tube order no. 15115) 13104
17025 Adapter 2 x 25 ml (tube order no. 15025) 13104
17027 Adapter 7 x 5-7ml Vacutainer 13104
17030 Adapter 2 x 25-30 ml (tube order no. 15030) 13104
17032 Adapter 1 x 30 ml Sterilin 13104
17048 Adapter 1 x 50 ml Culture (with skirt) 13104
17049 Adapter 1 x 50 ml Culture (tube order no. 15151) 13104
17050 Adapter 1 x 50ml (tube order no. 15050) 13104
17052 Adapter 1 x 40-50 ml (tube order no. 15052) 13104
17085 Adapter 1 x 78-85 ml (tube order no. 15076) 13104
17100 Adapter 1 x 100 ml (tube order no. 15100) 13104
17111 Screw cap polysulfone 13104
13130 Threaded bucket for 3 x 15 ml Culture, sealable with cap no. 17111 11133
13180 Sealable rectangular bucket 11180
    Accessories for bucket 13180:
17112 Sealing cap 13180
18002 Adapter 20 x 1.5-2.2 ml (tube order no. 15008, 15040) 13180
18005 Adapter 20 x 5ml RIA (tube order no. 15006) 13180
18007 Adapter 20 x 7 ml (tube order no. 15007) 13180
18009 Adapter 20 x 5-6 ml Hemolyse 13180
18010 Adapter 12 x 9-12 ml (tube order no. 15010) 13180
18012 Adapter 12 x 5-7 ml Vacutainer 13180
18015 Adapter 12 x 15 ml (tube order no. 15015) 13180
18016 Adapter 4 x 15 ml Culture (tube order no. 15115) 13180
18017 Adapter 10 x 9-15 ml Monov. + 15 ml (tube order no. 15015) 13180
18018 Adapter 6 x 15 ml Culture (without bucket cap) (tube order no. 15115) 13180
18022 Adapter 4 x 30 ml Sterilin 13180
18025 Adapter 5 x 25 ml (tube order no. 15025) 13180
18030 Adapter 5 x 25-30 ml (tube order no. 15050) 13180
18050 Adapter 2 x 50 ml (tube order no. 15150) 13180
18051 Adapter 2 x 40-50 ml (tube order no. 15152) 13180
18052 Adapter 2 x 50 ml Culture (tube order no. 15151) 13180
18053 Adapter 2 x 50 ml Culture (with skirt) 13180
18085 Adapter 1 x 78-85 ml (tube order no. 15076) 13180
18100 Adapter 1 x 100 ml (tube order no. 15100) 13180
18125 Adapter 1 x 125 ml (tube order no. 15125) 13180
18200 Adapter 1 x 200 ml (tube order no. 15202) 13180
13190 Sealable round bucket 11180
    Accessories for bucket 13190:
17190 Round sealing cap 13190
17344 Adapter 3 x 50 ml Culture (with skirt) 13190
17345 Adapter 5 x 15 ml Culture (tube order no. 15115) 13190
17346 Adapter 3 x 50 ml Culture (tube order no. 15151) 13190
17347 Adapter 1 x 250 ml (tube order no. 15248) 13190
17350 Adapter 24 x 0.5-0.75 ml (tube order no. 15005) 13190
17351 Adapter 12 x 7-9 ml Monovette 13190
17352 Adapter 25 x 5 ml RIA (tube order no. 15006) 13190
17353 Adapter 20 x 1.5-2.2 ml (tube order no. 15008, 15040) 13190
17354 Adapter 16 x 7 ml (tube order no. 15007) 13190
17355 Adapter 12 x 10-12 ml (tube order no. 15010) 13190
17356 Adapter 16 x 5-6 ml RIA, Hemolyse, Vacutainer 13190
17358 Adapter 12 x 9-10 ml Monov. + 15ml (tube order no. 15015) 13190
17359 Adapter 9 x 15 ml Culture (tube order no. 15115 )(without bucket cap) 13190
17362 Adapter 5 x 30 ml Sterilin 13190
17370 Adapter 5 x 25-30 ml (tube order no. 15025) 13190
17375 Adapter 3 x 50 ml (tube order no. 15050) 13190
17376 Adapter 4 x 40-50 ml (tube order no. 15052) 13190
17377 Adapter 4 x 50 ml Culture (tube order no. 15151)(without bucket cap) 13190
17385 Adapter 1 x 78-85 ml (tube order no. 15076) 13190
17390 Adapter 1 x 100 ml (tube order no. 15100) 13190
17393 Adapter 1 x 175 ml Culture (tube order no. 15174)(without bucket cap) 13190
17395 Adapter 1 x 125 ml (tube order no. 15125) 13190
17400 Adapter 1 x 200 ml (tube order no. 15202) 13190
17401 Adapter 1 x 200 ml (without bucket cap)(tube order no. 15201) 13190
13194 Hexagonal bucket 11180
    Accessories for bucket 13194:
18309 Adapter 4 x 50 ml Culture (with skirt) (tube order no. 15151)(without bucket cap) 13194
18310 Adapter 4 x 50 ml Culture (tube order no. 15151)(without bucket cap) 13194
18311 Adapter 10 x 15 ml Culture (tube order no. 15115)(without bucket cap) 13194
17919 Table with 2 doors and lockable castors (H x W x D, 515 x 571 x 635) 3-16P, 3-18

Technical specifications

Technical data

3-16P
Power consumption [W]

440
Max. capacity [ml]

4 x 250
Max. speed [rpm]

14.500
Min. speed [rpm]

100
Height x Width x Depth [mm]

355 x 460 x 600
Height with open lid [mm]

770
Interference suppression

EN 61326
Weight without rotor [kg]

48
Kinetic energy max. [Nm]

9.530
Noise level at max. speed (approx.)
- Rotor 12154 at 14.500 rpm
- Rotor 11132 at 5.000 rpm


60 dB(A)
66 dB(A)
Max. acceleration [sec]
- Rotor 12154
- Rotor 11132


29
22
Max. deceleration [sec]
- Rotor 12154
- Rotor 11132


46
11



Sigma 3K15 Refrigerated Centrifuge



  • Refrigerated table top centrifuge with built in refrigeration system.
  • Temperature control of rotors also during standstill. CFC-free refrigerant (R 134a).
  • Minimum temperature approx. 5 °C at maximum speed (ambient temperature 23°C) at 13 000 rpm approx. 0°C.
  • Maintenance-free brushless drive motor with exact speed preselection and display. Speed range 100 to 15 300 rpm, accuracy 1 rpm.
  • Extremely smooth running even at maximum speed.
  • A microcontroller provides for preselection of gravitational field, speed, rotor, time and temperature.
  • 20 acceleration and deceleration curves and 10 program memory locations are available.
  • Magnetic rotor identification prevents overspeeding rotors.
  • Product according to national and international safety regulations (IEC 1010).
  • Nr. 10706 for 230V50Hz

Technical specifications

Power supply [V/Hz] 230 / 50 / 60 or 120 / 60
Power consumption drive [W] 460
Power consumption refrig. [W] 520
Maximum rotational speed [rpm] 15 300
Minimum rotational speed [rpm] 100
Maximum capacity [ml] 4 x 200
Interference suppression 55011 / B
Dimensions: Height x Width x Depth [mm] 375x410x675
Weight without accessories [kg] 64
Max. kinetic energy [Nm] 9970
Noise level at max. speed (approx.) [dB (A)]
Rotor No. 12154 at 14500 rpm 66
Rotor No. 11132 at 5000 rpm < 63
Max. acceleration [s]
Rotor No. 12154 26
Rotor No. 11132 20
Max. deceleration [s]
Rotor No. 12154 41
Rotor No. 11132 28
Min. rotor temperature at 23°C ambient temperature [°C]
Rotor No. 12154
14000 rpm resp. 15300 rpm
+2 resp. +5°C
Rotor No. 11132
5000 rpm resp. 5500 rpm
-2 resp. +4°C

Rotors

Order. no. Description Max. rpm Max. rcf
11222 Swing-out rotor for 2-6 microtiter-plates, incl. buckets no. 13222 3 000 1/min 1100 x g
12154 H Angle rotor 24 x 2,2 - 1,5 ml, e.g. Eppendorf reaction vials no. 15008, 15040, incl. hermetic lid 15 300 1/min 21460 x g
12158 H Angle rotor 6 x 30 ml, for tubes no. 15029, 15030, 15032, 15034, incl. hermetic lid 15 300 1/min 21460 x g
19776 H Angle rotor for 6 Falcon tubes 50 ml no. 15151 incl. hermetic lid 9 500 1/min 9380 x g
19777 H Angle rotor for 10 Falcon tubes 15 ml no. 15115 incl. hermetic lid 9 500 1/min 9380 x g
11133 Swing-out rotor for 4 buckets no. 13104, 13177 5 500 1/min 5410 x g
11132 Swing-out rotor 28 x 15 ml complete, no. 11133, incl. 4 round buckets no. 13117, 4 carriers no. 17015 and 28 PS-tubes no. 15020 5 500 1/min 5040 x g

Accessories

Order no. Description Suitable for:
13117 Bucket, suitable for the system of round carriers, max. length of tubes 112 mm and bottles 200 ml no. 15202, 15203 11133
13104 Bucket for screw cap, suitable for the system of round carriers, max. length of tubes 110 mm and bottles 200 ml no. 15202, 15203, closable with sealing cap no. 17111, incl. O-ring 11133
17111 Round sealing cap made of polycarbonate, clear 13104
17100 Round carrier for 1 tube 100 ml no.15100, 15103, 15106 13117 resp. 13104
17050 Round carrier for 1 tube 50 ml no. 15049, 15050, 15056 13117 resp. 13104
17025 Round carrier for 2 glass tubes 25 ml no. 15025, 15026 13117 resp. 13104
17015 Round carrier for 7 tubes 15 ml no. 15015, 15020, 15023, 15024 13117 resp. 13104
17007 Round carrier for 12 glass tubes 7 ml no. 15007, 15027 13117 resp. 13104
15202 Polypropylene bottle 200 ml, incl. screw cap, ø56.5 x 104 mm 13117 resp. 13104
17014 Round carrier for 12 hemolyse tubes max. ø12.5 x 75 mm 13117 resp. 13104
17018 Round carrier for 4 tubes with cap (e.g. Monovette) 13117 resp. 13104
17027 Round carrier for 7 Vacutainer tubes, max. ø12/16 x 75/80 mm 13117 resp. 13104
17012 Round carrier for 6 tubes with screw cap 10 ml no. 15000, 15010, 15019 13117 resp. 13104
17049 Round carrier for 1 Falcontube 50 ml no. 15151 13117 resp. 13104
17019 Round carrier for 3 Falcontubes 15 ml no. 15115 13117 resp. 13104
17000 Round carrier, two-piece, undrilled
Can be drilled up to max. ø 50 mm		 13117 resp. 13104
15202 PP-bottle 200 ml, incl. screw cup 13117 resp. 13104
15203 PC-bottle 200 ml, incl. screw cup 13117 resp. 13104



Centrifuges - Benchtop - Sigma



Sigma 3-16P

Laboratory centrifuge, aircooled, for universal use in the laboratory

Features include:

For capacities from 0,2 ml up to 250 ml.
Speed and gravitational field are digitally displayed.
Speed range 100 to 14 500 rpm.
A microcontroller provides for preselection of gravitational field, speed, rotor and time.
Automatic rotor identification prevents rotors from overspeeding.

Sigma 3-16PK

Laboratory centrifuge, aircooled, for universal use in the laboratory (refrigerated version of the 3-16P)

Features include:

For capacities from 0,2 ml up to 250 ml.
Speed and gravitational field are digitally displayed.
Speed range 100 to 14 500 rpm.
A microcontroller provides for pre-selection of gravitational field, speed, rotor and time.
Automatic rotor identification prevents rotors from over speeding.


Technical Information

Model: 3-16P 3-16PK
Power consumption [W]  440 1010
Max. capacity [ml] 4 x 250 4 x 250
Max. speed [rpm] 14500 15300
Max. RCF [xg] 21,475xg 21,984xg
Min. speed [rpm] 100 100
Dimensions: h x w x d [mm] 355 x 460 x 600 355 x 630 x 600
Weight without rotor [kg] 48 78
Max. kinetic energy [Nm] 9530 9970



Centrifuges - Benchtop - Sigma

• Laboratory centrifuge for small and middle sample sizes

• Spincontrol Easy
• Illuminated symbol keys start, stop, lid open
• Brushless drive practically maintenance-free
• Speed preselection up to 3.900 rpm
   Low speed operation from 100 rpm possible
• Double lid locking device with latches
• Automated opening of lid; switchable
• Accoustic signal; switchable
• No need to open the casing for emergency lid lock release
• Window in the centrifuge lid for external speed control
• Lid can easily be opened due pneumatic swing support
• Produced according to national and international

Safety regulations (e.g. IEC 1010)
• Backlighted keys for start, stop, lid open

Technical Information

Model: 2-6E
Power consumption [W]  130
Max. capacity [ml] 4 x 120
Max. speed [rpm] 3,900
Max. RCF [xg] 2,466xg
Min. speed [rpm] 100
Dimensions: h x w x d [mm] 300 x 365 x 452
Weight without rotor [kg] 20.4
Max. kinetic energy [Nm] 1610



Centrifuges - Benchtop - Sigma

Sigma 2-16P

Small footprint, extremely versatile bench top centrifuge for swing-out and angle rotors.

Features include:

For sedimentation up to 4 x 100 ml in swing-out rotors or up to 20 000 x g in angle rotors.
Maintenance-free brushless drive motor.
Simple 2-knob preselection of speed, time and rotors, with indication of these datas, imbalance and rotors.
A magnetic rotor identification prevents rotors from overspeeding.
Softstart an Softstop.
Double lid locking device with latches according to VBG 7z.
Stainless steel centrifuge chamber for optimal safety.

Sigma 2-16PK
Universal refrigerated table top centrifuge similar to Sigma 2-16P but with integrated refrigeration system.

Features include:

Low space requirement due to the compact design.
Maintenance-free brushless drive motor.
User friendly preselection and display for gravitational field, speed, rotor, time and temperature.
Temperature control even during standstill of the rotor, CFC-free refrigerant (R 134a).
Efficient refrigeration at low temperatures.
Free programming of all centrifugation parameters, single knob control, LCD-screen on request

Technical Information

Model: 2-16P 2-16PK
Power consumption [W]  240 720
Max. capacity [ml] 4 x 120 4 x 120
Max. speed [rpm] 15000 15300
Max. RCF [xg] 20,627xg 20,627xg
Min. speed [rpm] 100 100
Dimensions: h x w x d [mm] 300 x 365 x 452 310 x 550 x 570
Weight without rotor [kg] 32 60
Max. kinetic energy [Nm] 7750 9962
Interference suppression EN 61326 EN 61326




Centrifuge Sigma 2-5

  • Small laboratory centrifuge for medical labs, schools and research, for speeds up to 3900 rpm.
  • A wide choice of reduction inlets and a multiple carrier for a variety of different tubes enable universal use.
  • Simple 2-knob pre-selection of speed/RCF and time.
  • Short operation with display in seconds cycle.
  • Electronic regulated times of up to 30 minutes or continual run can be selected.
  • Efficient electrical brake for short deceleration and softstop for sensitive sedimentations.
  • As a matter of course this centrifuge includes a double cover closing and locking mechanism. A LED-indicator signalizes when the rotor has stopped and the lid may be opened.
  • Indication of speed/RCF and time.
  • Product compliant with national and international safety regulations (IEC 1010, CE).
  • No. 10134 for 230 V 50+60 Hz
  • No. 10135 for 100/120 V 50+60 Hz
  • No. 10136 with stainless steel bowl and imbalance switch

Technical specifications

Power supply 100-120 V/50+60 Hz, 230V/50+60 Hz
Power consumption 120 W
Maximum rotational speed 4.000 1/min
Maximum capacity 4 x 100 ml / 30 x 15 ml
Interference suppression EN 61326
Dimensions: Height x Width x Depth 300x365x452 mm
Weight without accessories 20 kg
Max. kinetic energy 1.694 Nm
Max. acceleration 28 s
Max. deceleration 28 s

Rotors

Order. no. Description

Max. rpm

Max. rcf
11035 Swing-out rotor 8 x 15 ml complete, no. 11019, incl carriers no. 13020 for several tubes, e.g. ø17 x 100 mm

4.000 1/min

2.379 x g
11036 Swing-out rotor for 2 carriers no. 13020 or 2 buckets no. 13099 or no. 13030

4.000 1/min

2.379/2.522 x g
11030 Swing-out rotor, without buckets, for 4 buckets no. 13020, 13099, 13032

4.000 1/min

2.379/2.522 x g
11031 Swing-out rotor 16 x 15 ml complete, no. 11030, incl. carriers no. 13020 and 16 PS-tubes no. 15020, max. tube dimensions ø17 x 100 mm

4.000 1/min

2.379 x g
11032 Swing-out rotor 4 x 100 ml complete, no. 11030, incl. buckets no. 13099 and 4 glass tubes 100 ml no. 15100

4.000 1/min

2.379 x g
11121 Swing-out rotor for 2 to 6 microtiterplates

4.000 1/min

2.129 x g
12011 Angle rotor 6 x 15 ml complete, for tubes ø17 x up to 130 mm e.g. no. 15015, 15020, 15023, 15024 and for 6 reaction vials 1.5 - 2.2 ml no. 15008, 15040

4.000 1/min

1.717 x g
12012 Angle rotor 8 x 15 ml complete, for tubes ø17 x up to 115 mm e.g. no. 15015, 15020, 15023, 15024 and for 8 reaction vials 1.5 - 2.2 ml no. 15008, 15040

4.000 1/min

1.717 x g
12061 Angle rotor 30 x 15 ml, e.g. Monovettes and Falcontubes 15 ml

4.000 1/min

2.486/2.075 x g
12062 Angle rotor 20 x 15 ml, e.g. Monovettes and Falcontubes 15 ml

4.000 1/min

2.486 x g

Accessories

Order. no. Description Suitable for:
13000 Adapter for reaction tube 0,25/0,4 ml Rotors for 1,5/2,2 ml
13002 Adapter for reaction tube 0,5/0,75 ml Rotors for 1,5/2,2 ml
13021 Adapter for PCR-tube 0,2 ml Rotors for 1,5/2,2 ml
13033 Multiple carrier for 5 RIA-tubes, Vacutainer-tubes ø 12,5/16,5 x 65 - 85 mm 11030, 11036
13035 Multiple carrier made of synthetic material for 4 tubes 5 bis 15 ml, round bottom or conical, max. ø 17 x 90 - 110 mm 11030, 11036
13038 Bucket for 2 x 15 ml culture tubes 11030, 11036
13099 Bucket made of synthetic material 1 x 100 ml for tubes no. 15100, 15102, 15103, 15106 11036, 11035, 11030 und 11031
17950 Adapter 1 x 50 ml for 1 tube no. 15049, 15050, 15056 13099
17925 Adapter 1 x 25 ml for 1 glass tube no. 15025, 15026 13099
17907 Adapter 1 x 7 ml for 1 glass tube no. 15007, 15027 13020
13034 Bucket for round carriers no. 14029, 14030, 14031, 14032, 14033, 14034, incl. polysulfone screw cap 11030
14029 Round carrier for 5 glass tubes 7 ml no. 15007, 15027 and RIA tubes 5 ml no. 15060, max. ø 12 x 100 mm 13034
14030 Round carrier for 4 tubes 15 ml no. 15015, 15020, 15023, 15024, max ø 16,5 x 110 mm, ø of cap 17 mm 13034
14031 Round carrier for 1 glass 25 ml no. 15025, 15026 13034
14032 Round carrier for 1 glass 50 ml no. 15049, 15050, 15056 13034
14033 Round carrier for 4 hemolyse or Vacutainer tubes ø12,5/16,5 x 60/70 mm and RIA-tubes 5 ml no. 15060 13034
14034 Round carrier for 3 tubes 15 ml no. 15015, 15020, 15023, 15024 and Monovettes 9 ml, max ø 17,2 x 110 mm, ø of cap 19 mm 13034
14035 Round carrier for 1 Sterilin-tubes 30 ml with cap, flat bottom, ø 25/31 x 65 - 95 mm 13034
13020 Multiple carrier made of synthetic material for 4 tubes, e.g. ø 17 x 110 mm no. 15015, 15020, 15023, 15024 11036, 11030 und 11032
13031 Sealed bucket with cap, 1 x 50 ml Falcon 11030, 11031, 11032
13060 Adapter 1 x 15 ml Falcon 13031
13037 Multiple carrier for 6 x 5-15 ml 17/19x90-110, Monovettes 11030
13064 Adapter 1 x 30 ml 25/31 x 65 mm Sterilin no. 3008 13031

Benchtop Centrifuge Sigma 1-6P


For sedimentation up to 4 x 100 ml in swing-out rotors or up to 20 000 x g in angle rotors. Maintenance-free brushless drive motor. Simple 2-knob preselection of speed, time and rotors, with indication of these datas, imbalance and rotors. A magnetic rotor identification prevents rotors from overspeeding. Softstart an Softstop. Double lid locking device with latches according to VBG 7z. Stainless steel centrifuge chamber for optimal safety.

•Spincontrol Easy
•Illuminated symbol keys, start, stop, lid open
•Small centrifuge for sedimentation in standard tubes in a 6 place angle rotor
•Short acceleration and deceleration
•Electric brake
•Brushless drive practically maintenance-free
•Speed preselection up to 5650rpm
  Low speed operation at 100 rpm possible
•Doube lid locking device with latches
•Automated opening of lid; switchable
•Accustic signal; switchable
•No need to open the casing for emergency lid lock release
•Window in the centrifuge lid for external speed control
•Produced according to national and international safety regulations (e.g. IEC 1010)


Technical Information

Model: 1-6P
Power consumption [W]  220
Max. capacity [ml] 6 x 30
Max. speed [rpm] 5,650
Max. RCF [xg] 3,034xg
Min. speed [rpm] 100
Dimensions: h x w x d [mm] 245 x 240 x 320
Weight without rotor [kg] 13
Max. kinetic energy [Nm] 980




GET IN TOUCH

Address Wolflabs,
Colenso House,
1 Deans Lane,
Pocklington,
YORK,
YO42 2PX

Telephone 01759 301142

Email Contact Us

WOLFLABS PROUDLY SUPPORT
WOLFLABS ARE A LIVING WAGE EMPLOYER
WOLFLABS ARE CARBON NEUTRAL
All Rights Reserved. Registered in England and Wales Registration No. 03011929 VAT Registration No. 630 9368 34. ISO 9001 & ISO 14001
