Statebourne Cryogenics Transportable Tanks

World Class Solutions in Cryogenic Gases Transportation.

Statebourne builds Cryo-Tanks for any transport application up to 10,000 litres capacity. Designs for chassis mounting, or for fork-liftable loading are constructed in our factory fully approved, inspected, tested and certificated to suit customer’s operational requirements. Where specified, Cryo-Tanks can be mounted in ISO frames to meet special regulations – e.g. Offshore operations.

Our policy has always been to design and build tanks “for life” and we can say that of the many hundreds built in the course of the company’s history, none have failed or been the cause of a safety issue because of the design standard, materials used or construction standards. Indeed, several have survived traffic accidents when the vehicle has not. Better dependability is not available worldwide.

Features

Tanks for truck chassis mounting or as cargo transportables.

Designs to comply with ADR, TPED, IMO, RID, IATA etc.

Secure control compartments.

All Stainless Steel construction, epoxy painted for long life good finish.

Statebourne Cryogenics Static Storage Tanks

Statebourne Cryogenics has built over 10,000 cryogenic pressure vessels in the past 30 years with many hundreds installed in the range 1000 to 22000 litres capacity.

Cryo Tanks for liquid Oxygen, Argon, Nitrogen and Carbon Dioxide (for Liquid Helium see separate page) with operating pressures as high as 34bar have been supplied to most Industrial Gas Companies worldwide.

Our current range of all stainless steel ‘CRYOCYL’ tanks with built in vapourisor and capable of generating 25m3/hour provides an unmatched package of benefits in cryogenic liquid gas storage.

For refrigeration applications, where customers require the withdrawal of liquid nitrogen tanks are designed to operate at low pressures.

All Cryo Tank and Cryocyl units are always supplied with full over-pressure safety protection, instrumentation, control valves and pipework. Certification is provided giving full traceability for design, materials, manufacture and proof pressure testing. All tanks are delivered in a ‘ready to fill and use’ state.

Features

ISO 9001 Design and Build Standards

PED Conformity. CE Marked

Vertical and Horizontal

Custom Designs available

Pressure ratings to 34bar

Installation Service

Statebourne Cryogenics Special Products

Chassis mounted 330 litre cryogenic fuel tank

High vacuum insulated cryogenic containers for many special applications have been designed and constructed by Statebourne Cryogenics Limited over the company’s history of more than 30 years.

If you have an application which is not covered by any of our more ‘standard’ products, we would be pleased to talk to you about it and let you have the benefit of our experience. Our Engineers will find the right answer for any cryogenic liquid gas storage or transport problem and enjoy the challenge.

Special Liquid Oxygen Tanks for the MOD

Features

· First Class Designs and Workmanship

· Total Involvement to provide the Best Solutions

· ISO 9001 Quality Systems standards.

· Many years of experience over a wide variety of applications.

Biotrek Dry Shippers

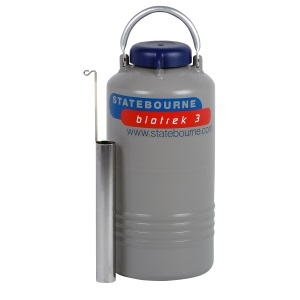

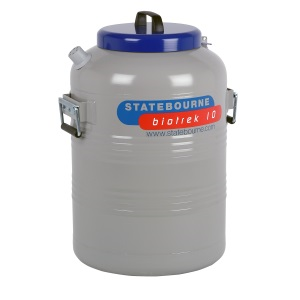

The Biotrek 3 and 10 models are manufactured in aluminium and stainless steel respectively for outstanding durability in the most arduous of field conditions. Internally they both contain a special cryo-absorbent material which absorbs liquid nitrogen to ensure that

 although any samples held are not immersed in liquid they are as close as possible to liquid nitrogen temperature. A wide range of biological specimens may be held in the Biotrek 3 while the Biotrek 10 can also accommodate blood and bone marrow bags because of its extra wide neck and internal configuration.

• Vapour phase cryogenic storage
• Faster LN2 fill times
• Rugged durable construction
• Lockable lids on both models
• Blood bag and heart valve storage in BT10
• No LN2 spillage
• Conforms with IATA Shipping Regulation 202
• Fully CE Marked
• 3 years vacuum warranty
• Optional canister arrangements for BT10
• Straw and cryovial storage options available

                                                                   Biotrek 3           Biotrek 10

No. of canisters                            1                          4
Liquid volume, litres                     3                         10
Static evaporation rate l/day       0.15                    1.25
Static holding time, days             20                        8
Neck diameter, mm                      51                       184
Overall height, mm                        555                     555
Overall diameter, mm                   555                     555
Weight full, kg                                20.4                    31.9
Weight empty, kg                          10.8                    21.0
Vial capacity                                  30                       40

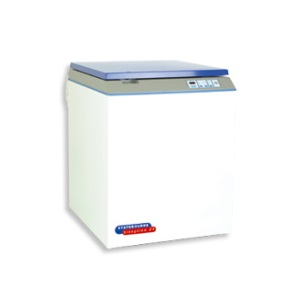

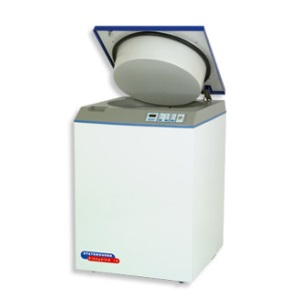

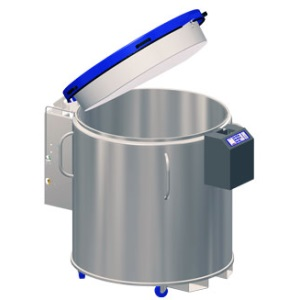

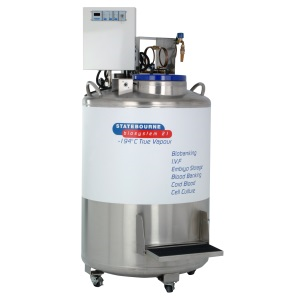

Statebourne Biosystem Series Cryostorage

All Biosystems bulk LN2 refrigerators are designed to provide the user with a fully automated, safe and reliable cryostorage system

Manufactured from high quality stainless steel, Biosystem models are castor mounted with a lockable, hinged lid. Large neck opening gives easy unrestricted access to samples. Storage of biological material can be carried out in either liquid phase at - 196 C or under vapour phase conditions as low as - 190 C.

A choice from eight base models in the range provides storage for up to 67,600 vials in one refrigerator. Safe, automated storage is provided with the security of having the system run and monitored by an integrated microprocessor based controller. Key pad touch control allows for easy set-up and continuous monitoring to provide complete security for your biological material.

The Biosystem microprocessor based controller provides the user with the ultimate in sample security and container reliability.GLP traceability iinformation is provided through accurate data logging facility.

Features

Dual Solenoids fitted as standard to prevent LN2 overfill.

As low as -190°C vapour phase storage temperature

Simultaneous filling (“Daisy Chaining”) with multiple units for liquid economy

Baxtor and Gambro blood bag storage systems.

Custom Built special storage systems available

Cryovial and straw inventory control systems, liquid or vapour.

CE marked in accordance with EC Medical Devices Directive.

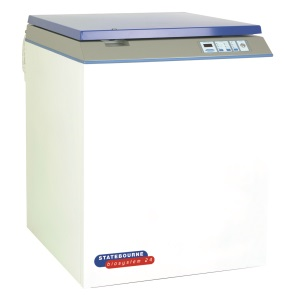

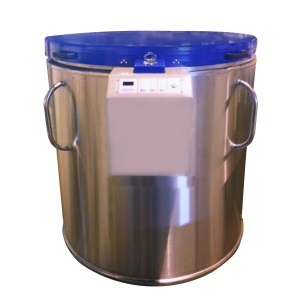

Biosystem

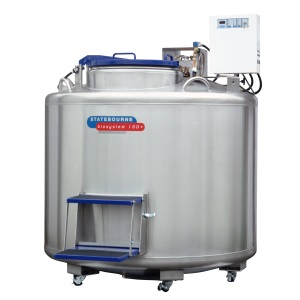

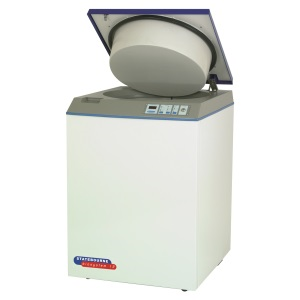

The Biosystem 10 and Biosystem 20 bulk LN2 refrigerators are designed to provide the user with a fully automated, safe and reliable cryostorage system. Manufactured from high quality stainless steel, Biosystem models are castor mounted with a lockable, hinged lid. Large neck opening gives easy unrestricted access to samples. Storage of biological material can be carried out in either liquid phase at - 196¡C or under vapor phase conditions as low as - 170¡C. Large capacity provides storage for up to 22,000 vials. Safe, automated storage is provided with the security of having the system run and monitored by an integrated microprocessor based controller. Key pad touch control allows for easy set-up and continuous monitoring to provide complete security for your biological material.

Biosystem Microprocessor Controller

The Biosystem microprocessor based controller provides the user with the ultimate in sample security and container reliability.GLP traceability information is provided through accurate data logging facility.

Features
Integrated data-logger stores over 3000 events.
LCD temperature and level display.
Alarm indication and self diagnosis by LCD display.
Automatic de-fog on lid opening.
Quick-chill function to quickly reduce inner chamber temperature. This ensures minimal rise in sample temperature.
Security switch prevents unauthorized access to controller set-up.
Alarms and remote alarm signals for:
High temperature High or low LN2 levels.
Sensor failure LN2 supply failure Lid opening.
Automatic LN2 filling and level monitoring.
RS 232 interface for download to printer or PC.
Auto re-start and data retention in the event of interrupted power supply.
EMC Directive - all electronic products are approved in accordance with relevant standards

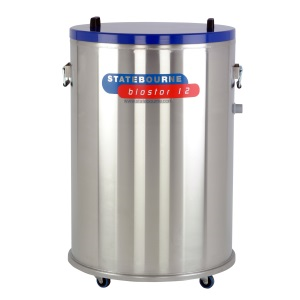

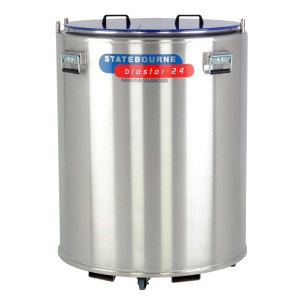

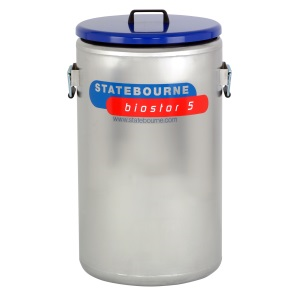

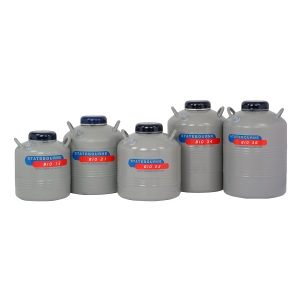

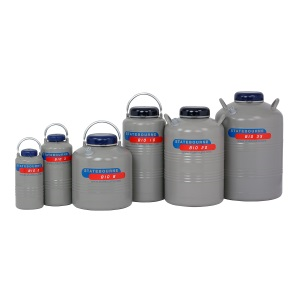

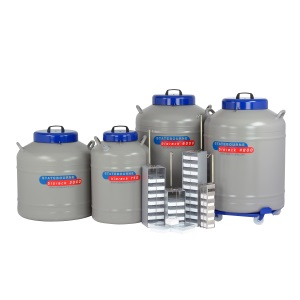

Biostor Range
Features

• Castor mounted, stainless steel vessels.
• Economical, low cost storage system.
• Storage options for vials, straws and blood bags.
• Compatible with all Biosystem and most commonly used storage system.
• LC200 liquid nitrogen autofil kit available to upgrade to automatic filling.
• Biostor 60 has off-set neck for economical LN2 consumption.
• Optional Cryoguard low level alarm for additional security.
• CE marked in accordance with EC Medical Devices Directive.
• 3 Year Warranty
