520 IP66 WASHDOWN PUMPS

• 59% more flow
• 0.4µl/minute to 3.5 litre/minute
• 2200:1 speed control ratio
• Rugged die cast case
• IP66 NEMA 4X ingress protection
• Maintenance-free drive
• Industrial control options

Peristaltic pumps – tube pumps and hose pumps – are the hot new technology: the world's fastest growing pump type1. Watson-Marlow are the world leaders in peristaltic pumps making their simplicity, reliability and ease of use accessible to more and more industries.

The new 520 IP66 NEMA 4X pumps meter, dose and transfer
process fluids, whether corrosive or delicate, even in the harshest environment. They are robust, chemically resistant, mechanically durable. IP66 NEMA 4X protection makes them hosedown and washdown.

Configurable analogue, remote or RS485 control. Low maintenance; minimal downtime; versatile: that adds up to outstanding economy of ownership. Our three-year guarantee proves we mean it.

• Power to work 24/7, with 2.2Nm torque available at all times. Class-leading 2200:1 speed turndown. Set speed accuracy of 0.1% and calibration by volume or weight for accurate metering.
• Control options: manual, analogue, remote, RS485. Logical to programme, easy to manage. Analogue speed input – scalable for diaphragm pump replacement.
• Flexibility: accurate metering of fluids as demanding as sodium hypochlorite (without gas locking), ferric chloride or nitric acid; as delicate as polymers and flavours all with one pump. Comprehensive pumphead and tube options, to match your precise needs.
• Rugged enough for every workplace; watertight to IP66 NEMA 4X. Die cast case with polyester coating for accident and corrosion resistance. Main pumphead construction material withstands corrosive chemicals even at high temperatures.
• Economy: Brushless DC motor, long pump life, long tube life: minimal downtime, whatever the process. Process security through software protection and alarm outputs – low whole-life cost.
• 59% increased flow
• Watertight to IP66 NEMA 4X
• 0.1% speed accuracy
• 2200:1 control ratio

Technical Information

Pumps - Peristaltic - Watson Marlow

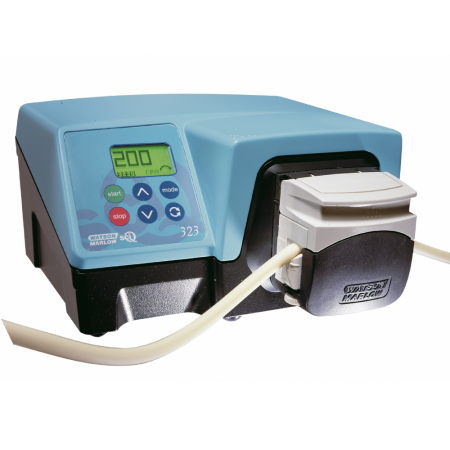

323S/D high-performance manual control variable speed pump

• High-performance microprocessor controlled pumps
• 323S/D can be extended with 313X extension pumpheads to five channels
• Flow rates to 2000ml/min and 133:1 speed control ratio

323S/D speed adjusts in 1rpm steps from 3 to 400rpm. Instantly reversible, rapid-loading flip-top pumphead accepts five tube sizes, keypad lock prevents tampering or accidental changes, auto restart for mains failure recovery, switchable between 100-120V or 220-240V, two year comprehensive warranty. MemoDose facility for accurate single shot dosing. 323S drives may also be fitted with 314 four roller pumpheads if lower pulsing is required, or with 313D2 or 314D2 pumpheads which accept 2.4mm wall thickness tubing for higher pressure operation or pumping more viscous fluids. For low-flow pumping, up to ten channels, 323S drives may be fitted with 314MC (four-roller) and 318MC (eight-roller) microcassette pumpheads, which can be extended to ten channels by adding one 314MCX or 318MCX extension pumphead.

323Du/D digital/analogue auto/manual control variable speed pump

• Precision digital auto-control, RS232 serial communication
• Digital, remote switched or TTL inputs for run/stop and direction
• Manual control or 4-20mA or 0-10V analogue auto-control
• 323Du/D can be extended with 313X extension pumpheads to five channels of flow up to 2000ml/min per channel

323Du/RL speed adjusts in 220 steps from 1.5 to 220rpm. 323Du/D speed adjusts in 1rpm steps from 3 to 400rpm. Instantly reversible, easy-loading flip-top pumpheads accept five tube sizes, keypad lock prevents tampering or accidental changes, auto restart for mains failure recovery, switchable between 100-120V or 220-240V. Control card mounted on the rear panel accepts RS232 signals, 4-20mA or 0-10V analogue autocontrol signals and remote switching of direction and run/stop. MemoDose facility for accurate single shot dosing. Two year comprehensive warranty. 323Du drives may also be fitted with 314 four roller pumpheads if lower pulsing is required, or with 313D2 or 314D2 pumpheads which accept 2.4mm wall thickness tubing for higher pressure operation or pumping more viscous fluids. For low-flow pumping through up to ten channels, 323Du drives may be fitted with 314MC (four-roller) and 318MC (eight-roller) microcassette pumpheads, which can be extended to ten channels by adding one 314MCX or 318MCX extension pumphead.

323Dz/D general purpose benchtop dispenser

• Dispenses 100ml in 3 seconds
• Accurate to within ± 1%
• Menu driven calibration procedure with mid-batch re-calibration
• Dispensing by key press or an additional footswitch/handswitch
• Fitted with 313D three roller pumphead with flip-top design, ensuring easy cleaning and ultra-fast set up
• Also accepts 314D four roller pumphead for greater accuracy and low pulsation
• Extension pumpheads can be fitted for up to six channels of flow

323Dz/D extends the laboratory range with a unique dispensing unit that combines accuracy and versatility. Designed for precise dispensing up to 2.0 litre/minute without the need for stored programs or printed records. The new 323Dz/D general purpose dispensing pump incorporates zero-maintenance brushless DC motors that are dust and contaminant-free. It is simple to use and benefits from a microprocessor control that delivers a dosing accuracy of ±1.0%. Additional features include soft-start "ramp", which reduces splashes and frothing, and a "suck-back" facility eliminates drips at the end of each dose. Digital speed control from 3rpm to 400rpm and instantly reversible. Switchable between 100-120V and 220-240V. 313D and 314D pumpheads accept five bore sizes of tubing. For use with 2.4mm wall thickness tubing, use 313D2 and 314D2 pumpheads (these cannot be extended). The maximum speed a 314D pumphead can be run is 300rpm.

Technical Information

Pumps - Peristaltic - Watson Marlow


205U/CA low-flow multi-channel pumps

• High precision, near-pulseless flow through 4 to 32 channels
• Flow rates from 0.6 microlitres to 22ml/min per channel
• Eight planetary-driven stainless-steel rollers give extended tube life
• 180:1 speed control range and 19 tube sizes give 36,000 :1 control range
• Manual control or analogue auto-control (up to 30V or 32mA)
• Change cassettes without stopping the pump or disturbing other channels

The 200 series provides high-precision pulsation-free pumping. Flow control for each individual channel is provided by multi-turn "click-stop" pressure adjustment on each cassette. Manual and analogue autocontrol options.
The 205CA pumphead with its snap-fit cassettes and sprung track is factory-set for standard applications, but lockable occlusion adjustment allows settings to be optimised when necessary and, uniquely, remain undisturbed during tube changes. 205CA pumpheads accept manifold pump tubing in five different materials and nineteen sizes. Keypad lock prevents tampering or accidental changes. Max high speed priming function. All functionality
controlled from wipe-clean membrane keypad. 0-5V DC tachometer output for speed monitoring, 5V auxiliary output for motor run indication. Remote low voltage, or TTL (PLC compatible) control of start/stop and direction. Selectable dual voltage 100-120V or 220-240V 50/60Hz operation.

Technical Information

Pumps - Peristaltic - Watson Marlow


Fermentation

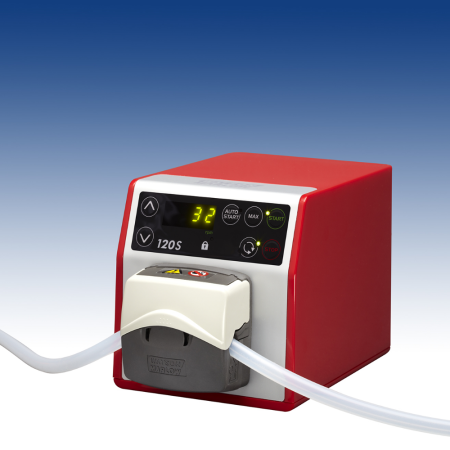

The 120 is the perfect pump for maximising yield in fermentation and cell culture applications. Ultra-compact and stackable for multiple feeds like pH control, antifoam, nutrient and buffer addition, the 120 offers the ideal combination of size and technology to optimise your process.

Single-use systems

The new 120 pump is perfectly suited to singleuse systems where no contamination can be accepted. Error-free tube change takes only seconds, with tubing automatically clamped and tensioned to ensure repeatable performance.

Process validation

The biopharm process requires accurate and repeatable pumping which is easy to validate. With an exceptional 2,000:1 speed range and a selection of USP Class VI tubes, the 120 delivers the flexibility and purity so vital to drug trials. A keypad lock secures your pumping parameters for constant and repeatable performance.

Compact footprint

The compact, stackable 120 pump saves valuable space in cleanroom, LAF and biosafety cabinet installations.

Flexible control

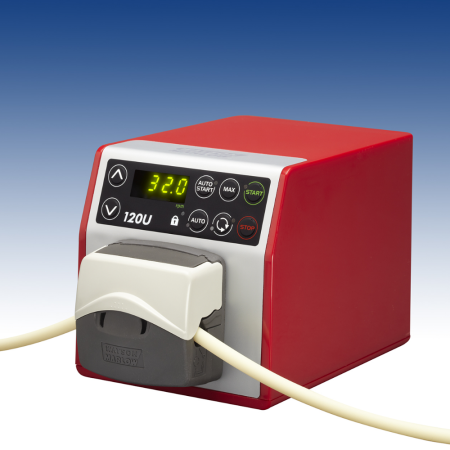

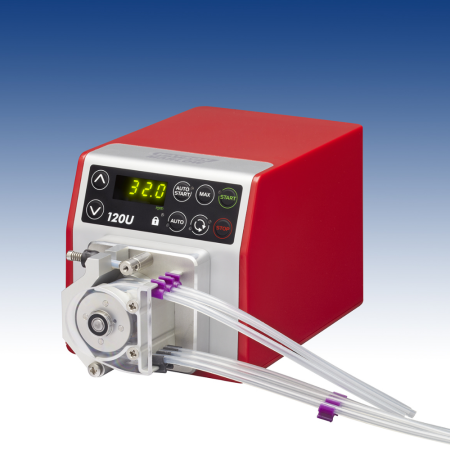

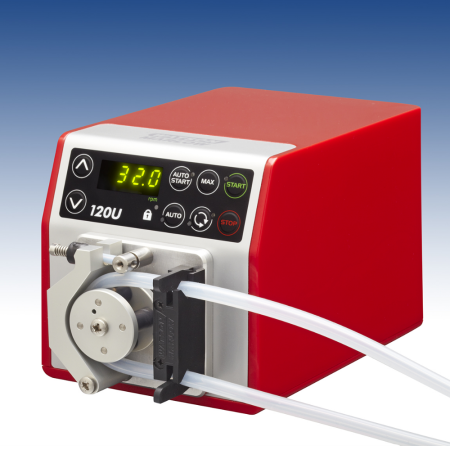

The 120 range of fixed speed, manual control or auto control pumps all guarantee ±1% accuracy, five times better than the nearest competitive peristaltic pump. For ultimate flexibility, the 120U delivers 2,000:1 speed control.

High accuracy flows

The flip-top 114DV pumphead assures trouble-free tube loading in seconds for high accuracy and repeatable flow, and long tube life.

Intuitive use

The 120 pump’s intuitive interface makes the pump easy and quick to setup, with fewer key presses for fewer mistakes. The pump brings maximum efficiency to your process.

Hygienic

The pump case has no sharp edges to tear gloves and no bug traps. Rated to IP31, it is ideally suited for ethanol wipe-down.

Process security

Two of the 120 models feature a keypad lock. The security of your process and product is safe with a 120 pump.

Technical Information
