Monitoring Systems - Dataloggers and Alarms News

Introduction
Monitoring systems Haier UCool LoRa 4G Wireless Monitoring packages from Wolflabs.
Using 433mHz LoRa communication, multiple sensors record data and transmet back to a central gateway, which then communicates to the UCool EMA platform using the mobile network, allowing for remote monitoring of equipment - even in areas with poor network coverage.

Features and benefits
- LoRa wireless ad hoc network communication technology, strong adaptability
- Smart gateway with backup battery, supports data breakpoint with continued transmission
- Powered by battery, the battery life is more than 1 year
- Real-time display of measurement data
- Can achieve the monitoring of cold room door, warehouse door and other door body open-close usage activity
- Can monitor whether the power supply of the public grid is at normal capacity

Introduction
Monitoring systems Haier UCool Pro 4G PT100 Wireless Monitoring packages from Wolflabs.
The external temperature sensor measures the temperature, records and stores the measured temperature values automatically, transmitting them to the UCool EMS platform via the mobile network, allowing for remote monitoring of temperature sensitive products in real time.

Features and benefits
- Plug and Play Technology
- Two replaceable PT100 temperature sensors
- Built-in ambient temperature and humidity sensor
- Supports 2G/4G GSM transmission
- Built-in sound and light alarm
- USB data export (up to 30 days)
- 10-day rechargeable battery life

Introduction
Britannia Monitoring Systems Wireless Monitoring packages from Wolflabs.

Features and benefits
- All readings transmitted are fully encrypted, eliminating false or incorrect readings
- The system can provide both text messages and a voice auto dialler message upon alarm if required
- The system does not rely on a PC or network connection. Fully standalone
- Sensors can be Integral, external or a combination of both, have an LCD display and battery operated allowing them to be portable
- Records a variety of data including temperature, humidity, CO2, O2, mains off, power consumption, PH, conductivity or any other inputs

Prices starting under £635 - http://www.wolflabs.co.uk/laboratory-products/data-loggers-and-alarms

Prices starting at £634 - http://www.wolflabs.co.uk/laboratory-products/data-loggers-and-alarms

Introduction

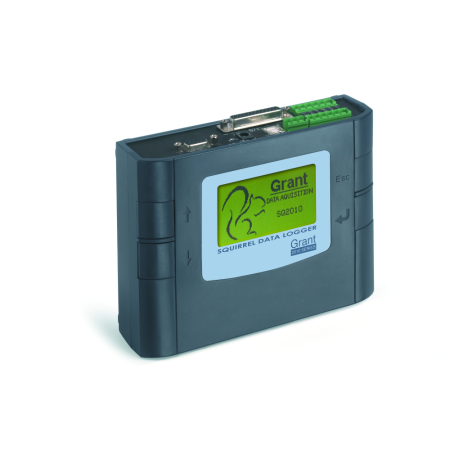

Grant SQ2010 data logger from Wolflabs. The Squirrel 2010 is a versatile, general purpose data logger, with 4 to 8 analogue input channels to measure current, voltage, resistance and temperature; plus 8 digital channels to automatically trigger or stop logging. An RS232 port is included, allowing connection to modems and other networking devices. It is a compact, portable data logger which is also suitable for bench based and fixed installations. Easily programmed via the four integral push buttons and large graphical display and with a basic accuracy of 0.1%, the Squirrel 2010 is able to fulfil many routine data logging needs, including more demanding applications requiring up to 10 readings per second on one channel.

Features and benefits
- Compact, truly portable data logger
- 4 to 8 universal analogue inputs (current, voltage, resistance, temperature) plus 8 digital inputs
- 16 derived / calculated channels
- 2 alarm outputs and 2 pulse counter inputs (1 at up to 64kHz, 1 at up to 100Hz)
- Configured via large easy-to-read graphical display
- 0.1% accuracy of reading
- Store up to 14 million readings
- Supplied with SquirrelView set-up / download software

Introduction

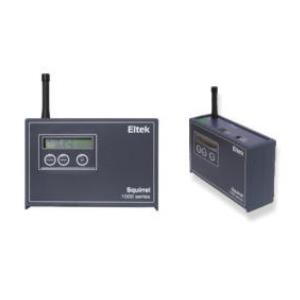

Eltek RX250ALD data logger and alarm system from Wolflabs. The RX250ALD Receiver logger is the heart of a GenII logging system. Because the RX250ALD is responsible for receiving and storing the data, it is not necessary to have a PC permanently connected. The built-in battery means data logging is not interrupted even if there is a temporary AC mains failure. Multiple RX250ALDs can be used for wide area coverage. Alarms (including SMS alarms) come as standard. (To use SMS alarms, a GSM modem is required).

Features and benefits
- Data Logger with integral receiver
- Alarm and GSM text output
- 24 hour built-in standby battery
- 247K readings expandable to 2M readings
- Dual RS232 serial ports
- Transmitter battery alarm
- Display and keypad for "online" metering
- Extensive communications options

Prices starting at £643 - http://www.wolflabs.co.uk/laboratory-products/data-loggers-and-alarms

Introduction

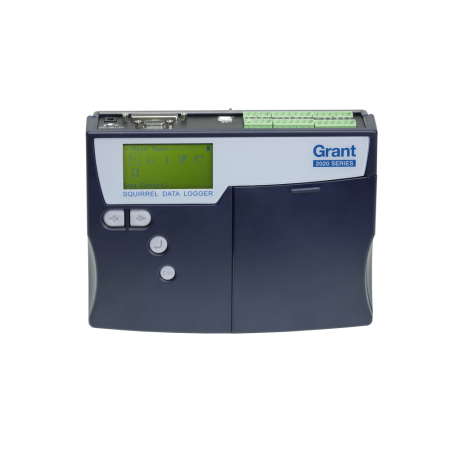

Grant SQ2020 data loggers from Wolflabs. The Squirrel 2020 series offers high performance universal data loggers packed with powerful features to provide great flexibility to handle a wide range of routine and demanding applications. Hand-held and lightweight, the Squirrel 2020 models are easy, fast and convenient to use – either as stand-alone loggers or as PC-linked data acquisition systems in industrial and scientific research and quality assurance applications.

Features and benefits
- Fully configurable via the integrated keypad
- 8 true differential or 16 single ended universal analogue inputs for voltage, current or resistance
- Analogue inputs can be used with thermistors, thermocouples, 2,3 or 4 wire RTD temperature sensors and 4-20mA signals
- Logging rates of up to 100Hz on up to 2 channels (2F8 only)
- Ethernet (2F8 only), USB and RS232 communication ports
- Large non-volatile internal memory storage for up to 14 million readings
- Removable MMC / SD card
- Sensor power and FET outputs for use with external devices
- Clear 128*68 dot graphical LCD display

Introduction

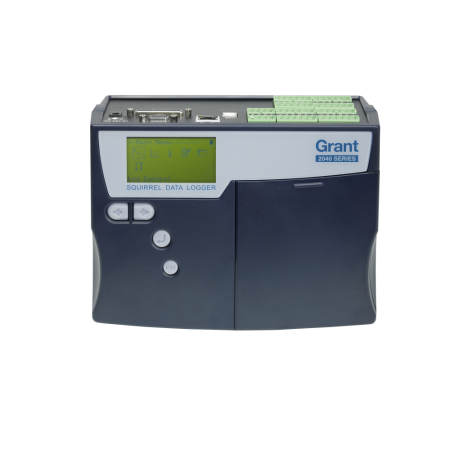

Grant SQ2040 data logger and alarm systems from Wolflabs. The Squirrel 2040 series combines a higher channel count with the same high performance, comprehensive features and universal inputs as the 2020 in a neat compact and portable instrument. Using multiple 24-bit analogue to digital convertors, twin processors and removable memory options the 2040 series provides great flexibility to handle a wide range of complex and demanding multi-channel applications.

Features and benefits
- Fully configurable via the integrated keypad
- 16 true differential or 32 single ended universal analogue inputs for voltage, current or resistance measurements plus 2 high voltage, 4 pulse and 8 digital event/state inputs
- Analogue inputs can be used with thermistors, thermocouples, 2, 3 or 4 wire RTD temperature (4F16 only) sensors and 4-20mA signals
- Logging rates of up to 100Hz on up to 4 channels
- Ethernet, USB and RS232 communication ports
- Internal memory storage for up to 14 million readings
- Download of internal data to removable MMC / SD card
- Sensor power and FET outputs for use with external devices
- Calculated channels derived from real channels using advanced mathematical functions

Introduction

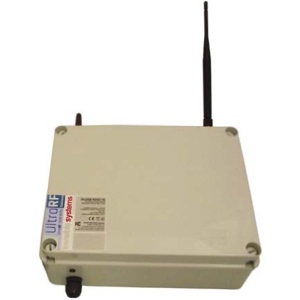

New Ultra RF Gateway data logger and alarm system from Haier has been added.

Features and benefits
- Anytime, anywhere access to real time data and reports from any web enabled device.
- Automated alerts with escalation alarms can also be set to ensure the correct people are contacted in the correct order at the correct time.
- Utilises roaming GPRS which is easy to install and is not reliant on IT. Sensors have a signal range of 15km ensuring robust reporting and minimal infrastructure. Data is transmitted over encrypted lines to prevent hacking.
- Fully featured and documented system with training and certification. IQ/OQ/PQ available for GCLP, GMP and other areas. MKT reports for pharmaceutical storage requirements.
- Suitable for multiple monitoring points over multiple sites – no minimum installation size. System can be expanded as client requirements change.
- Reports can be created and emailed to users on a weekly, monthly or yearly basis.
- A wireless real-time monitoring and control solution for energy monitoring and targeting, temperature monitoring and compliance reporting as well as condition monitoring and M2M.
- Software modules can be tailored to a wide variety of applications with customisable dashboards and screen.
- This is an affordable and flexible product which can be retro-fitted as a standalone system or integrated with an existing BMS. Monitor a room, a building, a site or a global operation.
- There are only three main components: wireless RF transmitters, RF gateway and Realtime Online™. No wires and no need to connect into LAN or Wi-Fi.

Discounts of over 20% - https://www.wolflabs.co.uk/laboratory-products/data-loggers-and-alarms

Data logger and alarm system Grant SQ2010 kit for monitoring up to 8 units for temperature, a variety of gases, humidity and mains supply. The unit uses wired sensors and can be fitted with a dial out option. This is a self-install unit. This unit is not supplied with a probe. Supplied with USB cable for PC connectivity, SuirrelVew Plus software and a mains power cable (MPU-12V).


New SQ16 and SQ16plus data loggers and alarms from Grant have been added.

New Traceable and Excursion data loggers and alarm systems from Cole-Parmer Traceable have been added.
