Flame Photometers News

Introduction
The Model 410 Range has been given an update, and now consists of the Classic (41000009), Industrial (41000209) and Scientific (41000309).

Features:

-          All three Models of 410 Flame Photometer come with a preloaded filter stick
-          The M410 ranges firmware may be updated using a USB stick plugged into the USB A socket
-          An additional front panel LED indicates an air supply is connected and at the required pressure
-          The Analogue output is now via a BNC connector

New products added to website, Sherwood Scientific Flame Photometers, models include: M360 5 Element Propane/Butane, M360 5 Element Natural Gas, M360 Clinical Propane/Butane, M410 Classic, M410 Industrial, M410 Clinical, M420 Clinical, M420 Industrial, and M425 4 Element

All Flame Photometers have had ‘type’ and ‘channels’ attributes added to the application table guide. You will now be able to compare Flame Photometers a little better.

Introduction

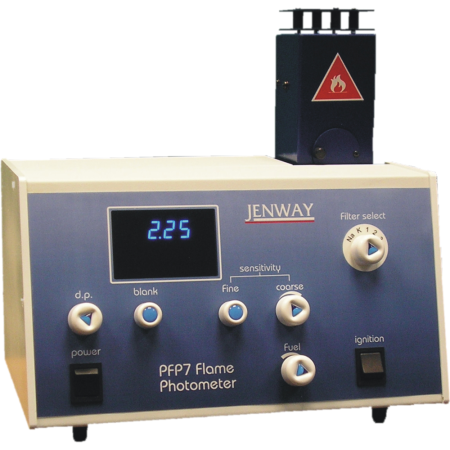

Jenway PFP7 flame photometer from Wolflabs. The PFP7 is a low temperature, single channel flame photometer that is designed for the routine determination of sodium, potassium, calcium, barium and lithium concentrations. The flame failure safety system makes these products ideal for use in industrial and educational environments. The use of fine and coarse sensitivity controls allows for accurate measurements each and every time.

Features and benefits
- Designed for industrial analysis
- Supplied with Na, K, Li, Ba and Ca filters
- Low temperature, single channel
- Flame failure safety system
- Operates with propane, butane, natural gas or LPG

Introduction

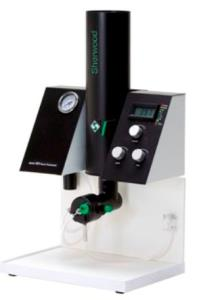

Sherwood Scientific M360 flame photometer from Wolflabs. The model 360 retains at its heart, the well respected mixing chamber and burner design which give the model 410 its renowned stability and performance a solid foundation to add the model 420’s auto flame optimisation technology to. Ease of maintenance has been retained as a key feature and in response to current market trends five filters for Sodium, Potassium, Lithium, Calcium and Barium are standard. Available as a single channel analogue unit in a competitively priced build design, the model 360 makes our proven stable flame and easy to maintain designs available to a greater number of analysts who will gain a better analytical experience than they currently do from operating low cost units.

Features and benefits
- Five element (Na, K, Li, Ca, Ba) single channel flame photometer
- Ergonomic design with front loading, unobstructed sample work area, with removable tray for easy cleaning
- With ease of use resulting from auto ignition and flame optimisation
- Peak picker for presenting unambiguous readings and selected filter indicator
- Safety features including fail safe flame detection and shut off
- High sensitivity with fine manual control of air, and stable flame design
- Ease of maintenance and storage
- Separate pneumatic and electronic pods
- Small footprint (20 x 30cm)
- Easy to remove and clean filter stick

Introduction
Sherwood Scientific M410 Classic flame photometer from Wolflabs. The Model 410 Classic Flame Photometer (475 41 200) comes with Sodium, Potassium and Calcium filters.

Features and benefits
- Ease of use with large, accessible, “upfront” work area for calibrator and sample presentation
- Gas control/flame optimisation
- Ease of maintenance with “no-tools” approach to removing; mixing chamber, burner stem and burner
- Element filters easily accessible for cleaning and/or replacement
- Optical “flame-on” and air pressure detectors for instant fail safe flammable gas containment
- “Cool” chimney
- Full CE Compliance.

Introduction
Sherwood Scientific M420 flame photometers from Wolflabs. The Model 420 Clinical Flame Photometer was developed from the Single Channel Model 410 Flame Photometer, with the objective of improving productivity and analytical performance, when measuring Sodium and Potassium. It is available in Clinical (475 42 000) or Industrial (475 42 100) format with appropriate NIST traceable calibration solution concentrates.

Features and benefits
- Dual Channel operation, allowing both Sodium and Potassium to be calibrated, measured and displayed simultaneously.
- The Model 420 Flame Photometer retains many of the Model 410's attributes: ease of use, ease of maintenance and stable flame design but is enhanced with auto flame optimisation, internal standard referencing and on-board firmware to achieve significant improvement in sample throughput and precision.
- The time taken to set up and calibrate the instrument is much reduced; achieved by automatic ignition and optimisation of the flame conditions.
- The analytical performance is improved by the use of a Lithium Internal Standard signal which compensates for fluctuation in flame conditions.
- There are several monitoring and control functions included in the firmware; thus measurements can only be made after blanking and calibration.

Introduction

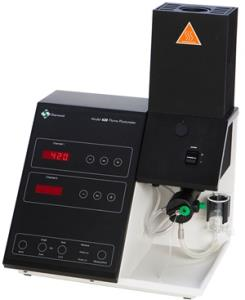

Sherwood Scientific M425 flame photometer from Wolflabs. The Model 425 Flame Photometer (475 42 500) expands upon capability of the Model 420 Flame Photometer with addition of an additional detector and filter for Calcium determination.

Features and benefits
- Readings on both channels are linear over the working range.
- There are several monitoring and control functions included in the firmware driving the model 420 thus measurements can only be made after blanking and calibration.
- Can operate in Continuous or Peak mode. In Continuous mode the instrument displays the current value on each channel and through the analogue ports. An instantaneous reading can be printed at any time. In Peak mode the unit automatically detects a stable reading for transfer to a printer or computer and the display is frozen until the next sample is introduced.
- The model 425 expands upon capability of the model 420 with addition of an additional detector and filter for Calcium determination. It also offers the “301 mode” feature which allows connection to a number of the more popular continuous flow systems.
- Both the 420 and 425 have RS232 output for printer or computer connection and are compatible with our model 860 Autosampler for unattended sample analysis.
- Both models may be used with the model 805 continuous flow diluter, again in-conjunction with or without the model 860 Autosampler.
